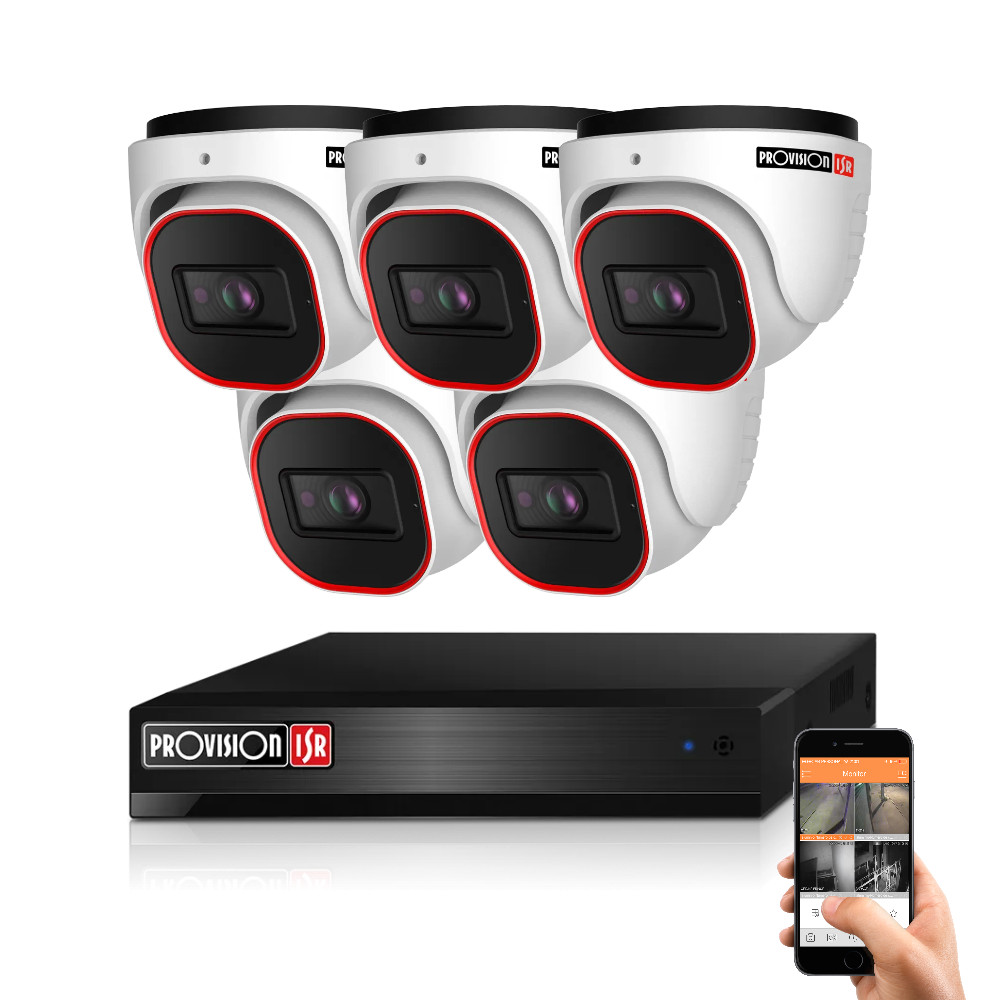

4 megapixel Provision kit with 1 large LED array: 5 dome security cameras with 4MP resolution, white outdoor metal housing, 8-channel 5 megapixel NVR recorder, 10 m LAN cable, 8+2 port switch, power supply and PoE connector. The security system is suitable for monitoring business premises, apartments and holiday homes in Full HD quality. The 5-dome camera IP system also allows surveillance of large areas without signal loss.
Contents of the pre-assembled IP security camera system kit:
Easy to mount on walls or ceilings, with a robust metal housing, so it is ideal for outdoor use as well.
The 4 megapixel resolution delivers sharp images both day and night.
Thanks to the built-in IR LEDs, it provides visibility up to 20 m even in complete darkness. The 2.8 mm lens offers a 107° field of view, allowing you to monitor a larger area with a single camera.
The Provision PR-NVR5-8200XN(MM) recorder can handle up to 8 5 megapixel IP cameras and supports motion detection, cyclic or continuous recording modes. Connected to a monitor or TV, you can view live footage. It also supports remote internet access via mobile app and PC. To store recordings, the unit must be expanded with a hard drive (NOT INCLUDED), up to 6 TB capacity.
If you purchase the hard drive from us, we will install it in the NVR recorder free of charge.
The PoE switch is used to create the IP camera network. Connect the IP cameras and the NVR recorder to it using the supplied cables.
Thanks to PoE, the cameras do not need a separate power supply; they are powered directly from the switch.
The switch has a total of 10 ports: 8 for cameras, 1 for the router and 1 for connecting the NVR.
The cables are delivered pre-assembled; simply connect them to the NVR recorder and the cameras. Only one cable is needed for each camera, as it carries both the video signal and power.
If 10 m is not sufficient, you can choose longer cables: 15 m or 20 m.
Assign an IP address to each IP camera and to the recorder within your own IP address range (make sure no two devices share the same IP address, as this can cause conflicts).
Connect the cameras and the recorder to the PoE switch.
In the recorder settings, add the cameras one by one using automatic search or by entering the previously assigned IP addresses, then save the configuration.
The system is now ready for operation.
Surveillance systems do not have built-in storage, so hard drives must be purchased separately / NOT INCLUDED with the device. If you buy the HDD from us, we will install and initialize it in the recorder free of charge, so you have no extra installation work or cost.
1000 GB HDD hard drive for recording
Approximate storage capacity with continuous recording for 1 camera is about 1 week; with motion detection enabled, it can be up to about 2 months.
NOT INCLUDED
2000 GB HDD hard drive for recording
Approximate storage capacity with continuous recording for 1 camera is about 2 weeks; with motion detection enabled, it can be around 1–2 months.
