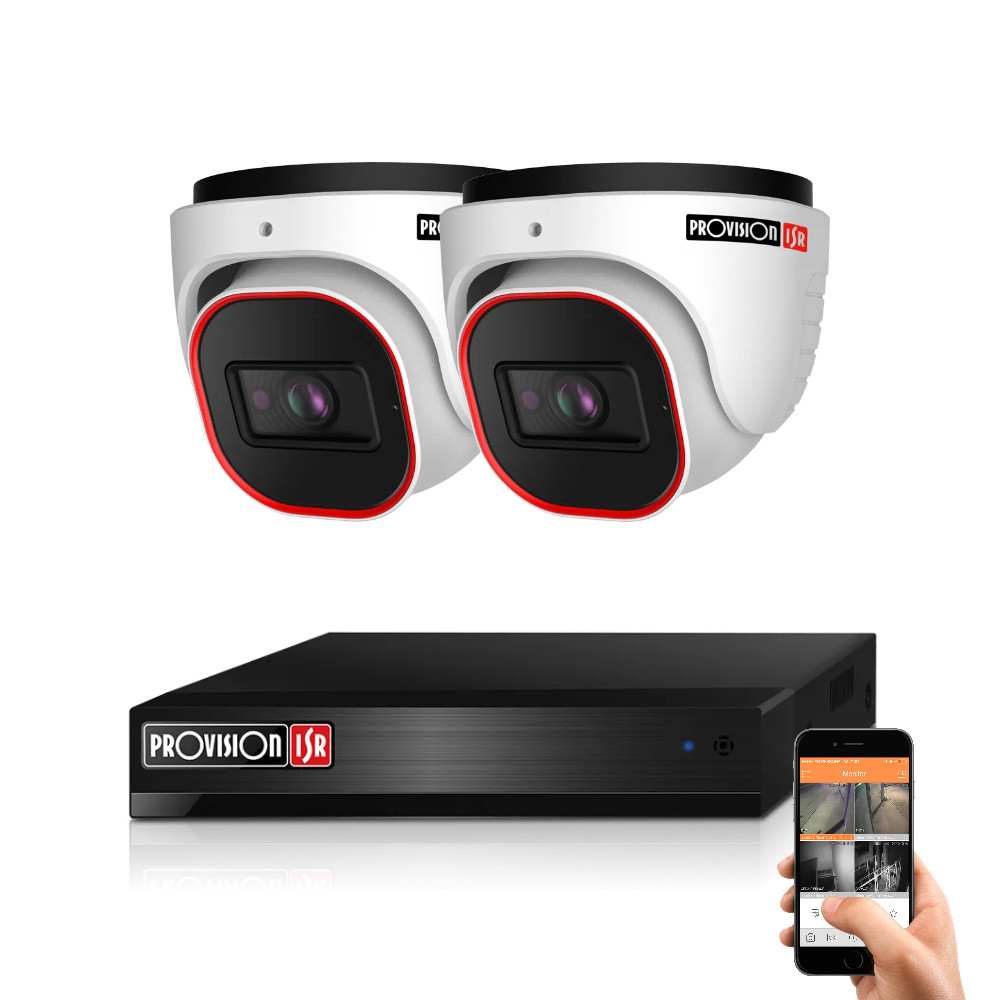

Provision 2 dome surveillance camera IP system 4MP

Provision 4 megapixel 2 dome camera security system

4 megapixel Provision kit with 2 dome security cameras, 4MP resolution, white outdoor metal housing, 4-channel 5 megapixel NVR recorder, 10 m LAN cable, 5-port switch, power supply and PoE connector. The security system is suitable for monitoring business premises, apartments and holiday homes in Full HD quality. The 2-dome camera IP system also allows large areas to be monitored without signal loss.

Contents of the pre-assembled IP security camera system kit

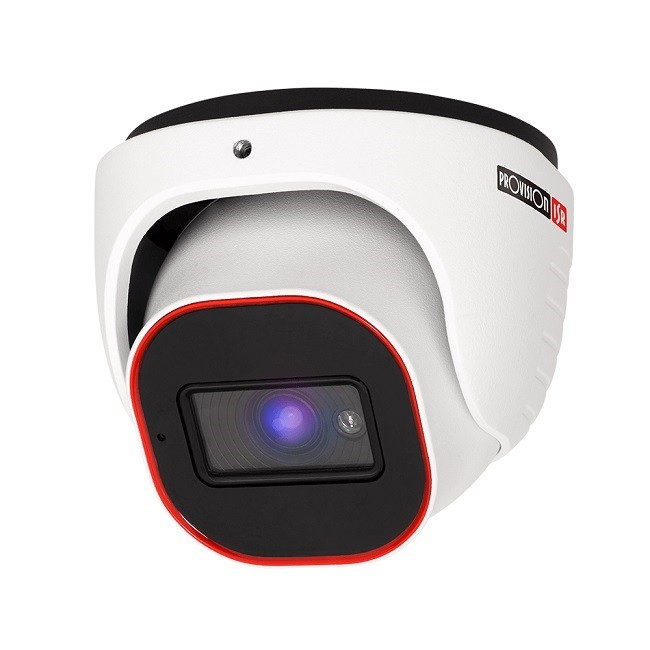

2 x DI-340IPSN-28 night vision 4MP indoor/outdoor IP dome camera

Easy to mount on walls or ceilings, with a durable metal housing for reliable outdoor use.

The 4 megapixel resolution delivers sharp images both day and night.

Thanks to the built-in IR LEDs, the camera provides night vision up to 20 m in complete darkness. The 2.8 mm lens offers a 107° field of view, making it ideal for monitoring larger areas.

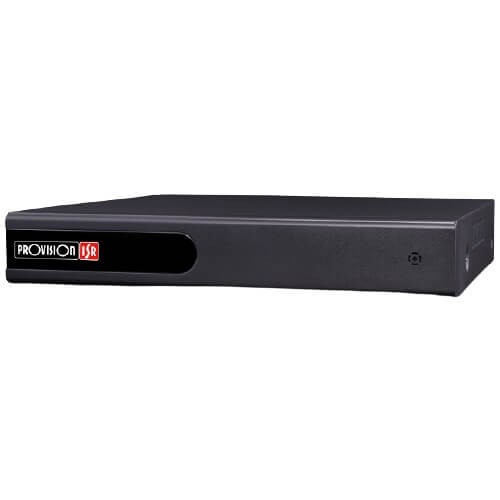

1 x high-resolution 4-channel desktop NVR recorder

The Provision PR-NVR5-4100X+(MM) recorder supports up to 4 5 megapixel IP cameras and offers motion detection, scheduled or continuous recording modes. Connect it to a monitor or TV to view live footage. Remote access is available via mobile app and PC. For video storage, add a hard drive (not included), up to 6 TB capacity.

If you purchase the hard drive from us, we will install it in the NVR free of charge.

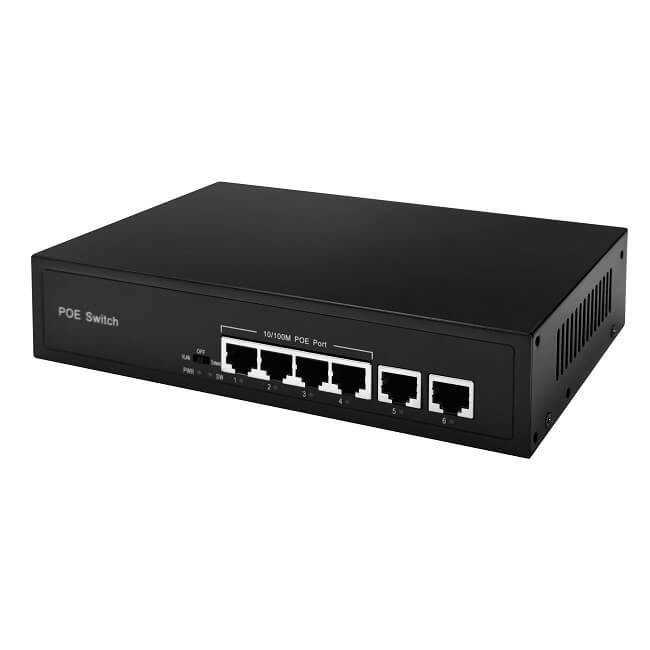

1 x 4+2 port PoE switch

The PoE switch is used to build the IP camera network. Connect the IP cameras and the NVR to the switch using the supplied cables.

Thanks to PoE, the cameras do not need a separate power supply – they are powered directly via the switch. The switch has 6 ports in total: 4 for cameras, 1 for the router and 1 for the NVR.

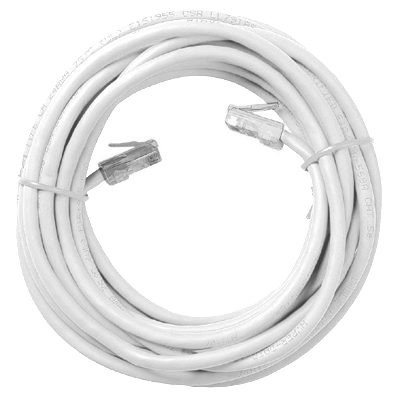

2 x 10 m pre-terminated IP camera cable

The cables are delivered pre-terminated – simply plug them into the NVR and the cameras. Each camera only needs one cable, carrying both video signal and power.

If 10 m is not enough, you can choose longer cables: 15 m, 20 m or 25 m.

IP camera connection and setup

Assign a unique IP address to each IP camera and to the recorder within your local IP range (avoid duplicate IP addresses to prevent conflicts).

Connect the cameras and the recorder to the 5-port switch, then plug the switch into a power outlet using the supplied adapters.

In the recorder’s settings, add each camera using automatic search or by entering the previously assigned IP addresses, then save the configuration.

Your system is now ready to use.

Optional HDD for video recording

The surveillance system does not include built-in storage, so a hard drive must be purchased separately (not included). If you buy the HDD from us, we will install and configure it in the recorder at no extra cost.

1000 GB HDD for recording
Approximate storage time with continuous recording: about 1 week for 1 camera; with motion detection enabled, storage time may be significantly longer depending on activity.
Not included

2000 GB HDD for recording
Approximate storage time with continuous recording: about 2 weeks for 1 camera; with motion detection enabled, storage time may be 1–2 months depending on activity.
Not included

Provision 4MP 2 IP camera package contents

• 1 x Provision NVR5-4100X+(MM) 4-channel NVR recorder
• 2 x Provision 4MP DI-340IPSN28 dome camera
• 1 x 4+2 channel PoE switch

Please also check our IP camera system category and browse our full range of ready-to-use kits.
