6‑camera Hikvision dome security system, TurboHD 5 MP resolution with 30 m night vision

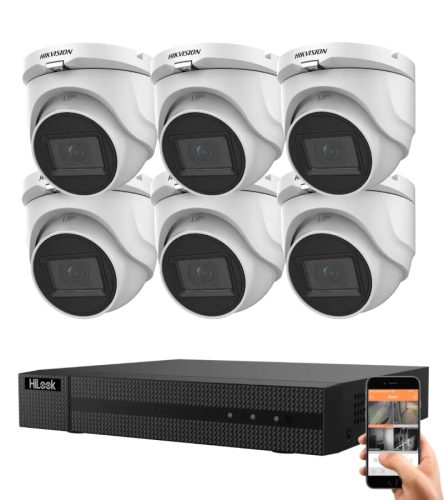

This Hikvision 5 MP dome camera kit is designed for reliable indoor and outdoor surveillance of family homes, offices, apartments and small business sites. The package includes six 5 MP Hikvision dome security cameras (DS-2CE76H0T-ITMFS) with up to 30 m infrared night vision, plus an 8‑channel TurboHD 5 MP DVR (DVR-208Q-M1) with remote access. A complete installation kit (power supply, video baluns, UTP cable, power connectors) is included for straightforward setup and operation.
Hikvision TurboHD‑TVI dome camera
Connect up to 8 cameras to the DVR
Maximum range in complete darkness
Weather‑resistant housing

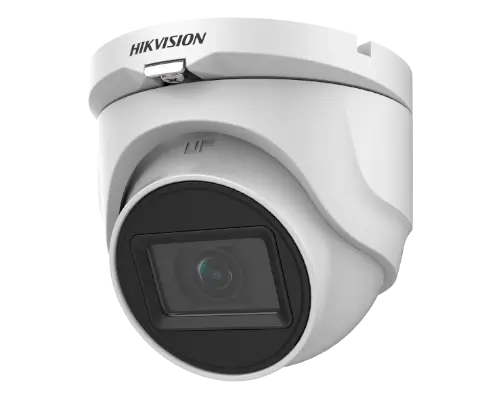

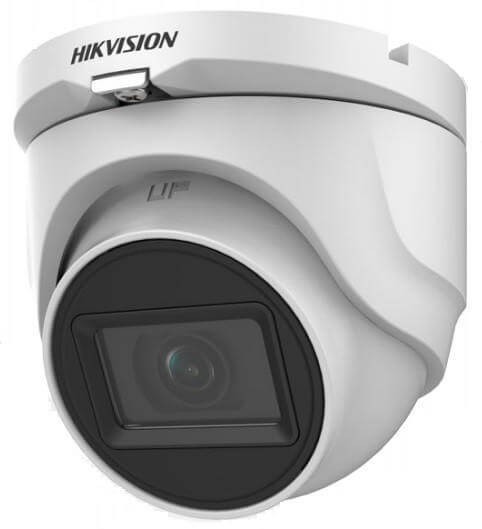

The Hikvision DS-2CE76H0T-ITMFS 5 MP dome camera uses EXIR LEDs to deliver up to 30 m night vision, providing clear images even without external lighting. The 2.8 mm lens offers an approximate 90° field of view to cover wider areas. The modern dome design allows mounting on ceilings or walls, while the IP67‑rated metal housing is suitable for outdoor use in varying weather conditions. The built‑in microphone enables audio recording alongside video.
The Hikvision HiLook DVR-208Q-M1 is an 8‑channel hybrid DVR suitable for home, office and small business systems. HiLook is Hikvision’s value‑focused line, offering practical and easy‑to‑use video surveillance solutions. The unit supports HDTVI, AHD, CVI and CVBS analog cameras and can also handle IP cameras, making it suitable for new installations or expanding existing systems.
Motion Detection 2.0 analytics can distinguish people and vehicles from other movement, helping reduce false alarms and speeding up playback search. On the analog side, the DVR accepts signals up to 3K, 5 MP and 4 MP, and on the IP side it supports IP cameras up to 6 MP. H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 compression provide efficient storage and bandwidth usage. HDMI and VGA outputs allow easy connection to a monitor or TV, and network connectivity enables remote access. The DVR supports one SATA hard drive up to 10 TB (drive not included).
You can choose between two cabling options: a DIY package or a pre‑terminated cable package.
DIY package: Only one cable per camera is required to the DVR, carrying both power and video. The necessary connectors (video baluns and power plugs) are supplied and fitted by the user. A detailed installation guide is available here: Installation guide. Basic tools such as side cutters, a screwdriver and a utility knife are sufficient. The standard package includes 10 m of UTP cable per camera; additional length can be requested when ordering (+180 Ft/m).
Pre‑terminated cable package: In this option, the camera cables are factory‑terminated and ready to plug in, so the DVR, power supply and cameras can be connected without crimping or assembly. The base package includes 10 m COX10 cable per camera. Longer cables are available on request during ordering in 20 m COX20 and 30 m COX30 versions.
The Hik-Connect app lets you manage your Hikvision devices from a single platform. After registration, you can add devices by serial number and access live view, playback and key settings. Notifications can be customized, and camera views can be shared with family members if desired.
