Provision AHD-20 Dome 6-camera security system 5MP

We also recommend the following product as an accessory

• Details
• Data
• Reviews
• Használati útmutató

Details

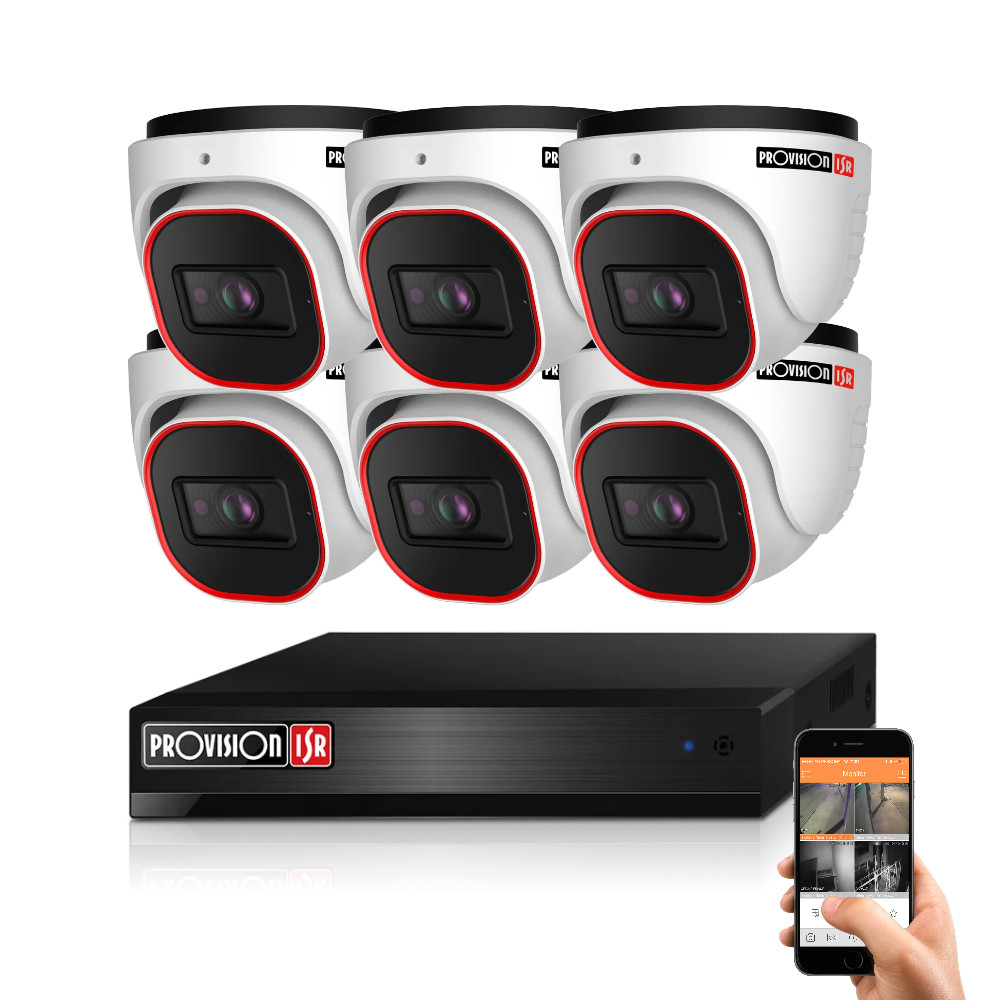

6-camera Provision 5MP 2K dome security camera system with 20 m night vision for outdoor and indoor use

The Provision AHD-20 security camera system offers outstanding 5MP resolution and 20 m viewing distance, delivering sharp, detailed image quality day and night. The kit includes an 8-channel XVR digital recorder that allows remote video access, so you can easily check footage from your home or office cameras anytime, anywhere. Installation is very simple via a single cable, thanks to the included installation kit containing camera power supply, video balun, UTP cable and power connector. A hard drive is not included, but can be purchased separately in our online store. This camera system is an excellent choice for anyone looking for a reliable, easy-to-use security solution for their home or business.

5

MEGAPIXELS

Provision AHD dome camera

8

CHANNELS

Connect up to 8 cameras to the DVR

20 m

RANGE

Maximum viewing distance in complete darkness

IP67

RATING

Weather-resistant housing

6 Provision 5MP 2K dome security cameras for efficient monitoring

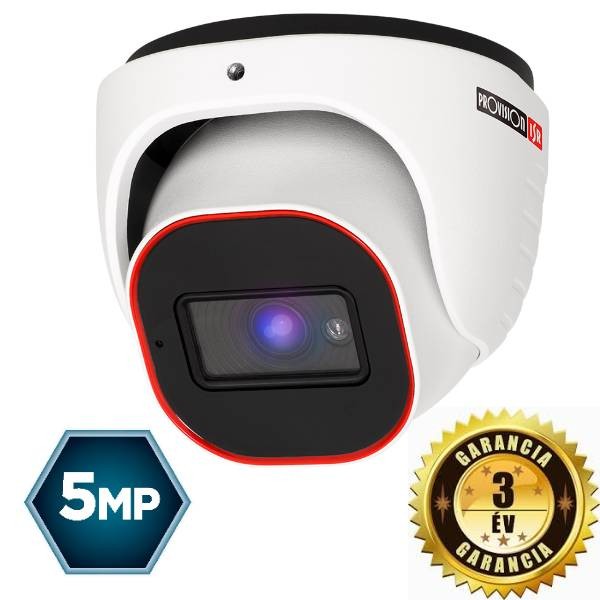

The Provision DI-350A-28 is an advanced 5 megapixel dome security camera, ideal for both outdoor and indoor use. Its 5MP resolution delivers sharp, clear images even in poor lighting conditions. It features a built-in 2.8 mm fixed lens with an approx. 90° field of view. Infrared LEDs ensure up to 20 m viewing distance at night, even in zero light. The metal housing with IP67 water- and dust-resistant rating provides reliable operation in demanding weather conditions.

1 Provision 8-channel 5MP 2K XVR hybrid recorder with smart video analytics

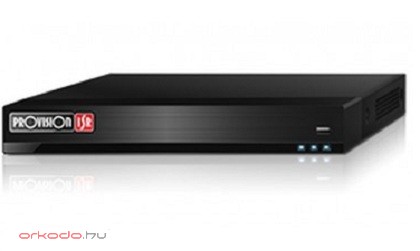

The Provision SH-8100A5N-5L(1U) is a 5 megapixel hybrid digital video recorder. It supports both analogue and advanced IP cameras, delivering excellent image quality and intelligent features. It can handle AHD/CVI/TVI/Analogue cameras on 8 channels and IP cameras on 4 channels. A monitor or TV can be connected via the VGA and HDMI outputs. Recording is available on 8 AHD/CVI/TVI/Analogue channels and 4 IP channels, up to 5MP 2K resolution. It supports playback on up to 4 channels simultaneously with intelligent analytics. Connectivity includes 1 x SATA port (max. 6TB HDD, not included), 2 x USB 2.0 and a 100 Mbps RJ-45 network port.

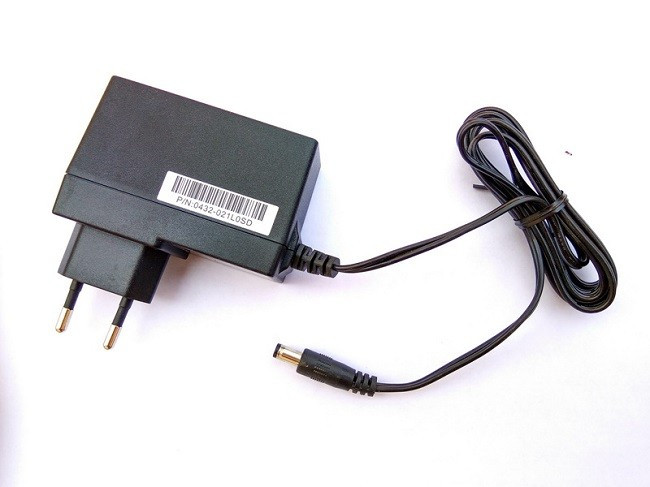

Complete camera system installation kit with all essential parts

For our camera systems, customers can choose between two packages: Do-it-yourself kit and pre-assembled cable kit.

Do-it-yourself kit: Only one cable per camera needs to be run to the central unit, carrying both power and video signal. The required connectors (video balun + power connector) are installed on the cable ends by the customer – to help with this, we have created an installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The package includes 10 m of UTP cable per camera. If you need more cable, you can indicate this in the order comments (+180 Ft/m).

Pre-assembled cable kit: In this case, the connectors are factory-installed on the camera cable ends and cannot be removed, so you only need to connect the recorder, camera power supply and cameras without any wiring work. The basic package includes 10 m COX10 cable per camera. If you need longer cables, just let us know in the order comments (also available in 20 m COX20 and 30 m COX30 versions).

Internet access via Provision Cam2 mobile application

The Provision Cam2 app allows users to fully manage their security devices. The application offers live view, playback and device configuration. AI-based video analytics help reduce false alarms, while users can customise notifications and manage devices remotely. The app also lets you share camera access with family members and other trusted people.

Data

Biztonsági kamerák száma:

6

Kameradesign:

Dome

Functions:

Mozgásérzékelés, Telefonról nézhető, Ember és jármű felismerés, Beépített mikrofon

Reviews

Be the first to write a review!

Write a review

Használati útmutató

Általános használati szerelési utasítás

• Szerelési Telepítési Útmutató
• Provision DVR OSSIA menüvel rendelkező

• Provision DVR/NVR jelszó visszaállítás

---

Letöltések

Provision IP tool	Letöltés
Provision kimentett felvétel lejátszó [OSSIA menüs rögzítőkhöz]	Letöltés
Provision CMS program [Apple MAC OS verzió]	Letöltés
