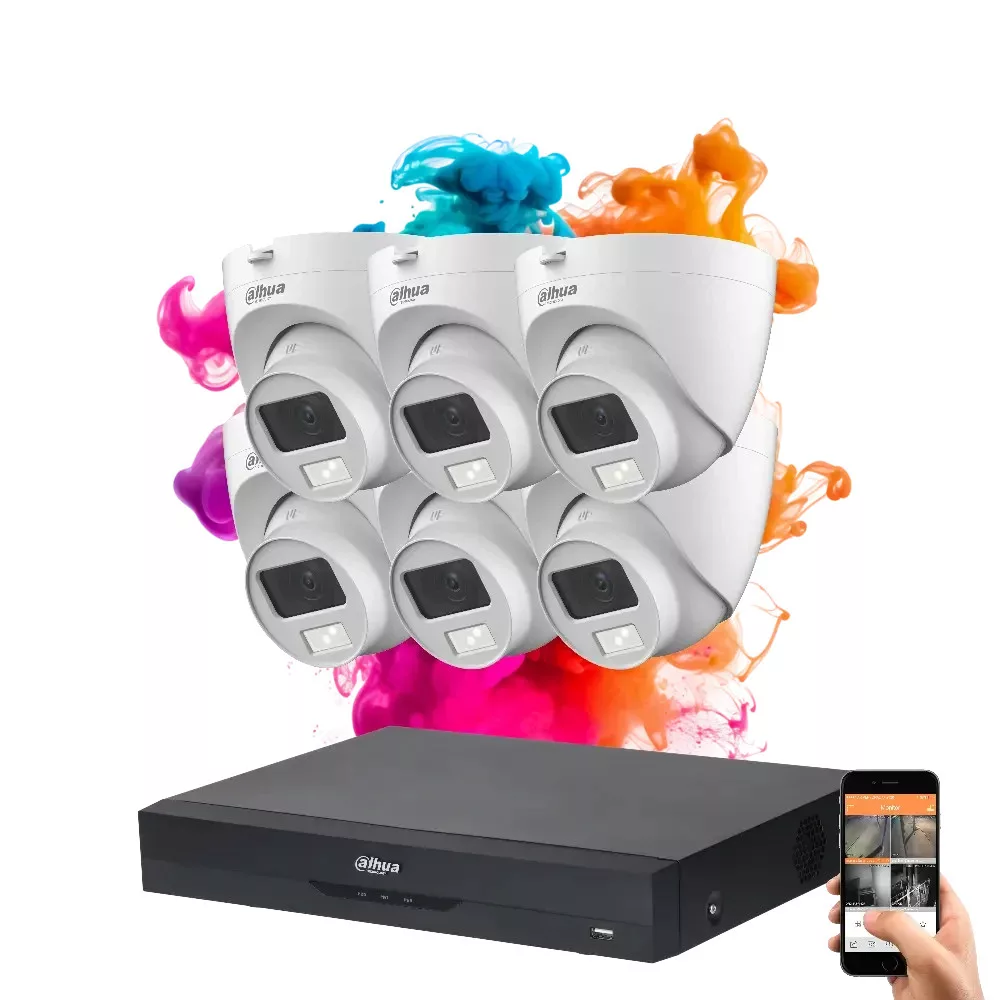

The Dahua HDW1500CLQ-IL-A dome camera system kit is an ideal solution for indoor and outdoor surveillance of family homes, offices, apartments and business premises. The package includes 5 megapixel resolution dome security cameras (HDW1500CLQ-IL-A) that provide excellent colour night images even in complete darkness, thanks to the built-in hybrid illumination with up to 20 m viewing distance using IR LEDs and white light. This Dahua security camera system also includes an 8-channel DVR recorder (XVR5108HS-I2) that enables remote access, so you can monitor footage from your phone. The recorder interface is available in Hungarian for easy operation. The kit includes an installation pack (camera power supply, video balun, UTP cable, power connector), making setup and daily use straightforward.
Storage required for recording is not included; you can choose the capacity that best suits your needs. Compatible hard drives are available at this link. If you purchase the HDD from us, we will professionally install it in your selected camera system.
Dahua HDCVI dome camera
Connect up to 8 cameras to the DVR
20 m colour night viewing distance
Weather-resistant housing

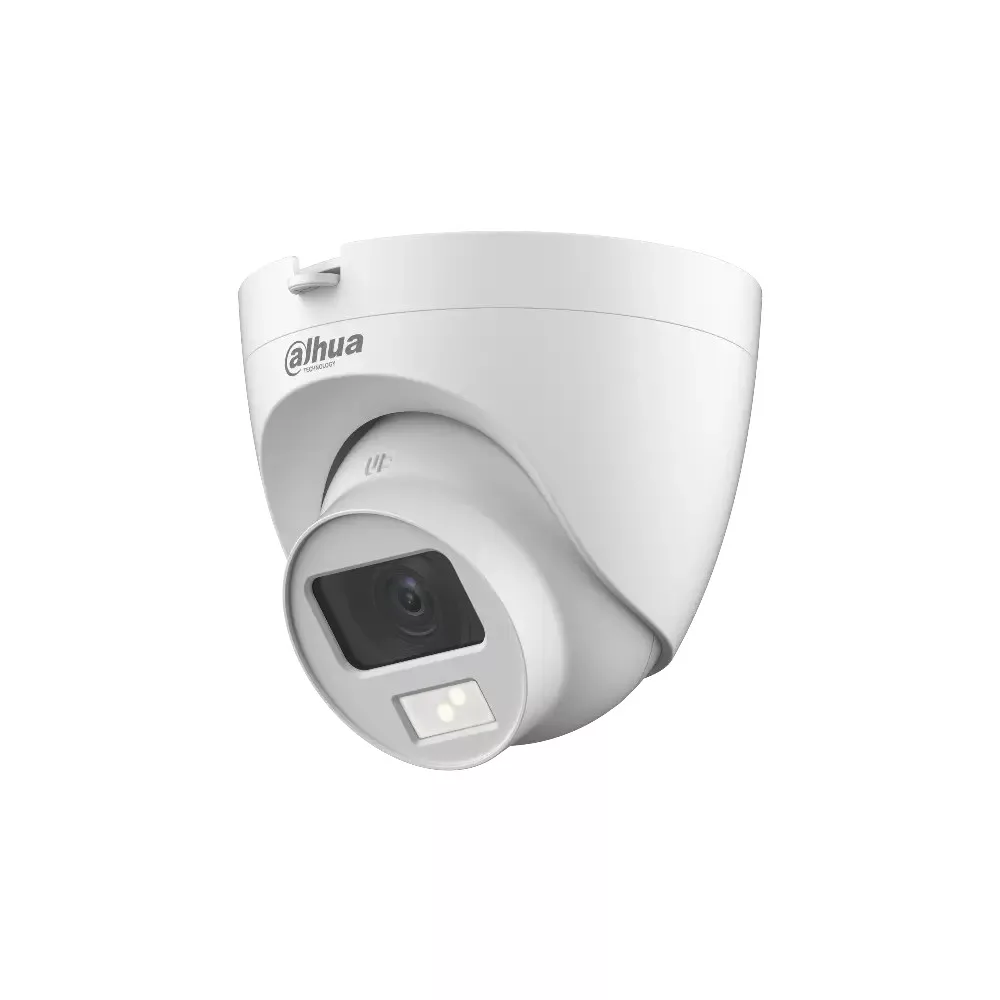

The Dahua HAC-HDW1500CLQ-IL-A security camera features hybrid illumination, colour night imaging and 5 megapixel resolution, suitable for both outdoor and indoor use. Thanks to colour night vision, the camera offers up to 20 m range with IR LEDs and white light illumination. The 5MP resolution delivers detailed, sharp images even in low-light environments. Its IP67-rated housing ensures reliable operation in harsh weather and dusty conditions. The camera also includes advanced features such as noise reduction and backlight compensation to optimise image quality in varying lighting conditions. With its built-in microphone, it can record audio as well.

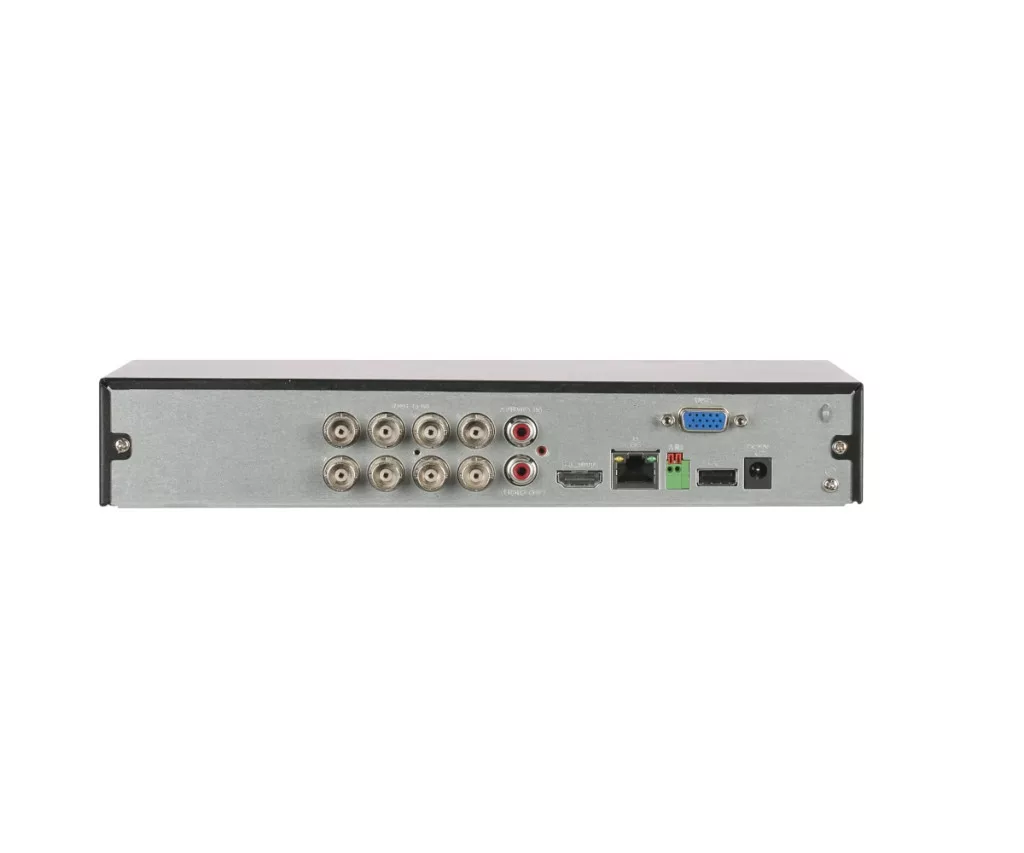

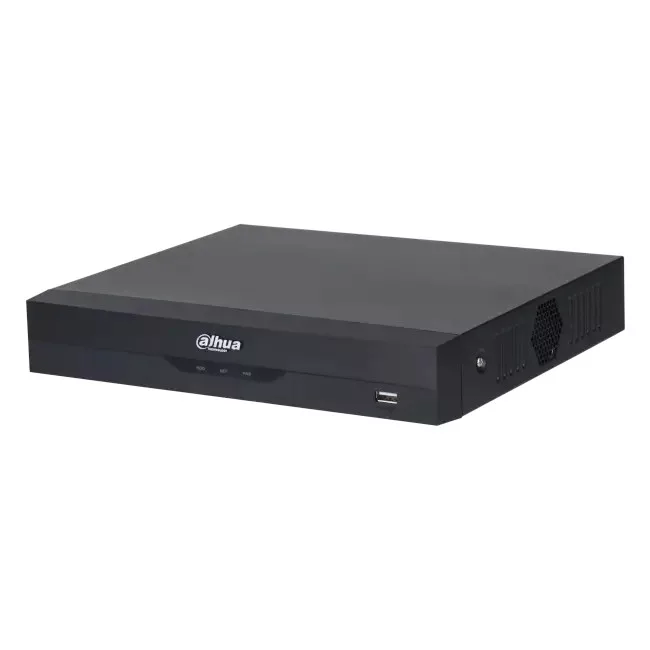

The Dahua HDCVI desktop DVR recorder is designed to provide maximum flexibility and high-resolution recording. Thanks to the HDMI output, footage can be viewed on a large-screen TV or a computer monitor. The XVR supports 8 channels of HDTVI/AHD/CVI/CVBS and 4 IP channels (by converting analogue channels to IP, up to 12 channels total) at up to 5MP 25 FPS per channel. On analogue channels, advanced object classification is available, helping distinguish vehicles and human shapes from other motion such as leaves or light changes, which significantly reduces false alarms. It includes 1 x SATA port (supports up to 16TB HDD, not included), 2 x USB 2.0 ports and a 100 Mbps RJ-45 network port.
For our camera systems, customers can choose between two installation packs: DIY cable kit or pre-assembled cable kit.
DIY cable kit: From each camera to the central unit you only need to run a single cable that carries both power and video signal. The required connectors (video balun + power connector) are fitted by the customer to the cable ends – to help with this, we provide a step-by-step installation guide available at the following link: installation and setup guide. With some basic technical skills, the system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The kit includes 10 m of UTP cable per camera. If you need longer cable runs, simply indicate this in the order notes (+180 Ft/meter).
Pre-assembled cable kit: In this option, the camera cables are supplied with factory-installed, non-removable connectors, so you only need to plug the recorder, camera power supply and cameras together – no wiring work required. The base kit includes 10 m COX10 cable per camera. If you require longer cables, you can let us know in the order notes (also available in 20 m COX20 and 30 m COX30 versions).
The Dahua DMSS app lets users manage all their security devices from a single platform. The application currently supports 29 languages, including Hungarian. It offers live view, playback and device configuration. Users can customise notifications and manage devices remotely. The app also allows you to share camera access with family members or trusted contacts. To download, search for "DMSS" in the Play Store or App Store.
Az alábbi linken található a rőgzítőhöz tartozó leírás:
https://orkodo.hu/shop_ordered/4402/pic/Dahua-leiras.PDF
