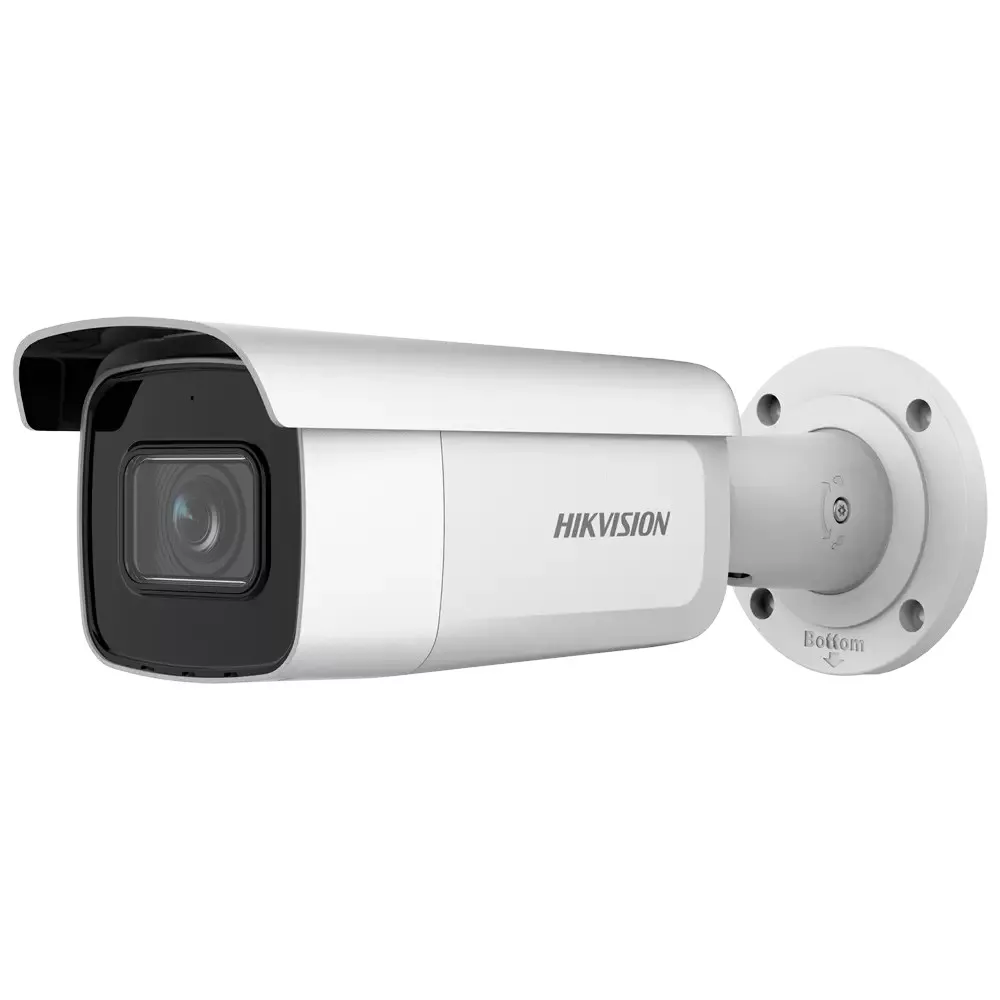

Hikvision DS-2CD2683G2-IZS vandal-resistant 8MP motorized zoom AcuSense IP security camera

Related products

• Details
• Data
• Reviews

Details

Hikvision motorized zoom, vandal-resistant IP security camera with 8MP 4K resolution, AcuSense technology and 60 m night vision range

The Hikvision DS-2CD2683G2-IZS vandal-resistant outdoor IP camera offers 8 megapixel resolution and a varifocal, motorized 2.8–12 mm lens providing a 30°–108° field of view. The IP67-rated housing is water and dust resistant, while the IK10 rating indicates protection against physical impacts. High-performance IR LEDs deliver night vision up to 60 m. The camera features motion detection and WDR technology to improve image quality in challenging lighting conditions (for example, when facing direct sunlight, the camera compensates to keep the image usable). Available smart AcuSense analytics include line crossing, area intrusion, object detection, face detection, and human and vehicle classification. It supports H.265+ compression, which is especially important for IP cameras as it reduces required bandwidth and storage space for recordings. Easy installation is enabled by PoE, as video and power are transmitted over a single UTP cable, eliminating the need for separate cabling. The camera offers 1 alarm input and 1 relay output. It has audio input and output, plus a line output. The device includes a card slot for SD cards.

8

MEGAPIXELS

Hikvision IP camera

2.8-12mm

VARIFOCAL LENS

Camera field of view: 30°–108°

60m

RANGE

Maximum viewing distance in complete darkness

IP67, IK10

RATING

Resistant to external impacts

Detailed technical specifications

CAMERA TYPE	IP camera
DESIGN	Bullet camera
VIDEO STANDARDS	IP
MOST POPULAR FEATURES	Motorized zoom, SD card, True WDR, Microphone connector, Two-way audio
MEGAPIXELS	8 MP
INSTALLATION LOCATION	Outdoor
COLOR	White
HOUSING MATERIAL	Metal
CAMERA FEATURES	True WDR, BLC, ROI, HW Reset, P2P, SD card slot
INGRESS PROTECTION	IP67
VANDAL RESISTANCE	IK10
SENSITIVITY	0.005 Lux
LENS TYPE	Varifocal
FOCAL LENGTH	2.8–12 mm
FIELD OF VIEW	30°–108°
IRIS	Fixed
NIGHT MODE	Mechanical day/night
ILLUMINATOR	IR LED

ILLUMINATION DISTANCE	60 m
ELECTRONIC SHUTTER SPEED	1/3–1/100000
SHUTTER	Auto, Adjustable
COMPRESSION	H.264, H.265
ROI	Yes
AGC	Yes
NOISE REDUCTION	3D DNR
WIDE DYNAMIC RANGE	True WDR
WDR VALUE	120 dB
BACKLIGHT COMPENSATION	BLC
MOTION DETECTION	Yes
ALARM TYPE	Motion, Tamper
CONFIGURATION INTERFACE	Web
AUDIO	Audio input, Audio output
ALARM INPUTS	1
RELAY OUTPUTS	1
HW RESET	Yes
CONNECTORS	DC-in, LAN, PoE, Audio-in, Audio-out, Alarm-in, Alarm-out
SD CARD CAPACITY	Max. 512 GB Micro SD – video and snapshot recording
NETWORK PROTOCOLS	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
POWER SUPPLY	12 V DC
MAX POWER CONSUMPTION	15 W
OPERATING TEMPERATURE	-30 °C to +60 °C
DIMENSIONS	98 mm × 93 mm × 308.5 mm
WEIGHT	1385 g

Data

Kameradesign:

Cső

Area of ​​use:

Kültér és beltér

Functions:

, , , , , , ,
