Dahua DH-SD3E405DB-GNY-A-PV1 4MP PTZ zoom IP camera

Related products

• Details
• Data
• Reviews

Details

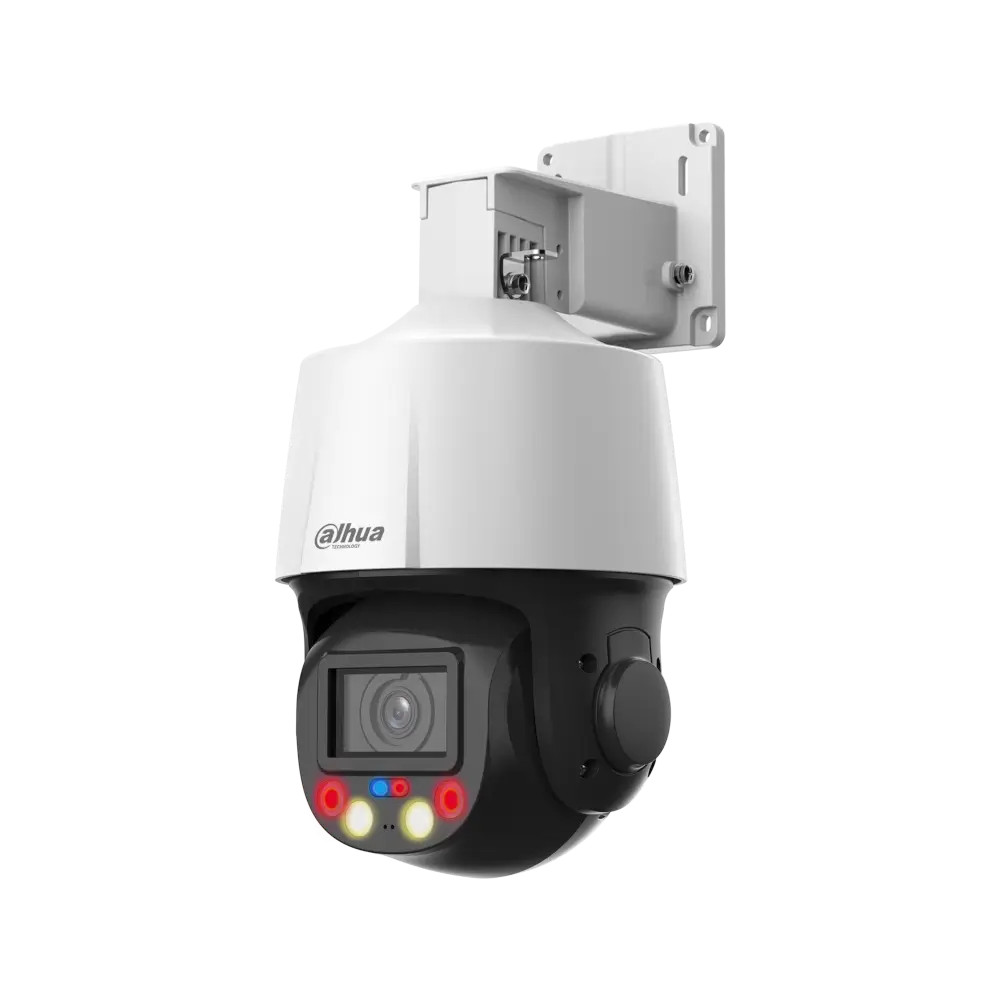

Dahua DH-SD3E405DB-GNY-A-PV1 4MP PTZ zoom IP camera with color night vision

The Dahua DH-SD3E405DB-GNY-A-PV1 outdoor PTZ IP camera offers 4-megapixel resolution and 5× optical zoom with a wide 94.9° field of view. Its IP66-rated housing withstands harsh weather, making it ideal for long-term outdoor use. The camera features Smart Dual Light illumination: it uses infrared light by default, and when it detects human or vehicle movement, it automatically switches on white light to deliver detailed color night images up to 30 meters. Infrared range is up to 50 meters. The built-in microphone and speaker enable two-way audio, and the active deterrence function triggers red-blue flashing lights and an audible alarm in case of intrusion. The camera uses AI (WizSense) for motion detection, which can distinguish between people and vehicles to significantly reduce false alarms. It supports auto-tracking and can perform face detection, saving faces of people passing through the scene. WDR (120 dB) improves image quality in high-contrast lighting, while Smart H.265+ compression efficiently reduces bandwidth and storage requirements. The camera records to a MicroSD card (max. 512 GB, not included) and supports PoE+ power, so power and data are transmitted over a single cable.

4

MEGAPIXEL

Dahua PTZ IP camera

2.7-13.5 mm

VARIFOCAL LENS

Adjustable field of view between 30° and 95°

30 m

COLOR NIGHT VISION

Up to 50 m maximum viewing distance in complete darkness

IP66

RATING

Weather-resistant outdoor housing

Detailed technical specifications

CAMERA TYPE	IP camera
DESIGN	PTZ dome
VIDEO STANDARDS	IP
KEY FEATURES	Hybrid light, Active deterrence, SD card recording, Motorized zoom, True WDR, Built-in microphone and speaker, Two-way audio
MEGAPIXELS	4 MP
INSTALLATION LOCATION	Outdoor
COLOR	White
HOUSING MATERIAL	Metal
CAMERA FUNCTIONS	True WDR, HLC, BLC, Defog, EIS, ROI, P2P, SD card slot
MAX RESOLUTION @ FPS	2560x1440@25fps
INGRESS PROTECTION	IP66
AVAILABLE RESOLUTIONS	2560x1440, 1920x1080, 1280x960, 1280x720, 704x576, 352x288
IMAGE SENSOR	1/2.8" CMOS
SENSITIVITY	0.005 Lux
LENS	Varifocal, adjustable
FOCAL LENGTH	2.7-13.5 mm
FIELD OF VIEW	30°-95°
FOCUS MODE	Auto, semi-auto, manual
MOTORIZED ZOOM	5x optical
IRIS	Fixed
ILLUMINATION MODE	IR LED, White LED, Smart Light (SMD)
ILLUMINATION DISTANCE	30 m color, 50 m IR (black & white)
ELECTRONIC SHUTTER SPEED	1/3 - 1/100000
SHUTTER MODE	Auto

COMPRESSION	H.264, H.265
NOISE REDUCTION	2D DNR, 3D DNR
WIDE DYNAMIC RANGE	True WDR
BACKLIGHT COMPENSATION	HLC, BLC, Defog, EIS
MOTION DETECTION	Yes
ALARM TYPES	Motion, Video analytics, Tamper, Illegal login, IP conflict, Network loss, System error, Audio change, Storage error
HEATER	Yes
CONFIGURATION INTERFACE	Web
ALARM INPUTS	1
RELAY OUTPUTS	1
CONNECTORS	DC-in, LAN, PoE, Audio input, Audio output, Alarm-in, Alarm-out
SD CARD CAPACITY	Max. 512 GB MicroSD (not included) - video and snapshot recording
PAN RANGE	0° - 355°
TILT RANGE	-15° - 90°
PTZ SPEED	Pan: 0.1° - 36°/s, Tilt: 0.1° - 25.8°/s
PRESET POSITIONS	300
PATROL ROUTES	8 x 32
AUDIO	Built-in microphone, Built-in speaker, Audio input, Audio output
NETWORK PROTOCOLS	FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;SMB;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP
POWER SUPPLY	12 V DC, 802.3af PoE
MAX POWER CONSUMPTION	15 W
OPERATING TEMPERATURE	-30 °C to +60 °C
DIMENSIONS	142.6 x 140 x 236.1 mm
WEIGHT	1500 g

Data

Kameradesign:

Dome

Area of ​​use:

Kültér és beltér

Functions:

Mozgásérzékelés, Telefonról nézhető, Ember és jármű felismerés, Beépített mikrofon, Kétirányú hang (mikrofon + hangszóró), SD-kártya bemenet, Forgatható, PoE (Power over Ethernet), Színes éjszakai kép, Zoomolható, állítható objektív, Fény és hangjelzés, Arcdetektálás

Website:

https://material.dahuasecurity.com/uploads/cpq/prm...
