Amiko XVR820 5MP 8-channel hybrid desktop DVR recorder

Name: Amiko XVR820 5MP 8-channel hybrid desktop DVR recorder
Brand: Amiko
SKU: XVR840
Price: 90.45 EUR
Availability: InStock

In stock 1 pcs

RRP: 90.45 €

90.45 €

Savings

Beszerelt-ellenőrzött HDD

4,8 / 5 4 736 vásárlói értékelés

Garancia24 hónap

Szállítás1–2 munkanap

Műszaki segítségorkodo@orkodo.comMunkaidőben: 06 20 379 2733

Details

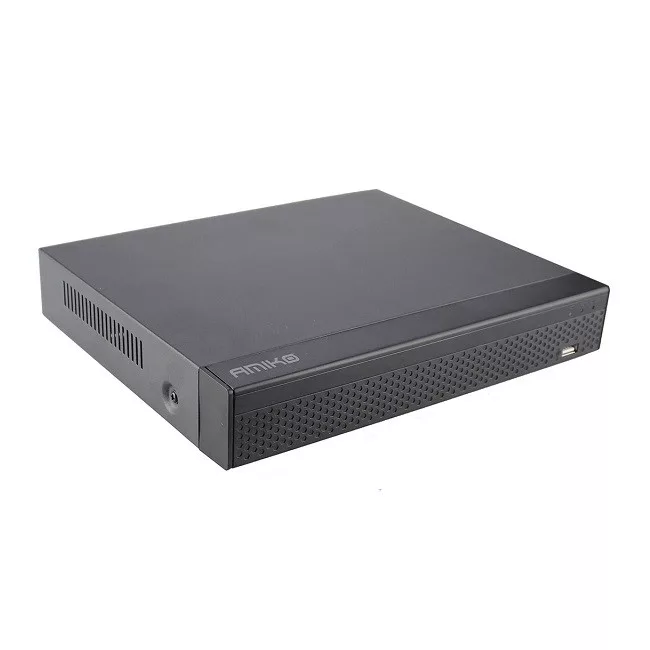

Amiko XVR820 Hybrid Desktop DVR/NVR recorder with 8 channels and 5MP resolution

The Amiko XVR820 5 megapixel XVR recorder delivers reliable hybrid digital video recording. Recording options include motion detection, continuous and scheduled modes. When connected to a monitor or TV, it can display the image of 8 cameras in true 5 megapixel resolution, while the recording resolution is 5MP Lite (1280x1936). It also offers remote access: with a permanent internet connection, it can stream footage to smartphones, tablets and computers, so you can check live events anytime, from anywhere. Using the remote access function and a stable internet connection, it can send the camera images to your mobile devices and PC, giving you flexible, real-time monitoring. The DVR records camera footage to an internal hard drive (not included), supporting up to 8TB capacity.

5

MEGAPIXELS

Maximum resolution

8 TB

MAX STORAGE

Maximum storage capacity

8

CHANNELS

Connect up to 8 cameras

H.265+

VIDEO COMPRESSION

Up to 75% more efficient than older systems

Detailed technical specifications

Video:
Input:	Normal mode: Analog: 8*(AHD/TVI/CVI:8M; TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)
Lite mode:	Analog: 8*(AHD/TVI/CVI: 1080P/720P; Analog: 960H)
Analog+Network:	6 Analog(1080P)+3 IP (Max 8MP), 4 Analog(1080P)+5 IP (Max 8MP), 2 Analog(1080P)+7 IP(Max 8MP)
Network:	16*8MP/5MP/4MP/3MP/1080P/960P/720P (Total incoming bandwidth ≤80M)

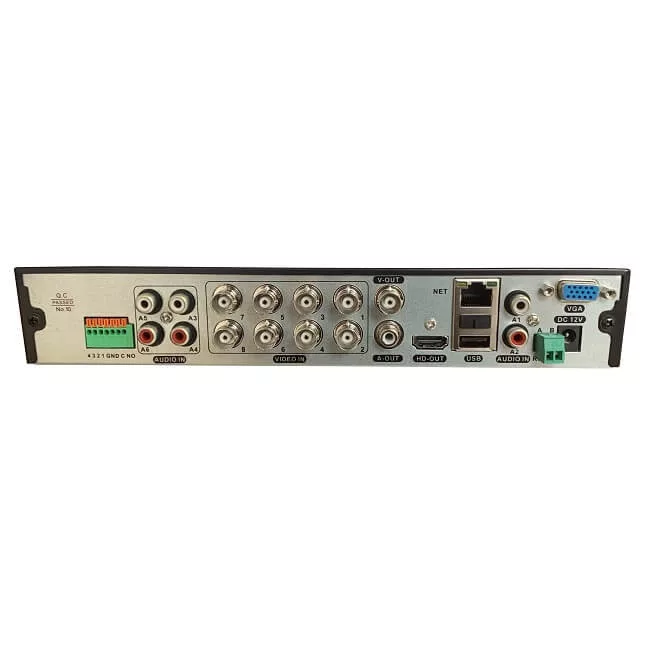

Input:	8CH BNC
Signal type:	Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output:	1 HDMI, 1 VGA
Audio:
Input:	8 channels, RCA
Output:	1 channel, RCA
Alarm:
Sensor input:	None
Output:	None
Motion detection:	8 channels
Trigger events:	Recording, E-mail, On-screen tip, motion detection notifications
Display:
VGA:	Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768 /60Hz
Privacy masking:	3 rectangular zones (per camera)
OSD:	Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording:
Video compression:	H.265/H.265+/H.264/H.264+
Audio compression:	G711u
Resolution:	5MP(2592×1944), 8MP_LITE(1920×2160), 5MP_HALF(1296×1944), 4MP(2560×1440), 4MP_HALF(1280×1440), 3MP(2048×1536), 1080P(1920×1080), 720P(1280×720), 960H(P:960×576/N:960×480)
Video quality:	worst/worse/average/good/best
Recording rate:	Normal mode:
Analog:	PAL: 8MP_LITE(1920×2160 88fps), 5MP(2592×1944 86fps), 5MP_LITE(1296×1944 810fps), 4MP(2560×1440 88fps), 4MP_LITE(1280×1440 815fps), 3MP(2048×1536 89fps), 1080P(1920x1080 815fps), 720P(1280×720 825fps), 960H(960×576 825fps) NTSC: 8MP_LITE(1920×2160 88fps), 5MP(2592×1944 86fps), 5MP_LITE(1296×1944 810fps), 4MP(2560×1440 88fps), 4MP_LITE(1280×1440 815fps), 3MP(2048×1536 89fps), 1080P(1920x1080 815fps), 720P(1280×720 830fps), 960H(960×480 830fps)
Recording mode:	Manual\Schedule\Motion detection
Playback and backup:
Decoding capability:	8CH 1080P@30fps
Remote playback:	8 channels / 1 channel
Search mode:	All, Channel, Manual, Time, Date, Motion detection
Playback functions:	Play, Pause, Stop, Fast play, Rewind, Digital zoom, Full screen
Smartphone playback:	8 channels
Backup mode:	USB device/Network/FTP
Network:
Interface:	1 RJ45 10M/100M adaptive Ethernet interface
Network functions:	TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP
Hard disk drive:
Interface type:	1 SATA interface
Capacity:	1 SATA hard disk (2.5"/3.5" SATA, up to 8TB)
Physical specifications:
USB interface:	2 USB 2.0
Power consumption:	DC 12V ≤6W (without hard disk)
Operating environment:	-10~55℃/10~90%
Dimensions:	26021543(mm)
Weight:	2kg (without hard disk)
