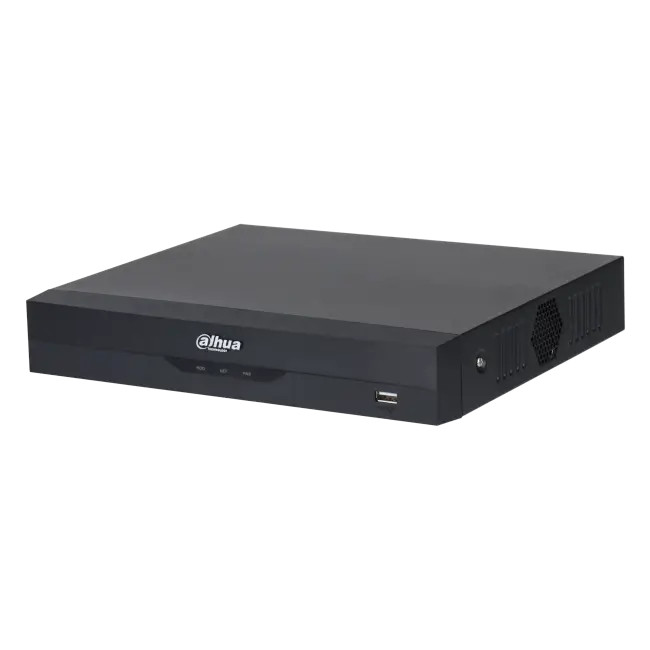

Dahua XVR5116HS-I3 16-channel XVR recorder 5MP

Related products

• Details
• Data
• Reviews

Details

Dahua XVR5116HS-I3 8-channel 5 megapixel hybrid recorder with face recognition support

The Dahua XVR5116HS-I3 XVR recorder delivers reliable hybrid digital video recording. As a hybrid recorder, it supports both analog and advanced IP cameras, offering excellent image quality and versatile functions. It provides 16 AHD/CVI/TVI/Analog channels and 8 IP channels. A monitor can be connected via the VGA and HDMI outputs. It supports face recognition cameras and their functions, which can be highly useful in critical situations by significantly simplifying identification. It includes 1 x SATA port (max. 16TB HDD, not included), 2 x USB 2.0 ports and a 100 Mbps network interface. With remote access functionality and a stable internet connection, it can stream camera images to smartphones, tablets and computers, so you can check live events anytime, from anywhere.

5

MEGAPIXEL

Maximum resolution

16 TB

MAX CAPACITY

Maximum storage capacity

16

CHANNELS

Connect up to 16 cameras

H.265+

VIDEO COMPRESSION

Up to 75% more efficient than older systems

Detailed technical specifications

VIDEO SYSTEM	Analog HD
MEGAPIXEL	5 MP
VIDEO STANDARDS	AHD, TVI, CVI, CVBS
CATEGORY	WizSense
ANALOG CHANNELS	16
IP CHANNELS	8
SWITCHABLE CHANNELS	24
COMPRESSION	AI Coding/H.265+/H.265/H.264+/H.264
UPSTREAM BANDWIDTH FROM CAMERAS	128 Mbit/s
DOWNSTREAM BANDWIDTH TO CLIENTS	128 Mbit/s
MAXIMUM CAMERA RESOLUTION	CVI: 5MP, AHD: 5MP, TVI: 5MP, CVBS: D1, IP: 6 MP
VIDEO OUTPUTS	1x HDMI, 1x VGA
HDMI	1 pc
HDMI AND VGA	Same content
HDMI1	Full HD (1920x1080)
VGA1	Full HD (1920x1080)
AUDIO INPUT	1 x RCA / 8 x Coax
AUDIO OUTPUT	1 x RCA
BUILT-IN HDD	1 pc
HDD TYPE	3.5" SATA HDD (max. 16 TB / HDD)
MAX HDD SIZE	16 TB
MAX STORAGE CAPACITY	16 TB
USB PORTS	2x USB 2.0

RS485 OUTPUT	Yes
LAN	1 x 10/100 Mb Ethernet
MENU	Hungarian OSD menu
PC SOFTWARE	Internet Explorer, DSS Express, DSS Pro, Smart PSS
MOBILE CLIENT	iPhone, Android: DMSS, iDMSS, gDMSS
ANALOG VCA	Motion detection, line crossing, area intrusion
VIDEO ANALYTICS	Line crossing, area intrusion, face detection, object identification, mask detection
INTELLIGENT SEARCH	Yes
TWO-WAY AUDIO	Yes
CAMERA OSD CONTROL	Yes
LIVE VIEW ON PRIMARY MONITOR	16 channels
LIVE VIEW IN WEB INTERFACE	16 channels
PLAYBACK ON LOCAL INTERFACE	16 channels
PLAYBACK IN WEB INTERFACE	16 channels
CLOUD ACCESS	P2P
ACCESSORIES	Mouse, power adapter
OPERATING TEMPERATURE	-10 °C to 55 °C
POWER SUPPLY	12 V DC
POWER CONSUMPTION (WITHOUT HDD)	12 W
DIMENSIONS	333 × 89 × 315 mm

Data

Functions:

Mozgásérzékelés, Telefonról nézhető, Ember és jármű felismerés
