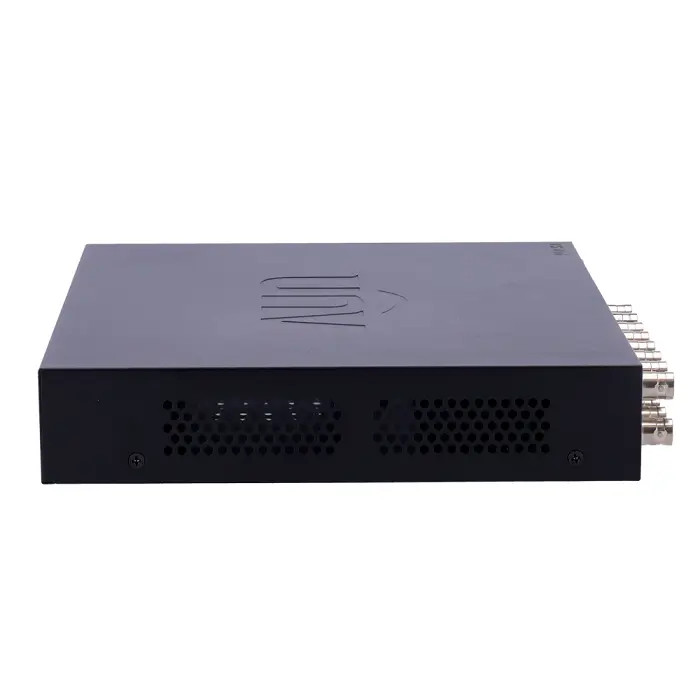

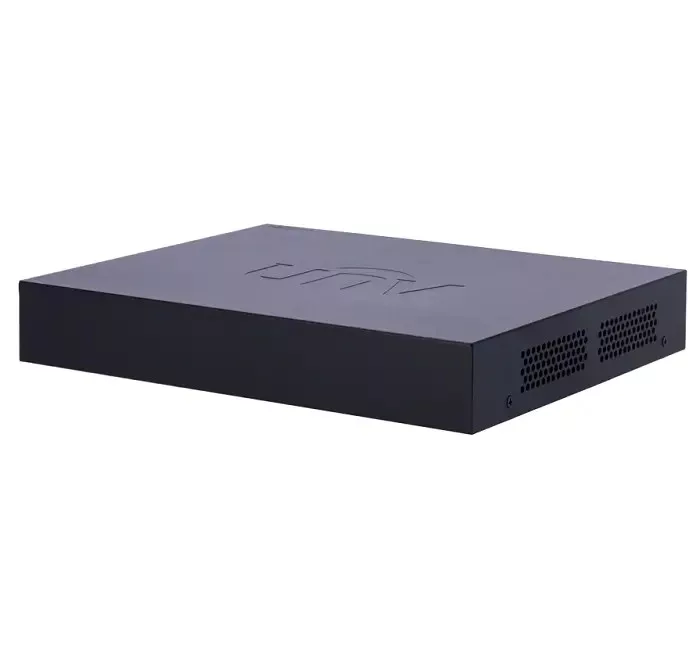

Uniview UV-XVR301-16F 16-channel 2MP DVR recorder

We also recommend the following product as an accessory

• Details
• Data
• Reviews

Details

The UV-XVR301-16F XVR, DVR is a high-quality 5-in-1, 16-channel, 2MP video recorder from Uniview, offering a wide range of professional security features. It is ideal for modern surveillance systems that require flexibility and broad compatibility between different recording technologies. The device supports HDTVI, HDCVI, AHD and CVBS formats, plus two additional IP channels, allowing users to connect a wide variety of camera types.

Technical Specifications:

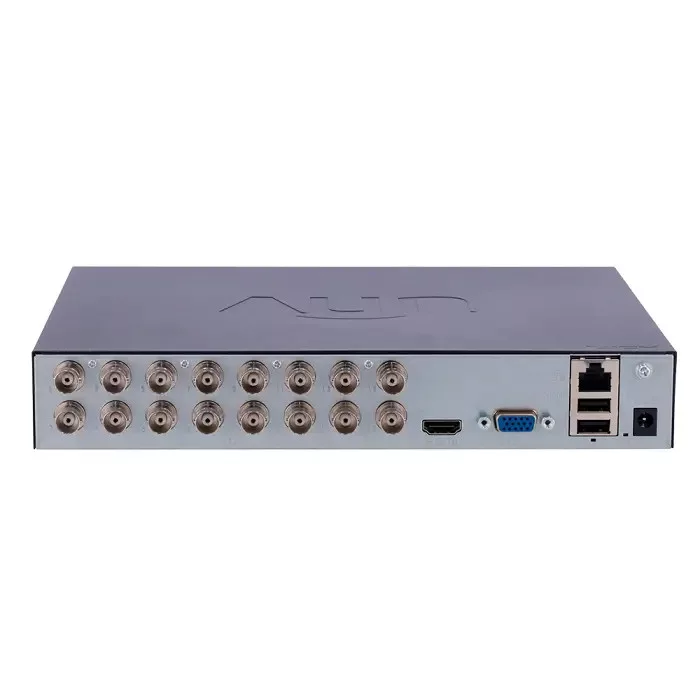

• Video inputs: 16 BNC channels, which can be switched to IP for hybrid use. The flexible system allows up to 6 IP channels (up to 8MP resolution) by replacing all BNC channels.
• Video outputs: 1 HDMI Full HD and 1 VGA output provide sharp, detailed images for monitoring and playback.
• Audio: 64Kbps bitrate per channel for clear, intelligible audio recording.
• Display resolutions: Supports 1920x1080, 1600x1200, 1280x1024, 1280x720 and 1024x768, so users can choose the screen size and quality that best fits their setup.
• Recording resolution: Maximum IP recording resolution up to 8MP. Analogue recording resolutions: for TVI/AHD 1080P@30fps, 720P@30fps; for CVI 1080P@30fps, 720P@30fps; CVBS is also supported.
• Storage: Supports one 3.5" SATA HDD up to 6TB capacity (not included).
• External interfaces: Two USB ports (for mouse and backup) and one RJ45 10M/100M/1000M Ethernet port for easy connectivity and network access.
• Remote access: Accessible via web browser, CMS software (EZStation) or smartphone apps (EZView/EZLive), enabling convenient remote monitoring and management.
• Power supply and dimensions: DC 12V / 10W power input, dimensions 253mm × 212mm × 42mm, weight approx. 0.85kg.

The UV-XVR301-16F XVR, DVR supports Ultra Motion Detection (UMD) technology on analogue channels, providing intelligent motion detection. This feature helps improve recording efficiency and reduce false alarms, so users are notified primarily about relevant events. ONVIF compatibility allows easy integration with other ONVIF-compliant security devices, enhancing system flexibility and scalability.

Data

Functions:

Mozgásérzékelés, Telefonról nézhető, Ember és jármű felismerés
