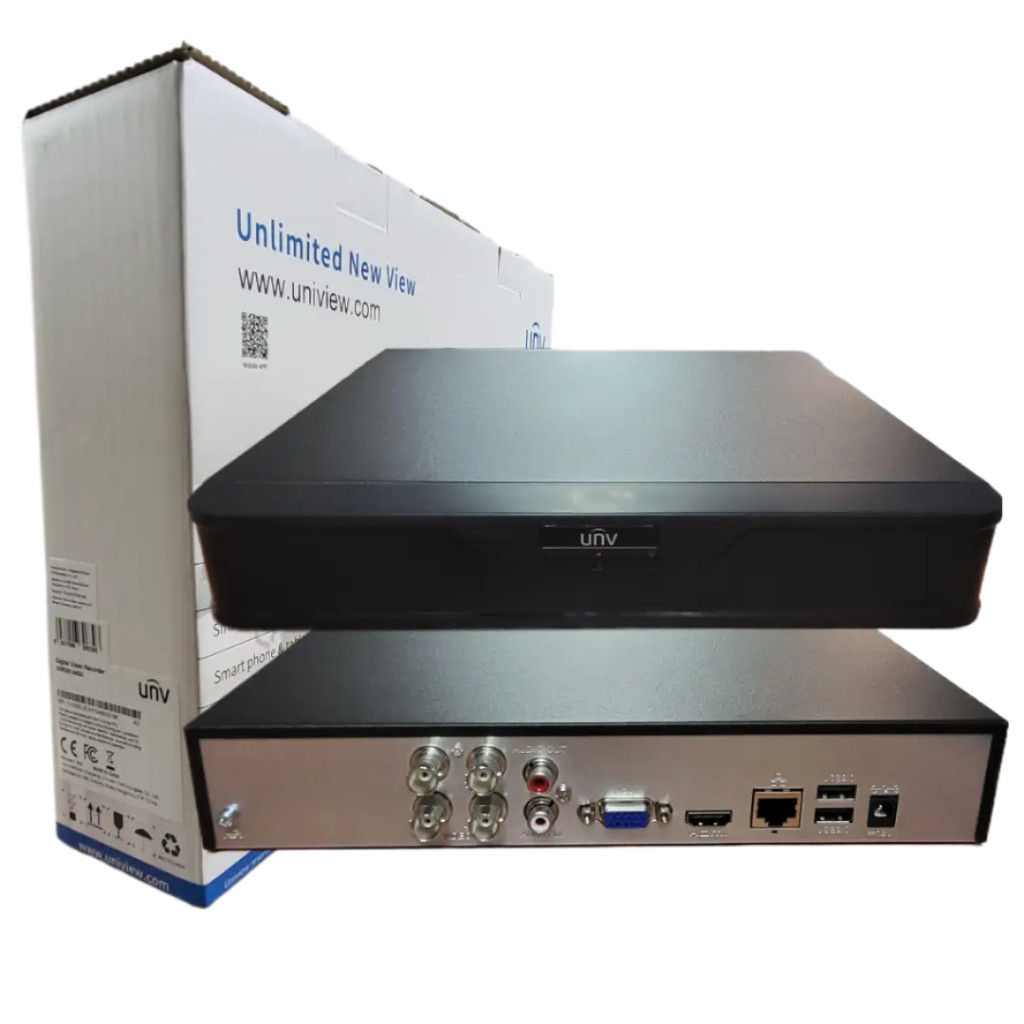

UNIVIEW XVR301-04G3 4-channel hybrid analog XVR recorder 5MP

We also recommend the following product as an accessory

• Details
• Data
• Reviews

Details

The UNIVIEW-XVR301-04G3 is a universal 5-in-1 XVR video recorder from Uniview, supporting AHD, TVI, CVI, CVBS and IP video formats for flexible system integration. With four BNC channels and two additional IP channels, it supports up to 4 MP IP resolution and 5 MP analog resolution. It features HDMI and VGA outputs plus two USB 2.0 ports. The unit supports a single hard drive up to 16 TB, making it a practical choice for medium-sized installations. Thanks to ONVIF compatibility, it works with a wide range of cameras.

The UNIVIEW-XVR301-04G3 recorder offers the following technical features: it supports AHD, TVI, CVI, CVBS and IP video formats, enabling easy integration with different systems. It provides four BNC input channels and can be expanded with two additional IP camera channels for flexible system scaling. The maximum supported resolution is 4 MP for IP cameras and 5 MP for analog cameras. Connectivity includes HDMI and VGA outputs, plus two USB 2.0 ports. It supports hard drives up to 16 TB and is ONVIF compatible for broad camera interoperability.



Technical specifications:

• Video formats: AHD, TVI, CVI, CVBS, IP
• BNC channels: 4 inputs
• IP channels: support for 2 additional channels
• Maximum resolution: 4 MP (IP), 5 MP (analog)
• Connectors: HDMI, VGA, 2x USB 2.0
• Hard drive support: up to 16 TB
• ONVIF compatible

Data

Functions:

Mozgásérzékelés, Telefonról nézhető, Ember és jármű felismerés
