Amiko XVR-1622 5MP 16-channel hybrid desktop DVR recorder

Related products

• Details
• Data
• Reviews

Details

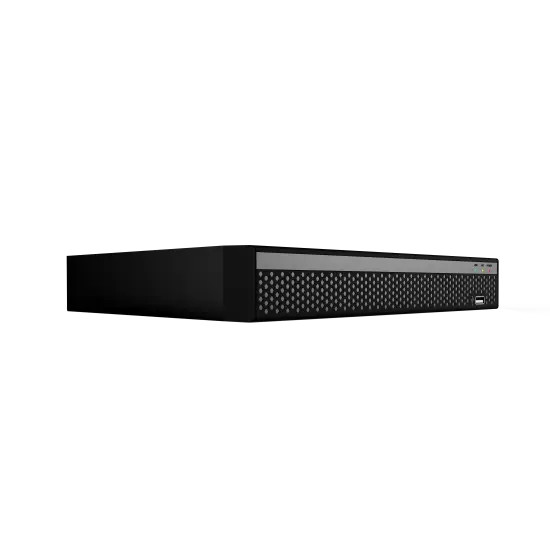

Amiko XVR-1622 Hybrid Desktop DVR, NVR recorder with 16 channels and 5MP resolution

The Amiko XVR-1622 5 megapixel XVR recorder delivers reliable hybrid digital video recording. Recording options include motion detection, continuous and scheduled recording modes. When connected to a monitor or TV, it can display the image of 16 cameras in real 5 megapixel resolution, while the recording resolution is 5MP Lite, i.e. 1280x1936. Important: at 5 megapixels a maximum of 12 FPS can be set; if the camera’s FPS value is higher, the device will not be able to handle it. It also features remote access: with a permanent internet connection it can transmit footage to smartphones, tablets and computers, so you can check live events anytime, from anywhere. Thanks to remote access, with a stable internet connection it can send the camera images to your smartphone, tablet or PC, giving you convenient insight into current live events wherever you are. The DVR records the camera image to an internal hard drive (not included), supporting up to 8TB capacity.

5

MEGAPIXEL

Maximum resolution

8 TB

MAX STORAGE

Maximum storage capacity

16

CHANNELS

Connect up to 16 cameras

H.265+

VIDEO COMPRESSION

Up to 75% more efficient than older systems

Detailed technical specifications

Video:
Input:	Normal mode: Analog: 16*(TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)
Lite mode:	Analog: 16*(AHD/TVI/CVI: 1080P/720P; Analog: 960H)
Analog + Network:	2*Analog(5MP)+14*IP(MAX 8MP), 4*Analog(5MP)+12*IP(MAX 8MP), 6*Analog(5MP)+10*IP(MAX 8MP), 8*Analog(5MP)+8*IP(MAX 8MP), 10*Analog(5MP)+6*IP(MAX 8MP), 12*Analog(5MP)+4*IP(MAX 8MP), 14*Analog(5MP)+2*IP(MAX 8MP)
Network:	16*8MP/5MP/4MP/3MP/1080P/960P/720P (Total incoming bandwidth ≤80M)
Input:	16CH BNC
Signal type:	Analog/AHD/CVI/TVI 2.0/Network
Output:	1 HDMI, 1 VGA
Audio:
Input:	2 channels, RCA
Output:	1 channel, RCA
Alarm:
Sensor input:	None
Output:	None
Motion detection:	16 channels
Trigger events:	Recording, E-mail, On-screen notification, motion detection alerts
Display:
VGA:	Resolution: 1920×1080P/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Privacy masking:	3 rectangular zones (per camera)
OSD:	Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording:
Video compression:	H.265/H.265+/H.264/H.264+
Audio compression:	G711u
Resolution:	5MP(2592×1944), 8MP_LITE(1920×2160), 5MP_HALF(1296×1944), 4MP(2560×1440), 4MP_HALF(1280×1440), 3MP(2048×1536), 1080P(1920×1080), 720P(1280×720), 960H(P:960×576/N:960×480)
Video quality:	worst/worse/medium/good/best
Recording rate:	Normal mode:
Analog:	PAL: 8MP_LITE(1920×2160 8*8fps), 5MP(2592×1944 8*6fps), 5MP_LITE(1296×1944 8*10fps), 4MP(2560×1440 8*8fps), 4MP_LITE(1280×1440 8*15fps), 3MP(2048×1536 8*9fps), 1080P(1920×1080 8*15fps), 720P(1280×720 8*25fps), 960H(960×576 8*25fps) NTSC: 8MP_LITE(1920×2160 8*8fps), 5MP(2592×1944 8*6fps), 5MP_LITE(1296×1944 8*10fps), 4MP(2560×1440 8*8fps), 4MP_LITE(1280×1440 8*15fps), 3MP(2048×1536 8*9fps), 1080P(1920×1080 8*15fps), 720P(1280×720 8*30fps), 960H(960×480 8*30fps)
Recording mode:	Manual/Timer/Motion detection
Playback and backup:
Decoding capability:	4CH 1080P@30fps
Remote playback:	16 channels / 1 channel
Search mode:	All, Channel, Manual, Time, Date, Motion detection
Playback functions:	Play, Pause, Stop, Fast play, Rewind, Digital zoom, Full screen
Smartphone playback:	4 channels
Backup mode:	USB device/Network/FTP
Network:
Interface:	1 RJ45 10M/100M adaptive Ethernet interface
Network functions:	TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP
Hard disk drive:
Interface type:	1 SATA interface
Capacity:	1 SATA HDD (2.5"/3.5" SATA, up to 8TB)
Physical specifications:
USB interface:	2× USB 2.0
Power consumption:	DC 12V ≤6W (without HDD)
Operating environment:	-10~55℃ / 10~90% RH
Dimensions:	260×230×43 mm
Weight:	2 kg (without HDD)

Data

Functions:

Mozgásérzékelés, Telefonról nézhető
