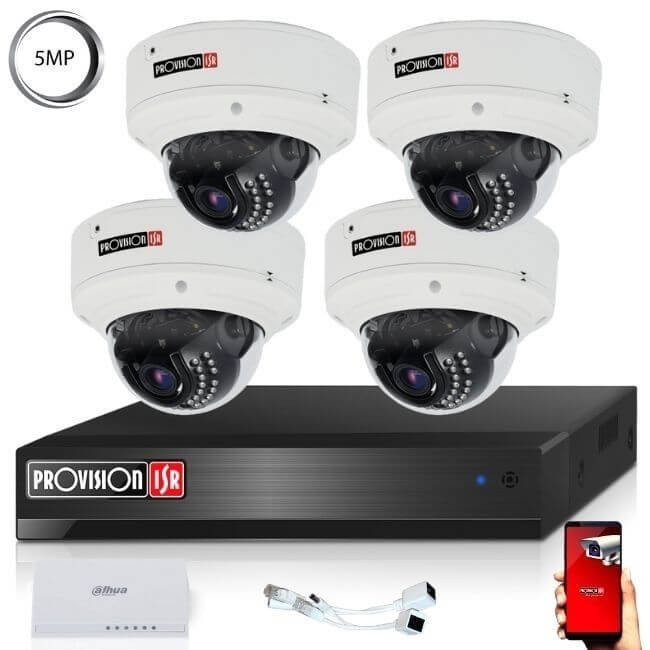

2 megapixel Provision LED array kit: 4 vandal-resistant dome security cameras with 2MP resolution, white outdoor metal housing, 4-channel 5 megapixel NVR recorder, 10 m LAN cables, 4+2 port PoE switch. This security system is ideal for monitoring business premises, apartments and holiday homes in Full HD quality. The 4 dome camera IP system also allows you to monitor larger areas without signal loss.

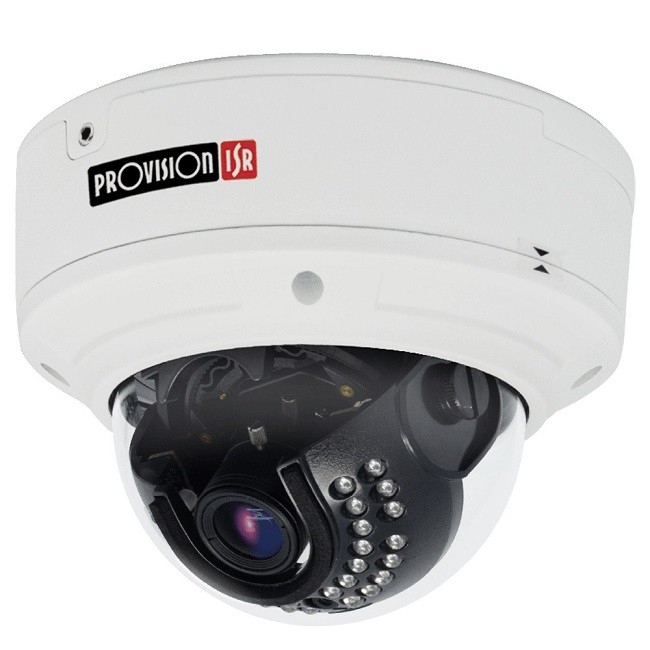

This vandal-resistant housing camera can be easily mounted on a wall or ceiling, making it suitable for outdoor use.
The 2 megapixel resolution delivers sharp images day and night. Thanks to the varifocal motorized lens you can use optical zoom, adjustable remotely between 3.3 and 12 mm.
The built-in IR LEDs provide visibility up to approx. 25 m even in complete darkness.

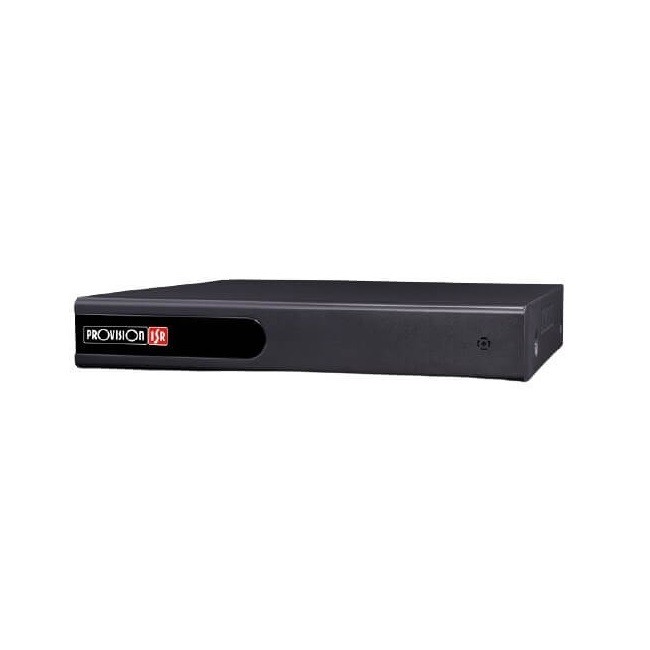

The Provision PR-NVR5-4100X+(MM) recorder can handle up to 4 IP cameras with up to 5 megapixel resolution. You can set motion-detection, cyclic or continuous recording modes. Connect it to a monitor or TV to view live footage. Remote internet access is available via mobile app and PC.
To store recordings, the NVR must be expanded with a hard drive (NOT INCLUDED), up to 6 TB capacity.
If you purchase the hard drive from us, we will install it in the NVR free of charge.

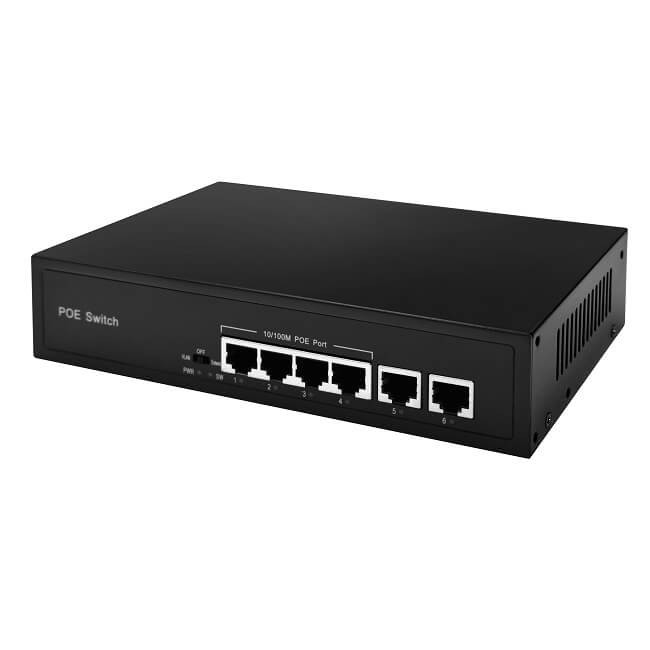

The PoE switch is used to create the IP camera network. Connect the IP cameras and the NVR recorder to it using the supplied cables.
Thanks to PoE, the cameras do not need a separate power supply, as the switch powers them over the network cable.
The switch has 6 ports in total: 4 for the cameras, 1 for the router and 1 for connecting the NVR.

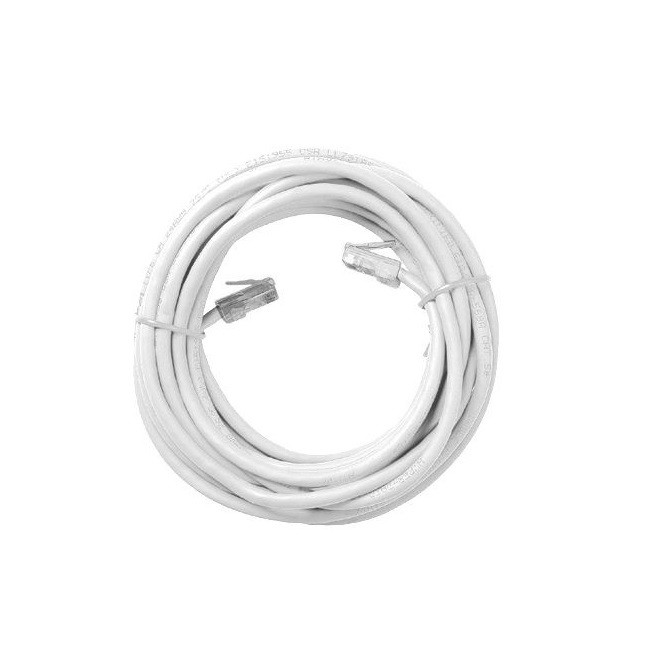

The cables are delivered pre-terminated, so you only need to connect them to the NVR recorder and the cameras. Each camera requires only one cable, as both video signal and power are transmitted through the same line.
If 10 m is not sufficient, you can choose longer cable lengths: 15 m or 20 m.
Assign an IP address to each IP camera and to the NVR within your own IP range (make sure no two devices share the same IP address, as this will cause conflicts).
Connect the cameras and the NVR to the PoE switch.
In the NVR settings, add the cameras one by one using automatic search or by entering the previously assigned IP addresses, then save the configuration.
The system is now ready for use.
The surveillance systems do not include built-in storage, so hard drives must be purchased separately (NOT INCLUDED). If you buy the HDD from us, we will install and initialize it in the recorder free of charge, so you do not have any extra installation work or cost.
1000 GB HDD hard drive for recordingTypical storage capacity with continuous recording for 1 camera is approx. 1 week; with motion detection it can be up to around 2 months, depending on settings and scene.
NOT INCLUDED
2000 GB HDD hard drive for recordingTypical storage capacity with continuous recording for 1 camera is approx. 2 weeks; with motion detection it can be around 1–2 months, depending on settings and scene.
1 pc Provision NVR5-4100X+(MM) 4-channel NVR recorder
4 pcs Provision 2MP DAI+390IP5MVF camera
4 pcs 10 m pre-terminated IP camera cable
1 pc 4+2 channel PoE switch
Please also check our IP camera system category and browse our full range of ready-made kits.
