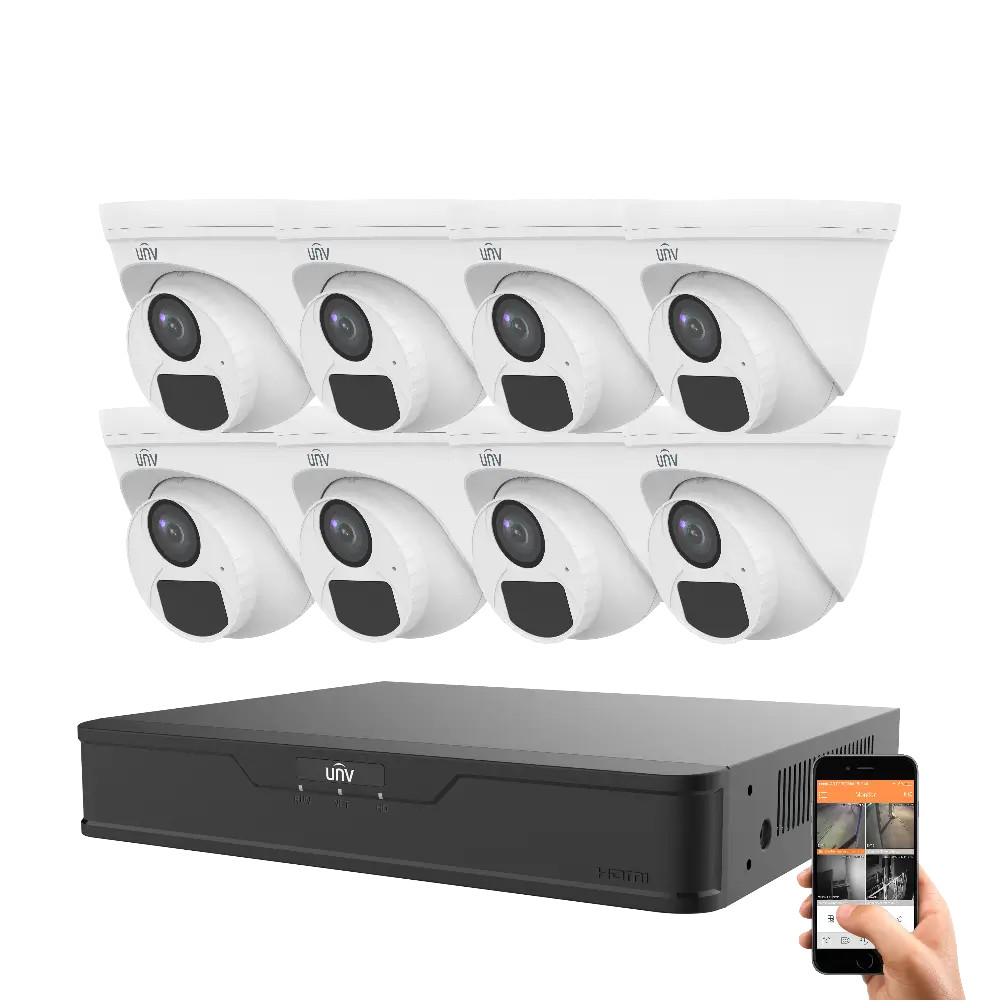

The Uniview security camera system is a kit designed for both outdoor and indoor surveillance. The package includes eight 5‑megapixel 3K security cameras that provide sharp, clear images at an affordable price. The cameras feature multiple image enhancement functions to support future identification. The set also includes a 16‑channel XVR digital recorder, which means your system can be expanded up to 16 cameras instead of the usual 8. Thanks to remote access, you can view the camera images from your phone. With the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is easy to install and operate, making it a reliable choice for anyone looking for a security solution. The cameras have a built‑in microphone, so audio is recorded as well.
Uniview AHD dome camera
Connect up to 16 cameras to the DVR
Maximum viewing distance in complete darkness
Weather‑resistant housing
The Uniview UV-UAC-T115-AF28 is an advanced security camera that delivers reliable surveillance both indoors and outdoors. This 5‑megapixel, 3K‑resolution analogue camera provides sharp, clear images at an affordable price. Multiple image enhancement functions support easier identification later on. The built‑in 2.8 mm fixed lens offers a wide 102° field of view. Night vision range is 20 metres, using infrared LEDs that are invisible to the human eye. Its IP67‑rated, water‑ and dust‑resistant housing withstands harsh weather conditions, ensuring reliability and durability in a wide range of environments. The camera is equipped with a built‑in microphone.

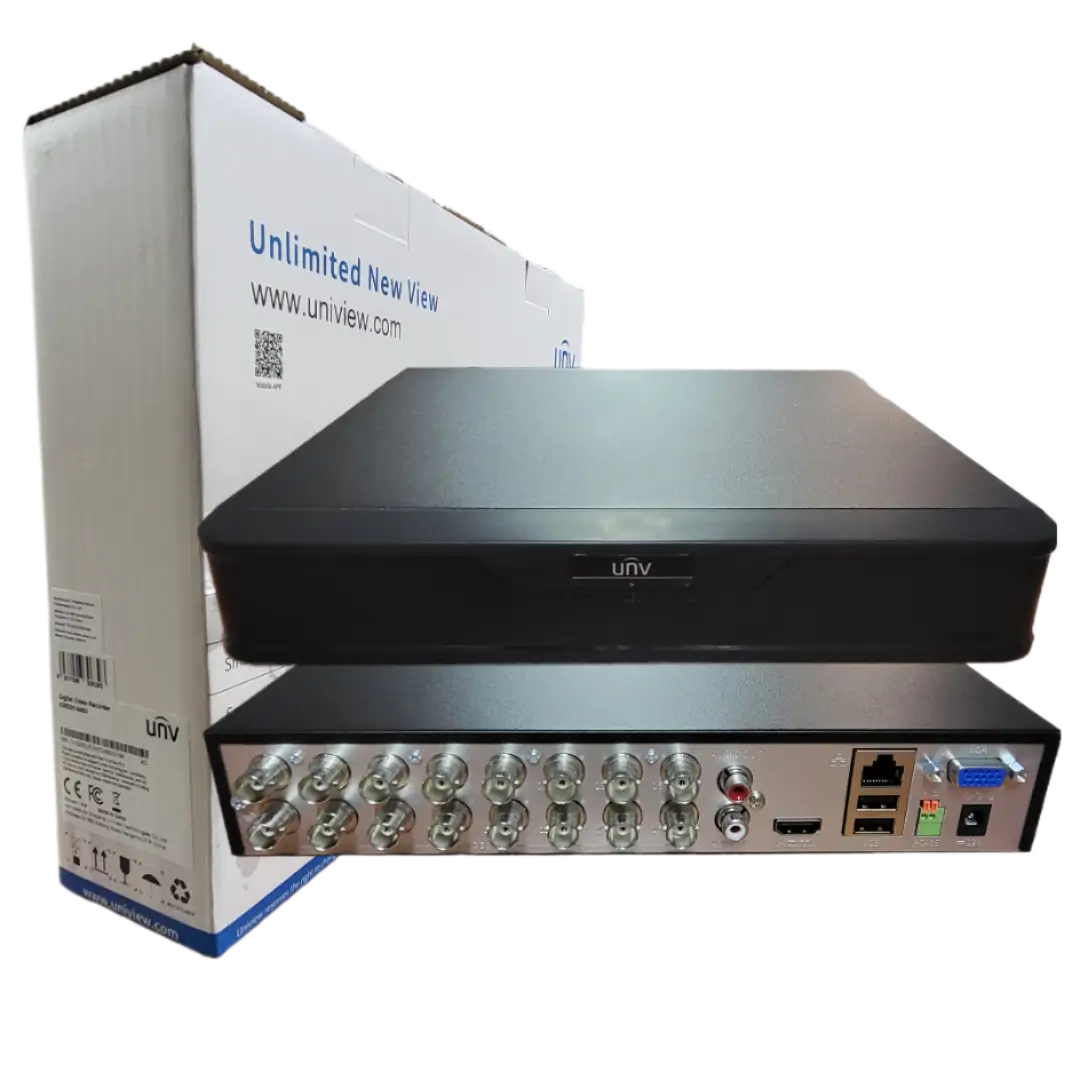

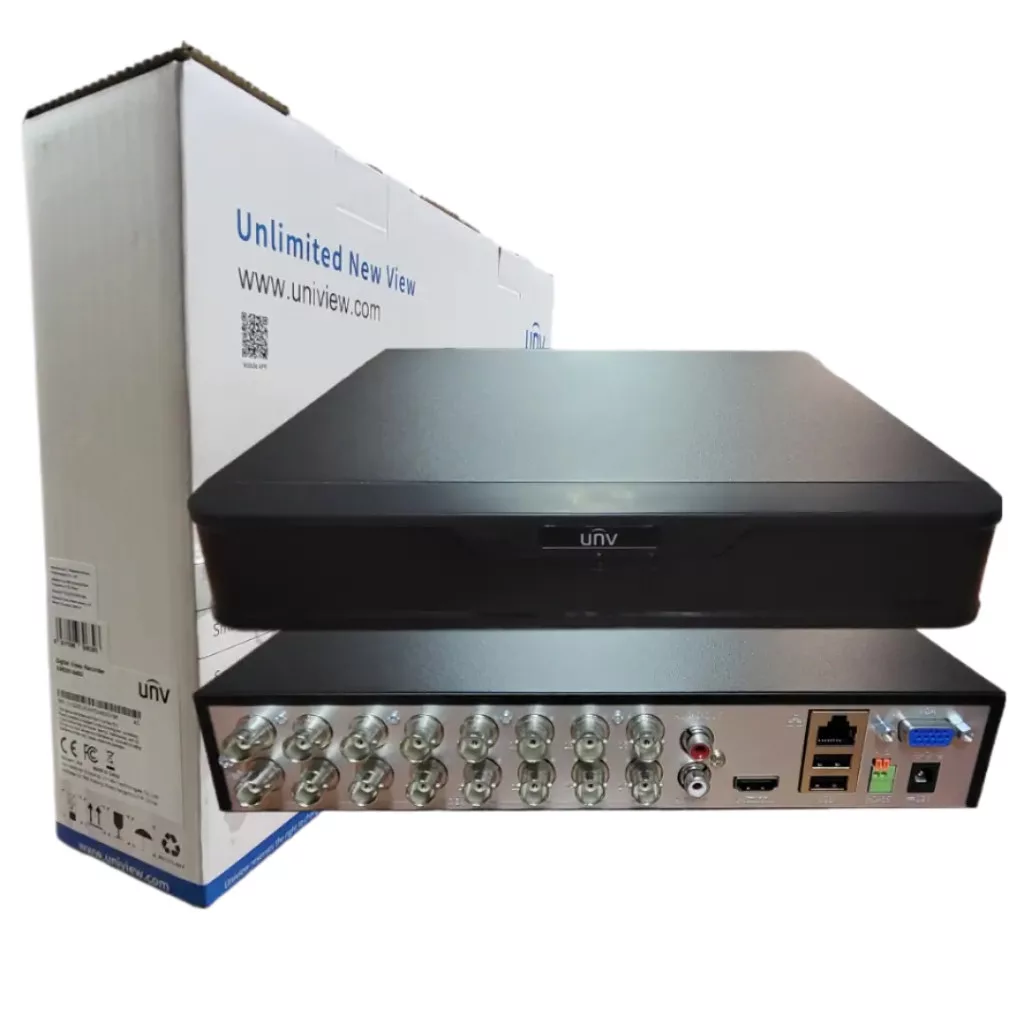

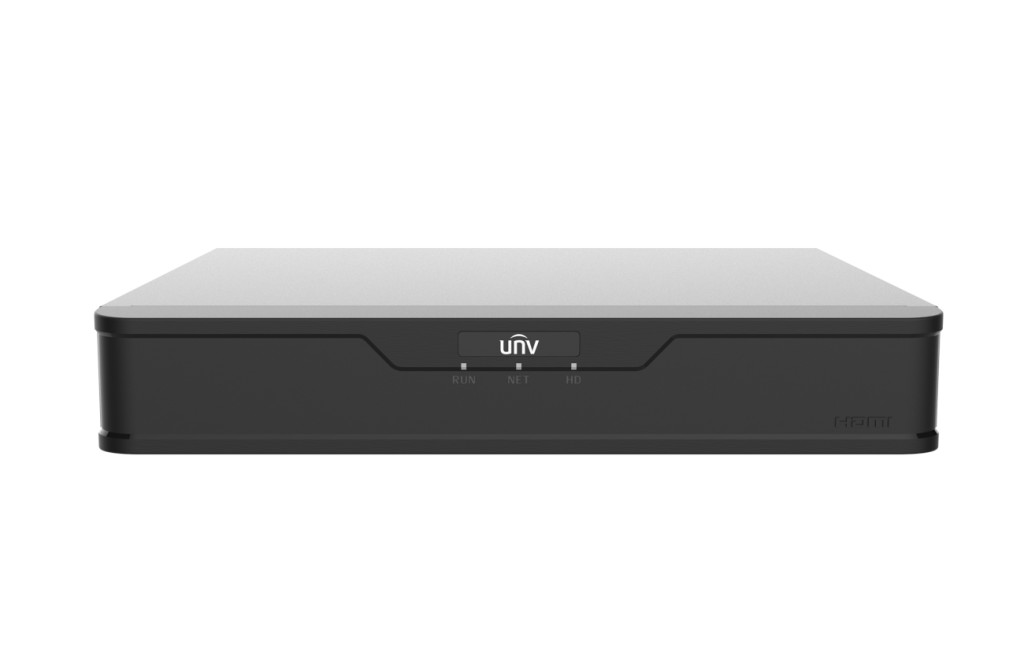

The UNIVIEW-XVR301-16G3 XVR recorder offers versatile hybrid digital video recording. As a hybrid unit, it supports both analogue and IP cameras with strong image quality and a wide feature set. It handles analogue cameras (AHD/CVI/TVI/CVBS) up to 5 megapixels and IP cameras up to 4 megapixels. It provides 16 AHD/CVI/TVI channels and can additionally connect up to 8 IP cameras. A monitor can be connected via the VGA and HDMI outputs. Thanks to Intelligent Ultra Motion Detection (UMD), it can refine motion detection events by recognising human shapes and vehicles, significantly reducing false alarms. It includes 1 x SATA port (max. 16 TB HDD, not included), 2 x USB 2.0 ports and a 100 Mbps RJ‑45 network interface. Settings can be customised via the Hungarian‑language user interface.
For our camera systems, customers can choose between two packages: a DIY installation kit or a pre‑assembled cable kit.

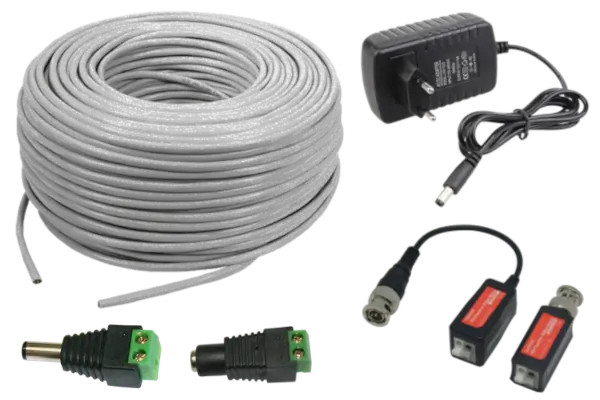

DIY installation kit: From each camera to the central unit you only need to run a single cable, which carries both power and video signal. The required connectors (video balun + power connector) are fitted by the customer to the cable ends – to help with this, we have prepared an installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required – only side cutters, a screwdriver and a utility knife. The package includes 10 metres of UTP cable per camera. If you need more cable, you can let us know in the order comments (+180 Ft/meter).
Pre‑assembled cable kit: In this case, the connectors are already factory‑fitted to the ends of the camera cables and cannot be removed. Installation is simple: just connect the recorder, camera power supply and cameras, with no additional wiring work. The standard package includes 10 metres of COX10 cable per camera. If you need longer cables, you can indicate this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).
The UNV-Link App allows users to manage their security devices remotely. The application offers live view, playback, PTZ control, real‑time alarm notifications, two‑way audio, recording search and playback, and device configuration options. You can also share access to your camera images with family members in just a few simple steps using a QR code.
