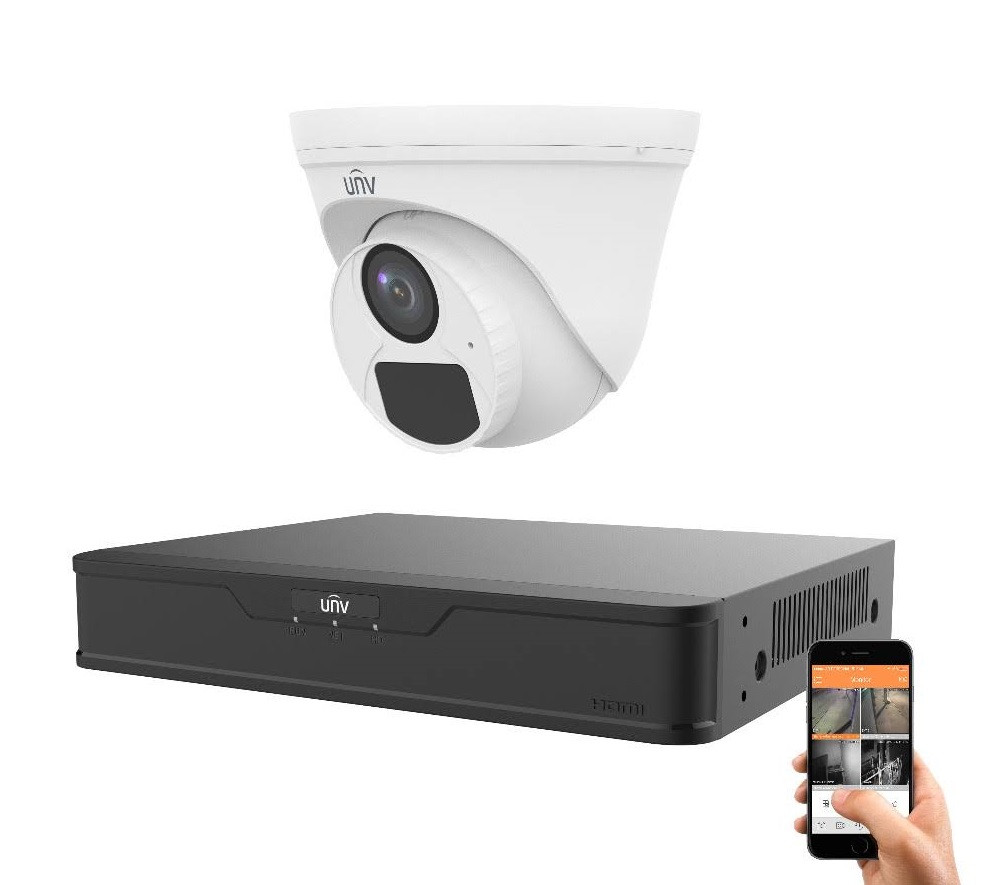

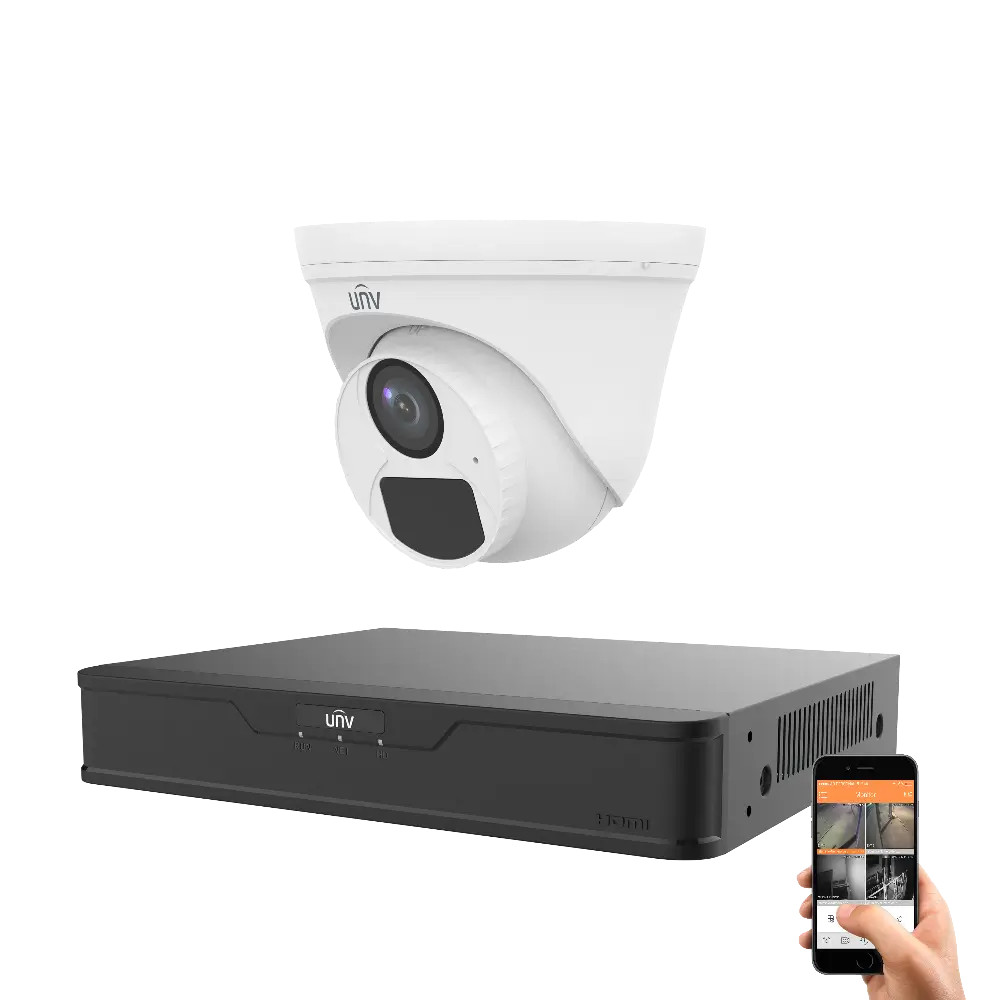

The Uniview security camera system is a set suitable for both outdoor and indoor surveillance. The package includes one 5-megapixel 3K dome security camera that delivers sharp, clear images at an affordable price. The camera is equipped with several image enhancement features to support future identification. It also includes a 4-channel XVR digital recorder, which allows remote access so you can view the camera images from your phone. Thanks to the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is easy to install and operate, making it a reliable choice for anyone looking for a security solution. The security camera has a built-in microphone to record audio as well.
Uniview AHD dome camera
Up to 4 cameras can be connected to the DVR
Maximum viewing distance in complete darkness
Resistant to weather conditions
The Uniview UV-UAC-T115-AF28 is an advanced security camera that provides reliable surveillance both indoors and outdoors. This model is a 5-megapixel, 3K resolution analog camera that delivers sharp, clear images at an affordable price. The camera includes several image enhancement functions to support accurate identification later on. The built-in 2.8 mm fixed lens offers a wide 102-degree field of view. Its night vision range is 20 meters, using infrared LEDs that are invisible to the human eye. The IP67-rated, water- and dust-resistant housing is designed to withstand various weather conditions, ensuring reliability and durability in a wide range of environments. The camera also features a built-in microphone.

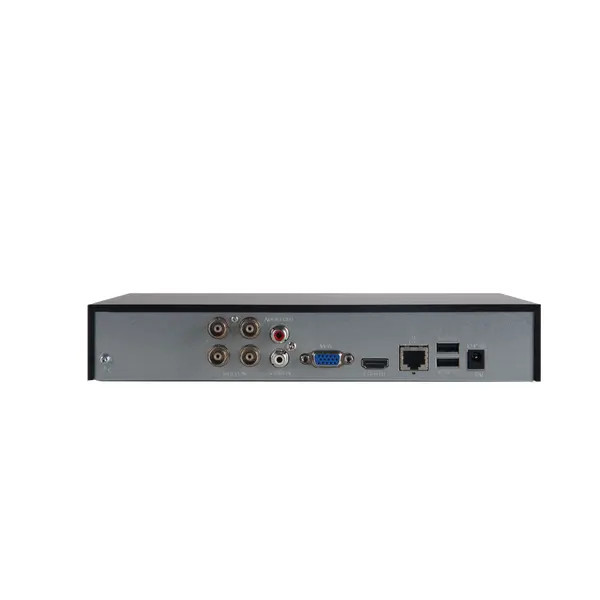

The UNIVIEW-XVR301-04G3 hybrid XVR recorder delivers reliable digital video recording. As a hybrid recorder, it supports both analog and advanced IP cameras with strong image quality and versatile features. It supports analog cameras (AHD/CVI/TVI/CVBS) up to 5 megapixels and IP cameras up to 4 megapixels. It has 4 AHD/CVI/TVI inputs and can additionally handle 2 IP cameras. A monitor can be connected via the VGA and HDMI outputs. Thanks to its intelligent Ultra Motion Detection (UMD), it can refine motion detection events by recognizing human shapes and vehicles, significantly reducing false alarms. It includes 1 x SATA port (max. 16 TB HDD, not included), 2 x USB 2.0 ports, and a 100 Mbps RJ-45 network interface. The device can be customized via its Hungarian-language user interface.
For our camera systems, customers can choose between two packages: DIY installation kit or pre-assembled cable kit.

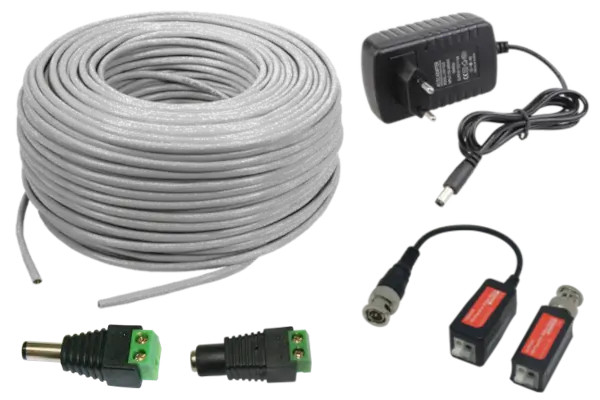

DIY installation kit: From each camera to the central unit only one cable needs to be routed, carrying both power and video signal. The required connectors (video balun + power connector) are fitted to the cable ends by the customer – to help with this, we have created an installation guide available at the following link: Installation guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The package includes 10 meters of UTP cable per camera. If you need more cable, simply let us know in the order comments (+180 Ft/meter).
Pre-assembled cable kit: In this option, the connectors are already factory-installed on the camera cable and cannot be removed. This way, you only need to connect the recorder, camera power supply and camera together, without any wiring work. The basic package includes 10 meters of COX10 cable per camera. If you need more cable, simply let us know in the order comments (also available in 20 m COX20 and 30 m COX30 lengths).
The UNV-Link App allows users to fully manage their security devices. The application offers live view, playback, PTZ control, real-time alarm notifications, two-way audio, recording search and playback, and device configuration. The app also makes it easy to share camera views with family members or relatives in just a few simple steps using a QR code.
