Techson TCR I12 S04-NS 4-channel NVR IP recorder – Advanced features at an affordable price
The Techson TCR I12 S04-NS 4-channel SmartSpeed IP video recorder is an excellent choice for smaller surveillance systems. The device supports up to 4 IP channels at 6 megapixels, meaning it can handle 4 x 6 MP IP cameras. Thanks to modern H.264 and H.265 compression formats, it manages storage and data transmission efficiently, with 40 Mbit/s bandwidth both from the cameras and towards clients. The recorder features a Full HD (1920x1080) HDMI output and supports one 3.5" SATA hard drive with up to 10 TB capacity. The TCR I12 S04-NS also offers advanced video analytics such as line crossing, area intrusion, object detection, license plate recognition and people counting. These functions enhance security and efficiency by enabling more accurate analysis. Object detection also helps significantly reduce false alarms, so you don’t have to worry about falling leaves or pets playing in the garden. With the SuperLive Plus app you can view the connected IP cameras remotely from your phone. This NVR does not support PoE, so camera power must be provided via a PoE switch or direct power supply.
6
MEGAPIXEL
Maximum resolution
10 TB
MAX STORAGE
Maximum storage capacity
4
CHANNELS
Connect up to 4 cameras
H.265
VIDEO COMPRESSION
Up to 75% more efficient than older systems
Mobile viewing app
Object detection
Object counting
People counting
Detailed technical specifications
| Video system | IP |
|---|---|
| Megapixel | 6 MP |
| Video standards | IP |
| IP channels | 4 |
| Compression | H.264, H.265 |
| Bandwidth from cameras | 40 Mbit/s |
| Bandwidth to clients | 40 Mbit/s |
| Max camera resolution | IP: 6 MP |
| IP recording per channel | 25 fps |

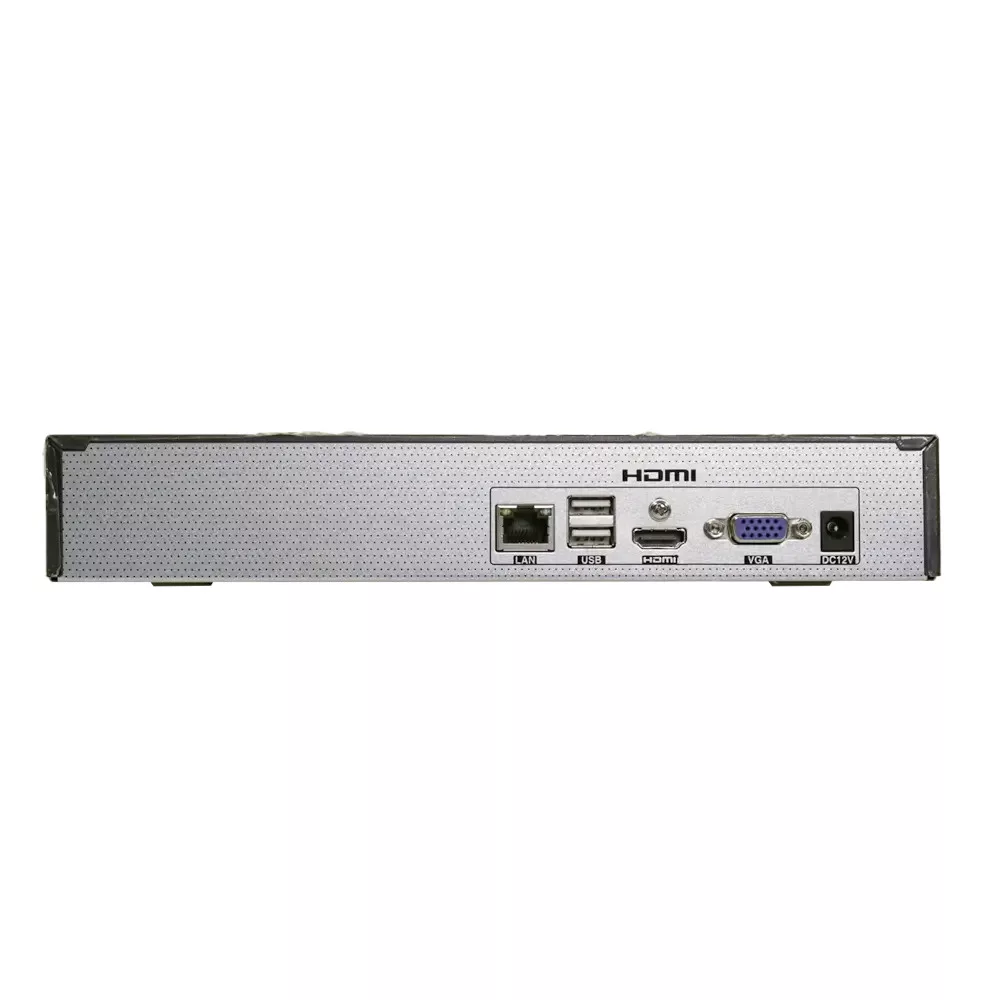

| Video outputs | 1 x HDMI, 1 x VGA |
| HDMI | 1 pc |
| HDMI and VGA | Same content |
| HDMI1 | Full HD (1920x1080) |
| VGA1 | Full HD (1920x1080) |
| Audio input | From 4 cameras |
| Built-in HDD bays | 1 pc |
| HDD type | 3.5" SATA HDD (max: 10 TB / HDD) |
| Max HDD size | 10 TB |
| Max storage capacity | 10 TB |
| USB ports | 2 x USB 2.0 |
|---|---|
| LAN | 1 x 10/100 Mb Ethernet |
| Menu | Hungarian SmartSpeed OSD menu |
| PC software | Internet Explorer, SmartCenter (Windows PC), SmartCenter (MAC OSX) |
| Mobile client | iPhone, Android: SuperLive Plus |
| Video analytics | Line crossing, Area intrusion, Object monitoring, Object detection, Object counting, People counting, License plate recognition, Crowd density |
| Smart search | Yes |
| Live view on main monitor | 4 channels |
| Live view via WEB interface | 4 x 4 channels |
| Playback on local interface | 4 channels |
| Playback via WEB interface | 4 channels |
| Manufacturer DDNS | AutoDDNS, DVRDyDNS |
| Cloud access | AutoNAT |
| Fanless housing | Yes |

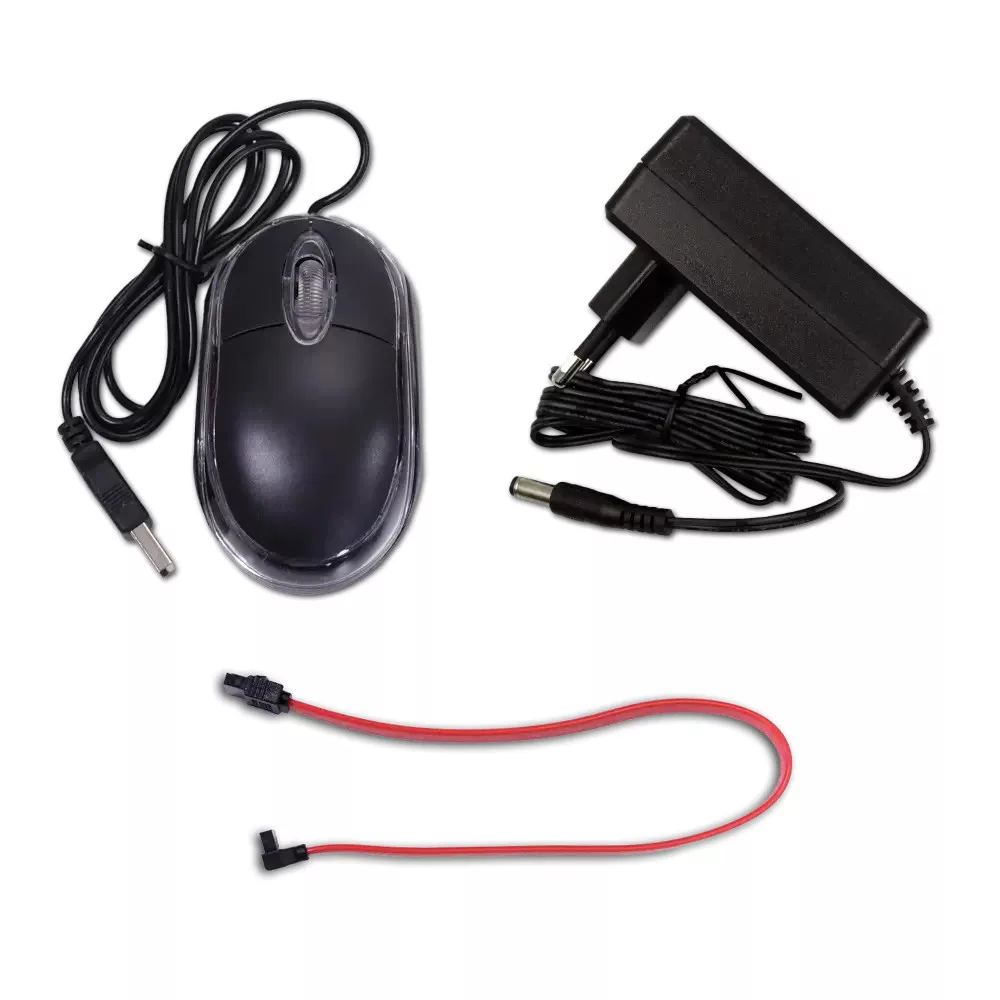

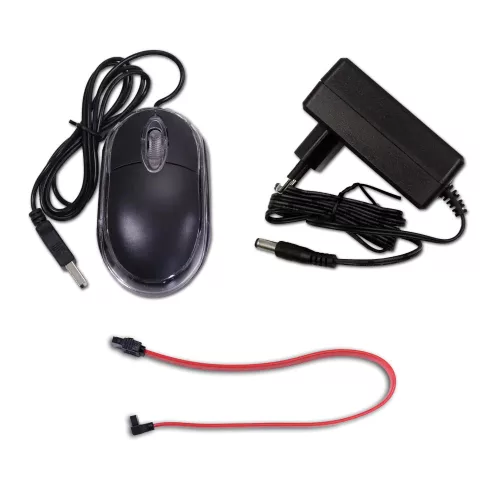

| Accessories | Mouse, CD, power adapter |
| Operating temperature | -10 °C to 50 °C |
| Power supply | 12 V DC |
| Power consumption (without HDD) | 5 W |
| Dimensions | 255 x 223 x 42 mm |
Functions:
, ,
