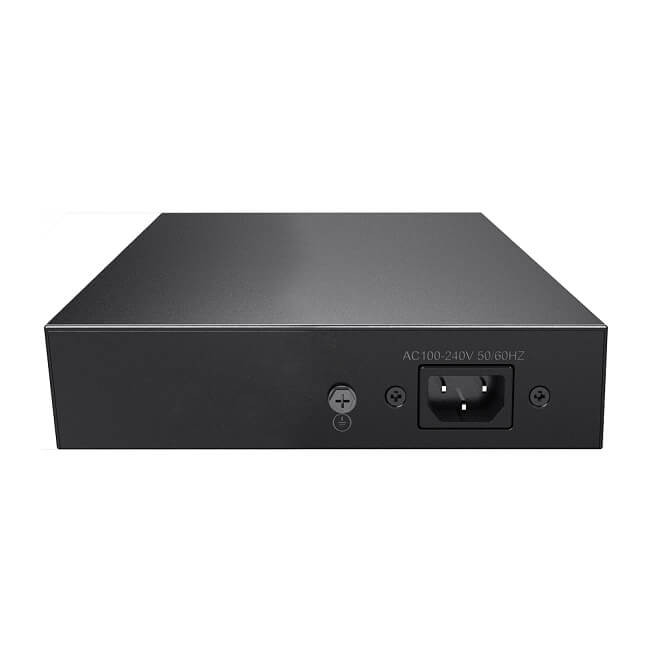

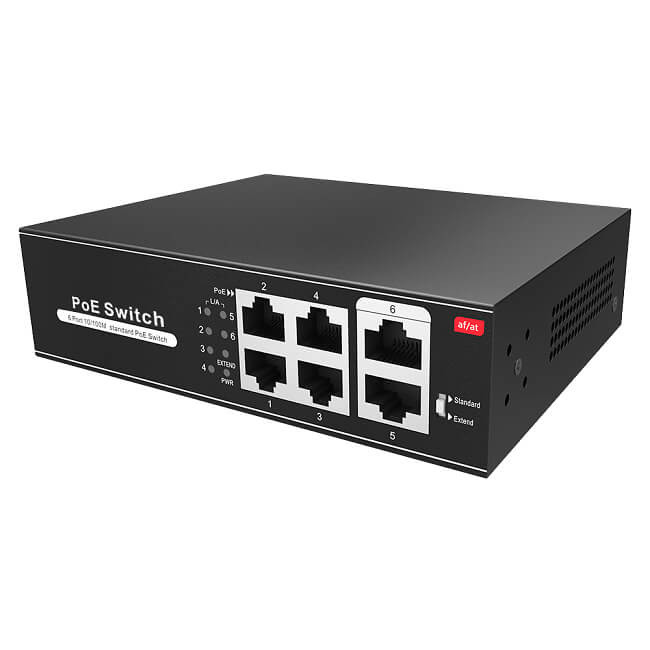

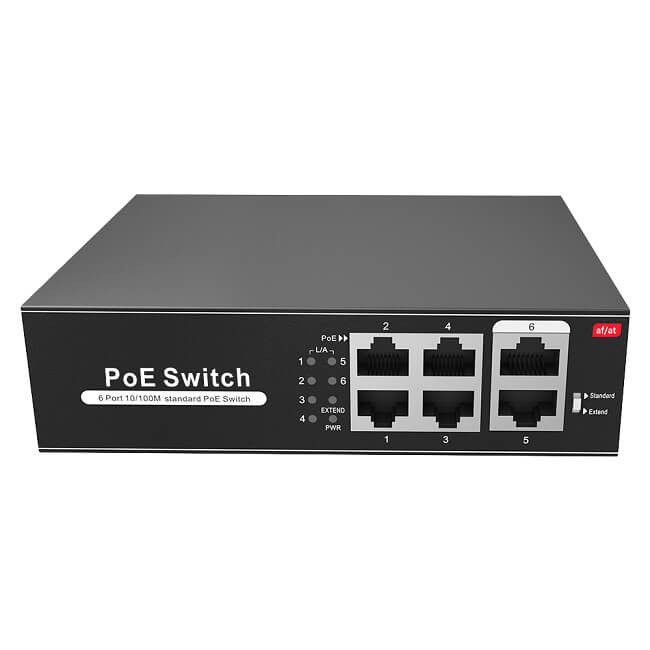

SW-4-POE-SWITCH: Efficient Power and Data Management for IP Camera Systems

• Details
• Reviews

Details

The SW-4-POE-SWITCH is an excellent choice for powering IP cameras and IP camera systems while ensuring a stable data connection. This compact desktop switch is ideal for integrating security systems, access control systems, and other IoT devices into your network. Its design allows reliable operation in critical network infrastructures, providing continuous power supply and communication for connected devices.

Technical specifications:

• Ports: 4 PoE ports + 2 uplink ports
• Port speed: Up to 100 Mbps on each port
• Power budget: Up to 65W total power for all ports
• Switching capacity: Up to 1.2 Gbps
• Standards: IEEE802.3af (PoE) / at (PoE+) desktop switch
• PoE ports: 4 x RJ45 10/100 Mbps PoE/PoE+ ports (ports 1–4)
• Compatibility: Compatible with PoE IEEE802.3af/at standards
• CCTV mode: Extended range up to 250 m @ 10 Mbps
• Interface: 4 RJ45 PoE ports + 2 uplink ports
• Power supply: Up to 65W total for all ports
• Transmission distance: Up to 250 m @ 10 Mbps in CCTV mode
• Input power: AC 220 V
• Operating temperature: -20ºC to 50ºC
• Dimensions / Weight: 142 (D) x 40 (H) x 114.5 (W) mm / 600 g

Features and benefits:

• High‑performance PoE ports: Supports the power needs of IP cameras, VoIP phones, and other PoE‑enabled devices, helping reduce installation costs and increase deployment flexibility.
• Extended transmission distance: With CCTV mode, it can deliver power and data up to 250 meters, making it suitable for larger‑scale installations.
• Easy installation and operation: Plug‑and‑play design and compact size enable quick setup and smooth integration into existing network infrastructure.
• Reliability: Robust construction and wide operating temperature range support stable performance in various environments.

The SW-4-POE-SWITCH is an ideal choice for those who need a reliable, efficient, and easy‑to‑manage solution for their IP‑based security systems.
