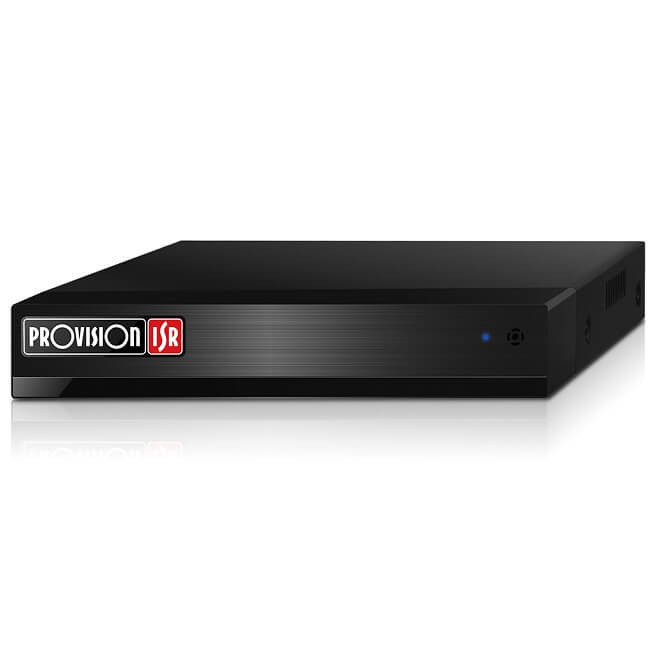

Provision PR-NVR5-4100XN(MM) 4-channel 5MP IP recorder

We also recommend the following product as an accessory

• Details
• Data
• Reviews
• Használati útmutató

Details

Provision PR-NVR5-4100XN(MM) 5MP IP camera recorder with remote access and optional Hungarian menu

The Provision PR-NVR5-4100XN(MM) network video recorder is the heart of your CCTV system, providing access to both live view and recorded footage. You can connect 1–4 IP cameras to the NVR, with a maximum resolution of 5 megapixels. It is ready to use out of the box, with an optional Hungarian-language menu to simplify setup, and can be connected to a TV via HDMI or to a monitor via VGA.
Remote access is also supported, so you can view live images and recordings anytime, anywhere from your phone or computer (the app is available for both Android and iOS).
Recording is done to an internal hard drive (NOT INCLUDED), and the schedule is highly customizable: you can choose continuous or scheduled recording, or enable motion detection so footage is only saved when movement is detected – helping you significantly save storage space and time when searching recordings.

5

MEGAPIXEL

Maximum resolution

6 TB

MAX STORAGE

Maximum storage capacity

4

CHANNELS

Connect up to 4 cameras

H.265+

VIDEO COMPRESSION

Up to 75% more efficient than older systems

Detailed technical specifications

3rd-party cybersecurity – General	NDAA-compliant
Video input	4Ch via network / direct PoE connection
Video output	HDMI / VGA (1080P, 1280x1024, 1024x768)
Display mode	Mirrored
Encoding format	H.265 / H.265+ / H.265S / H.264
Encoding options	1Ch – 5MP, 4Ch – 1080P
Audio input/output	IPC-dependent
Audio compression	G.711A / G.711U
Two-way audio	Not supported
Supported analytics	Camera tamper, DDA2 object classification, line crossing (DDA / pixel-based), sterile area (DDA / pixel-based), object monitoring, object counting (DDA), crowd, intrusion, smart search, LPR, thermal *DDA/LPR live snapshot analytics not supported
Analytics channels (IPC-based)	4Ch (requires IPC support)
Analytics channels (NVR-based)	N/A
Face recognition rate	N/A
Incoming bandwidth	40 Mbps
Outgoing bandwidth	64 Mbps
Real-time recording	4Ch 5MP real time
Recording type	Video / video + audio
Recording modes	Schedule, Manual, Motion, Sensor, Analytics, POS and all combinations of these
5MP and below	120FPS (NTSC) / 100FPS (PAL)
Main stream over network	Max. 4Ch @ recording resolution
Substream – resolution	Depends on IPC
Remote live view – max	20Ch (depending on outgoing bandwidth capacity)
User access	Up to 64 online users with advanced permission management
Mobile app	Provision Cam2 iOS/Android
PC/Mac software	Ossia VMS Standard / Enterprise

Local playback	4Ch
Remote playback	4Ch
Search mode	DDA object, smart search, LPR, time slice, time, event, POS
USB backup	2 × USB 2.0 ports
Backup format	AVI (unencrypted) / Private format (encrypted / unencrypted)
Alarm input	IPC-dependent
Alarm output	IPC-dependent
HDD bays	1
eSATA support	Not supported
RAID	RAID: N/A
PTZ connection	Via network
Supported PTZ controls	Pan, tilt, zoom, presets, speed control, patrol, iris, focus
RS-485	N/A
Ethernet	10/100 Mbps self-adaptive Ethernet interface
Protocols	TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, HTTPS, 802.1X, SNMP, auto report (Ossia VMS)
ONVIF	Full device support (Profile T/G, ONVIF version 20.12)
Power consumption (without HDD)	5W
Dimensions	W: 255 × D: 220 × H: 45 mm
Operating temperature	0°C to 50°C

Data

Functions:

, ,

Reviews

Be the first to write a review!

Write a review

Használati útmutató

Az alábbi linken tekintheti meg a Provision rögzítőkhöz tartozó leírást:

https://orkodo.hu/shop_ordered/4402/pic/Provision_leiras.pdf
