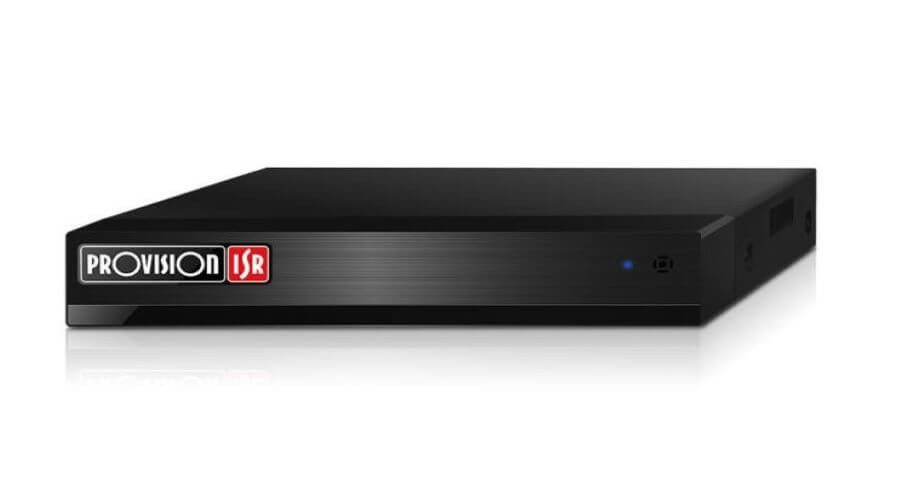

Provision PR-NVR5-4100PXN(MM) 4-channel IP NVR with built-in PoE 5MP

We also recommend the following product as an accessory

• Details
• Data
• Reviews
• Használati útmutató

Details

Provision PR-NVR5-4100PXN(MM) is a 5MP IP camera NVR that serves as the central hub of your CCTV system, providing access to both live view and recorded footage. It supports 1–4 IP cameras with up to 5MP resolution and features 4 PoE ports, so connected cameras receive power and data over a single cable. The unit is ready to use out of the box, offers an optional Hungarian-language menu, and connects to a TV via HDMI or to a monitor via VGA. Remote access is available through a smartphone or computer, allowing you to view live images and recordings anytime, anywhere (apps available for Android and iOS). Recording is done to an internal hard drive (NOT INCLUDED), with highly customizable scheduling options: continuous, time-based, or motion-triggered recording to save storage space and simplify playback search.

Key Features

• Up to 5MP recording resolution for clear, detailed video
• Supports up to 6 TB internal storage capacity
• 4-channel NVR – connect up to 4 IP cameras
• H.265+ video compression – up to 75% more efficient than older systems
• 4 PoE ports – power and data over a single cable for each camera
• Remote access via CAM 2 app, Ossia VMS, or provisionisr-cloud.com

Detailed Technical Specifications

General Information

• Manufacturer part number: PR-NVR5-4100PXN(MM)
• Brand: PROVISION-ISR
• EAN code: 610840139091
• Warranty: 3 years
• CCTV technology: IP
• Form factor: Mini Metal

Video & Audio

• Maximum IP resolution: 5 MP
• Video compression: H.265+ / H.264+ / H.265 / H.264
• Video input: 4 PoE network ports
• Video output: 1× HDMI, 1× VGA
• Audio input: via IP cameras only
• Audio output: via IP cameras only

Network & Connectivity

• PoE ports: 4
• Ethernet: 10/100 Mbps
• Network port: 1× RJ45 10/100 Mbps
• PTZ control: via network
• Remote access: CAM 2 application, Ossia VMS, provisionisr-cloud.com

Storage

• Number of disks: 1
• Storage interface: 1× SATA (up to 6 TB)

Power

• Power supply (device): DC48V/1.36A
• Power adapter: DC48V/1.25A

Smart Functions & Alarms

• Analytics (NVR functions): Line crossing / sterile area, SMD smart motion detection, license plate recognition, object counting, object classification
• Analytics (AI): Based on AI IP cameras
• Alarm: Based on IPC events only

This compact Provision PR-NVR5-4100PXN(MM) NVR is ideal for small to medium IP camera systems where simple installation, PoE power supply, and efficient H.265+ compression are key requirements.

Data

Functions:

Mozgásérzékelés, Telefonról nézhető, Ember és jármű felismerés, PoE (Power over Ethernet)

Reviews

Be the first to write a review!

Write a review

Használati útmutató

Az alábbi linken tekintheti meg a Provision rögzítőkhöz tartozó leírást:

https://orkodo.hu/shop_ordered/4402/pic/Provision_leiras.pdf
