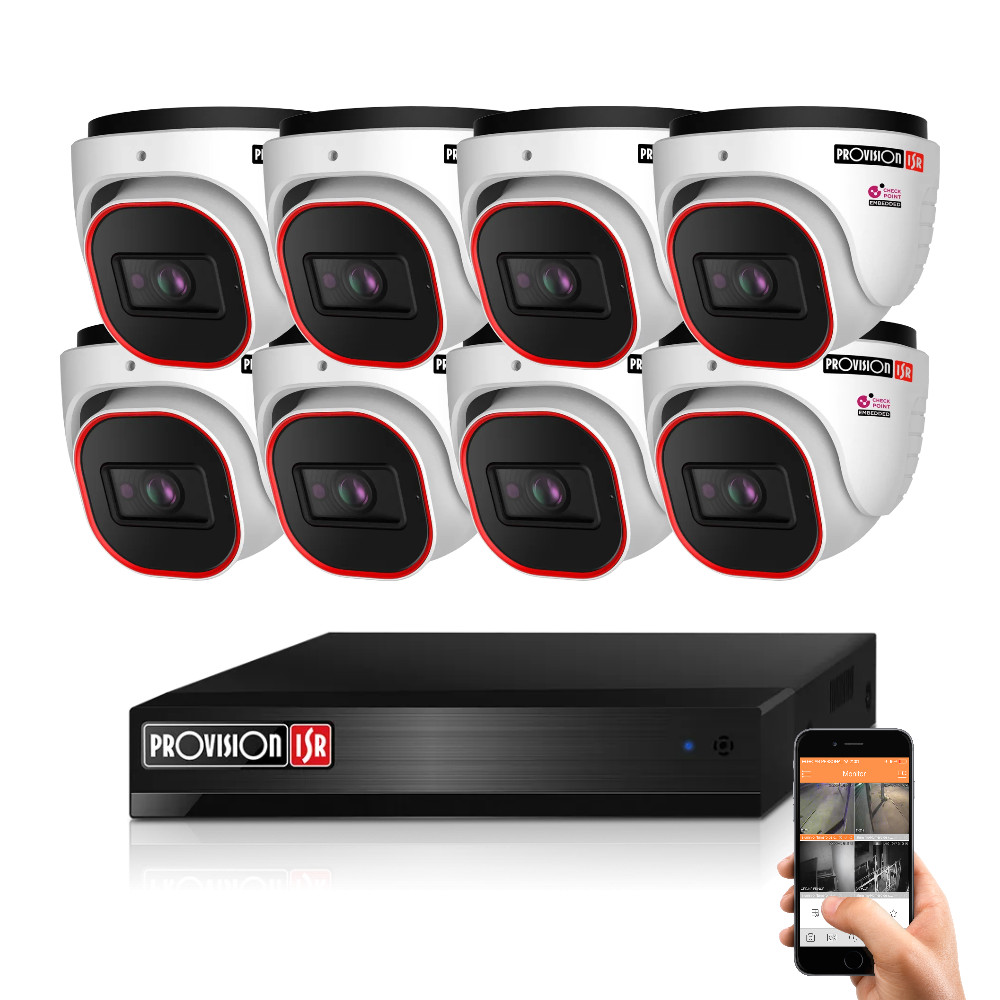

2 megapixel Provision kit with 1 large LED array: 8 dome security cameras FULL HD 1920x1080 resolution, white outdoor metal housing, 8-channel 5 megapixel NVR recorder, 10 m LAN cables, 8+2 port PoE switch. This security system is suitable for monitoring business premises, apartments and holiday homes in Full HD quality. The 8‑dome IP system allows you to cover larger areas without signal loss.
Contents of the pre‑assembled IP security camera system kit:

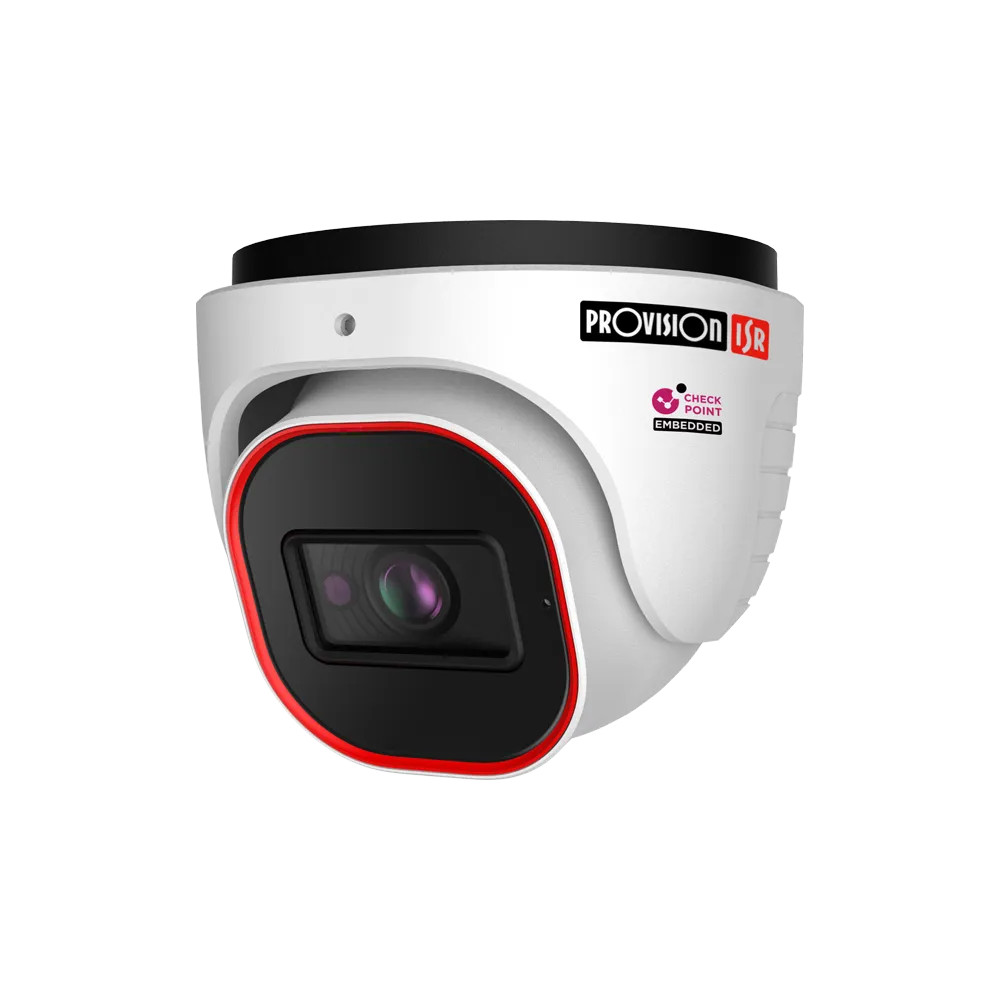

Easy to mount on walls or ceilings, with a durable metal housing, so it is ideal for outdoor use as well.
Thanks to the built‑in IR LEDs, the camera provides clear images up to 20 m even in complete darkness. The 2.8 mm lens offers a 107° field of view, allowing you to cover a wide area with each camera.

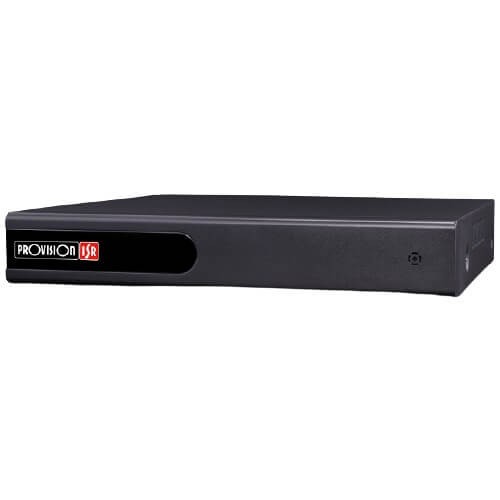

The Provision PR-NVR5-8200X+(MM) recorder supports up to 8 5 megapixel IP cameras. You can set up motion‑based, cyclic or continuous recording modes. Connect it to a monitor or TV to view live footage. Remote access via the internet is available through a mobile app and PC software. To store recordings, a hard drive is required (NOT INCLUDED), with a maximum capacity of 6 TB.
If you purchase the hard drive from us, we will install it in the NVR free of charge.

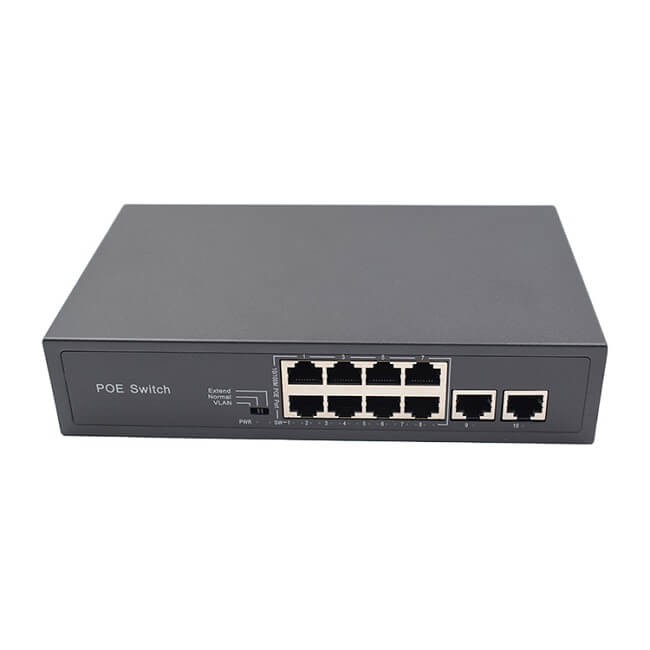

The PoE switch is used to build the IP camera network. Connect the IP cameras and the NVR recorder to it using the supplied cables.
Thanks to PoE, the cameras do not need a separate power supply; they are powered directly from the switch.
There are 10 ports in total: 8 for the cameras, 1 for the router and 1 for connecting the NVR.

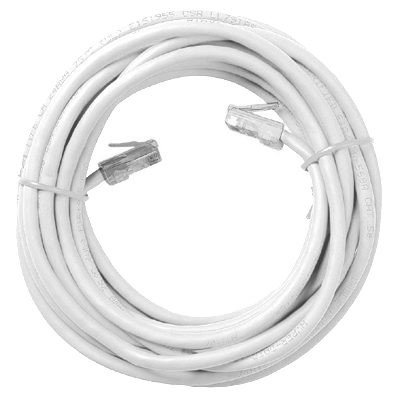

The cables are delivered fully assembled, so you only need to connect them to the NVR recorder and the cameras. Each camera requires only one cable, as both video signal and power are transmitted over the same line.
If 10 m is not sufficient, you can choose longer versions: 15 m or 20 m.
Assign a unique IP address to each IP camera and to the recorder within your local IP range (make sure no two devices share the same IP address, as this will cause conflicts).
Connect the cameras and the recorder to the switch, then plug the devices into a power outlet using the supplied power adapters.
In the recorder’s settings, add the cameras one by one using automatic search or by entering the previously assigned IP addresses, then save the configuration.
Your system is now ready for use.
Surveillance systems do not include built‑in storage, so the hard drive must be purchased separately / NOT INCLUDED / for the device. If you buy the HDD from us, we will install and configure it free of charge, so you do not incur extra work or cost.
1000 GB HDD for recording
Approximate storage capacity with continuous recording: about 1 week for 1 camera; with motion detection enabled, up to around 2 months, depending on activity.
NOT INCLUDED
2000 GB HDD for recording
Approximate storage capacity with continuous recording: about 2 weeks for 1 camera; with motion detection enabled, up to about 1–2 months, depending on activity.
1 pc Provision NVR5-8200X+(MM) 8‑channel NVR recorder
8 pcs Provision DI-320IPS28-V2 cameras
8 pcs 10 m pre‑terminated IP camera cables
1 pc 8+2 channel PoE switch
Please also check our IP camera system category and browse our full range of ready‑to‑use kits.
