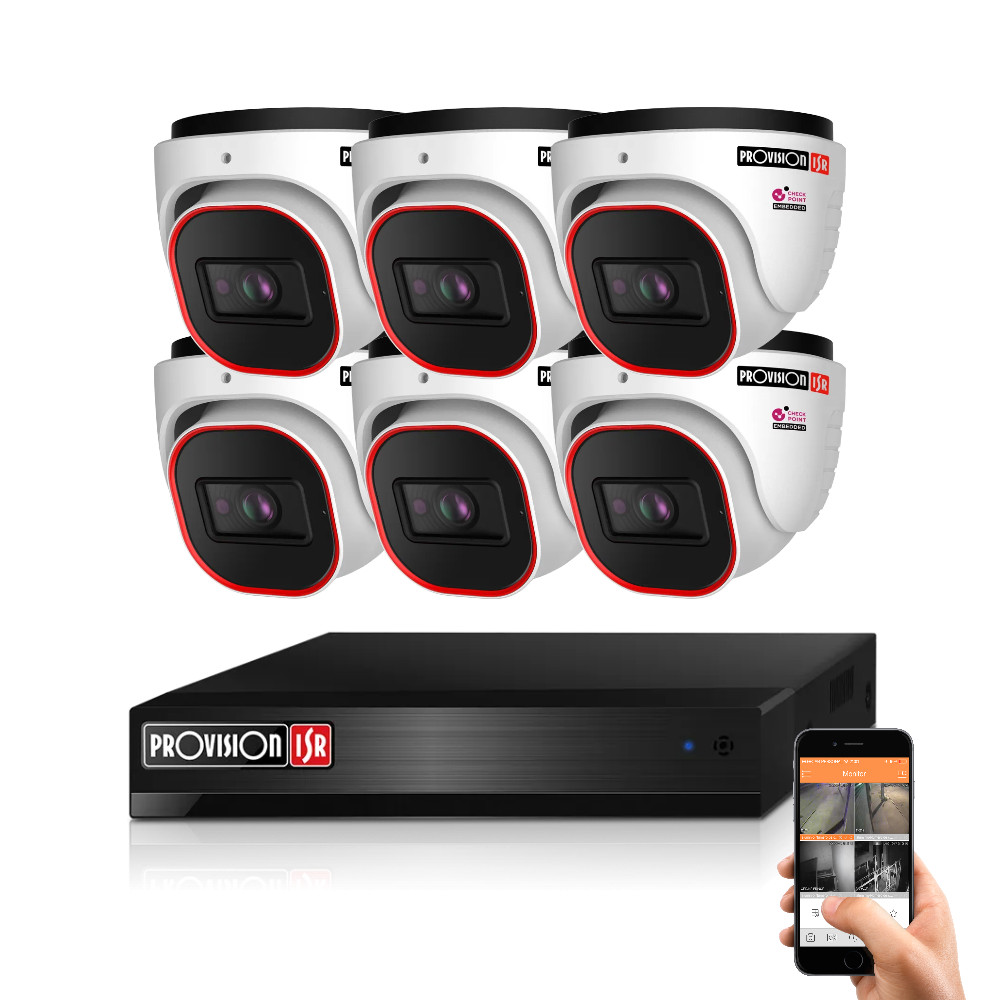

2 Megapixel Provision kit with 1 high-power LED array: 6 dome security cameras, FULL HD 1920x1080 resolution, white outdoor metal housing, 8-channel 5 MP NVR recorder, 10 m LAN cables, 8+2 port PoE switch. This security system is ideal for monitoring business premises, apartments and holiday homes in Full HD quality. The 6-dome IP camera system allows you to monitor even large areas without signal loss.

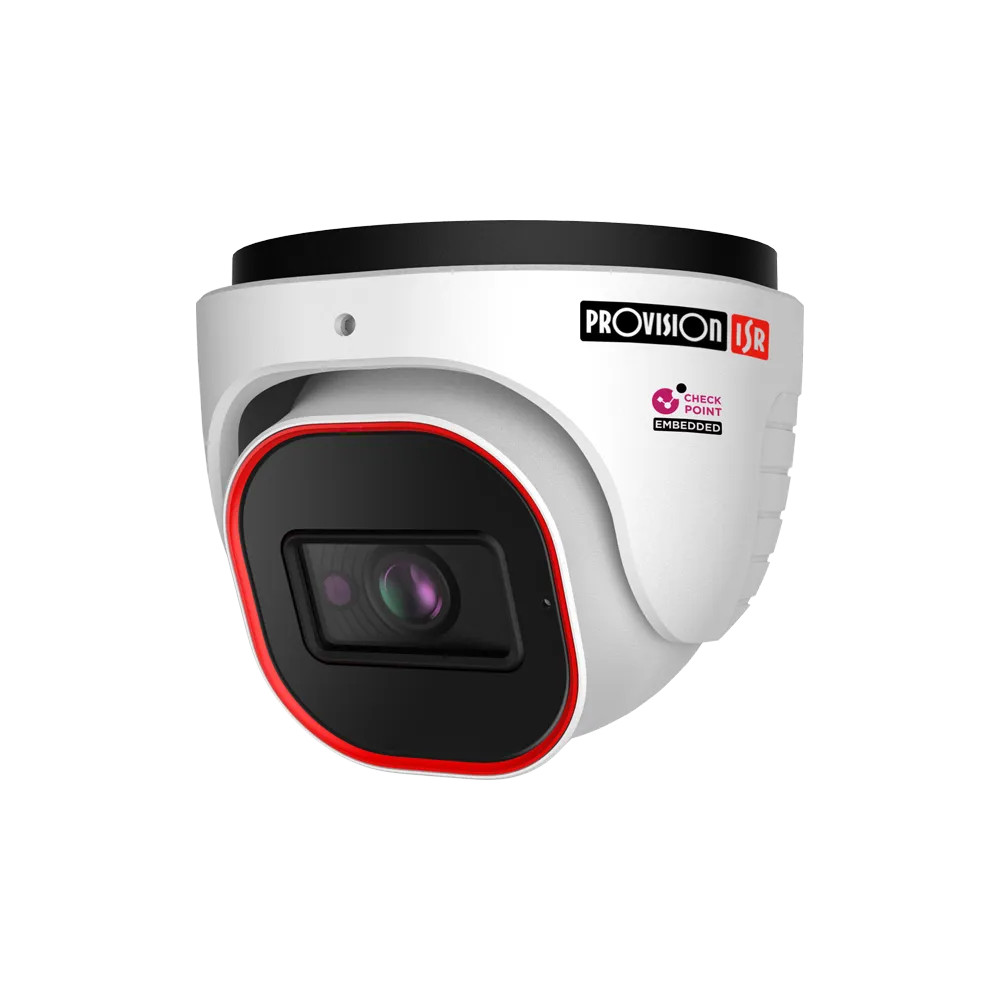

The cameras can be easily mounted on walls or ceilings. Thanks to the robust metal housing, they are also suitable for outdoor use.
With the built-in IR LED, the camera provides clear images in complete darkness up to 20 m. The 2.8 mm lens offers a 107° field of view, allowing you to cover a wide area with each camera.

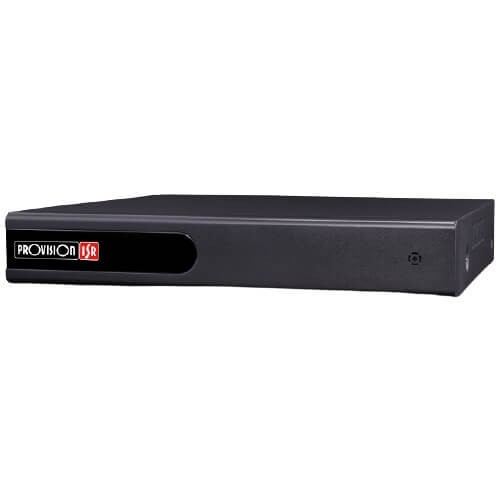

The Provision PR-NVR5-8200X+(MM) NVR can handle up to 8 IP cameras with up to 5 megapixel resolution. You can set motion detection, scheduled or continuous recording modes. By connecting a monitor or TV, you can view live images and playback locally. Remote internet access is available via mobile app and PC software. To store recordings, the NVR must be fitted with a hard disk drive (NOT INCLUDED), with a maximum capacity of 6 TB.
If you purchase the hard disk from us, we will install it in the NVR free of charge.

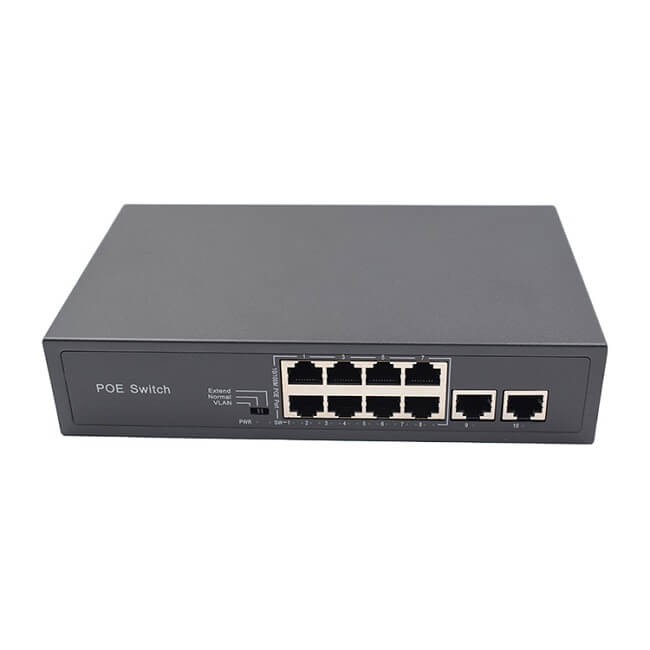

The PoE switch is used to create the IP camera network. Connect the IP cameras and the NVR to the switch using the supplied cables.
Thanks to PoE, the cameras do not need a separate power supply; they receive power directly from the switch.
The switch has 10 ports in total: 8 for the cameras, 1 for the router and 1 for connecting the NVR.

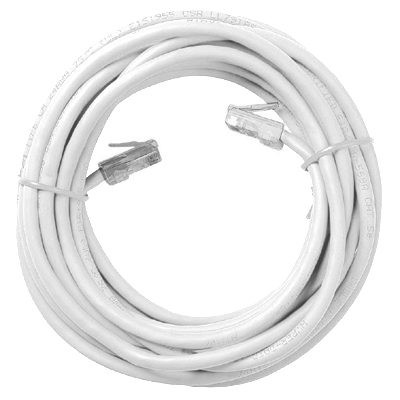

The cables are delivered pre-terminated, so you only need to connect them to the NVR and the cameras. Each camera requires just one cable, as both the video signal and power are transmitted over the same line.
If 10 m is not enough, you can choose longer cables (15 m or 20 m).
Assign a unique IP address to each IP camera and to the NVR within your local IP range (make sure no two devices share the same IP address to avoid conflicts).
Connect the cameras and the NVR to the PoE switch, then plug the switch into the mains using the supplied power adapter.
In the NVR settings, add the cameras one by one using automatic search or by entering the previously assigned IP addresses, then save the configuration.
The system is now ready for operation.
The surveillance system does not include built-in storage; a hard disk drive must be purchased separately (NOT INCLUDED). If you buy the HDD from us, we will install and configure it in the NVR at no extra cost.
1000 GB HDD for recordingTypical storage time with continuous recording is approx. 1 week for 1 camera; with motion detection, storage time can be significantly longer, depending on activity levels. NOT INCLUDED
2000 GB HDD for recordingTypical storage time with continuous recording is approx. 2 weeks for 1 camera; with motion detection, storage time can be significantly longer, depending on activity levels. NOT INCLUDED
