Provision 5 security camera IP camera system 2MP

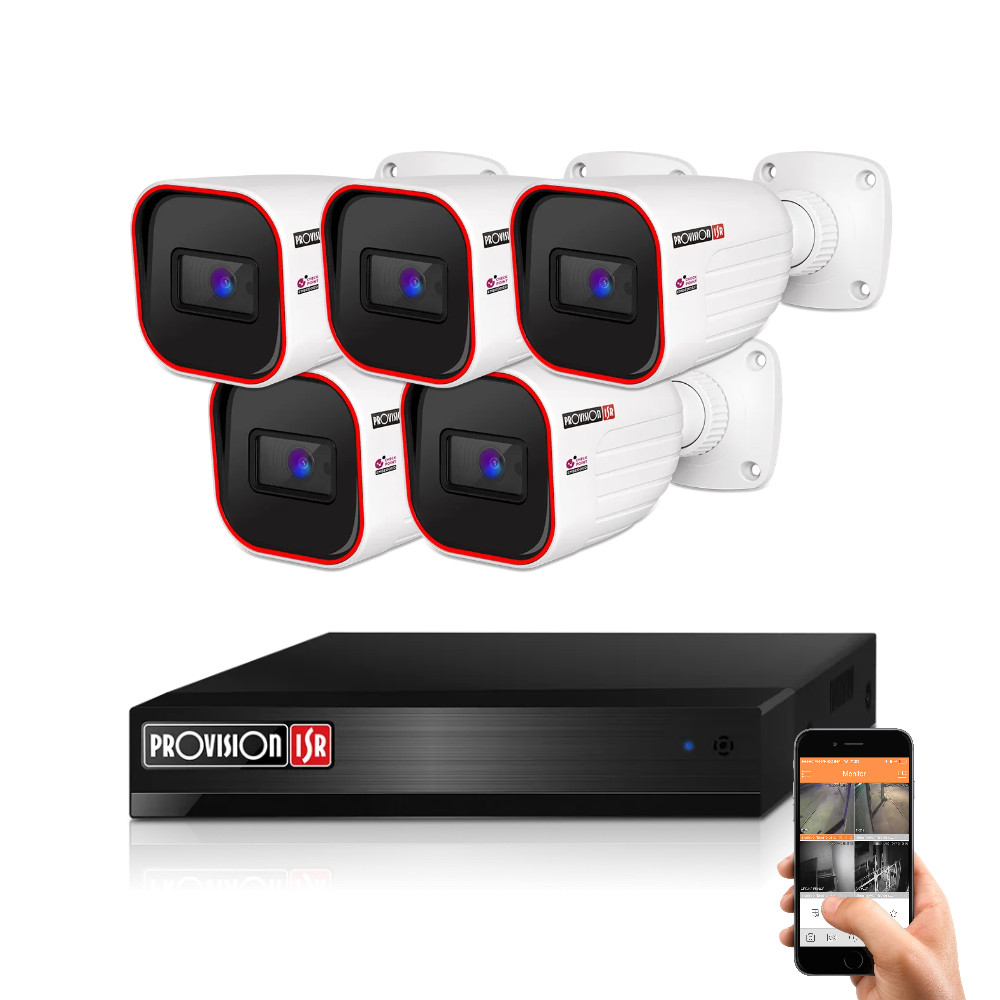

Provision Full HD 5-camera IP system with 2 megapixel resolution

2 megapixel Provision kit with 1 large LED array: security cameras with FULL HD 1920x1080 resolution, white outdoor metal housing, 8-channel 5 megapixel NVR recorder, 10 m LAN cables, 8-port switch, power supplies and PoE connectors. The security system is suitable for monitoring premises, apartments and shops in Full HD quality. The 5 bullet camera IP system allows the surveillance of large areas without signal loss.

Contents of the pre-assembled IP security camera system kit:

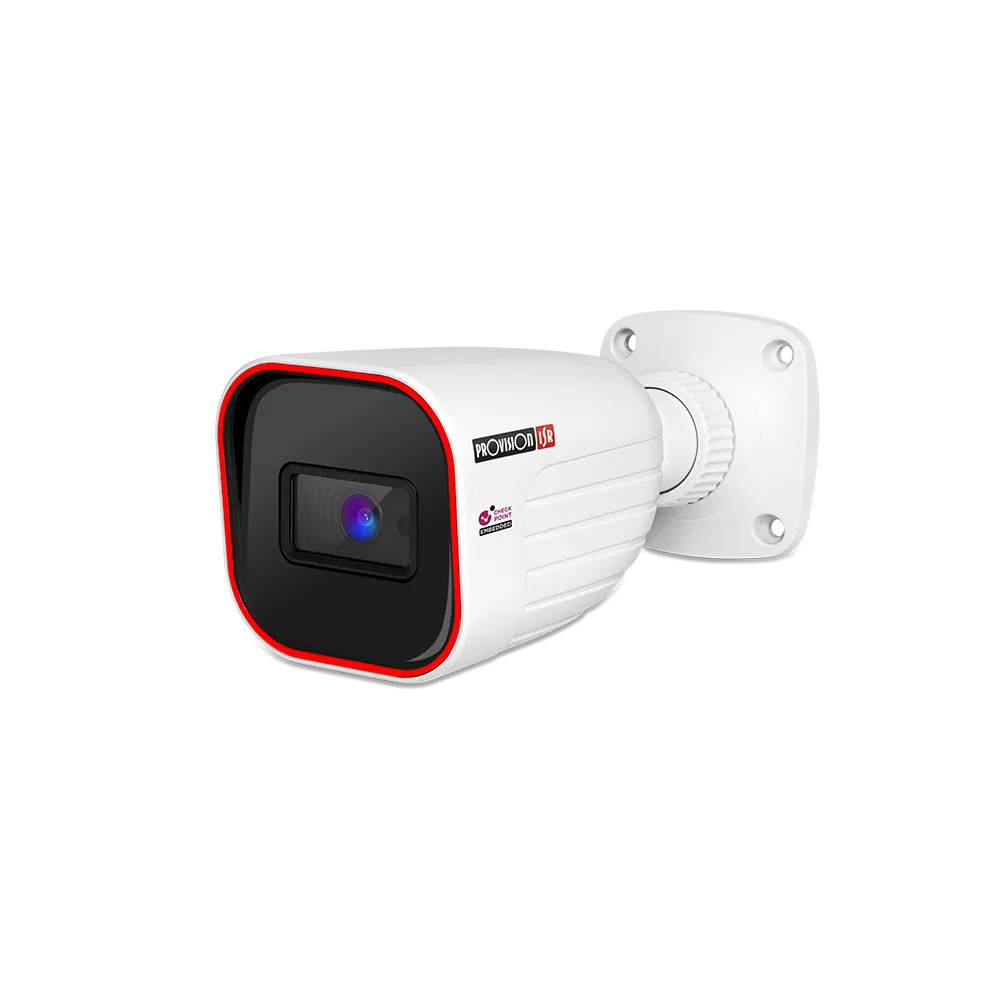

5 pcs I2-320IPSN-28-V2 night vision 2MP Full HD outdoor and indoor IP bullet camera

Easy to mount on walls and ceilings, with a metal housing, making it suitable for both outdoor and indoor use.

Thanks to the built-in IR LEDs, it provides visibility up to 20 metres in complete darkness. The 2.8 mm lens offers a 103° field of view, allowing you to cover a larger area with a single camera.

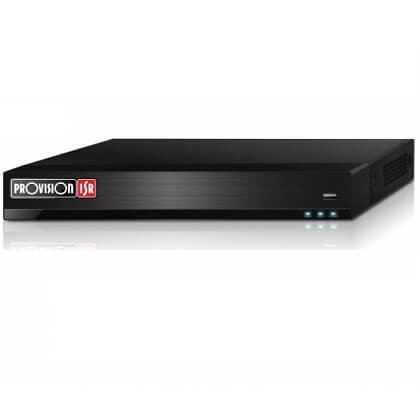

1 pc high-resolution desktop NVR recorder

The Provision PR-NVR5-8200X+(MM) NVR can handle up to 8 5 megapixel IP cameras and supports motion detection, scheduled or continuous recording modes. Connected to a monitor or TV, you can view live footage. It also supports remote internet access via mobile app and PC. To store recordings, the unit must be fitted with a hard drive (NOT INCLUDED), up to 6 TB capacity.

If you purchase the hard drive from us, we will install it in the NVR free of charge.

1 pc 8+2 port PoE switch

The PoE switch is used to create the IP camera network. Connect the IP cameras and the NVR to it using the supplied cables.

Thanks to PoE, the cameras do not need a separate power supply; they are powered directly from the switch.

The switch has a total of 10 ports: 8 for cameras, 1 for the router and 1 for connecting the NVR.

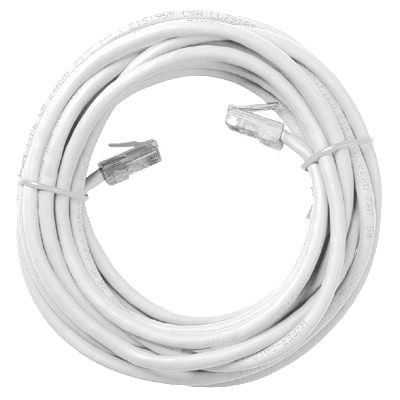

5 pcs 10 m pre-terminated IP camera cable

The cables are delivered ready-made; simply connect them to the NVR recorder and the cameras. Each camera only needs a single cable, as both video signal and power are transmitted over one line.

If 10 m is not enough, you can choose longer cables: 15 m or 20 m.

Connecting and setting up the IP cameras

Assign an IP address to each IP camera and to the NVR within your own IP address range (make sure there are no duplicate IP addresses, as this will cause conflicts).

Connect the cameras and the NVR to the 5-channel switch, then plug the switch into the mains using the supplied power adapters.

In the NVR settings, add each camera using automatic search or by entering the previously assigned IP addresses, then save the configuration.

The system is now operational.

Optional HDD for recording footage

Surveillance systems do not include built-in storage, so hard drives must be purchased separately / NOT INCLUDED / for the recorder. If you buy the HDD from us, we will install and initialise it in the device free of charge, so you have no extra work or installation cost.

1000 GB HDD for recording

Approximate storage time with continuous recording for 1 camera is about 1 week; with motion detection enabled it can be up to around 2 months.

NOT INCLUDED

2000 GB HDD for recording

Approximate storage time with continuous recording for 1 camera is about 2 weeks; with motion detection enabled it can be around 1–2 months.

NOT INCLUDED

Provision Full HD IP 5-camera system package contents

1 pc Provision NVR5-8200X+(MM) 8-channel NVR

5 pcs Provision I2-320IPSN28-V2 IP camera

5 pcs 10 m pre-terminated IP camera cable

1 pc 8+2 channel PoE switch
