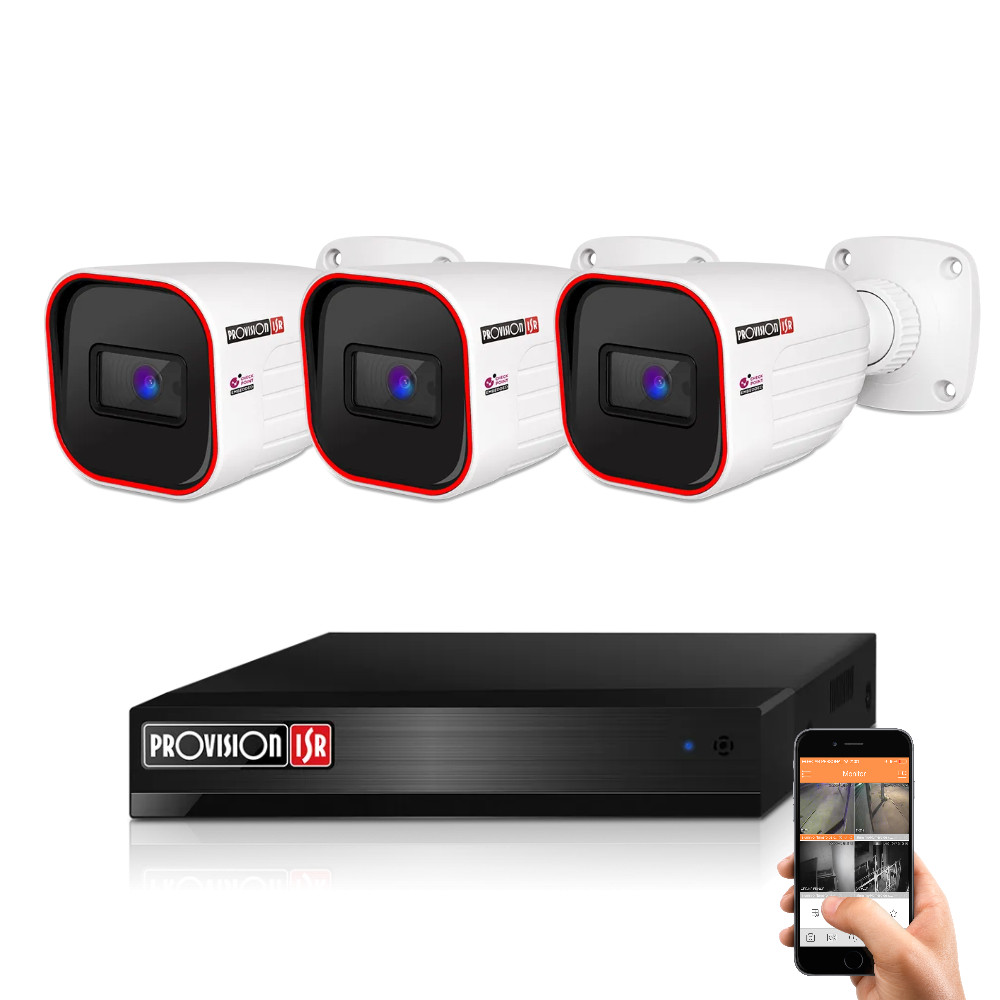

2 megapixel Provision kit with 1 large LED array: security cameras with FULL HD 1920x1080 resolution in white outdoor metal housing, 4-channel 5 megapixel NVR recorder, 10 m LAN cable, 4+2 port PoE switch. The security system is suitable for monitoring premises, apartments and shops in Full HD quality. The 3 bullet-camera IP system also allows you to monitor larger areas without signal loss.
Contents of the pre-assembled IP security camera system kit:

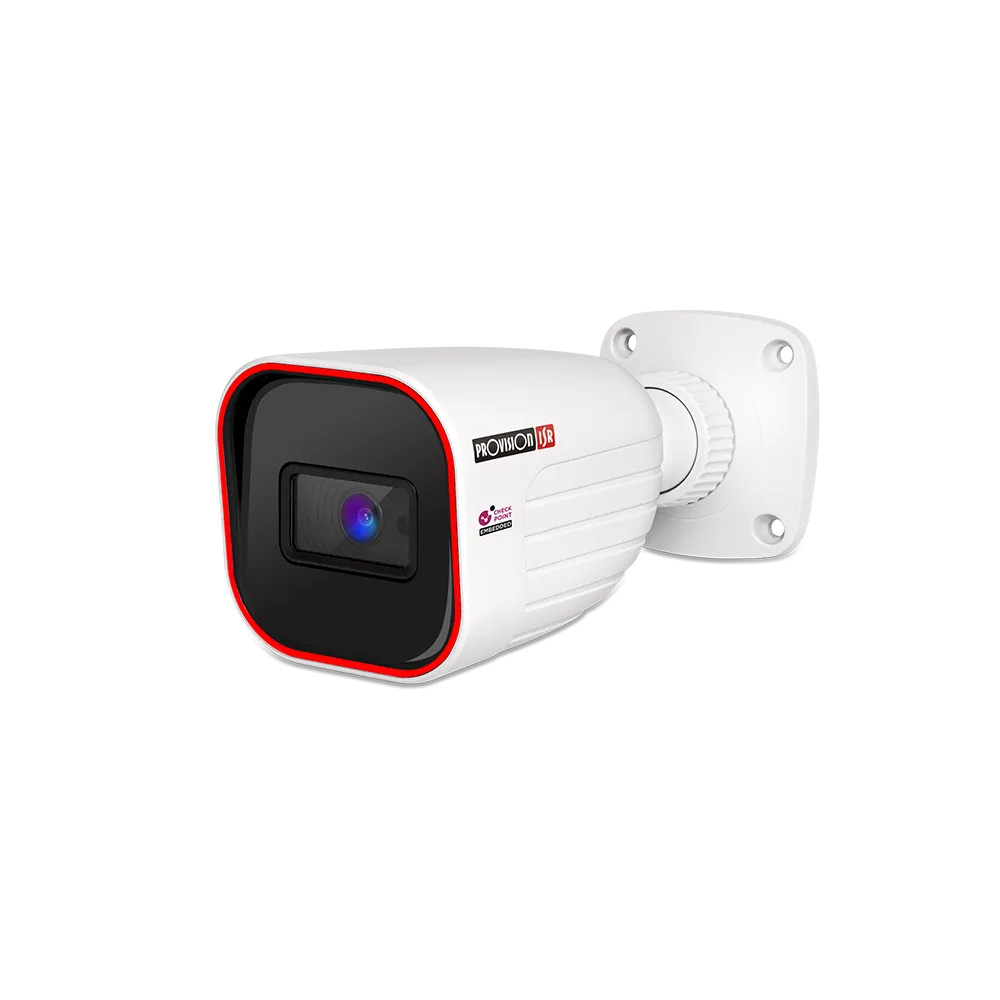

Easy to mount on walls and ceilings, thanks to its metal housing it is ideal for both outdoor and indoor use.
Thanks to the built-in IR LEDs, it provides clear images up to 20 m distance even in complete darkness. The 2.8 mm lens offers a 103° field of view, allowing you to cover a wider area with a single camera.

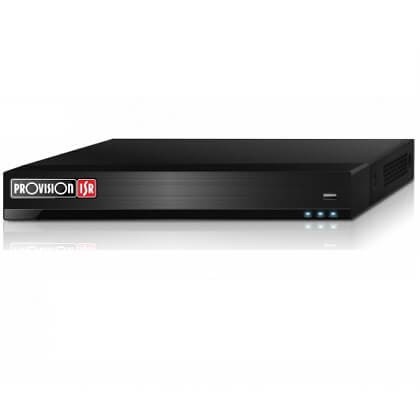

The Provision PR-NVR5-4100X+(MM) recorder supports up to 4 5 megapixel IP cameras and offers configurable motion detection, scheduled or continuous recording modes. When connected to a monitor or TV you can view live footage. It also supports remote internet access via mobile app and PC. To store recordings, the unit needs to be fitted with a hard drive (NOT INCLUDED), up to a maximum capacity of 6 TB.
If you purchase the hard drive from us, we will install it in the NVR free of charge.

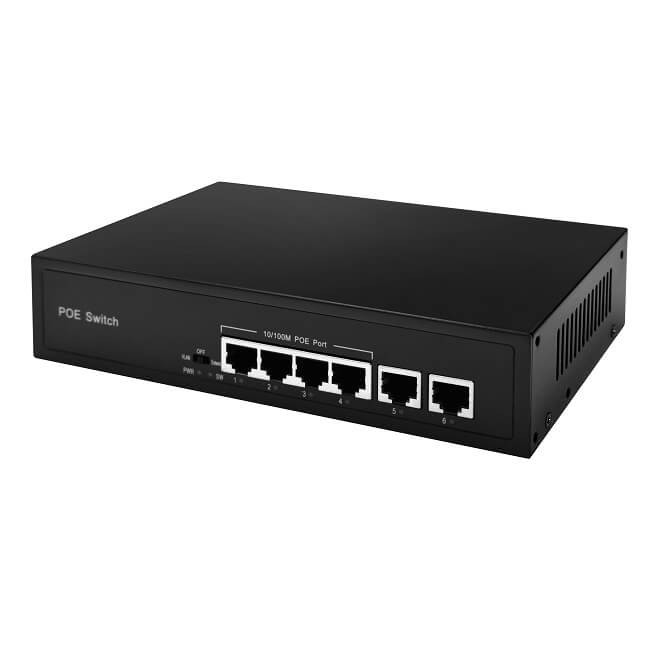

The PoE switch is used to build the IP camera network. Connect the IP cameras and the NVR to the switch using the supplied cables.
Thanks to PoE, the cameras do not require separate power supplies – the switch powers them directly.
The switch has 6 ports in total: 4 for cameras, 1 for the router and 1 for connecting the NVR.

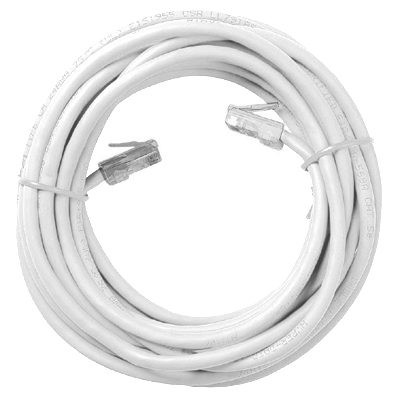

The cables are shipped pre-terminated, you only need to connect them to the NVR and the cameras. Each camera requires just 1 cable, as both video signal and power are transmitted over the same line.
If 10 m is not enough, you can choose longer options: 15 m or 20 m.
Assign a unique IP address to each IP camera and to the recorder within your local IP address range (make sure no two devices share the same IP, as this will cause conflicts).
Connect the cameras and the recorder to the PoE switch.
In the NVR settings, add the cameras one by one using automatic search or by entering the previously assigned IP addresses, then save the configuration.
Your system is now ready to use.
Surveillance systems do not include built-in storage, so hard drives must be purchased separately / NOT INCLUDED / for the unit. If you buy the HDD from us, we will install and initialize it in the recorder free of charge, so you do not need any extra work or installation costs.
1000 GB HDD for recording
Approximate storage time with continuous recording for 1 camera is about 1 week; with motion detection enabled it can be up to around 2 months, depending on activity levels.
NOT INCLUDED
2000 GB HDD for recording
Approximate storage time with continuous recording for 1 camera is about 2 weeks; with motion detection enabled it can be around 1–2 months, depending on activity levels.
1 pc Provision NVR5-4100X+(MM) 4-channel NVR recorder
3 pcs Provision I2-320IPSN28-V2 cameras
3 pcs 10 m pre-terminated IP camera cable
1 pc 4+2 channel PoE switch
