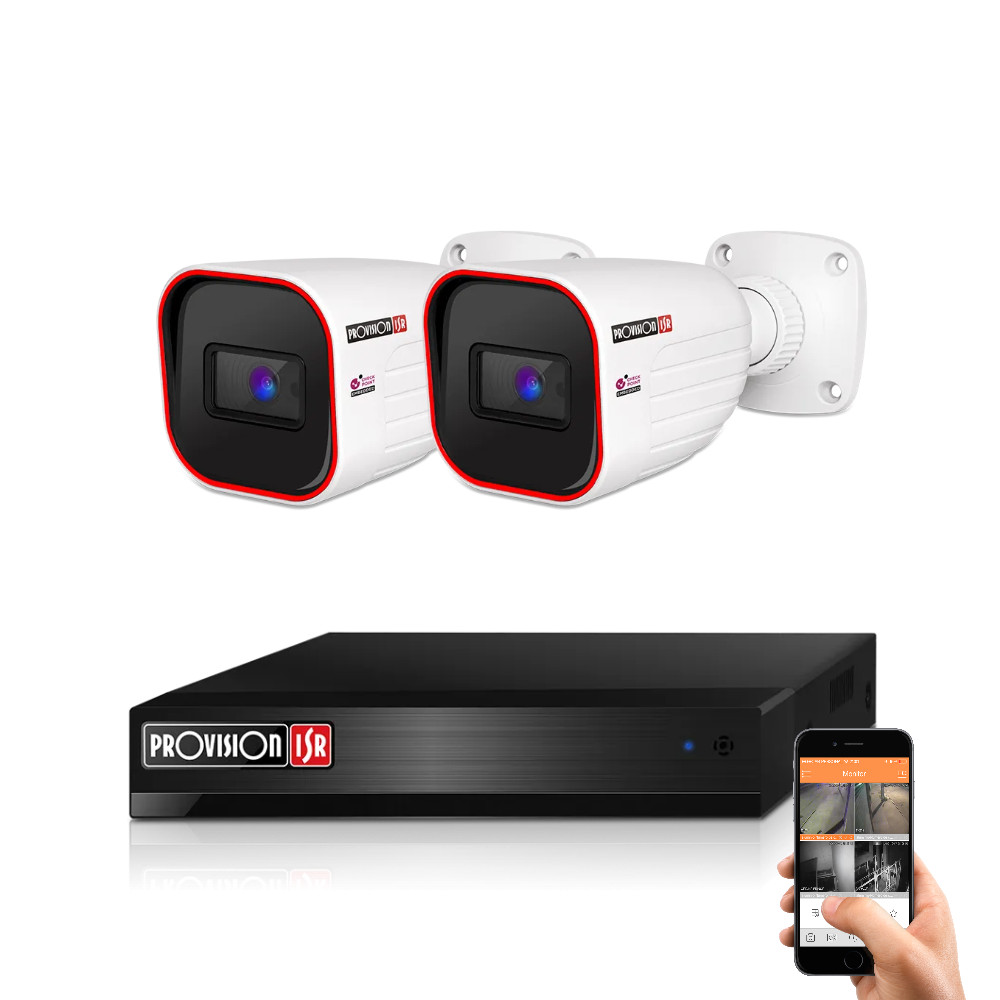

Provision 2-camera security IP camera system 2MP

Provision Full HD 2-camera IP surveillance system with 2 megapixel resolution

2 megapixel Provision set with 1 large LED array: security camera FULL HD 1920x1080 resolution, white outdoor metal housing, 4-channel 5 megapixel NVR recorder, 10 m LAN cable, 5-port switch, power supplies and PoE connectors. The security system is suitable for monitoring premises, apartments and shops in Full HD quality. The 2-bullet-camera IP system also allows monitoring of larger areas without signal loss.

Contents of the pre-assembled IP security camera system kit:

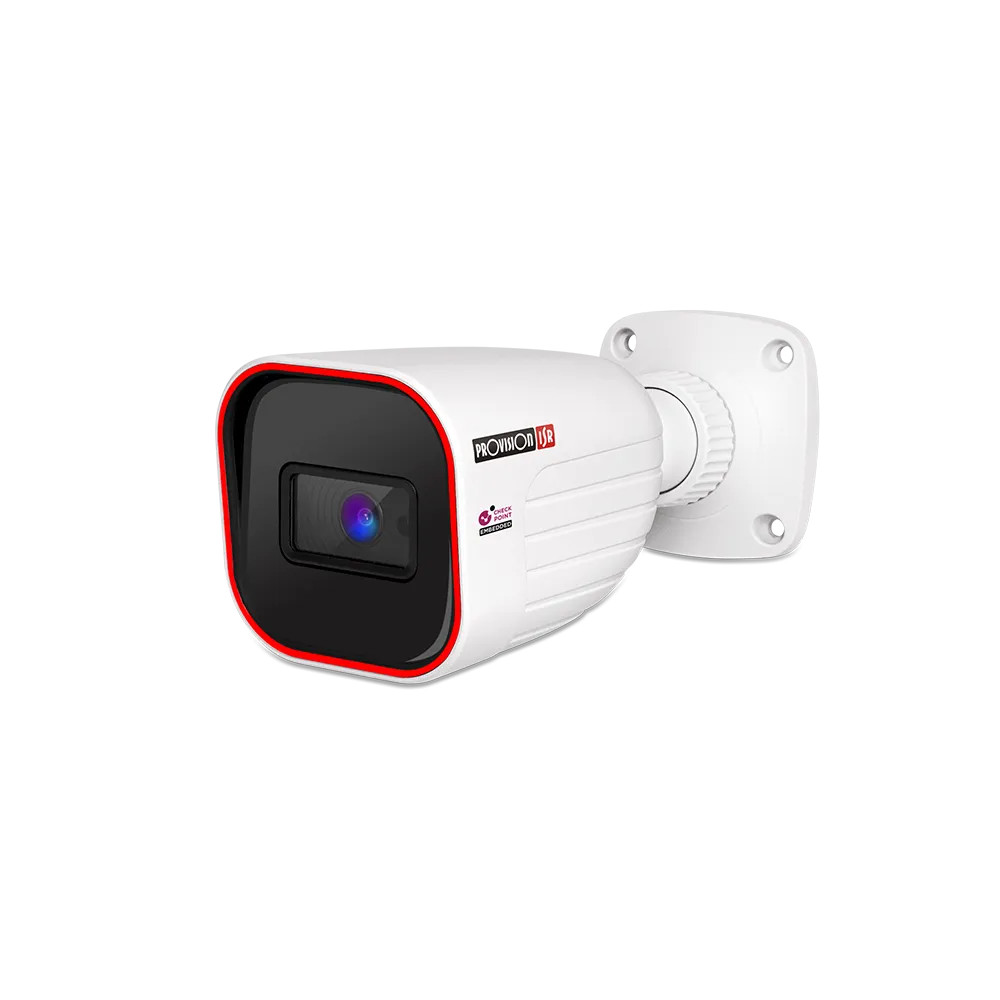

2 pcs I2-320IPSN-28-V2 2MP Full HD day/night indoor & outdoor IP bullet camera

Easy to mount on walls or ceilings, with a durable metal housing, so it is suitable for both indoor and outdoor use.

Thanks to the built-in infrared LEDs, the camera provides clear images up to 20 m even in complete darkness. The 2.8 mm lens offers a 103° field of view, allowing you to cover a wide area with a single camera.

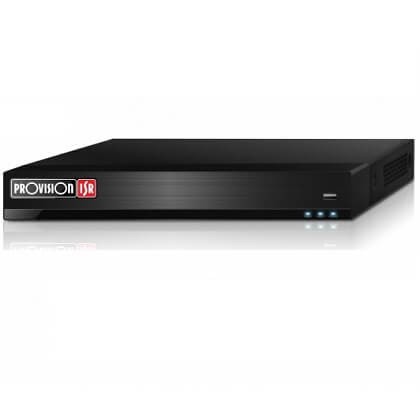

1 pc High-resolution desktop NVR recorder

The Provision PR-NVR5-4100X+(MM) recorder supports up to 4 5 megapixel IP cameras and allows you to set up motion-triggered, cyclic or continuous recording modes. Connect it to a monitor or TV to view live footage. Remote internet access is available via mobile app and PC. To store recordings, the NVR must be fitted with a hard disk drive (NOT INCLUDED), up to 6 TB capacity.

If you purchase the hard drive from us, we will install it into the NVR free of charge.

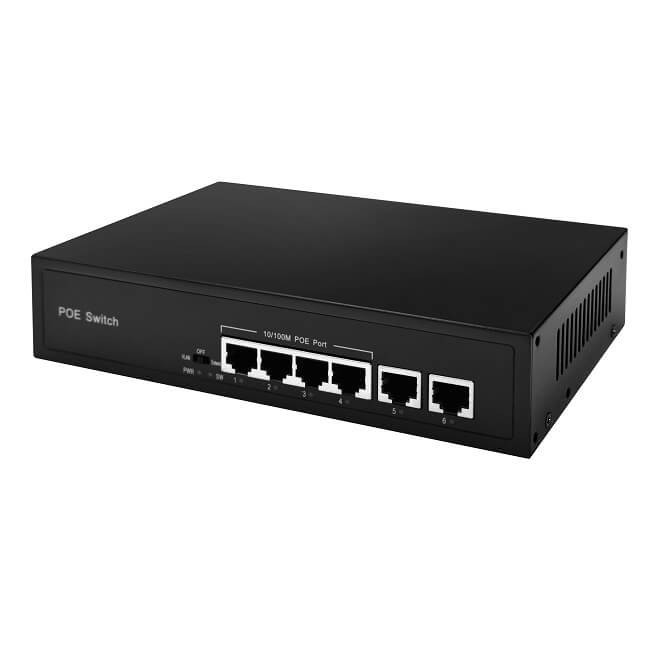

1 pc 5-port switch

The switch is used to create the IP camera network. Connect the IP cameras and the NVR recorder to it using the supplied cables. For the camera, only the RJ45 plug of the PoE adapter needs to be connected.

On request, the switch can be replaced with a 4+2 or 8+2 PoE switch – in this case, no separate power supplies or PoE adapters are needed. Please contact our customer service for price differences.

2 pcs PoE connector, adapter

Connect the PoE adapter to both ends of the IP camera signal cable so that power and video signal are transmitted over a single cable. (No separate 12 V power cabling is required for the cameras.) On the camera side, connect both connectors. On the switch side, plug the RJ45 connector into the switch and connect the supplied camera power adapter to the DC connector.

2 pcs 12 V 2 A camera power supply 220 V

Connect the NVR using the power adapter supplied in its own box, then plug it into a 230 V mains socket. Connect the separate adapter included in the kit to the DC connector of the PoE adapter and then to a 230 V mains socket. The package always includes as many power adapters as there are cameras in the system + 1 pc supplied with the recorder. For security reasons, it is recommended to power each camera from a separate adapter.

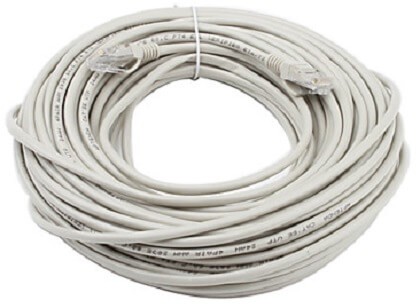

2 pcs 10 m pre-assembled IP camera cable

The cable is delivered fully assembled; simply connect it to the NVR recorder and the camera. Only one cable is needed per camera, as both video signal and power are transmitted over the same cable.

If 10 m is not enough, you can choose 15 m or 20 m cable lengths.

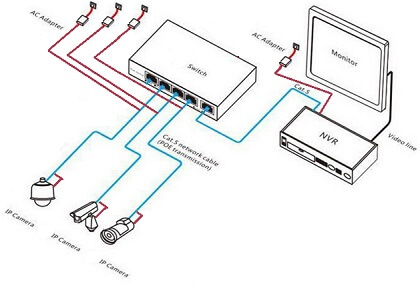

Connecting and setting up the IP camera:

Assign a unique IP address to each IP camera and to the NVR within your local IP address range (make sure no two devices share the same IP address, as this would cause conflicts).

Connect the cameras and the recorder to the 5-port switch, then plug in the power adapters to a mains socket.

In the NVR settings, add the cameras one by one using automatic search or by entering the previously assigned IP addresses, then save the configuration.

The system is now ready for operation.

Optional HDD for recording

Surveillance systems do not include built-in storage by default, so hard drives must be purchased separately / NOT INCLUDED / for the device. If you buy the HDD from us, we will install and initialise it in the recorder free of charge, so you do not have to deal with additional assembly or setup.

1000 GB HDD for recording

Approximate storage time with continuous recording for 1 camera is about 1 week; with motion detection enabled, it can be up to around 2 months, depending on activity.

NOT INCLUDED

2000 GB HDD for recording

Approximate storage time with continuous recording for 1 camera is about 2 weeks; with motion detection enabled, it can be roughly 1–2 months, depending on activity.

NOT INCLUDED

Provision Full HD IP 2-camera system – package contents:

1 pc Provision NVR5-4100X+(MM) 4-channel NVR recorder

2 pcs Provision I2-320IPSN28-V2 camera

2 pcs PoE adapter

2 pcs 12 V 2 A camera power supply

2 pcs 10 m pre-assembled IP camera cable

1 pc 5-port switch
