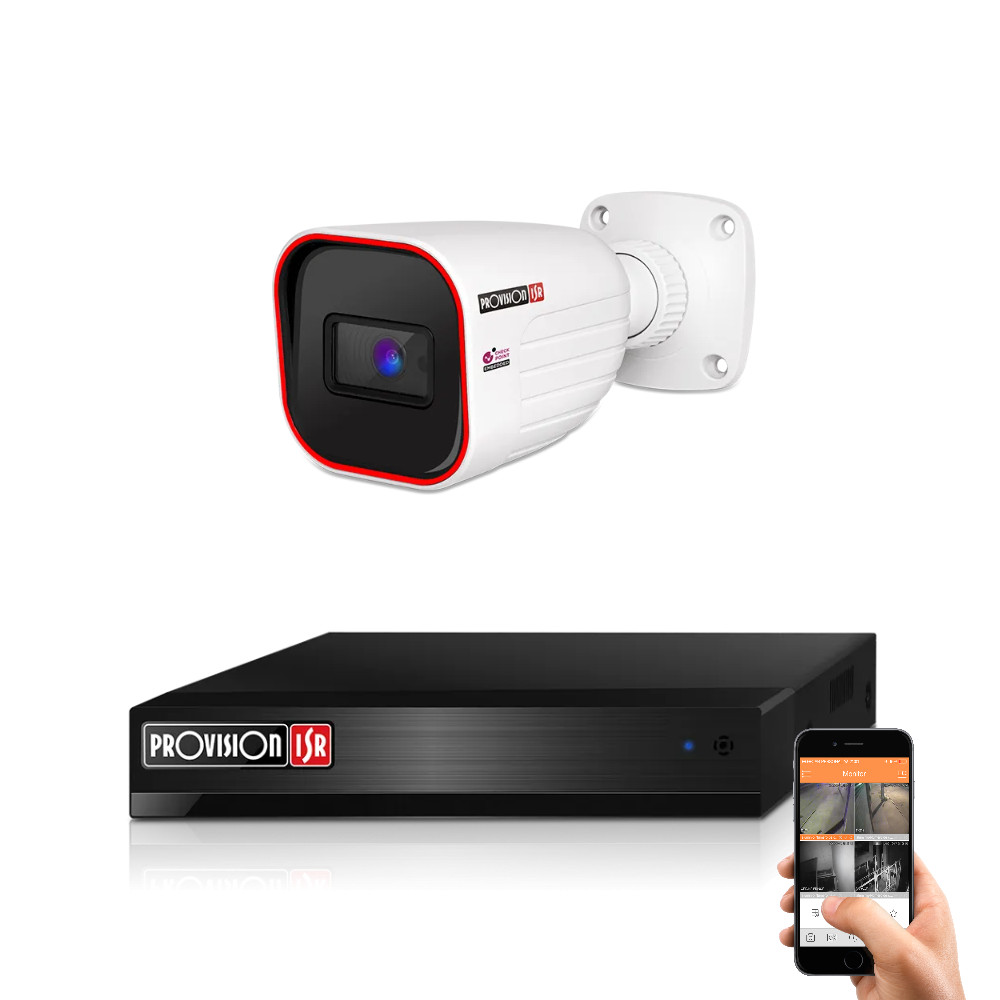

Pre-assembled Provision 1-camera 2MP Full HD IP camera system for outdoor and indoor use. The set includes a 2MP night-vision bullet camera, 4-channel NVR recorder, 5-port switch, PoE converter, 12V camera power supply and a 10 m pre-terminated IP camera cable, so the system can be put into operation quickly without additional accessories.
The Provision 1-camera 2MP IP camera system offers a complete, pre-assembled solution for monitoring homes, shops and premises. The Full HD (1920×1080) night-vision bullet camera can be used both outdoors and indoors, while the included NVR recorder, switch, PoE converter and cable make it easy to build an IP-based surveillance network.

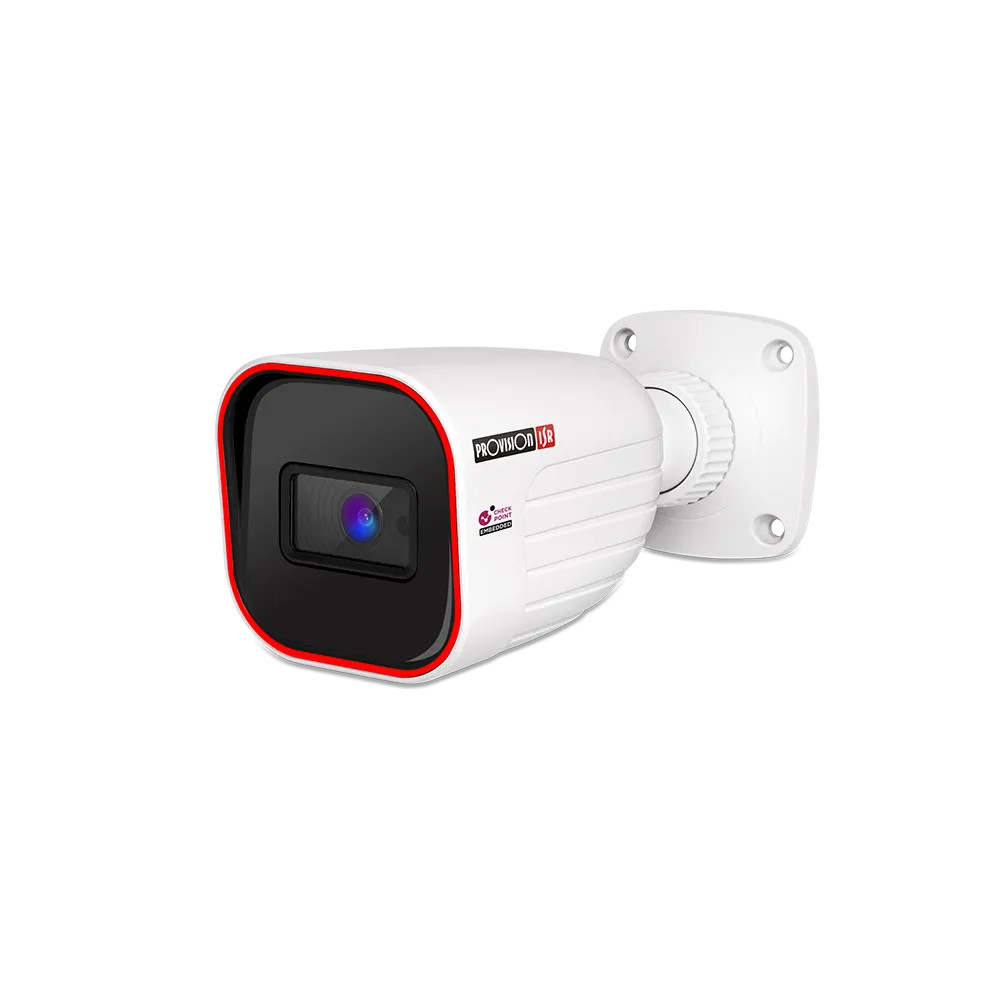

The Provision I2-320IPSN-28-V2 IP bullet camera has a solid white metal housing, making it weatherproof and suitable for both outdoor and indoor installation. It can be easily mounted on walls and ceilings. The built-in infrared LEDs provide night vision up to approximately 20 meters even in complete darkness, and the 2.8 mm lens offers about a 103° field of view, so a single camera can cover a larger area.

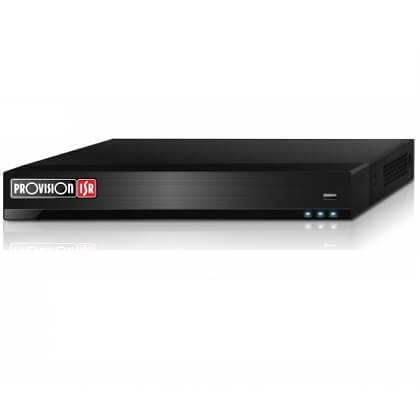

The Provision PR-NVR5-4100X+(MM) desktop NVR recorder can handle up to 4 IP cameras with resolutions up to 5 megapixels. Recording can be set to motion detection, cyclic or continuous mode. When connected to a monitor or TV, events can be viewed live, and with an internet connection the system can also be accessed remotely via mobile app or computer. The recorder can be expanded with a hard drive up to 6 TB capacity (not included).

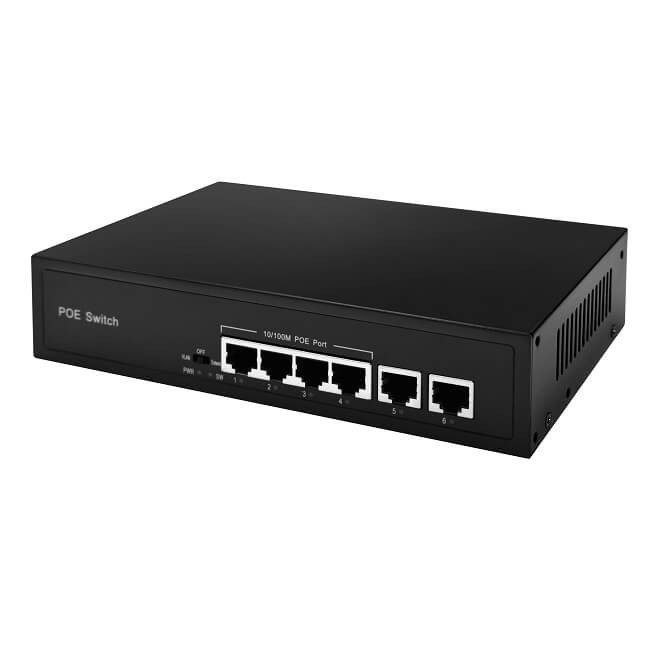

The included 5-port switch is used to create the IP camera network: connect the IP camera and the NVR recorder to it using the cables in the package. The PoE converter allows both power and video signal to reach the camera over a single UTP cable, so only one cable is needed to each camera, without installing a separate 12 V power line.

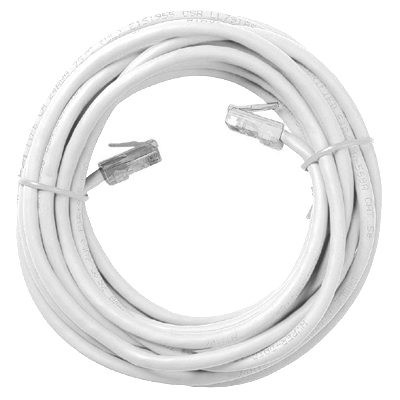

The package includes a 12V 2A camera power adapter that connects to the PoE converter, as well as the recorder’s own power supply. The box always contains as many adapters as the number of cameras in the system, plus one for the recorder. The 10-meter, pre-terminated IP camera cable connects the camera to the switch, making wiring quick and straightforward. On request, longer cables (e.g. 15 m or 20 m) can also be selected.
The IP camera and the NVR recorder each receive a unique IP address within the local network, then the cameras and the recorder are connected to the 5-port switch. In the recorder menu, cameras can be added via automatic search or by entering their IP addresses. After saving the settings, the system becomes operational with live view and recording available.
The surveillance system does not include built-in storage, so a separate HDD is required for recording. With a 1000 GB hard drive, continuous recording with 1 camera can store approximately 1 week of footage; with motion-triggered recording, the storage time can be longer. With a 2000 GB HDD, continuous recording time can be around 2 weeks for 1 camera, depending on the settings. HDD is not included.
