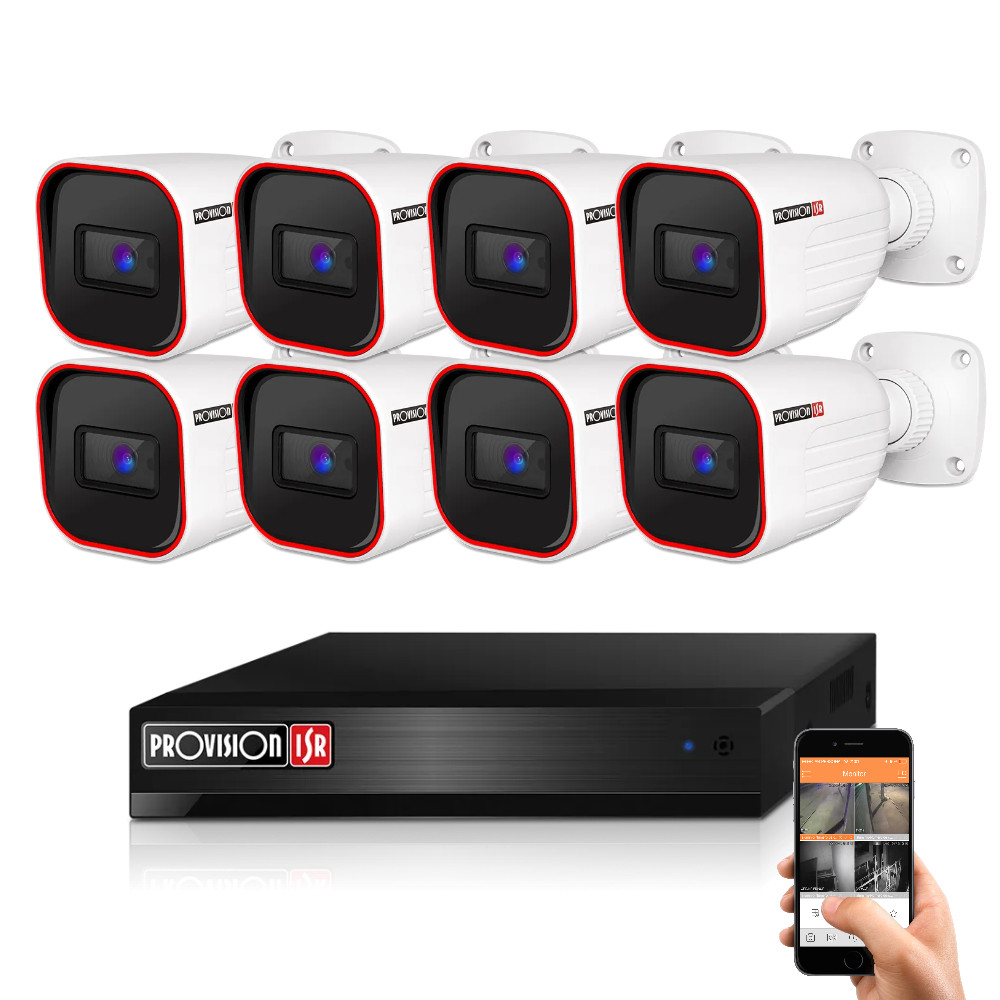

Provision AHD-36VF 8-camera surveillance system 2MP 5x ZOOM

Key features at a glance

• 2 megapixel Provision AHD cameras – sharp Full HD image quality
• 8 channels – connect up to 8 cameras to the DVR
• 40 m night vision range – clear monitoring even in complete darkness
• IP67 rating – weather-resistant housing for outdoor and indoor use

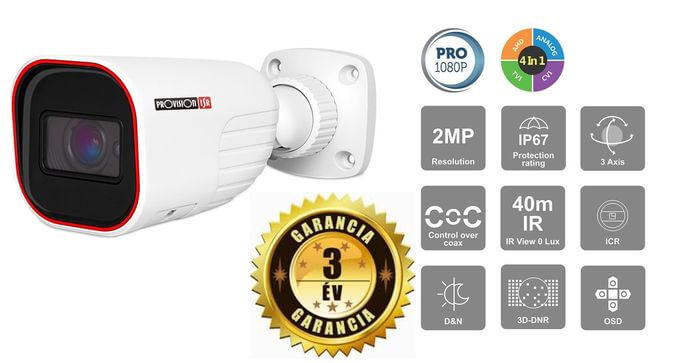

8 × Provision Full HD 2MP varifocal security camera

The Provision I4-320A-VF is a versatile security camera designed for both indoor and outdoor use. Its 2 MP, Full HD 1080p resolution delivers clear, detailed images even in low-light conditions.

• 2 MP, Full HD 1080p resolution
• Night vision range up to 40 m – ideal for medium distances
• 2.8–12 mm adjustable varifocal lens
• Approx. 90–33° adjustable viewing angle
• Precise zoom and focus on key areas (e.g. entrances, cash registers)
• IP67-rated, water- and dust-resistant housing for reliable operation in harsh weather

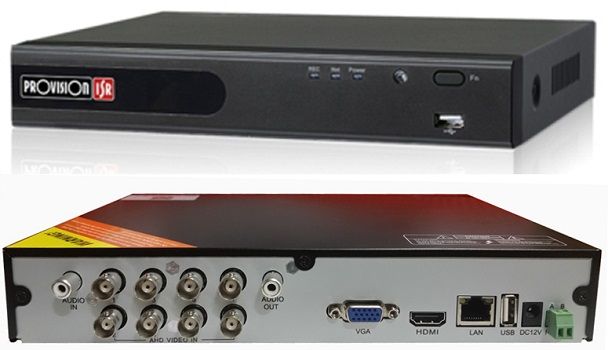

1 × Provision 8-channel 2MP hybrid XVR recorder

The Provision SH-8100A5N-2L(MM) hybrid XVR offers flexible, multi-format video recording and easy integration into existing systems.

• Supports AHD/CVI/TVI/analog and IP cameras
• 8 × AHD/CVI/TVI/analog + 2 × IP channels
• Recording up to 2 MP Full HD, 100 FPS total
• VGA and HDMI video outputs for monitors
• Simultaneous playback of up to 4 channels
• Intelligent video analytics features (e.g. smart search, event-based playback)
• 1 × SATA port for HDD up to 6 TB (HDD not included)
• 2 × USB 2.0 ports
• 100 Mbps RJ-45 network port for remote access

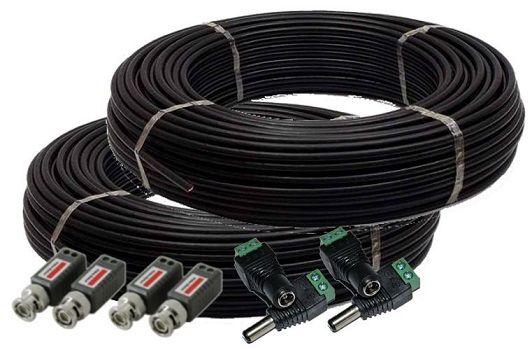

Installer kit – everything you need for setup

You can choose between two cabling options when ordering:

“Install it yourself” package

• One UTP cable per camera runs to the central unit, carrying both power and video signal
• Includes the required connectors (video balun + power connector) to terminate cables
• No crimping tool needed – basic hand tools (side cutter, screwdriver, utility knife) are sufficient
• Includes 10 m UTP cable per camera as standard
• Additional cable length available on request for an extra fee per metre (specify in the order comments)
• A detailed installation guide is available here: https://orkodo.hu/shop_ordered/4402/pic/Kamera-rendszer-szerelesi-utmutato.pdf

Pre-assembled cable package

• Factory-terminated camera cables with fixed connectors – no wiring required

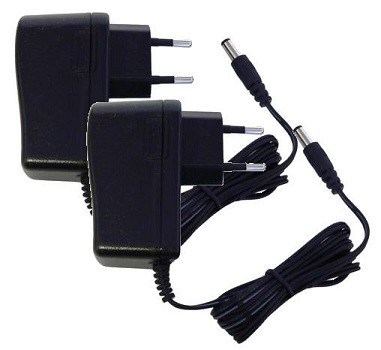

• Simply connect recorder, power supply and cameras
• Base package includes 10 m COX10 cable per camera
• Longer pre-assembled cables available:
  • 20 m: COX20 – https://orkodo.hu/COX20-RG59-DC-video-es-tapkabel-20-Meter
  • 30 m: COX30 – https://orkodo.hu/COX30-RG59-DC-video-es-tapkabel-30-Meter
• If you need longer cables, indicate your preferred length in the order comments

Remote access via Provision Cam2 mobile app

The Provision Cam2 app enables full remote control and monitoring of your security system from your smartphone.

• Live view from your cameras anytime, anywhere
• Playback of recorded footage
• Remote configuration of recorder and camera settings
• AI-based video analytics functions to help reduce false alerts
• Customisable push notifications
• Easy sharing of camera access with family members or colleagues

More information about the app: https://provision-isr.com/cam2-app/

This Provision AHD-36VF 8-camera system is a practical choice for users who need a reliable, scalable Full HD security solution with flexible installation options and convenient mobile access.
