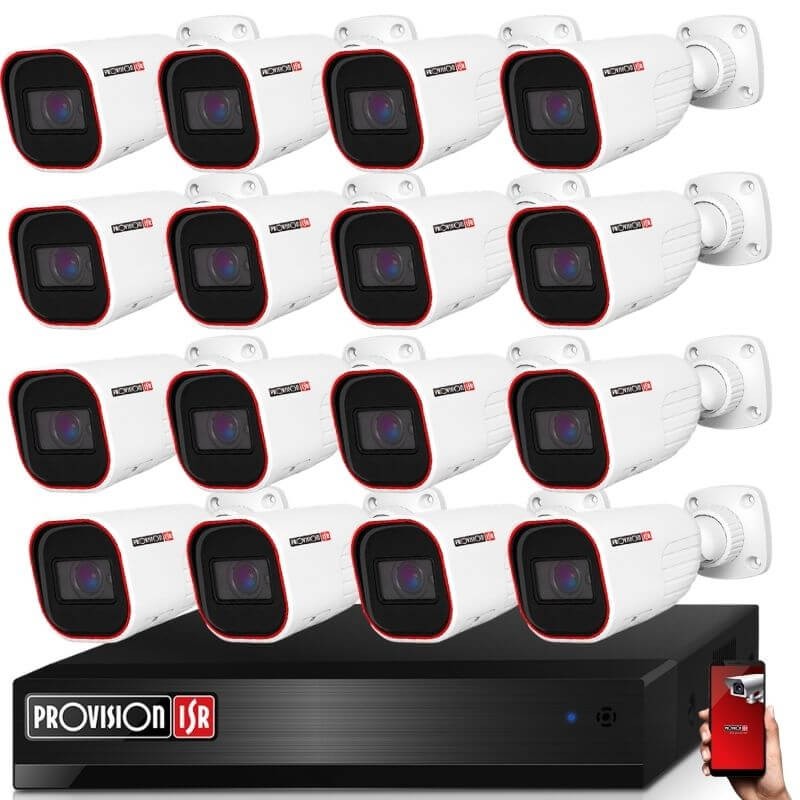

Provision AHD-36VF 16-camera surveillance system 2MP 5x ZOOM

Key features at a glance

• 2 megapixel Provision AHD cameras – Full HD image quality
• 16 channels – connect up to 16 cameras to the XVR
• Up to 40 m night vision – visibility even in complete darkness
• IP67 rating – weather-resistant housing for outdoor use

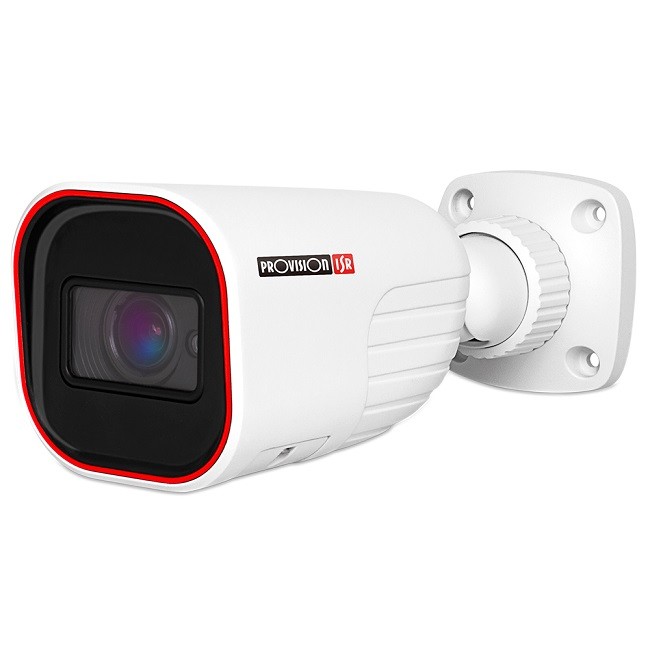

16 Provision Full HD 2MP varifocal security cameras

The Provision I4-320A-VF cameras are designed for reliable indoor and outdoor monitoring. Each camera offers:

• 2 MP, Full HD 1080p resolution for sharp, detailed images
• Up to 40 m infrared night vision for medium-range coverage
• 2.8–12 mm varifocal lens with approx. 90–33° adjustable viewing angle
• Flexible zoom and focus adjustment to highlight specific areas (e.g. entrances, cash registers)
• IP67-rated, water- and dust-resistant housing for long-term, outdoor installation

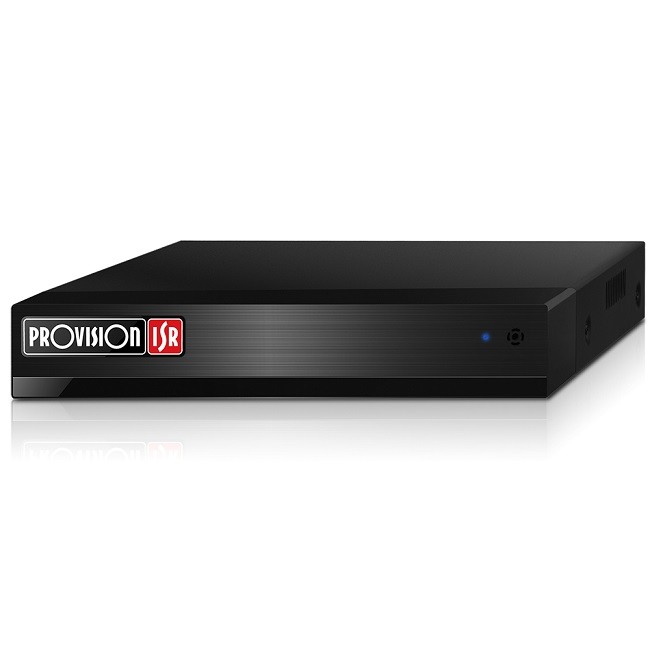

Provision 16-channel 2MP hybrid XVR recorder

The Provision SH-16200A5N-2L(MM) hybrid XVR delivers versatile recording and playback options:

• Supports AHD/CVI/TVI/analog cameras (16 channels) and IP cameras (2 channels)
• Recording up to 2 MP Full HD, 400 FPS total
• Simultaneous playback on up to 4 channels with smart video analytics
• VGA and HDMI outputs for easy connection to a monitor or TV
• 1 × SATA port (supports up to 6 TB HDD, not included)
• 2 × USB 2.0 ports and 100 Mbps RJ-45 network interface

Installation kit options

You can choose between two cabling packages depending on how you prefer to install the system:

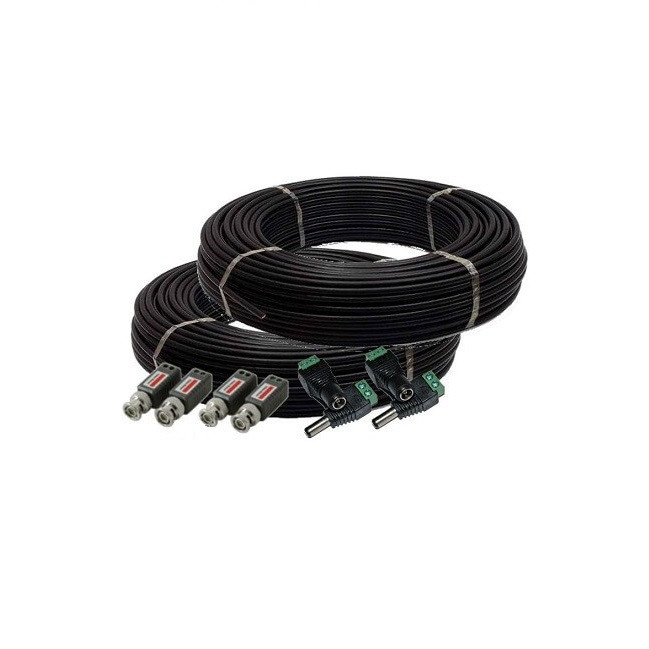

“Do it yourself” cable package

• One UTP cable per camera to the central unit – carries both power and video signal
• Connectors (video balun + power connector) are included and installed by you
• No crimping tool required – basic tools like side cutter, screwdriver and utility knife are sufficient
• Includes 10 m of UTP cable per camera
• If you need longer cables, you can request this in the order comments (extra cost per additional metre)
• A detailed installation guide is available online to support setup

Pre-assembled cable package

• Factory-terminated camera cables with fixed connectors – no wiring work needed
• Simply plug in the recorder, power supply and cameras
• Base package includes 10 m COX10 cable per camera
• Longer ready-made cables are available (e.g. 20 m COX20 and 30 m COX30) and can be requested in the order comments

Remote access with Provision Cam2 mobile app

Using the Provision Cam2 app, you can conveniently access your system from your smartphone:

• Live view and playback from anywhere with an internet connection
• Remote device configuration and management
• AI-based video analytics features designed to help reduce false alerts
• Customisable notifications
• Option to share camera access with family members or trusted contacts

This Provision AHD-36VF kit provides a complete 16-camera Full HD security solution with flexible installation options and convenient remote access for homes, offices and small businesses.
