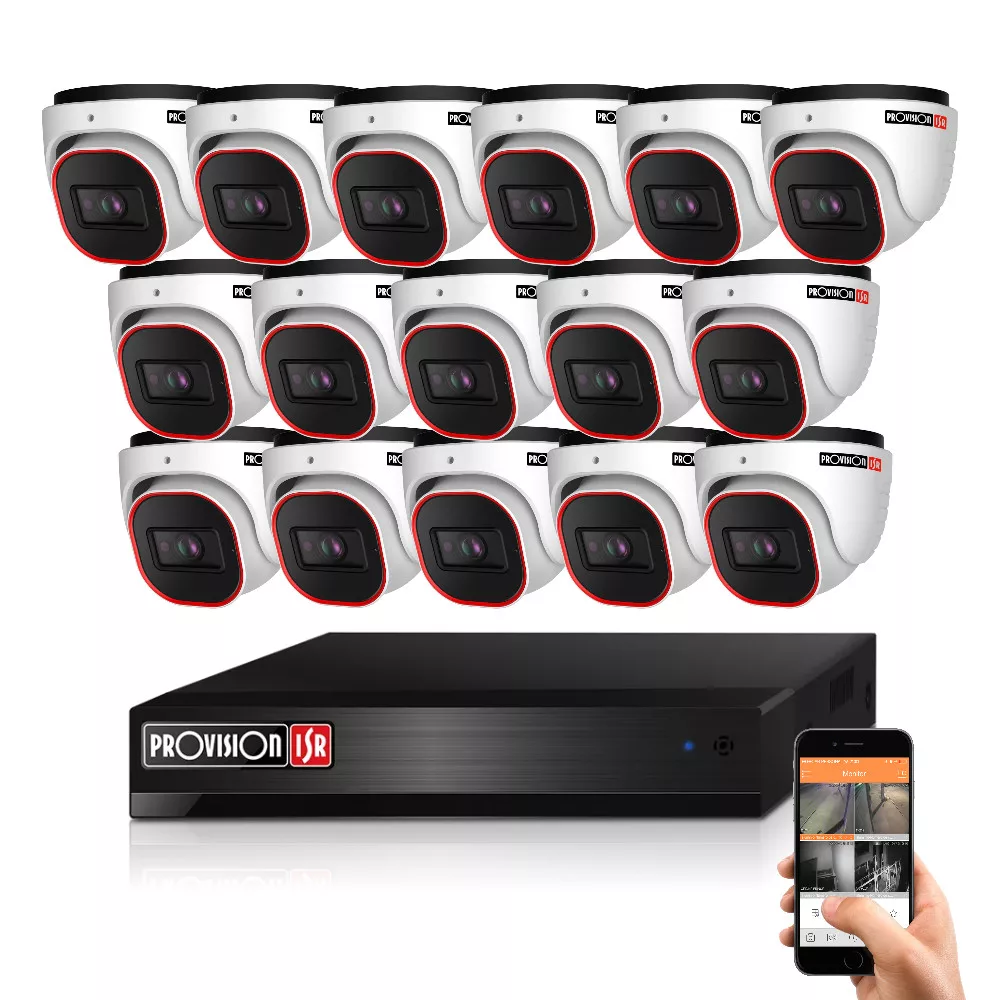

Discover the Provision AHD-36 dome surveillance camera system, ideal for enhancing home and office security. The kit includes sixteen 2 megapixel Full HD security cameras that deliver excellent image quality even in low light, with night vision up to 40 metres. It also comes with a 16-channel XVR digital recorder, which lets you view your cameras remotely from your phone. Thanks to the included installation kit (camera power supply, video balun, UTP cable, power connectors), the system is easy to install and operate. A great choice for anyone looking for a reliable security camera system.
Provision AHD dome camera
Connect up to 16 cameras to the DVR
Maximum viewing distance in complete darkness
Weather-resistant housing

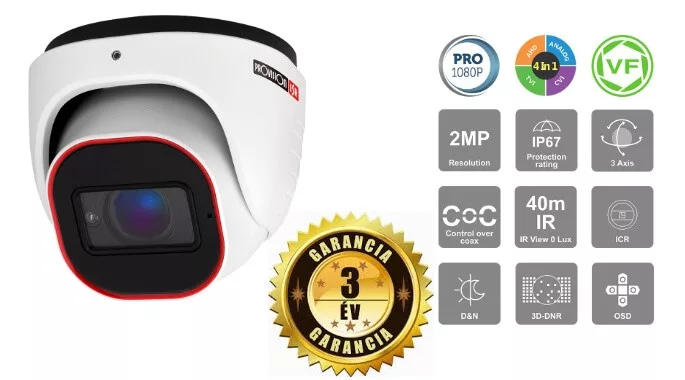

The Provision DI-320A-VF is an advanced security camera that offers an excellent solution for both indoor and outdoor use. This model is a 2 megapixel FULL HD 1080p dome camera that delivers sharp, clear images even in low-light conditions. Its night vision range is 40 metres, making it a solid choice for medium distances. The built-in 2.8–12 mm varifocal lens provides a wide 90–33° field of view. The adjustable lens allows you to zoom in and focus on specific areas within the monitored scene. Varifocal security cameras are a popular choice above cash registers and at entrances. The IP67-rated, water- and dust-resistant housing withstands harsh weather conditions, ensuring reliability and durability in a wide range of environments.
The Provision SH-16200A5N-2L(MM) XVR recorder delivers versatile hybrid digital video recording. As a hybrid recorder, it supports both analogue and advanced IP cameras with high image quality and flexible functions. It offers 16 AHD/CVI/TVI/Analogue channels plus 2 IP channels. A monitor can be connected via VGA or HDMI outputs. Recording is available on 16 AHD/CVI/TVI/Analogue channels and 2 IP channels, up to 2MP Full HD, 400 FPS total. It supports simultaneous playback of four channels with intelligent video analytics. Connectivity includes 1 x SATA port (max. 6TB HDD, not included), 2 x USB 2.0 and a 100 Mbps RJ-45 network port.

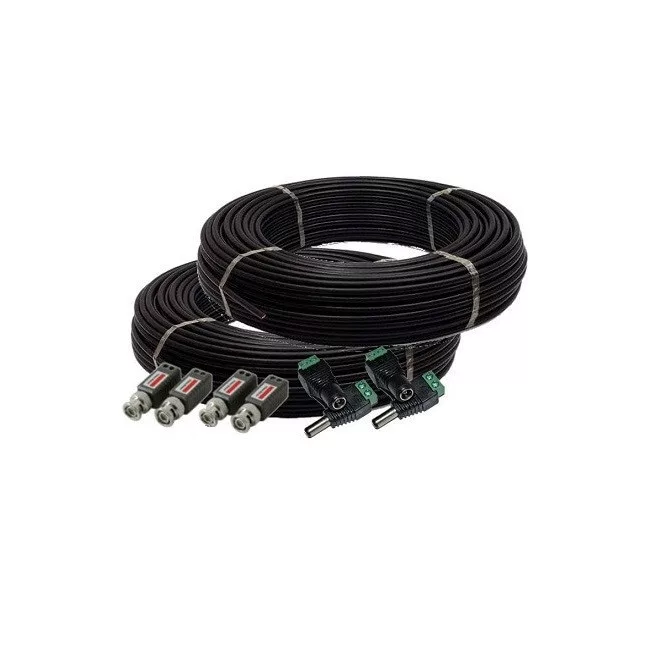

For our camera systems, customers can choose between two cable packages: a DIY kit or a pre-terminated cable kit.
DIY kit: From each camera to the central unit you only need to run a single cable, which carries both power and video signal. The required connectors (video balun + power connector) are fitted by the customer to the cable ends – to help with this, we have prepared an installation guide available at the following link: Installation guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The package includes 10 metres of UTP cable per camera. If you need longer cables, you can let us know in the order comments (+100 Ft/metre).
Pre-terminated cable kit: In this case, all connectors are factory-fitted to the camera cables and cannot be removed. This way you only need to plug together the recorder, camera power supply and cameras, with no wiring work. The base package includes 10 metres of COX10 cable per camera. If you need longer cables, you can indicate this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).
The Provision Cam2 app allows users to fully manage their security devices. Through the mobile app you can view live images, play back recordings and adjust device settings. AI-based video analytics help reduce false alarms, while users can customise notifications and manage devices remotely. The app also lets you share camera views with family members or other authorised contacts.
