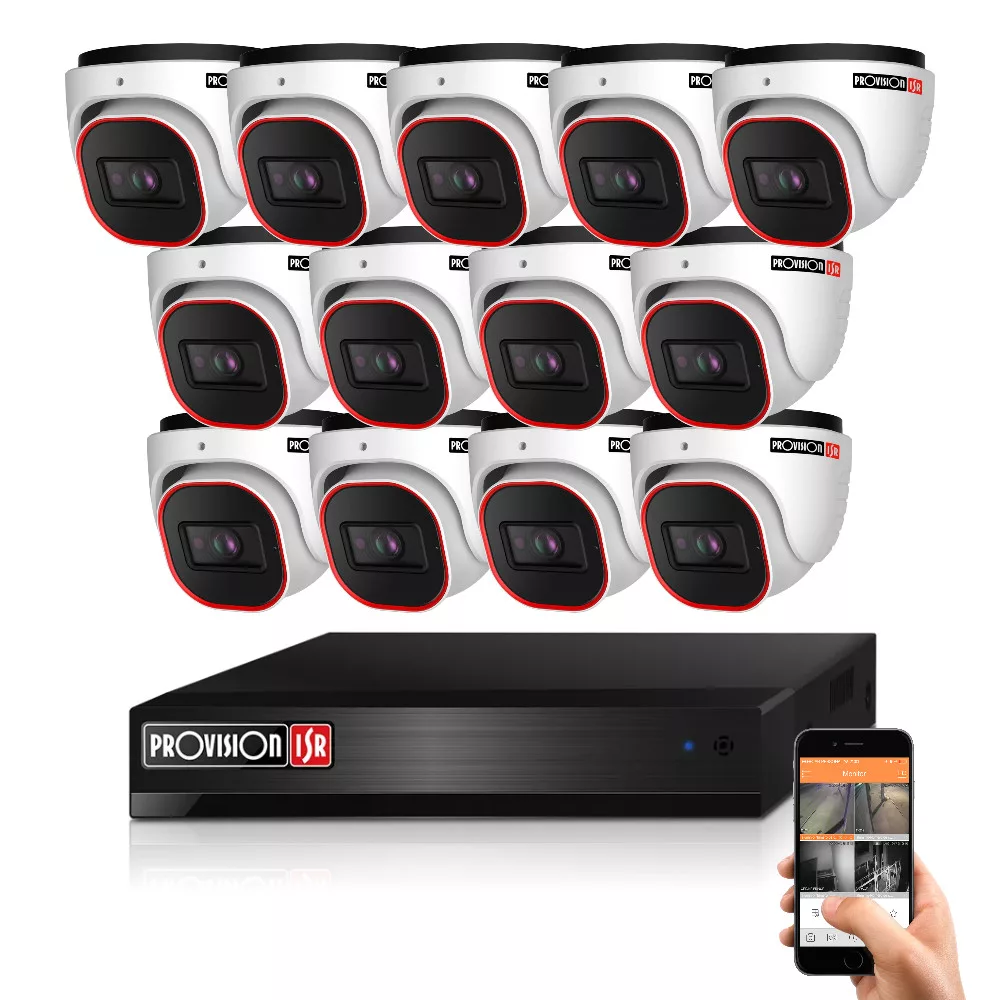

Provision AHD-36 Dome 13-camera security system 2MP 5x ZOOM

Key features at a glance

• 13 × Provision AHD dome security cameras, 2MP Full HD
• 5x optical zoom with 2.8–12 mm varifocal lens (approx. 90–33° viewing angle)
• Up to 40 m night vision range in complete darkness
• IP67 weather-resistant housing for indoor and outdoor use
• 16-channel Provision hybrid XVR recorder (AHD/CVI/TVI/Analog + IP)
• Remote access via Provision Cam2 mobile app
• Complete installer package with cabling options

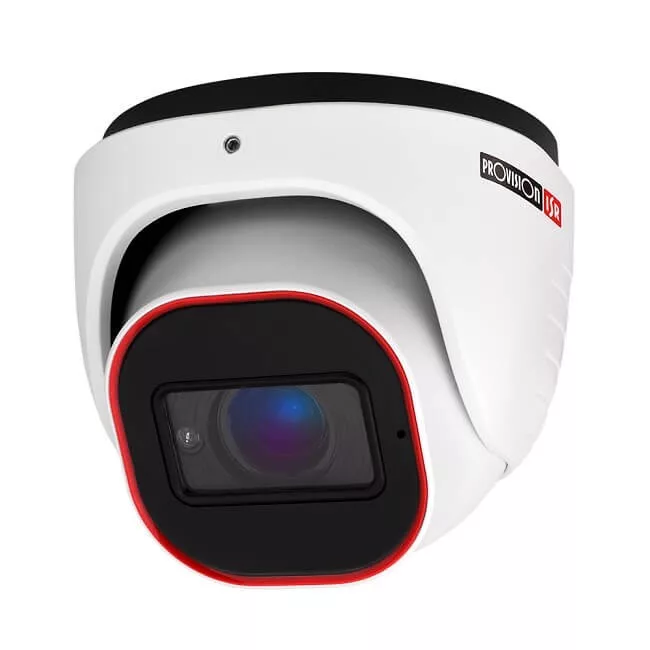

Cameras – Provision DI-320A-VF 2MP varifocal dome

The Provision DI-320A-VF dome cameras deliver sharp Full HD 1080p images, even in low-light conditions. With a 2.8–12 mm varifocal lens, you can fine-tune the viewing angle and zoom to focus on critical areas such as entrances, cash registers, or corridors.

• Resolution: 2MP Full HD 1080p
• Lens: 2.8–12 mm varifocal, adjustable zoom and focus
• Viewing angle: approx. 90–33°
• Night vision: up to 40 m
• Housing: IP67, dust- and weather-resistant for outdoor and indoor use

Recorder – Provision SH-16200A5N-2L(MM) 16-channel hybrid XVR

The Provision SH-16200A5N-2L(MM) hybrid XVR recorder supports both analog and IP cameras, making it a flexible choice for new systems or upgrades.

• Inputs: 16 × AHD/CVI/TVI/Analog + 2 × IP channels
• Max. resolution: up to 2MP Full HD
• Recording: up to 400 FPS total
• Outputs: VGA and HDMI for monitor connection
• Playback: up to 4 channels simultaneously with intelligent analytics
• Storage: 1 × SATA port (up to 6 TB HDD, not included)
• Connectivity: 2 × USB 2.0, 100 Mbps RJ-45 network port

Cabling and installation packages

You can choose between two installation packages depending on your preference and experience.

“Install it yourself” package

Each camera requires only one cable to the central unit, carrying both power and video signal. The necessary connectors (videobalun + power connector) are included and must be attached to the cable ends by the user.

• Includes 10 m UTP cable per camera as standard
• No crimping tool needed – basic tools like side cutters, screwdriver, and utility knife are sufficient
• A detailed installation guide is available here: https://orkodo.hu/shop_ordered/4402/pic/Kamera-rendszer-szerelesi-utmutato.pdf
• If you need longer cables, you can request this in the order comments (+100 Ft/meter)

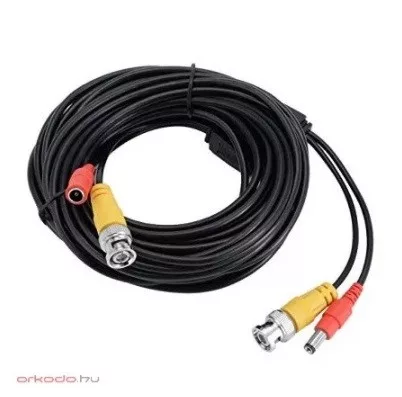

Pre-assembled cable package

With the pre-assembled option, the camera cables come with factory-fitted connectors that are not removable. This allows for quick, tool-free setup: simply connect the recorder, power supply, and cameras.

• Base package includes 10 m COX10 cable per camera: https://orkodo.hu/COX10-RG59-DC-video-es-tap-kombinalt-kabel-10-Meter
• Longer pre-assembled cables are available on request:
  • 20 m COX20: https://orkodo.hu/COX20-RG59-DC-video-es-tapkabel-20-Meter
  • 30 m COX30: https://orkodo.hu/COX30-RG59-DC-video-es-tapkabel-30-Meter
• Desired cable lengths can be specified in the order comments

Remote access with Provision Cam2 app

The Provision Cam2 mobile app offers full remote control of your security system.

• Live view and playback from your phone
• Remote device configuration and management
• AI-based video analytics to help reduce false alerts
• Customisable notifications
• Option to share camera views with family members or trusted contacts

This Provision AHD-36 Dome 13-camera system is designed for users who need a robust, scalable security solution for homes, offices, or small businesses, with flexible installation options and convenient remote access.
