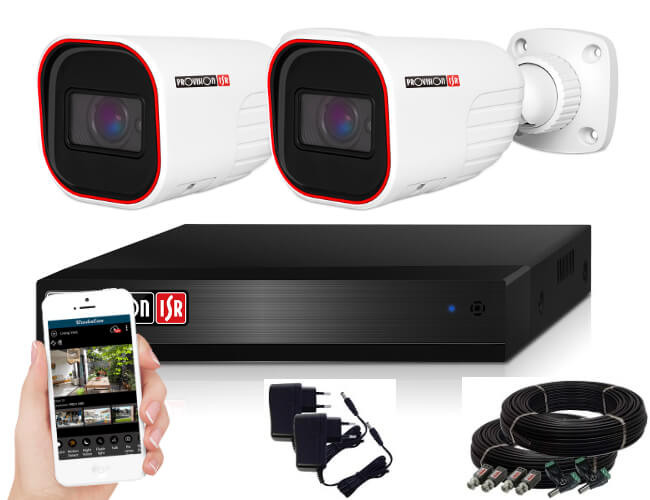

Provision AHD-36 2-camera surveillance system 2MP

Key features at a glance

• 2 MP Provision AHD cameras – clear Full HD 1080p image quality
• 4-channel XVR recorder – connect up to 4 cameras
• 40 m night vision range – reliable viewing even in complete darkness
• IP67 weatherproof rating – built for demanding outdoor conditions

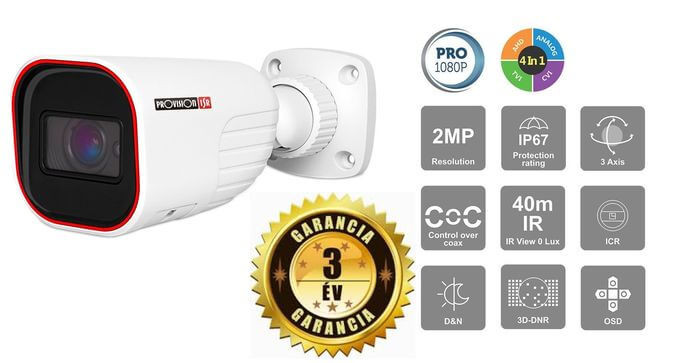

2 Provision Full HD 2MP outdoor cameras for medium range

The Provision I4-320A-28 is a robust outdoor security camera designed for reliable day and night monitoring. Its 2 MP Full HD 1080p sensor delivers sharp, detailed images, even in low-light conditions. With up to 40 m infrared night vision, it is well suited for driveways, yards, and building perimeters.

The built-in 2.8 mm fixed lens provides a wide, approx. 90° field of view, helping you cover larger areas with fewer cameras. Thanks to its IP67-rated, water- and dust-resistant housing, the camera withstands rain, dust, and changing temperatures, offering long-term durability in outdoor environments.

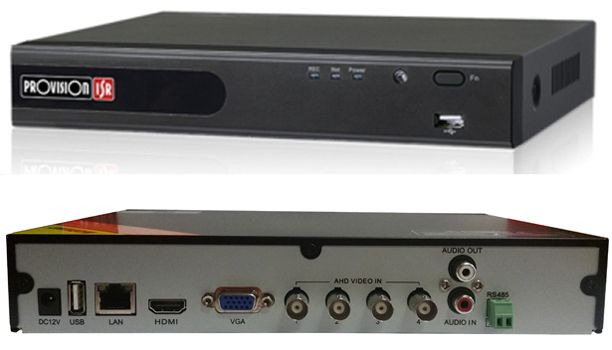

4-channel 2MP hybrid Provision XVR recorder with smart functions

The Provision SH-4100A5N-2L(MM) hybrid XVR offers flexible, modern video recording. It supports both traditional analogue and advanced IP cameras, so you can expand or upgrade your system later without replacing the recorder.

• Inputs: 4× AHD/CVI/TVI/Analogue + 2× IP
• Outputs: VGA and HDMI for easy connection to a monitor or TV
• Recording: up to 2 MP Full HD, 100 FPS total (4 analogue + 2 IP channels)
• Playback: simultaneous playback of up to 4 channels
• Analytics: intelligent video analysis functions to help you review events more efficiently

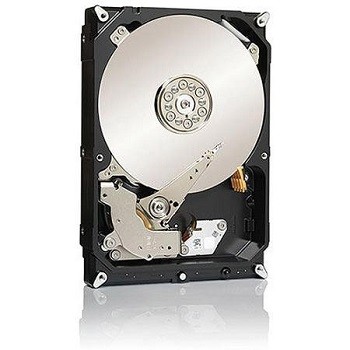

• Storage: 1× SATA port (supports up to 6 TB HDD – not included)
• Connectivity: 2× USB 2.0, 100 Mbps RJ-45 network port

Installation kit options – choose the package that suits you

You can choose between two cabling options when ordering this camera system: a DIY cable kit or a pre-assembled cable kit.

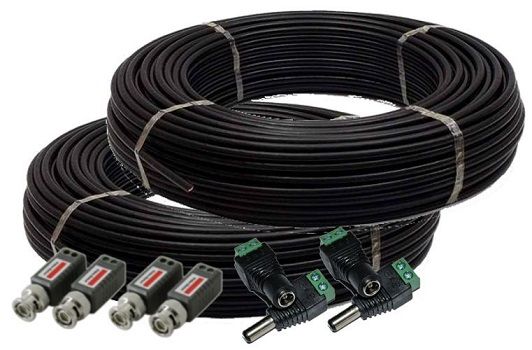

DIY cable kit

With the DIY option, each camera only needs one UTP cable to the central unit, carrying both power and video signal. The necessary connectors (video balun + power connector) are included and are fitted by you to the cable ends.

To support installation, a detailed step-by-step installation guide is available here: Installation and wiring guide

Basic hand tools are sufficient – typically a side cutter, screwdriver and utility knife. The standard package includes 10 m of UTP cable per camera. If you need longer runs, you can request extra length in the order comments (surcharge of +100 Ft/m).

Pre-assembled cable kit

If you prefer a plug-and-play solution, choose the pre-assembled cable kit. In this case, the camera cables come with factory-fitted connectors that are not removable. You simply connect the recorder, camera power supply and cameras – no crimping or connector assembly required.

The base package includes 10 m of COX10 cable per camera:

• 10 m: COX10 combined video & power cable
• 20 m: COX20 cable
• 30 m: COX30 cable

If you need longer cables, simply indicate your preferred length in the order comments.

Remote access via Provision Cam2 mobile app

With the Provision Cam2 mobile app, you can monitor and manage your security system from anywhere with an internet connection. The app offers:

• Live view from your cameras
• Playback of recorded footage
• Remote configuration of device settings

AI-based video analytics help reduce false alarms, while customisable notifications keep you informed about important events. You can also securely share camera access with family members or trusted contacts.

Learn more and download the app here: Provision Cam2
