Discover the Provision AHD-36 CCTV camera system, ideal for enhancing home and office security. The kit includes sixteen 2 megapixel Full HD security cameras that deliver excellent image quality even in low light, with night vision up to 40 metres. It also comes with a 16-channel XVR digital recorder that enables remote access for flexible monitoring. Thanks to the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is straightforward to install and operate. A smart choice for anyone looking for a reliable security camera system.
Provision AHD camera
Connect up to 16 cameras to the DVR
Maximum viewing distance in complete darkness
Weather-resistant housing
The Provision I4-320A-28 is an advanced security camera designed for reliable outdoor use. This 2 megapixel, Full HD 1080p camera delivers sharp, clear images even in low-light conditions. Its night vision range is 40 metres, making it an excellent choice for medium-distance surveillance. The built-in 2.8 mm fixed lens offers a wide 90° field of view. With its IP67-rated, water- and dust-resistant housing, it withstands harsh weather conditions and provides long-term durability in a wide range of environments.
The Provision SH-16200A5N-2L(MM) XVR recorder delivers versatile hybrid digital video recording. As a hybrid device, it supports both analogue and advanced IP cameras with high image quality and flexible features. It offers 16 AHD/CVI/TVI/Analogue channels and 2 IP channels. A monitor can be connected via its VGA and HDMI outputs. Recording is available on 16 AHD/CVI/TVI/Analogue channels and 2 IP channels, up to 2MP Full HD, 400 FPS total. It supports simultaneous playback on four channels with intelligent video analytics. Connections include 1 x SATA port (up to 6 TB HDD, not included), 2 x USB 2.0 and a 100 Mbps RJ-45 network port.
For our camera systems, customers can choose between two cabling options: Do-it-yourself kit and pre-assembled cable kit.

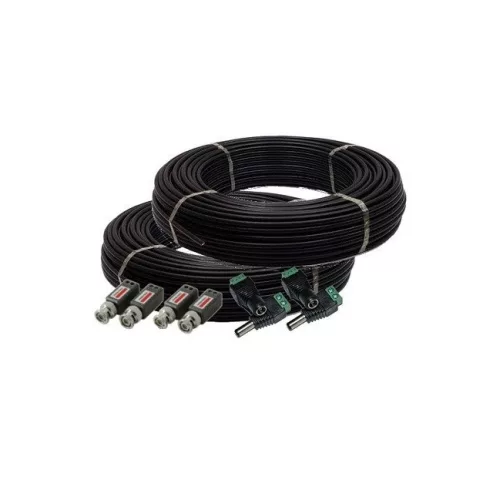

Do-it-yourself kit: Only one cable per camera needs to be routed to the central unit, carrying both power and video signal. The required connectors (video balun + power connector) are fitted by the customer to the cable ends – to assist with this, we have created an installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The kit includes 10 metres of UTP cable per camera. If you need more cable, simply let us know in the order comments (+100 Ft/metre).
Pre-assembled cable kit: In this case, the connectors are already factory-fitted to the camera cable ends and cannot be removed, so you only need to connect the recorder, camera power supply and cameras—no wiring work required. The basic kit includes 10 metres of COX10 cable per camera. If you need longer cables, you can indicate this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).
The Provision Cam2 app allows users to manage their security devices remotely. The application provides live view, playback and device configuration directly from a smartphone. AI-based video analytics help reduce false alerts, while users can customise notifications and manage devices remotely. The app also lets you share camera access with family members or other authorised users.
