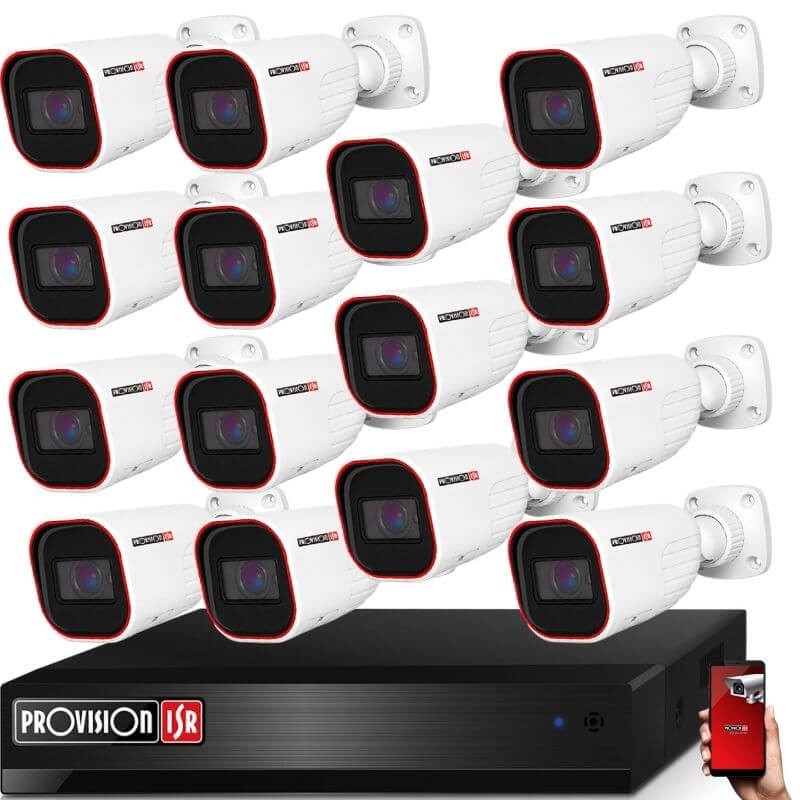

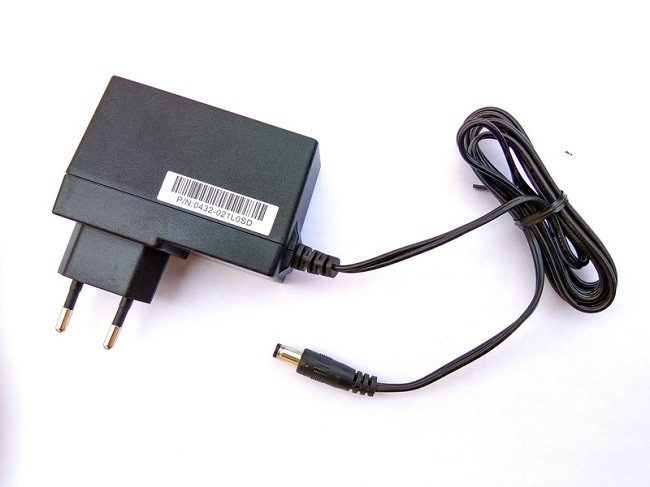

Discover the Provision AHD-36 surveillance camera system, ideal for enhancing home and office security. The kit includes fifteen 2 megapixel, Full HD security cameras that deliver excellent image quality even in low light conditions, with night vision up to 40 meters. It also comes with a 16-channel XVR digital recorder, giving you remote access for convenient monitoring. Thanks to the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is easy to install and operate. A great choice if you need a reliable security camera system.
Provision AHD camera
Connect up to 16 cameras to the DVR
Maximum viewing distance in complete darkness
Weather-resistant housing

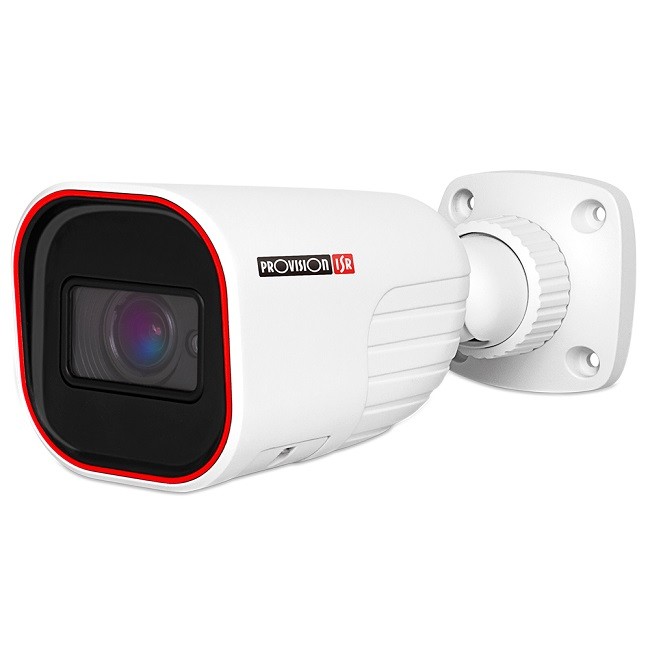

The Provision I4-320A-28 is an advanced security camera designed for outdoor use. This 2 megapixel, Full HD 1080p camera delivers sharp, clear images even in low light conditions. Its night vision range is up to 40 meters, making it an excellent choice for medium-distance coverage. The built-in 2.8 mm fixed lens offers a wide 90° field of view. With its IP67-rated, water- and dust-resistant housing, it withstands harsh weather conditions, ensuring reliability and durability in a wide range of environments.

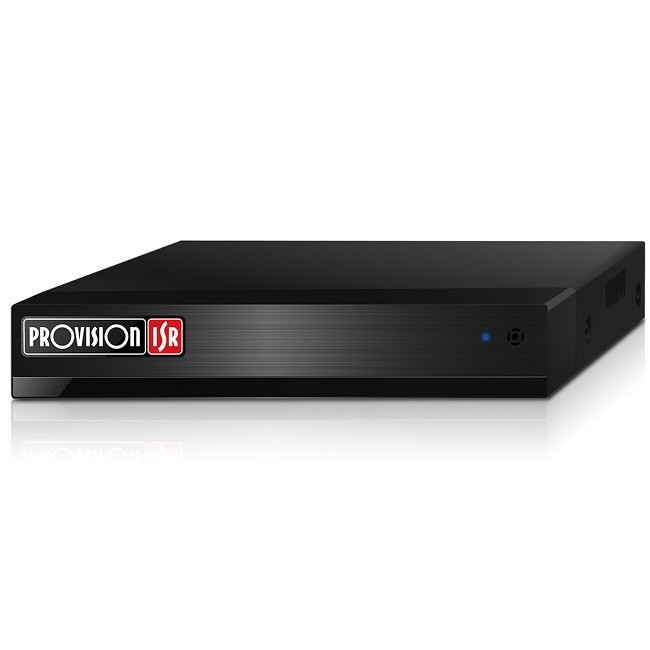

The Provision SH-16200A5N-2L(MM) XVR recorder delivers versatile hybrid digital video recording. As a hybrid recorder, it supports both analogue and advanced IP cameras with excellent image quality and functionality. It offers 16 AHD/CVI/TVI/Analogue channels and 2 IP channels. A monitor can be connected via the VGA and HDMI outputs. Recording is available on 16 AHD/CVI/TVI/Analogue channels and 2 IP channels, up to 2MP Full HD, 400 FPS in total. It supports simultaneous playback of four channels with intelligent video analytics. Connectivity includes 1 x SATA port (max. 6 TB HDD, not included), 2 x USB 2.0 ports, and a 100 Mbps RJ-45 network interface.
For our camera systems, customers can choose between two package types: DIY installation kit or pre-assembled cable kit.

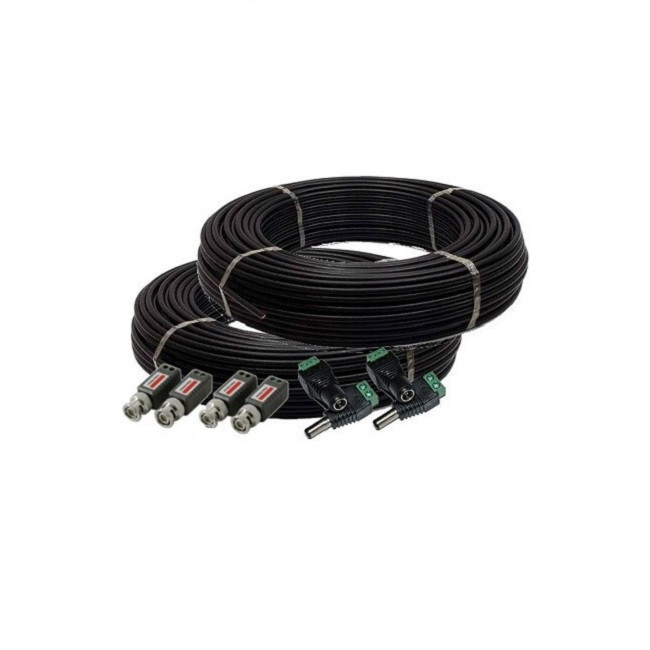

DIY kit: From each camera to the central unit you only need to run a single cable, carrying both power and video signal. The required connectors (video balun + power connector) are fitted by the customer to the cable ends – to help with this, we have prepared a detailed installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The package includes 10 metres of UTP cable per camera. If you need more cable, simply let us know in the order comments (+100 Ft/metre).
Pre-assembled cable kit: In this case, the connectors are factory-fitted to the ends of the camera cables and cannot be removed, so you only need to connect the recorder, camera power supply and cameras – no wiring work required. The standard kit includes 10 metres of COX10 cable per camera. If you need longer cables, you can indicate this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).
The Provision Cam2 app allows users to manage their security devices remotely. Through the app you can view live footage, play back recordings and adjust device settings from your phone. AI-based video analytics help reduce false alarms, while users can customise notifications and manage devices remotely. The app also lets you securely share camera views with family members or other authorised users.
