Provision AHD-36 13-camera security system 2MP

We also recommend the following product as an accessory

• Details
• Data
• Reviews
• Használati útmutató

Details

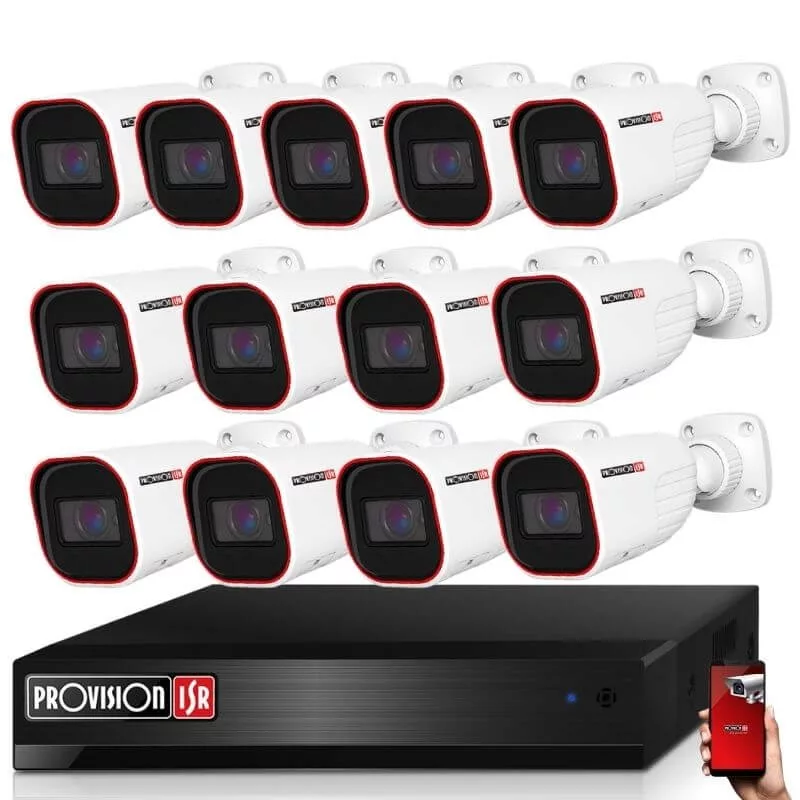

13-camera Provision security system with 2MP Full HD resolution, 40 m night vision for outdoor use

Discover the Provision AHD-36 surveillance camera system, ideal for enhancing security at home or in the office. The kit includes thirteen 2 megapixel Full HD security cameras that deliver clear image quality even in low-light conditions, with night vision up to 40 metres. It also comes with a 16-channel XVR digital recorder that offers remote access for convenient off-site monitoring. Thanks to the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is easy to install and operate. A practical choice for anyone looking for a reliable security camera system.

2

MEGAPIXELS

Provision AHD camera

16

CHANNELS

You can connect up to 16 cameras to the DVR

40 m

NIGHT VISION

Maximum viewing distance in complete darkness

IP67

RATING

Weather-resistant housing

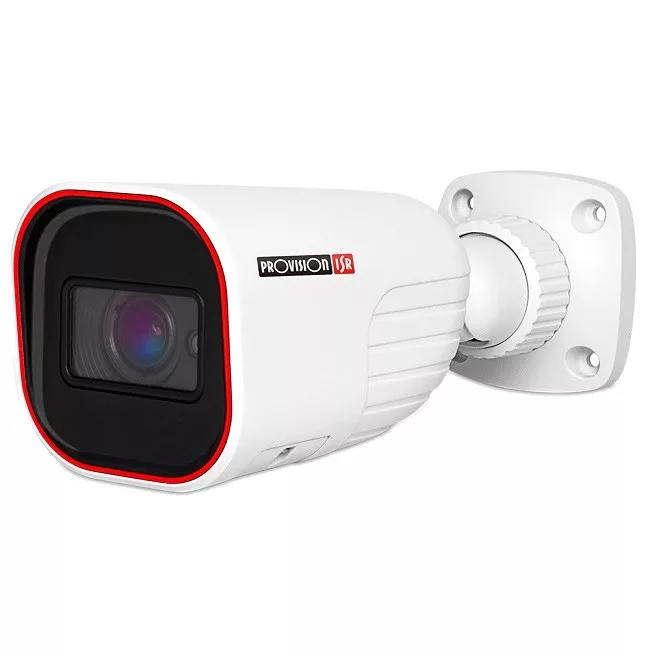

13 Provision Full HD 2MP security cameras – the ideal outdoor cameras for medium range

The Provision I4-320A-28 is an advanced security camera designed for outdoor use. This model features a 2 megapixel FULL HD 1080p sensor that delivers sharp, detailed images even in low-light conditions. Its night vision range is 40 metres, making it a strong choice for medium distances. The built-in 2.8 mm fixed lens offers a wide 90° field of view. With its IP67-rated water- and dust-resistant housing, it is engineered to withstand harsh weather conditions, providing dependable performance in a wide range of environments.

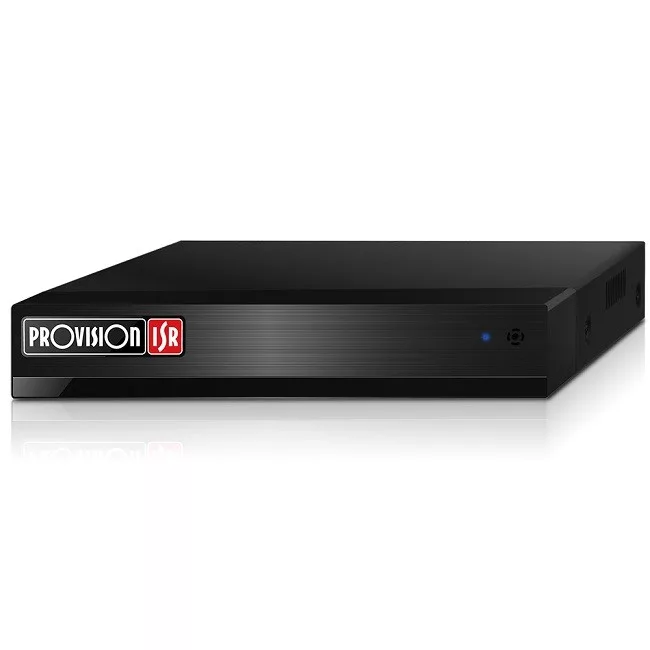

1 Provision 16-channel 2MP hybrid XVR recorder with smart features

The Provision SH-16200A5N-2L(MM) XVR recorder provides versatile hybrid digital video recording. As a hybrid recorder, it supports both analogue and advanced IP cameras, delivering high image quality and flexible functionality. It offers 16 AHD/CVI/TVI/Analogue channels and 2 IP channels. Monitors can be connected via VGA and HDMI outputs. Recording is available on 16 AHD/CVI/TVI/Analogue channels and 2 IP channels, up to 2MP Full HD, 400 FPS in total. It supports playback of up to four channels simultaneously with intelligent video analytics. Connectivity includes 1 x SATA port (max. 6 TB HDD, not included), 2 x USB 2.0 ports and a 100 Mbps RJ-45 network interface.

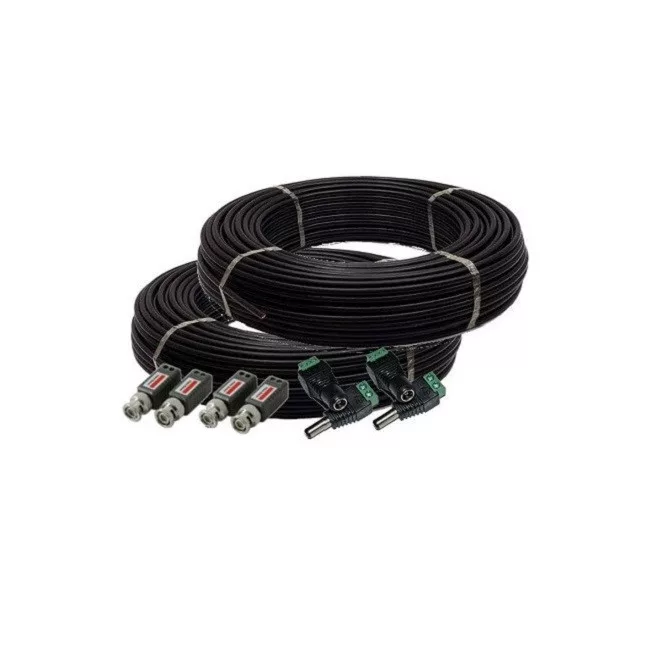

Camera system installation kit with all essential components

For our camera systems, customers can choose between two package options: a DIY kit and a pre-terminated cable kit.

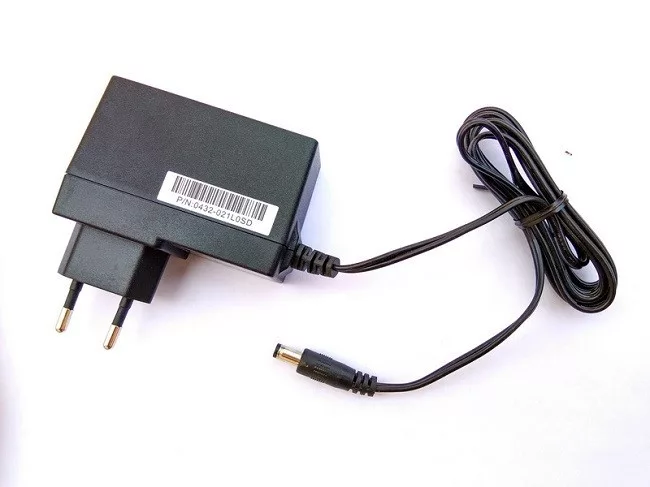

DIY kit: From each camera to the central unit you only need to run a single cable that carries both power and video signal. The required connectors (video balun + power connector) are fitted by the customer to the cable ends – to help with this, we have created a step-by-step installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The package includes 10 metres of UTP cable per camera. If you need more cable, you can let us know in the order comment field (+100 Ft/metre).

Pre-terminated cable kit: In this case, the connectors are already factory-installed on the camera cable and cannot be removed. This allows you to simply connect the recorder, camera power supply and camera without any wiring work. The standard kit includes 10 metres of COX10 cable per camera. If you need longer cables, you can indicate this in the order comment field (also available in 20 m COX20 and 30 m COX30 versions).

Internet access via the Provision Cam2 mobile app

The Provision Cam2 app gives users full control over their security devices. Through the app, you can view live footage, play back recordings and adjust device settings from your phone. AI-based video analytics help reduce false alerts, while users can customise notifications and manage their devices remotely. The app also lets you share camera access with family members or other trusted contacts.

Data

Biztonsági kamerák száma:

13

Kameradesign:

Cső

Area of ​​use:

Kültér és beltér

Functions:

, ,

Reviews

Be the first to write a review!

Write a review

Használati útmutató

Általános használati szerelési utasítás

• Szerelési Telepítési Útmutató
• Provision DVR OSSIA menüvel rendelkező

• Provision DVR/NVR jelszó visszaállítás

---

Letöltések

Provision IP tool	Letöltés
Provision kimentett felvétel lejátszó [OSSIA menüs rögzítőkhöz]	Letöltés
Provision CMS program [Apple MAC OS verzió]	Letöltés
