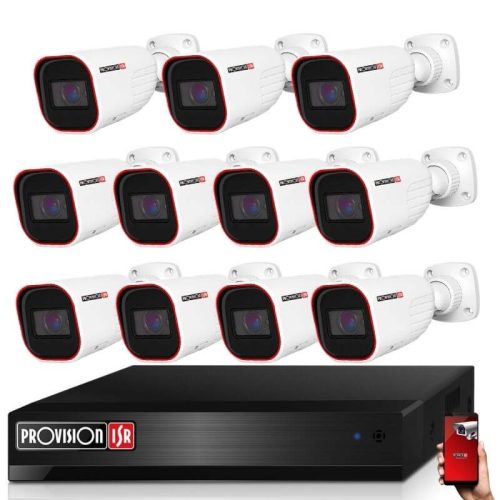

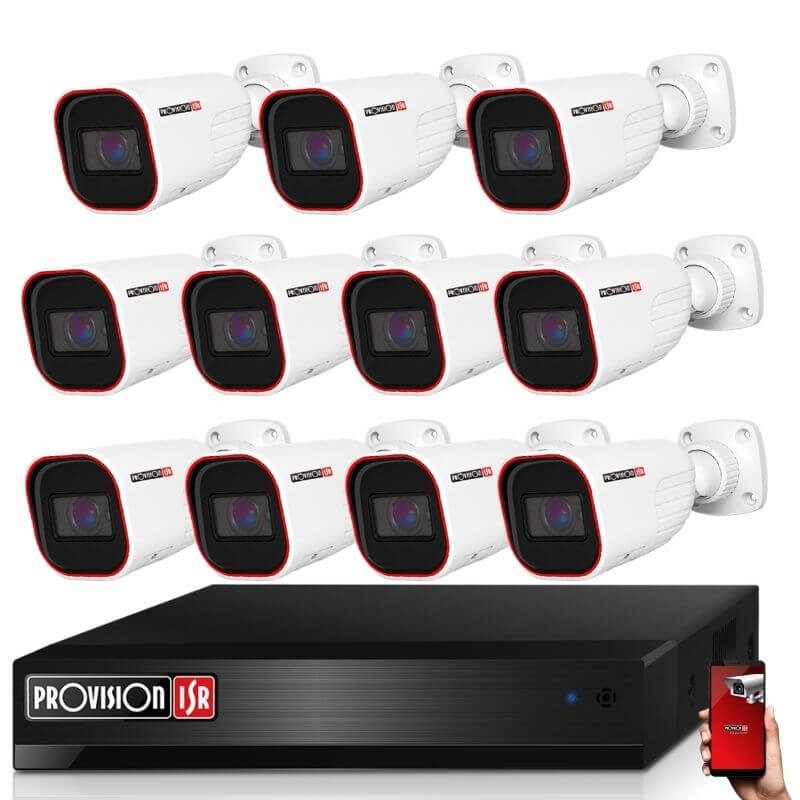

Provision AHD-36 11-camera CCTV system 2MP

Key features at a glance

• 11 × Provision 2MP Full HD outdoor cameras
• 40 m night vision range for reliable coverage in complete darkness
• 16-channel hybrid XVR recorder (AHD/CVI/TVI/Analog + IP)
• IP67-rated, weather-resistant camera housings
• Remote access via Provision Cam2 mobile app
• Installation kit options: DIY cabling or pre-terminated cables

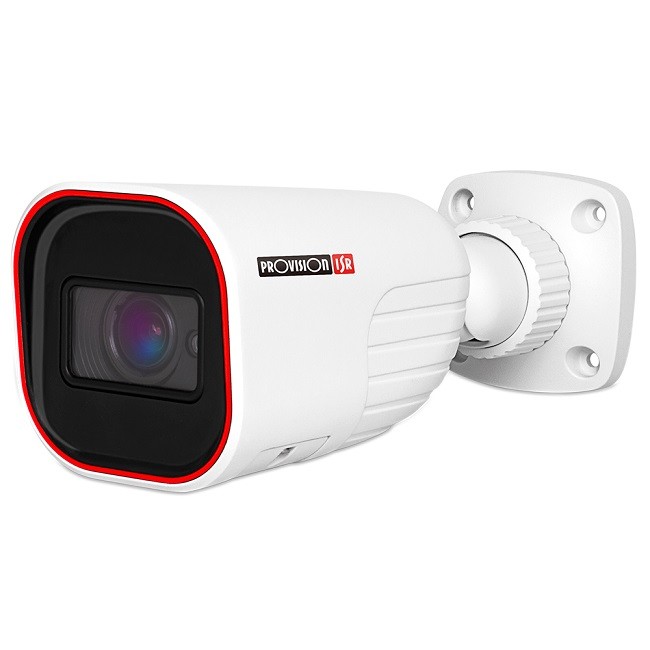

11 × Provision 2MP outdoor security cameras

The Provision I4-320A-28 cameras are designed for dependable outdoor use. Each camera offers:

• 2MP Full HD 1080p resolution for sharp, detailed images
• Up to 40 m night vision range for medium-distance monitoring
• 2.8 mm fixed lens with approx. 90° wide viewing angle
• IP67-rated, weather- and dust-resistant housing for long-term outdoor use

This makes the set suitable for monitoring driveways, yards, small business premises and similar areas.

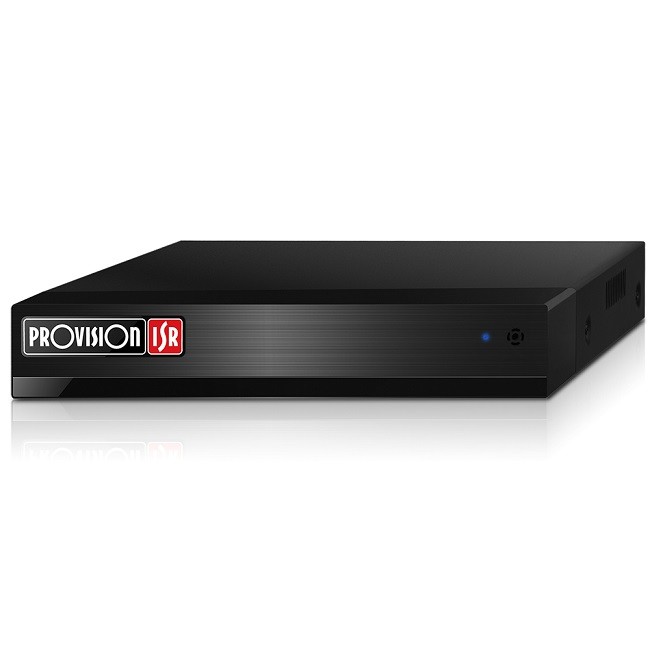

1 × Provision 16-channel 2MP hybrid XVR recorder

The Provision SH-16200A5N-2L(MM) hybrid XVR provides flexible video recording and system control:

• Supports 16 × AHD/CVI/TVI/Analog channels + 2 × IP channels
• Recording up to 2MP Full HD, max. 400 FPS
• Simultaneous playback on up to 4 channels
• Intelligent video analytics features to enhance monitoring
• VGA and HDMI outputs for connecting a monitor
• 1 × SATA port (supports up to 6 TB HDD, HDD not included)
• 2 × USB 2.0 ports and 100 Mbps RJ-45 network interface

Installation kit options

You can choose between two cabling solutions, depending on your installation preference.

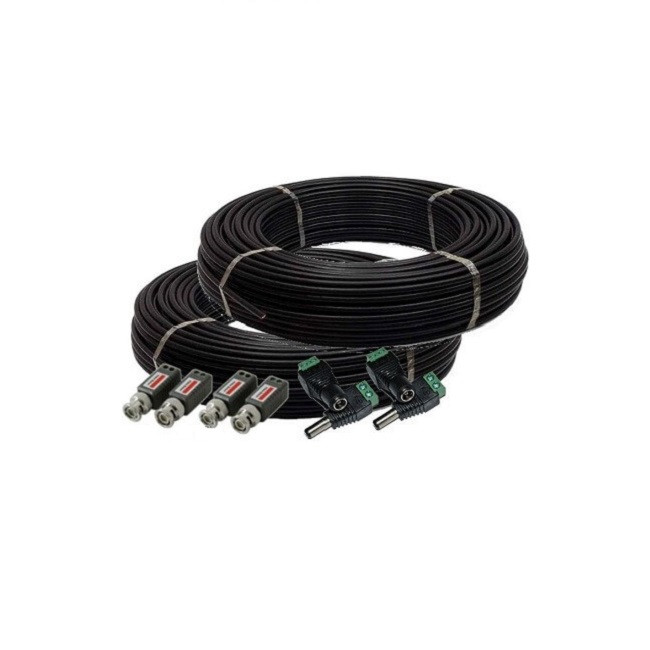

DIY cabling package

• One UTP cable per camera runs to the central unit, carrying both power and video signal
• Required connectors (video balun + power connector) are fitted by the user
• A step-by-step installation guide is available here: https://orkodo.hu/shop_ordered/4402/pic/Kamera-rendszer-szerelesi-utmutato.pdf
• No crimping tool needed – basic hand tools (side cutter, screwdriver, utility knife) are sufficient
• The package includes 10 m of UTP cable per camera
• If you need longer cables, you can request this in the order comments (+100 Ft/m extra per metre)

Pre-terminated cable package

• Camera cables are delivered with factory-fitted, non-removable connectors
• You only need to connect the recorder, camera power supply and cameras – no wiring work required
• The standard package includes 10 m of COX10 cable per camera: https://orkodo.hu/COX10-RG59-DC-video-es-tap-kombinalt-kabel-10-Meter
• Longer pre-terminated cables are available on request in 20 m (COX20) and 30 m (COX30) lengths:
  • 20 m COX20: https://orkodo.hu/COX20-RG59-DC-video-es-tapkabel-20-Meter
  • 30 m COX30: https://orkodo.hu/COX30-RG59-DC-video-es-tapkabel-30-Meter

Remote access with Provision Cam2 app

The Provision Cam2 mobile app allows you to monitor and manage your system remotely:

• Live view and playback from your cameras via smartphone
• Remote configuration of recorder and cameras
• AI-based video analytics to help reduce false alarms
• Customisable notifications and alerts
• Option to share camera access with family members or colleagues

More information and download links are available here: https://provision-isr.com/cam2-app/
