Provision AHD-30 8-camera surveillance system 5MP

We also recommend the following product as an accessory

• Details
• Data
• Reviews
• Használati útmutató

Details

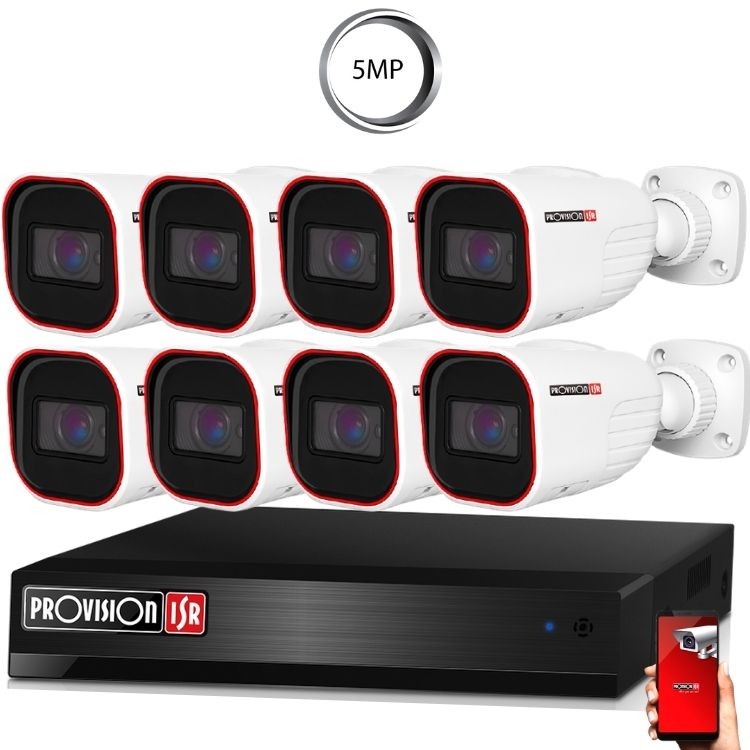

Provision 8-camera 5MP 3K security camera system with 20 m night vision for indoor and outdoor use

The Provision AHD-30 security camera system offers outstanding 5MP resolution and 20 m night vision range, delivering sharp, detailed images day and night. The kit includes an 8-channel XVR digital recorder that allows remote video access, so you can easily check recordings from your home or office cameras anytime, anywhere. Installation is straightforward with single-cable wiring, thanks to the included installation kit containing camera power supply, video baluns, UTP cable and power connectors. A hard drive is not included but can be purchased separately in our online store. This camera system is an ideal choice for anyone looking for a reliable, user-friendly security solution for their home or business.

5

MEGAPIXEL

Provision AHD camera

8

CHANNELS

Connect up to 8 cameras to the DVR

20 m

NIGHT VISION RANGE

Maximum viewing distance in complete darkness

IP67

RATING

Weather-resistant construction

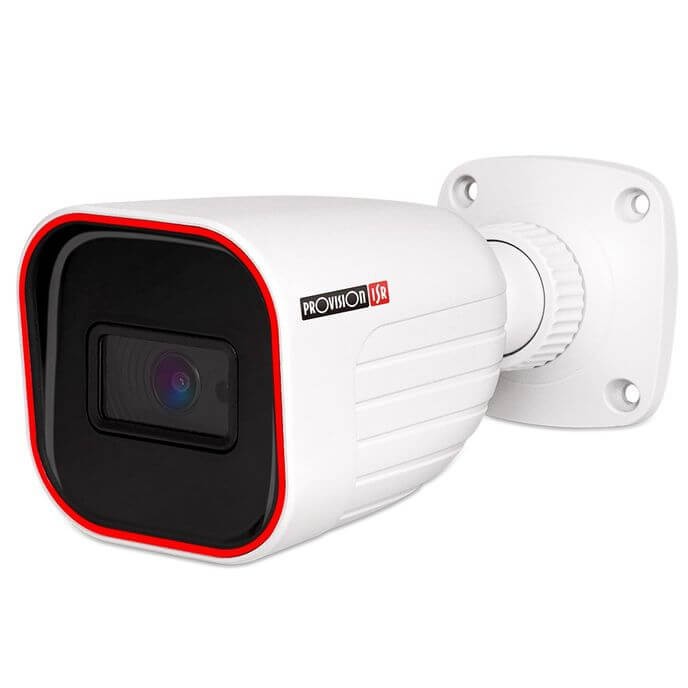

8 x Provision PR-I2-33K0AP-28 3K (5MP) security camera with built-in microphone

The Provision PR-I2-33K0AP-28 is an advanced 5 megapixel security camera, suitable for both indoor and outdoor use. Thanks to its 5MP resolution, it delivers sharp, clear images even in low-light conditions. It features a built-in 2.8 mm fixed lens offering an approx. 100° field of view. Infrared LEDs provide up to 20 m night vision even at zero illumination. The metal housing with IP67 water- and dust-resistant rating ensures reliable operation in harsh weather conditions. The camera also includes a built-in microphone for audio recording.

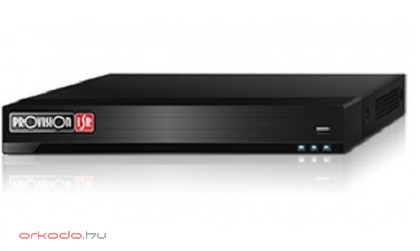

1 x Provision 8-channel 5MP 2K XVR hybrid recorder with smart video analytics

The Provision SH-8100A5N-5L(1U) is a 5 megapixel hybrid digital video recorder. It supports both analogue and advanced IP cameras, delivering excellent image quality and intelligent features. It can handle AHD/CVI/TVI/Analogue cameras on 8 channels and IP cameras on 4 channels. You can connect a monitor or TV via the VGA and HDMI outputs. Recording is available on 8 channels for AHD/CVI/TVI/Analogue and on 4 channels for IP cameras, with up to 5MP 2K resolution. It supports simultaneous playback on 4 channels with intelligent analytics. The recorder provides 1 x SATA port (max. 6 TB HDD, not included), 2 x USB 2.0 ports and a 100 Mbps RJ-45 network interface.

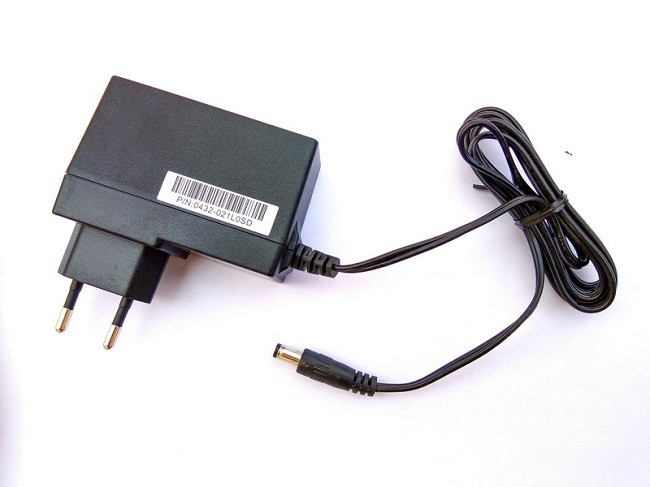

Complete installation kit with all required components

For our camera systems, customers can choose between two installation kits: DIY kit and pre-assembled cable kit.

DIY kit: From each camera to the central unit you only need to run a single cable that carries both power and video signal. The necessary connectors (video baluns + power connectors) are fitted to the cable ends by the customer – to help with this, we have created an installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The kit includes 10 m of UTP cable per camera. If you need longer cable, you can indicate this in the order comment field (+180 HUF/meter).

Pre-assembled cable kit: In this case, the connectors are already factory-fitted to the camera cables and cannot be removed. You simply connect the recorder, camera power supply and camera – no wiring work needed. The basic package includes 10 m COX10 cable per camera. If you need longer cable, you can indicate this in the order comment field (also available in 20 m COX20 and 30 m COX30 versions).

Remote access via Provision Cam2 mobile app

The Provision Cam2 app allows users to fully manage their security devices. The application provides live view, playback and device configuration. AI-based video analytics features help reduce false alarms, while users can customise notifications and manage devices remotely. The app also lets you share camera access with family members and other authorised users.

Data

Biztonsági kamerák száma:

8

Kameradesign:

Cső

Area of ​​use:

Kültér és beltér

Functions:

, , ,

Reviews

Be the first to write a review!

Write a review

Használati útmutató

Általános használati szerelési utasítás

• Szerelési Telepítési Útmutató
• Provision DVR OSSIA menüvel rendelkező

• Provision DVR/NVR jelszó visszaállítás

---

Letöltések

Provision IP tool	Letöltés
Provision kimentett felvétel lejátszó [OSSIA menüs rögzítőkhöz]	Letöltés
Provision CMS program [Apple MAC OS verzió]	Letöltés
