Provision AHD-23B Dome 7 security camera system Full HD 2MP

We also recommend the following product as an accessory

• Details
• Data
• Reviews
• Telepítési útmutató

Details

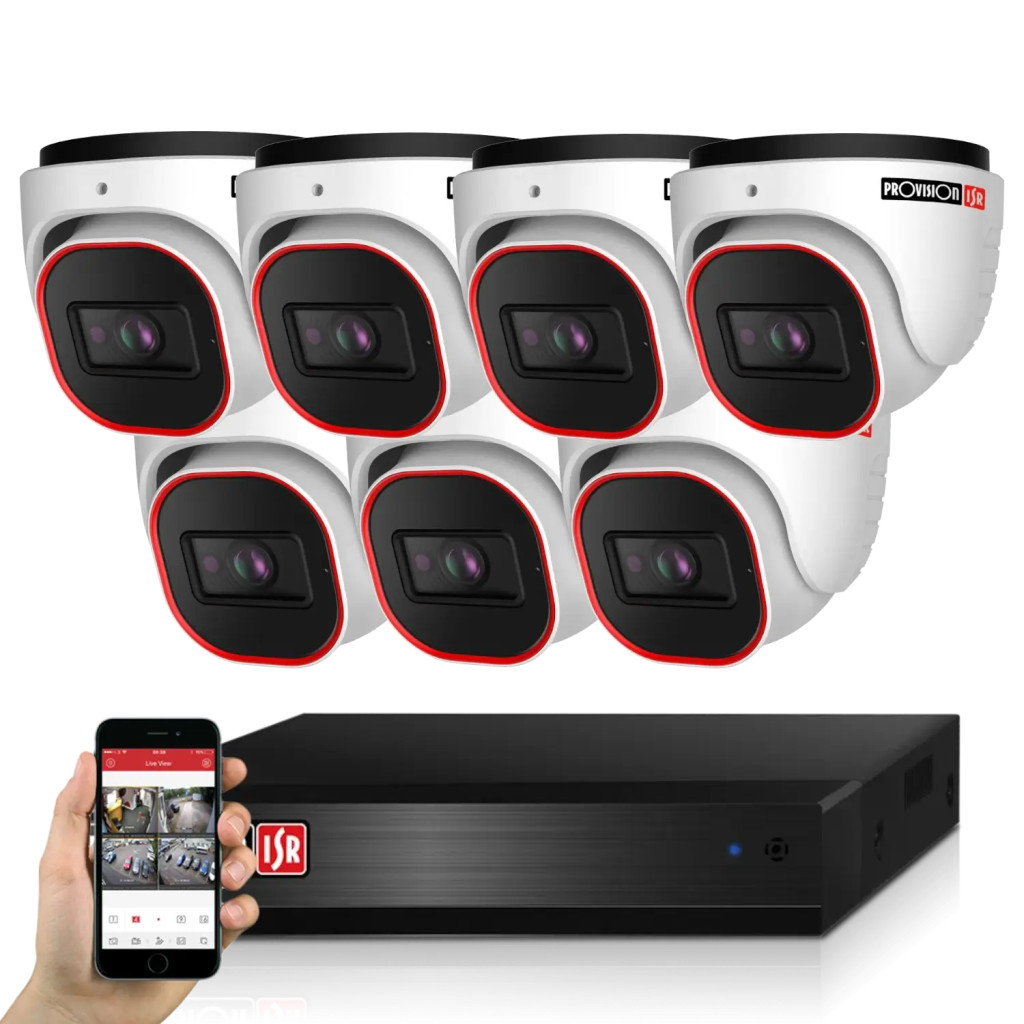

Provision 7 dome security camera system, 2MP Full HD resolution, 20 m night vision range for outdoor and indoor use

Our Provision AHD-23B dome surveillance camera system is an excellent choice for enhancing the security of your home. It is recommended for monitoring family houses, apartments and small businesses. Provision is a globally recognized brand known for its quality products. The package includes seven 2 megapixel, Full HD dome security cameras that provide outstanding image quality in low-light conditions with night mode. Thanks to the built-in microphone, you can not only see but also hear what is happening. The set also contains a 4-channel DVR digital video recorder that offers remote access, so you can view the camera images from your phone. The system features a Hungarian-language user interface. With the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is easy to install and operate.

2

MEGAPIXEL

Provision AHD dome camera

8

CHANNELS

The DVR can connect up to 8 cameras

20 m

NIGHT VISION RANGE

Maximum viewing distance in complete darkness

IP67

RATING

Resistant to weather conditions

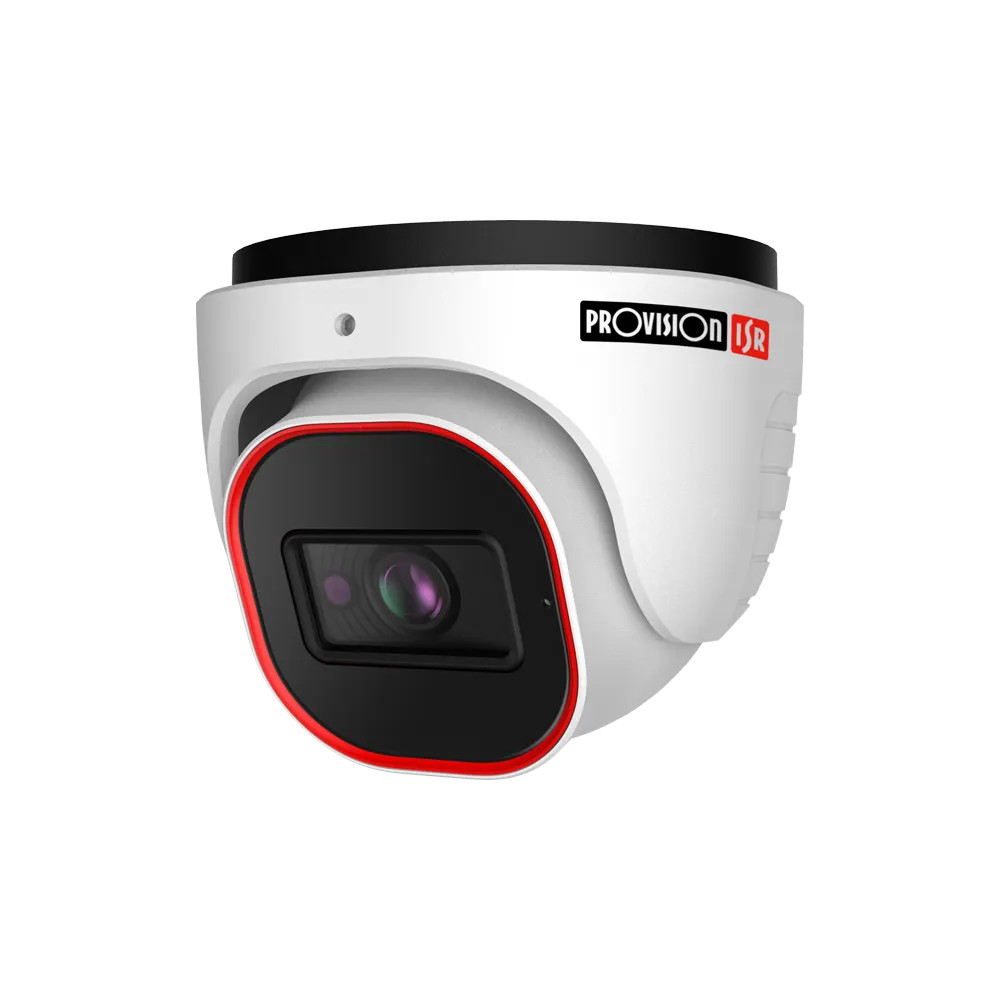

7 pcs Provision Full HD 2MP security dome cameras for clear images indoors and outdoors

The Provision DI-320AB-28 is an entry-level security dome camera that provides a practical solution for both indoor and outdoor use. This model is a 2 megapixel, Full HD 1080p camera that delivers sharp, clear images even in low-light conditions. The built-in 2.8 mm fixed lens offers a wide 90-degree field of view. Night vision range is up to 20 meters. Its IP67-rated, water- and dust-resistant plastic housing withstands harsh weather conditions, ensuring reliability and durability in a wide range of environments. The camera is equipped with a built-in microphone.

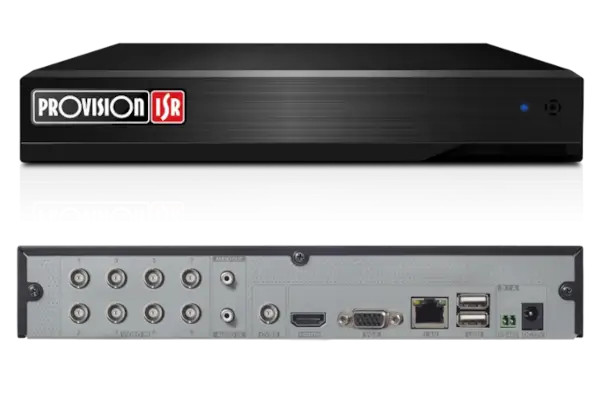

1 pc Provision 8-channel 2MP hybrid XVR recorder with intelligent features

The Provision SH-8100A5N-2L(MM) XVR recorder delivers hybrid digital video recording. As a hybrid recorder, it supports both analog and advanced IP cameras with solid image quality and a wide range of functions. It offers 8 channels for AHD/CVI/TVI/Analog and 2 channels for IP input. A monitor can be connected via the VGA and HDMI outputs. Recording on 8 channels AHD/CVI/TVI/Analog and 2 channels IP, max. 2MP Full HD, 100 FPS. Up to four channels can be played back simultaneously with intelligent video analytics. The device includes 1 x SATA port (max. 6TB HDD, not included), 2 x USB 2.0 ports and a 100 Mbps RJ-45 network port.

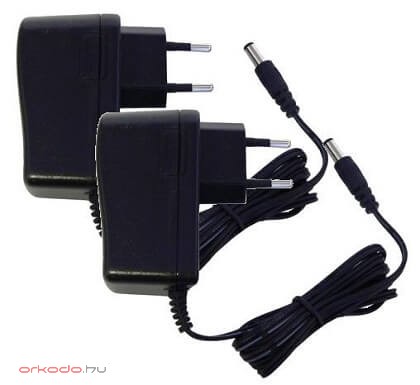

Camera system installation kit with all essential components

For our camera systems, customers can choose between two packages: DIY kit and pre-assembled cable kit.

DIY kit: From each camera to the central unit you only need to run a single cable that carries both power and video signal. The required connectors (video balun + power connector) are installed by the customer on the cable ends – to assist with this, we have prepared an installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The package includes 10 meters of UTP cable per camera. If you need more cable, you can indicate this in the order comments (+100 Ft/meter).

Pre-assembled cable kit: In this case, the connectors are factory-installed on the camera cable ends and cannot be removed. You only need to connect the recorder, camera power supply and cameras, without any wiring work. The basic package includes 10 meters of COX10 cable per camera. If you need longer cables, you can indicate this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).

Internet access via Provision Cam2 mobile application

The Provision Cam2 app allows users to manage their security devices remotely. The application offers live view, playback and device configuration. AI-based video analytics features help reduce false alarms, while users can customize notifications and manage devices remotely. The app also allows you to share camera views with family members or other trusted contacts.

Data

Biztonsági kamerák száma:

7

Kameradesign:

Dome

Area of ​​use:

Kültér és beltér

Functions:

, , ,

Reviews

Be the first to write a review!

Write a review

Telepítési útmutató

Általános használati szerelési utasítás

• Szerelési Telepítési Útmutató
• Provision DVR OSSIA menüvel rendelkező

• Provision DVR/NVR jelszó visszaállítás

---

Letöltések

Provision IP tool	Letöltés
Provision kimentett felvétel lejátszó [OSSIA menüs rögzítőkhöz]	Letöltés
Provision CMS program [Apple MAC OS verzió]	Letöltés
