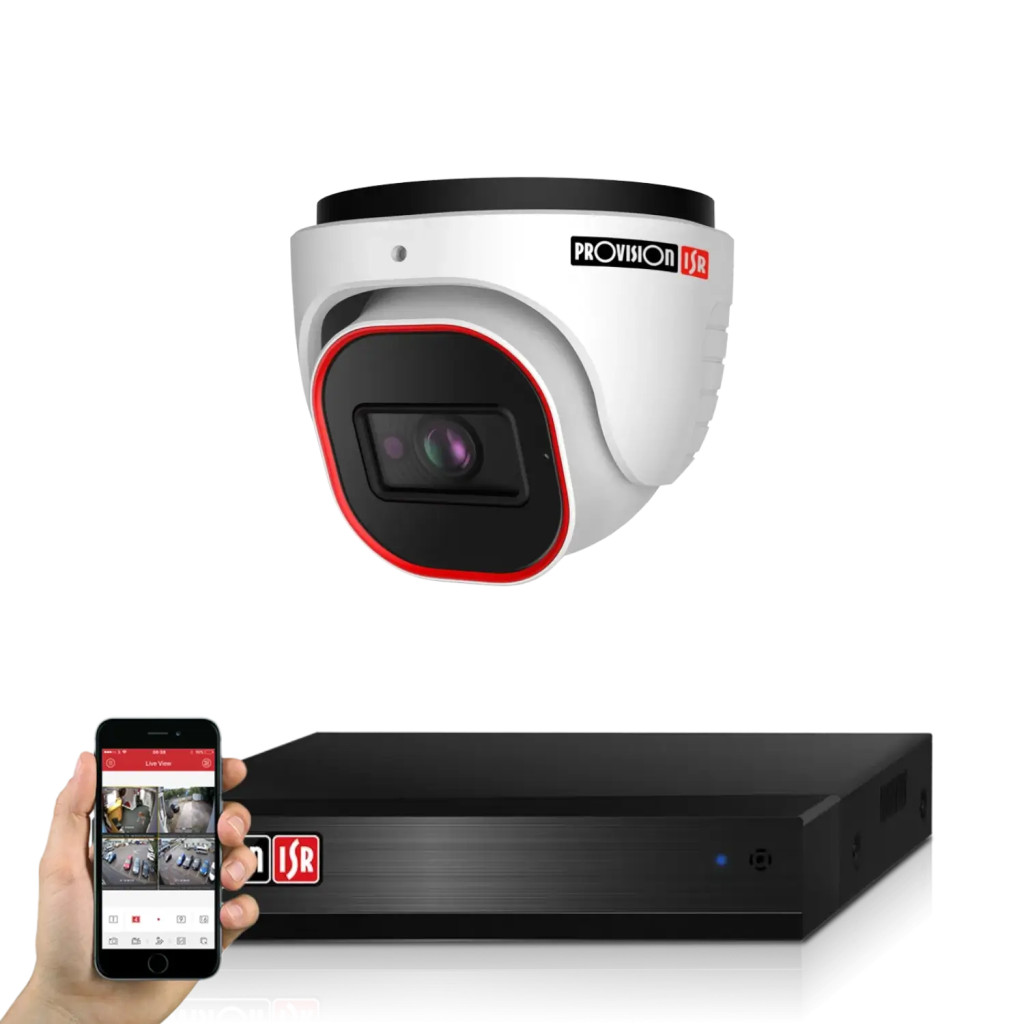

Provision AHD-23B 1-Dome Security Camera System Full HD 2MP

Key features

• 2MP Full HD Provision AHD dome camera for sharp, detailed images
• 4-channel XVR recorder, expandable up to 4 cameras + 2 IP channels
• 20 m night vision range for reliable monitoring in complete darkness
• IP67-rated housing for outdoor and indoor use
• Built-in microphone for audio monitoring
• Remote access via Provision Cam2 mobile app
• Optional DIY or pre-assembled cabling package

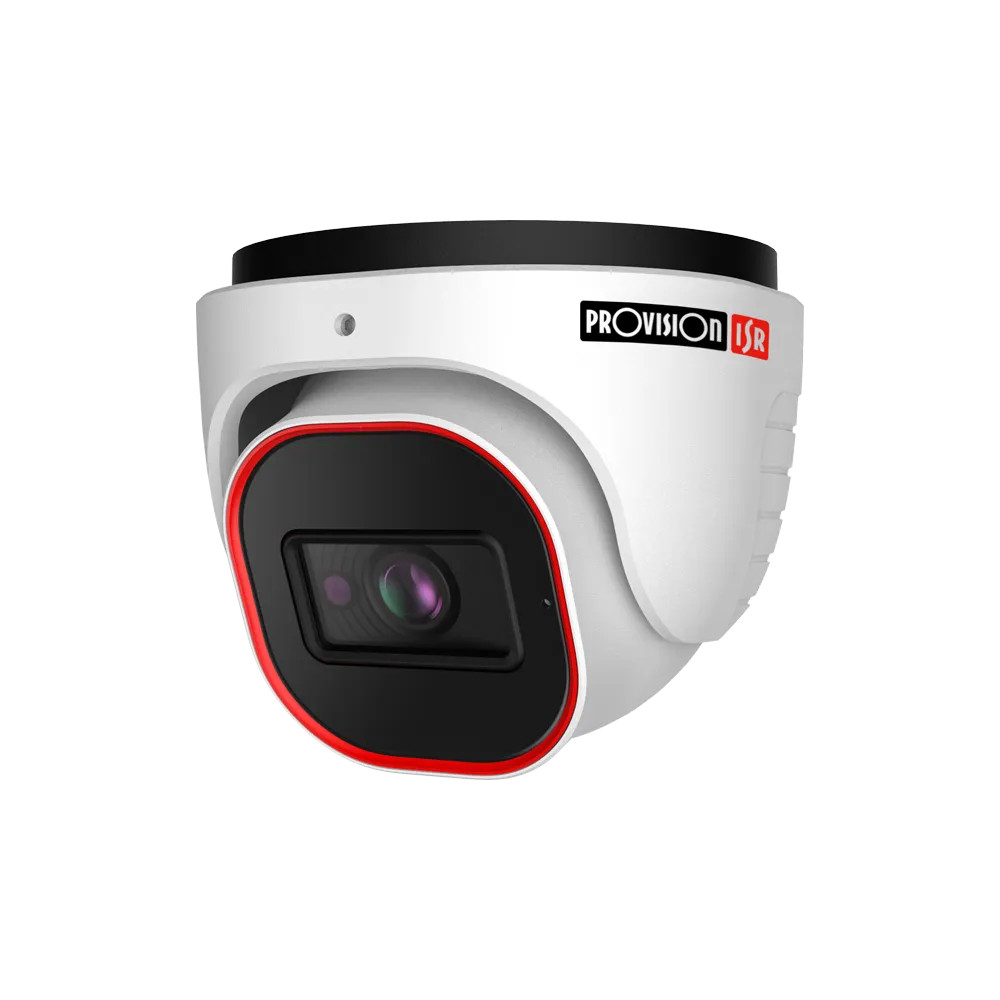

2MP dome camera for indoor and outdoor use

The Provision DI-320AB-28 is an entry-level security dome camera designed for both indoor and outdoor applications. It delivers Full HD 1080p resolution with a 2MP sensor, providing clear images even in low-light conditions. The built-in 2.8 mm fixed lens offers a wide 90° viewing angle, while the 20 m IR night vision ensures visibility in complete darkness. Thanks to its IP67-rated, water- and dust-resistant plastic housing, the camera is suitable for demanding environments. A built-in microphone enables audio recording alongside video.

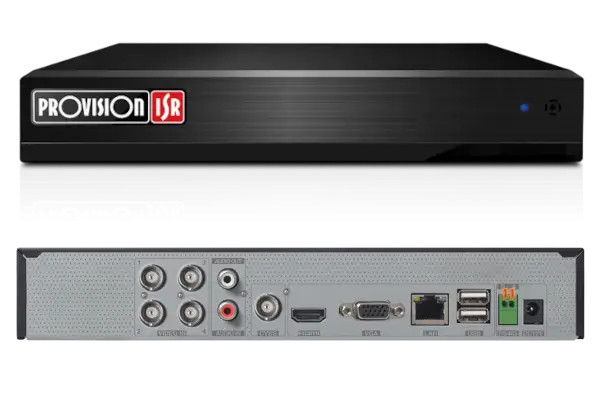

4-channel hybrid XVR recorder with smart functions

The Provision SH-4100A5N-2L(MM) hybrid XVR recorder supports both analog and IP cameras, making it a flexible solution for small systems. It offers 4 channels for AHD/CVI/TVI/analog cameras and 2 additional IP channels. A monitor can be connected via VGA or HDMI outputs. Recording is supported on 4 AHD/CVI/TVI/analog channels and 2 IP channels at up to 2MP Full HD and 100 FPS in total. The recorder allows simultaneous playback of four channels and includes intelligent video analytics functions. It features 1 x SATA port (supports up to 6TB HDD, not included), 2 x USB 2.0 ports, and a 100 Mbps RJ-45 network interface.

Installation cabling options

You can choose between two installation packages:

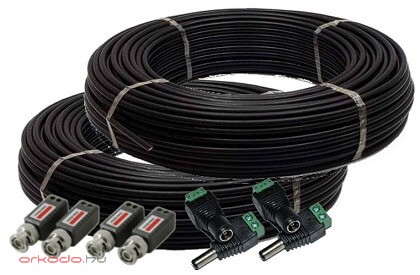

DIY cabling package

With the DIY package, only one cable per camera is routed to the central unit, carrying both power and video signal. The required connectors (video balun + power connector) are fitted by the customer. A step-by-step installation guide is available here: https://orkodo.hu/shop_ordered/4402/pic/Kamera-rendszer-szerelesi-utmutato.pdf

Basic tools such as side cutters, a screwdriver, and a utility knife are sufficient; no crimping tool is needed. The package includes 10 m of UTP cable per camera. If you need longer cables, you can request this in the order notes (surcharge applies per extra meter).

Pre-assembled cable package

In the pre-assembled package, the camera cables are supplied with factory-fitted connectors that cannot be removed. Installation is simplified to plugging together the recorder, power supply, and camera without additional wiring work. The basic package includes 10 m of BNC and 12V power pre-assembled camera cable per camera: https://orkodo.hu/Szerelt-kamera-kabel-BNC-es-12V-os-tap-csatlakozov

If you require longer cables, you can specify this in the order notes. Pre-assembled options are available in 20 m (COX20): https://orkodo.hu/COX20-RG59-DC-video-es-tapkabel-20-Meter and 30 m (COX30): https://orkodo.hu/COX30-RG59-DC-video-es-tapkabel-30-Meter lengths.

Remote access via Provision Cam2 app

The Provision Cam2 app enables full remote control of your security system. It offers live view, playback, and device configuration from your smartphone. AI-based video analytics help reduce false alarms, while customizable notifications keep you informed about important events. You can also share camera access with family members or other trusted users.
