Discover the Provision AHD-23 dome surveillance camera system, ideal for enhancing home and office security. The kit includes eight 2 megapixel dome security cameras with Full HD resolution, delivering clear image quality even in low-light conditions thanks to night mode. It also comes with an 8-channel XVR digital recorder that supports remote access for convenient monitoring from anywhere. The included installation kit (camera power supply, video balun, UTP cable, power connector) makes the system easy to install and operate, making it a practical choice for those seeking a reliable security solution.
Provision AHD dome camera
Connect up to 8 cameras to the DVR
Maximum viewing distance in complete darkness
Designed to withstand outdoor weather conditions

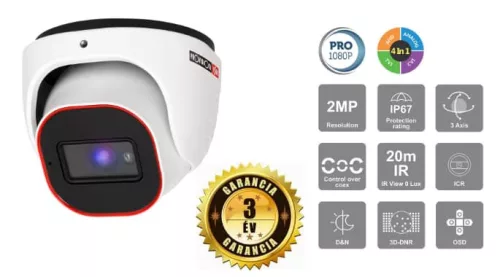

The Provision DI-320A-28 is an advanced security dome camera, ideal for both indoor and outdoor use. This model features a 2 megapixel, Full HD 1080p sensor that delivers sharp and detailed images even in low-light conditions. The built-in 2.8 mm fixed lens provides a wide 90° field of view, while the night vision range extends up to 20 metres. Its IP67-rated weatherproof housing is resistant to water and dust, ensuring reliability and durability in a wide range of environments.

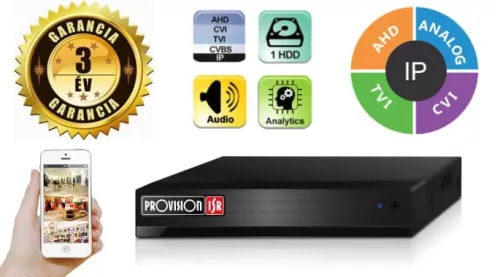

The Provision SH-8100A5N-2L(MM) XVR recorder delivers versatile hybrid digital video recording. As a hybrid recorder, it supports both analogue and IP cameras with excellent image quality and flexible functionality. It offers 8 AHD/CVI/TVI/analogue channels and 2 IP channels. A monitor can be connected via VGA or HDMI outputs. Recording is supported on 8 AHD/CVI/TVI/analogue channels and 2 IP channels, up to 2MP Full HD, 100 FPS in total. Up to four channels can be played back simultaneously, with intelligent video analytics available. The unit includes 1 x SATA port (supports up to 6TB HDD, not included), 2 x USB 2.0 ports and a 100 Mbps RJ-45 network interface.
For our camera systems, customers can choose between two cable packages: a DIY installation package or a pre-assembled cable package.
DIY package: From each camera to the recorder you only need to run a single cable that carries both power and video signal. The required connectors (video balun + power connector) are fitted by the customer to the ends of the cable. To help with this, we have created a step-by-step installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The package includes 10 metres of UTP cable per camera. If you need more cable, simply let us know in the order comments (+100 Ft/metre).
Pre-assembled cable package: In this case, the connectors are already factory-fitted to the camera cables and cannot be removed. Installation is therefore limited to plugging in the recorder, power supply and cameras, with no wiring work required. The basic package includes 10 metres of COX10 cable per camera. If you need longer cables, you can request this in the order comments (20 m COX20 and 30 m COX30 options are also available).
The Provision Cam2 app allows users to fully manage their security devices. The application offers live view, playback and device configuration. AI-based video analytics help reduce false alarms, while users can customise notifications and manage devices remotely. The app also makes it possible to share camera views with family members or other authorised users.
