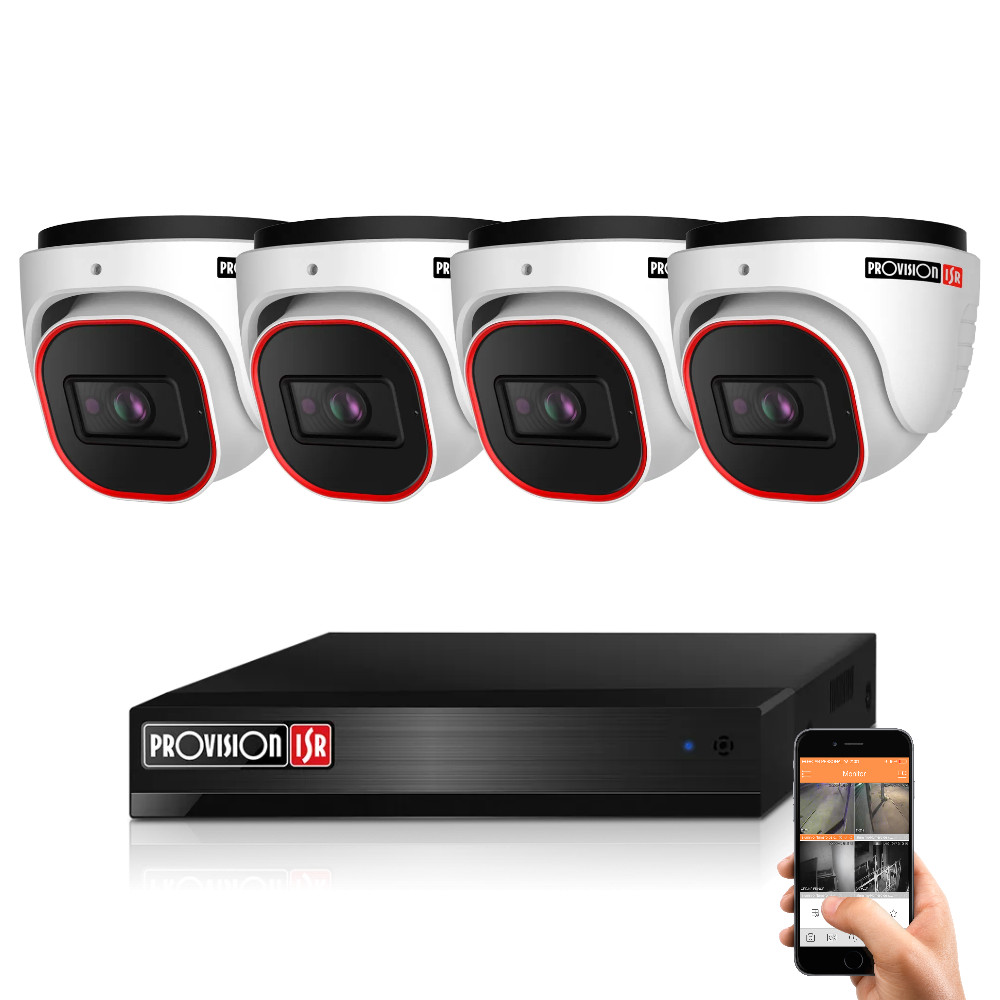

Discover the Provision AHD-23 dome surveillance camera system, ideal for enhancing security at home or in the office. The kit includes four 2 megapixel dome security cameras with Full HD resolution, delivering excellent image quality even in low light conditions thanks to night mode. It also comes with a 4-channel XVR digital recorder that supports remote access for convenient monitoring. The included installation kit (camera power supply, video balun, UTP cable, power connectors) makes the system easy to install and operate, making it a smart choice for anyone looking for a reliable security solution.
Provision AHD dome camera
Connect up to 4 cameras to the DVR
Maximum viewing distance in complete darkness
Weather-resistant housing

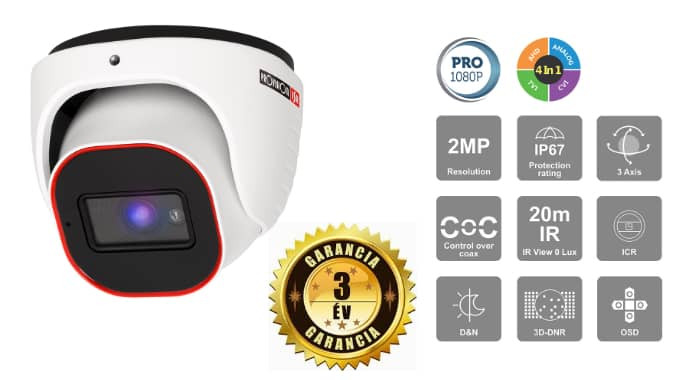

The Provision DI-320A-28 is an advanced security dome camera, offering an excellent solution for both indoor and outdoor use. This model is a 2 megapixel, FULL HD 1080p camera that delivers sharp, clear images even in low light conditions. The built-in 2.8 mm fixed lens provides a wide, 90° field of view. Its night vision range is up to 20 metres. The IP67-rated, water- and dust-resistant housing withstands harsh weather conditions, ensuring reliability and durability in a wide range of environments.

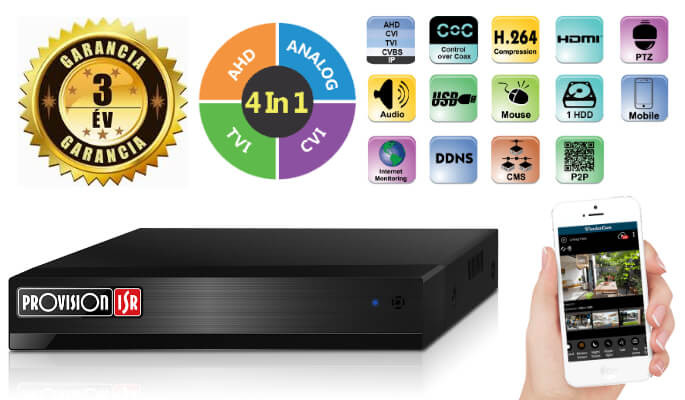

The Provision SH-4100A5N-2L(MM) XVR recorder delivers reliable hybrid digital video recording. As a hybrid recorder, it supports both analogue and advanced IP cameras with solid image quality and features. It offers 4 AHD/CVI/TVI/Analogue channels and 2 IP channels. A monitor can be connected via the VGA and HDMI outputs. Recording is possible on 4 AHD/CVI/TVI/Analogue channels and 2 IP channels, up to 2MP Full HD, 100 FPS. It supports simultaneous playback of four channels with intelligent video analytics. It includes 1 x SATA port (max. 6TB HDD, HDD not included), 2 x USB 2.0 ports and a 100 Mbps RJ-45 network interface.
For our camera systems you can choose between two installation kits: DIY package or pre-assembled cable package.
DIY package: From each camera to the central unit you only need to run a single cable that carries both power and video signal. The required connectors (video balun + power connector) are fitted by the customer to the ends of the cable – to support this, we have prepared a step-by-step installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The package includes 10 metres of UTP cable per camera. If you need more cable, simply let us know in the order comments (+100 Ft/metre).
Pre-assembled cable package: In this case, the connectors are already factory-fitted to the camera cable and cannot be removed, so you only need to connect the recorder, camera power supply and cameras – no wiring work required. The basic package includes 10 metres of COX10 cable per camera. If you need more cable, you can indicate this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).
The Provision Cam2 app enables users to manage their security devices remotely. The application offers live view, playback and device configuration options. Its AI-based video analytics functions help reduce false alerts, while users can customise notifications and manage devices remotely. The app also allows you to share camera access with family members or other authorised users.
