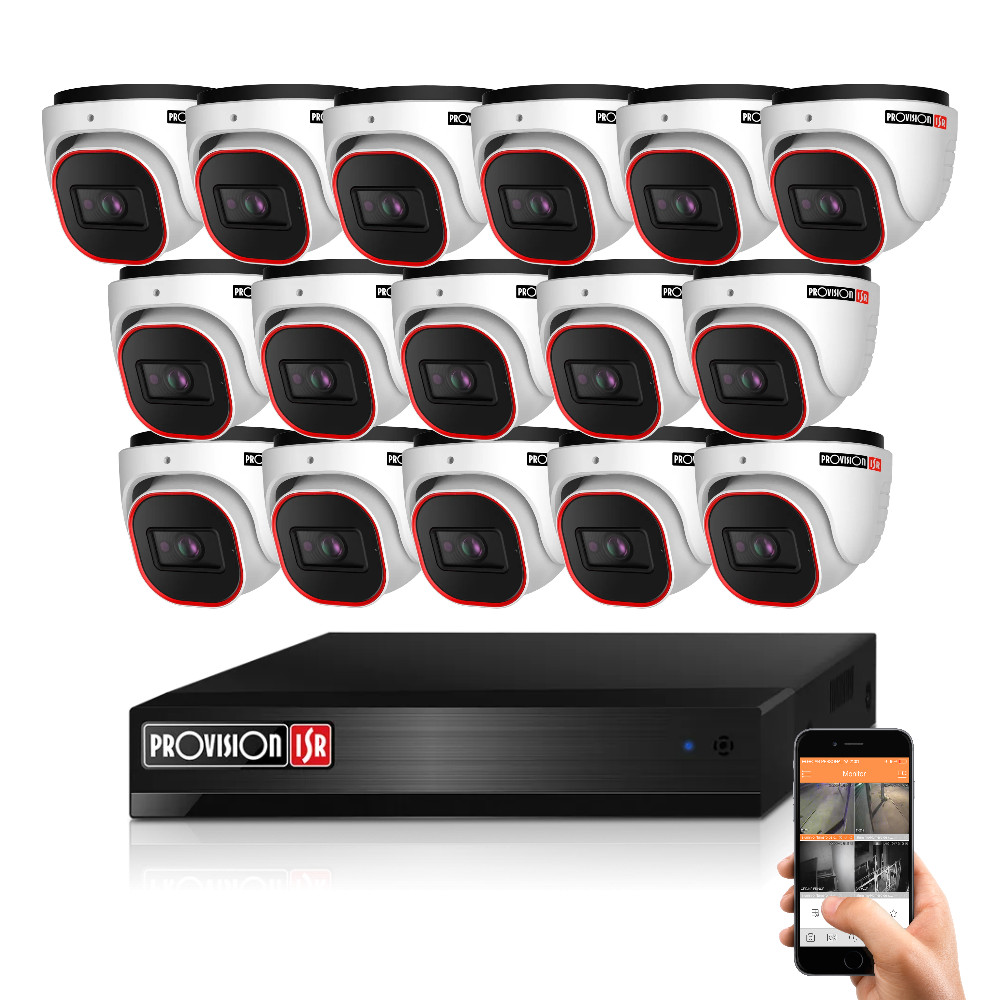

Discover the Provision AHD-23 dome surveillance camera system, ideal for enhancing security at home or in the office. The kit includes sixteen 2 megapixel Full HD dome security cameras that deliver excellent image quality even in low-light conditions with night mode. It also comes with a 16-channel XVR digital recorder, which offers remote access for flexible monitoring. Thanks to the included installation kit (camera power supply, video balun, UTP cable, power connectors), the system is easy to install and operate, making it a great choice for anyone looking for a reliable security solution.
Provision AHD dome camera
Connect up to 16 cameras to the DVR
Maximum viewing distance in complete darkness
Weather-resistant housing

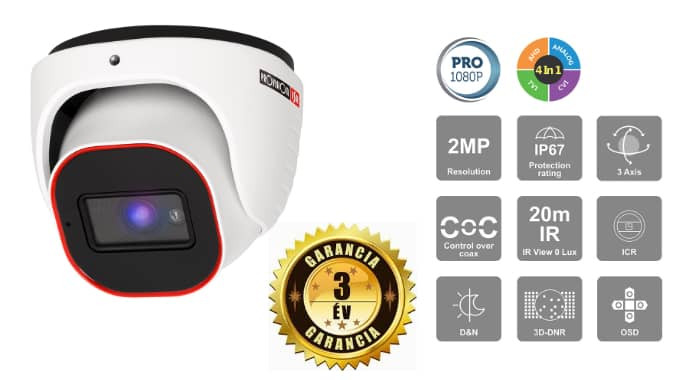

The Provision DI-320A-28 is an advanced security dome camera, ideal for both indoor and outdoor use. This model features a 2 megapixel, Full HD 1080p sensor that delivers sharp, clear images even in low-light conditions. The built-in 2.8 mm fixed lens offers a wide 90° viewing angle, while the night vision range extends up to 20 meters. Its IP67-rated weatherproof housing is resistant to water and dust, ensuring reliable performance and durability in a wide range of environments.

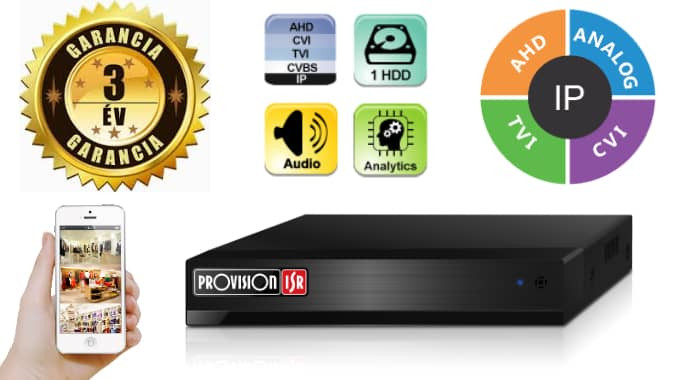

The Provision SH-16200A5N-2L(MM) XVR recorder delivers versatile hybrid digital video recording. As a hybrid unit, it supports both analog and advanced IP cameras with excellent image quality and features. It offers 16 AHD/CVI/TVI/Analog channels and 2 IP channels. A monitor can be connected via the VGA and HDMI outputs. Recording is possible on 16 AHD/CVI/TVI/Analog channels and 2 IP channels at up to 2MP Full HD, 400 FPS in total. It supports simultaneous playback on four channels with built-in smart video analytics. Connectivity includes 1 x SATA port (max. 6TB HDD, not included), 2 x USB 2.0 ports and a 100 Mbps RJ-45 network interface.

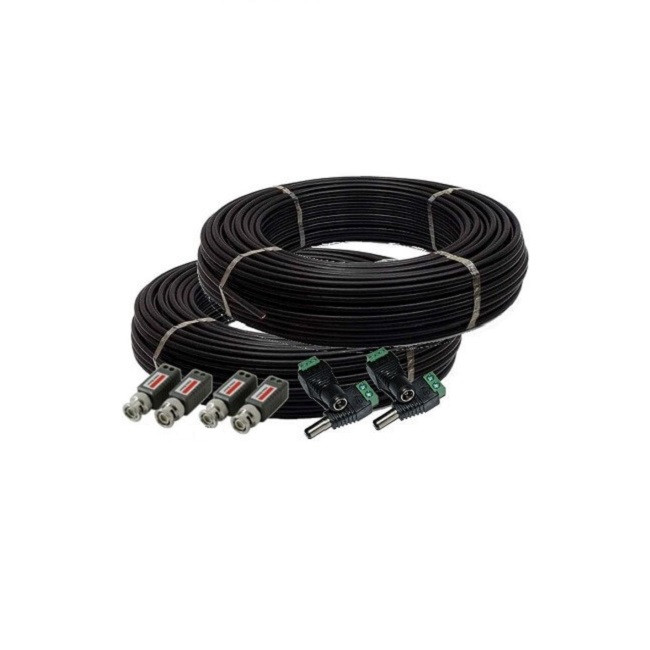

Only a single cable per camera needs to be routed to the central unit, carrying both power and video signal. With basic technical skills, the camera system can be assembled in-house. No crimping tool is required—only side cutters, a screwdriver and a utility knife. You simply need to attach the video balun and the 2.1 mm and 5.5 mm power connectors to the cable. For guidance, we have prepared an installation manual available at the following link: Installation and setup guide
The Provision Cam2 app enables users to manage their security devices remotely. The application provides live view, playback and device configuration options. AI-based video analytics help reduce false alarms, while users can customize notifications and manage their devices from anywhere. The app also allows you to share camera access with family members or other trusted contacts.
