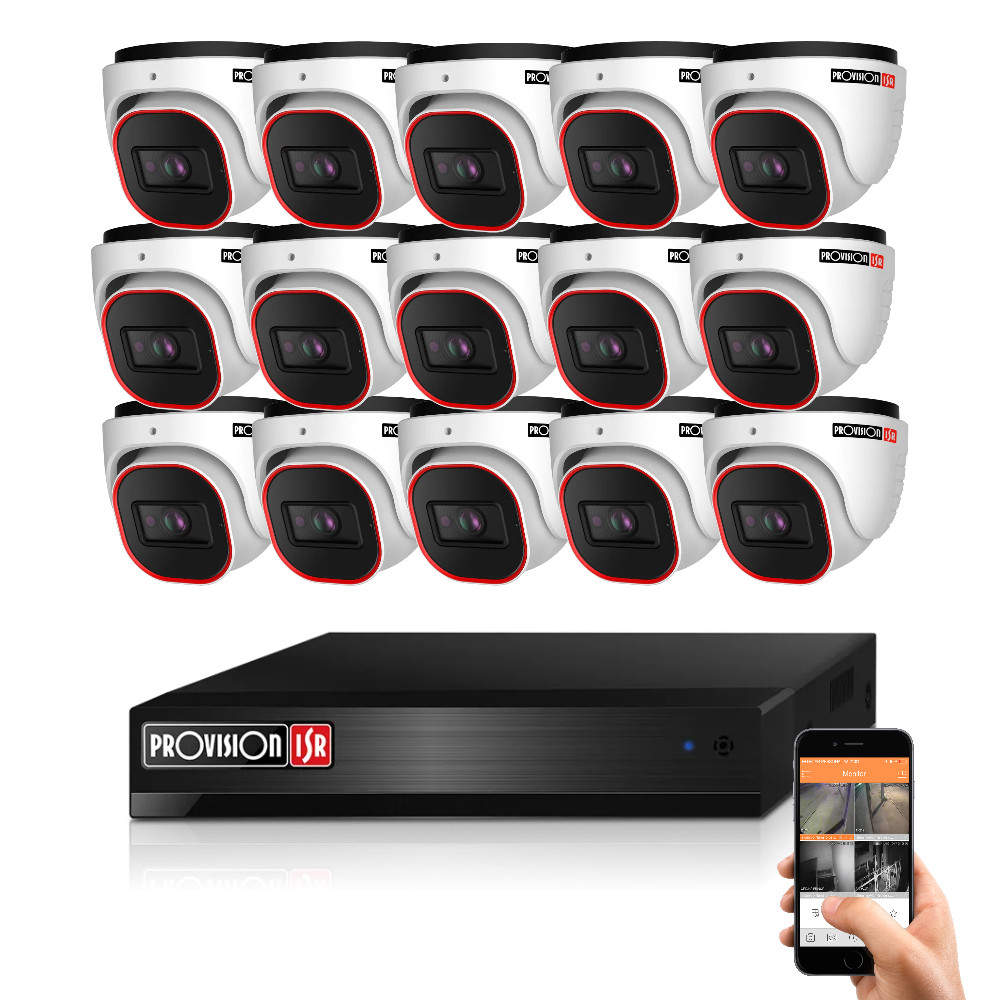

Discover the Provision AHD-23 dome surveillance camera system, ideal for enhancing security at home or in the office. The kit includes fifteen 2-megapixel Full HD dome security cameras that deliver excellent image quality in low-light conditions with night mode. It also comes with a 16-channel XVR digital recorder, providing remote access for flexible monitoring. Thanks to the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is easy to install and operate, making it a great choice for anyone looking for a reliable security solution.
Provision AHD dome camera
You can connect up to 16 cameras to the DVR
Maximum viewing distance in complete darkness
Resistant to weather conditions

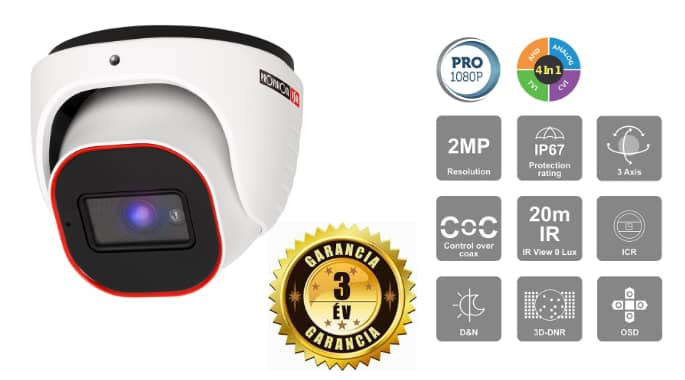

The Provision DI-320A-28 is an advanced security dome camera that provides an excellent solution for both indoor and outdoor use. This model features a 2-megapixel Full HD 1080p sensor that delivers sharp, clear images even in low-light conditions. The built-in 2.8 mm fixed lens offers a wide 90-degree field of view, while its night vision range is up to 20 metres. The IP67-rated water- and dust-resistant housing withstands harsh weather conditions, ensuring reliability and durability in a wide range of environments.

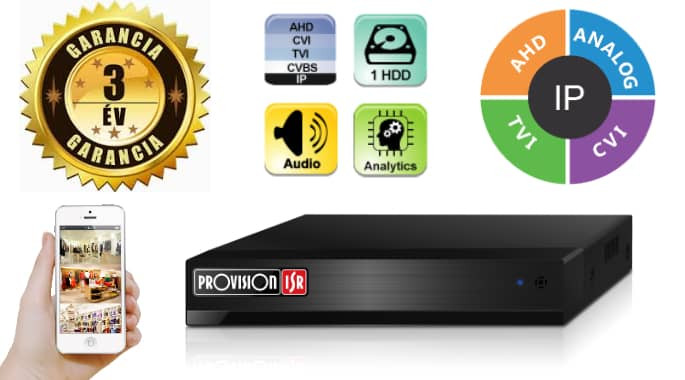

The Provision SH-16200A5N-2L(MM) XVR recorder delivers versatile hybrid digital video recording. As a hybrid unit, it supports both analogue and advanced IP cameras with high image quality and rich functionality. It offers 16 AHD/CVI/TVI/analogue channels and 2 IP channels. A monitor can be connected via the VGA and HDMI outputs. Recording is possible on 16 AHD/CVI/TVI/analogue channels and 2 IP channels, up to 2MP Full HD, 400 FPS in total. It supports simultaneous playback of four channels with intelligent video analytics. Connectivity includes 1 x SATA port (max. 6TB HDD, not included), 2 x USB 2.0 and a 100 Mbps RJ-45 network interface.

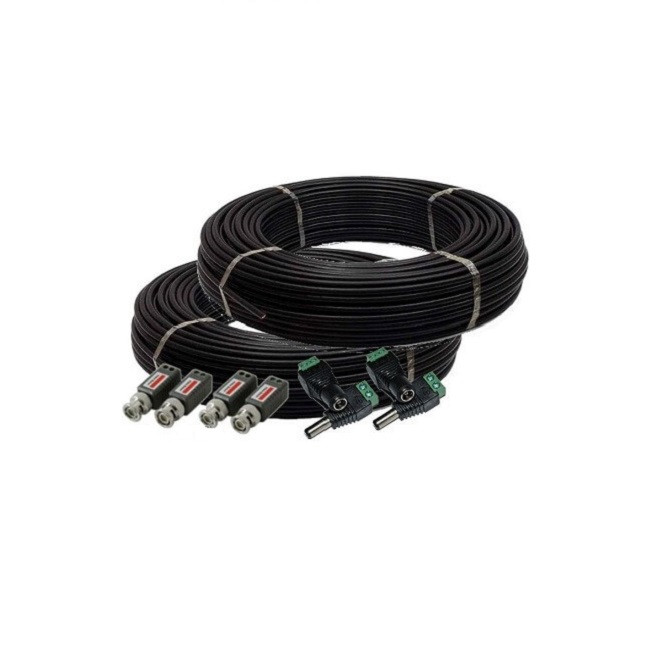

Only a single cable per camera needs to be routed to the central unit, carrying both power and video signal. With some basic technical skills, the camera system can be assembled in-house. No crimping tool is required—only side cutters, a screwdriver and a utility knife. You simply need to fit the video balun and the 2.1 mm and 5.5 mm power connectors to the cable. For guidance, we have prepared an installation manual, available at the following link: Installation and setup guide
The Provision Cam2 app allows users to fully manage their security devices. The application provides live view, playback and device configuration. AI-based video analytics features help reduce false alarms, while users can customise notifications and manage devices remotely. The app also makes it possible to share camera access with family members or other authorised users.
