Provision AHD-23 dome 14-camera surveillance system 2MP

We also recommend the following product as an accessory

• Details
• Data
• Reviews
• Használati útmutató

Details

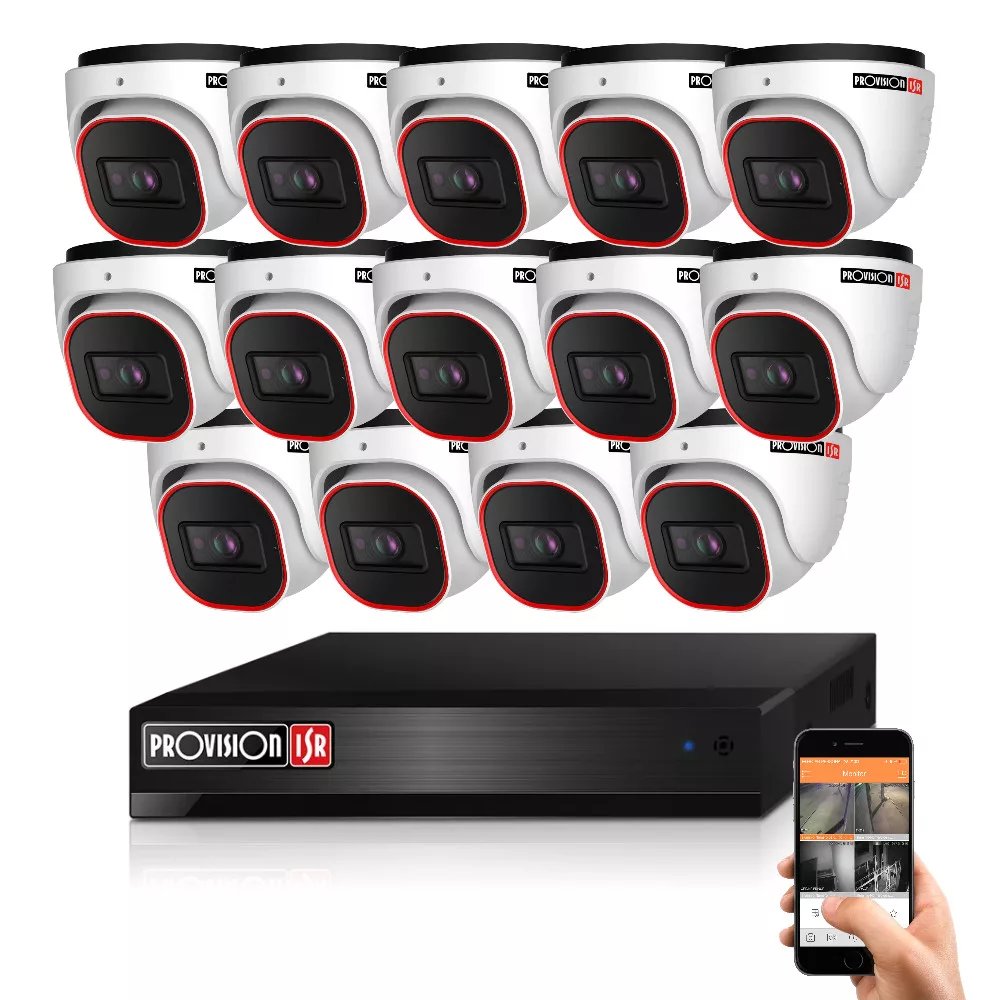

14-camera Provision dome security camera system, 2MP Full HD resolution, 20 m night vision range for outdoor and indoor use

Discover the Provision AHD-23 dome surveillance camera system, ideal for enhancing security at home or in the office. The kit includes fourteen 2 megapixel Full HD dome security cameras that deliver excellent image quality even in low-light conditions with night mode. It also comes with a 16-channel XVR digital recorder, which expands your monitoring options with remote access. Thanks to the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is easy to set up and operate, making it a great choice for anyone looking for a reliable security solution.

2

MEGAPIXELS

Provision AHD dome camera

16

CHANNELS

Connect up to 16 cameras to the DVR

20 m

NIGHT VISION RANGE

Maximum viewing distance in complete darkness

IP67

RATING

Weather-resistant housing

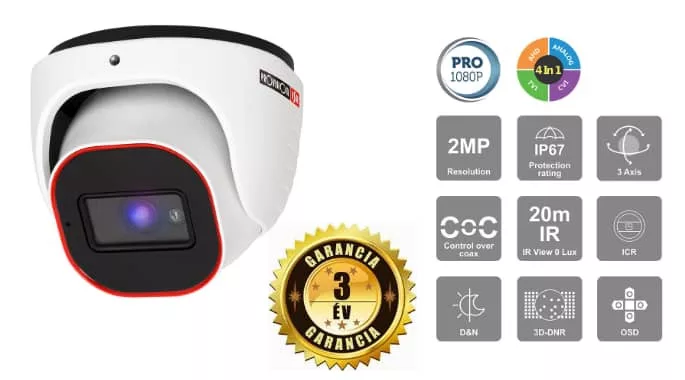

Provision Full HD 2MP security dome camera for clear images indoors and outdoors

The Provision DI-320A-28 is an advanced security dome camera, offering an excellent solution for both indoor and outdoor use. This model features a 2 megapixel FULL HD 1080p sensor that provides sharp, clear images even in low-light conditions. The built-in 2.8 mm fixed lens offers a wide 90° field of view. Night vision range is up to 20 metres. Its IP67-rated, water- and dust-resistant housing withstands harsh weather conditions, ensuring reliability and durability in a wide range of environments.

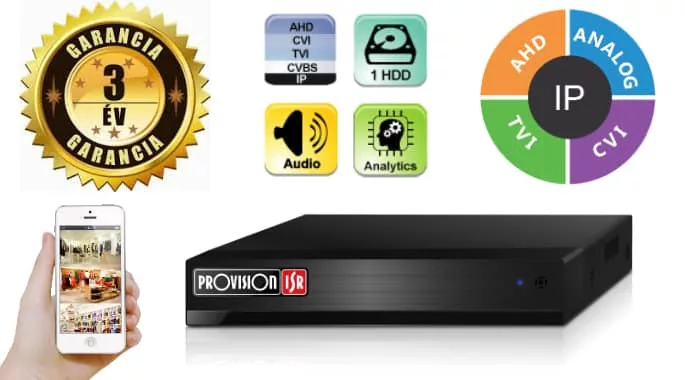

Provision 16-channel 2MP hybrid XVR recorder with smart features

The Provision SH-16200A5N-2L(MM) XVR recorder delivers high-quality hybrid digital video recording. As a hybrid recorder, it supports both analogue and advanced IP cameras with excellent image quality and flexible functionality. It offers 16 channels for AHD/CVI/TVI/Analogue and 2 channels for IP input. A monitor can be connected via the VGA and HDMI outputs. Recording is available on 16 AHD/CVI/TVI/Analogue channels and 2 IP channels at up to 2MP Full HD, 400 FPS combined. It supports simultaneous playback on four channels, with intelligent video analytics. The unit includes 1 x SATA port (max. 6TB HDD, not included), 2 x USB 2.0 ports and a 100 Mbps RJ-45 network interface.

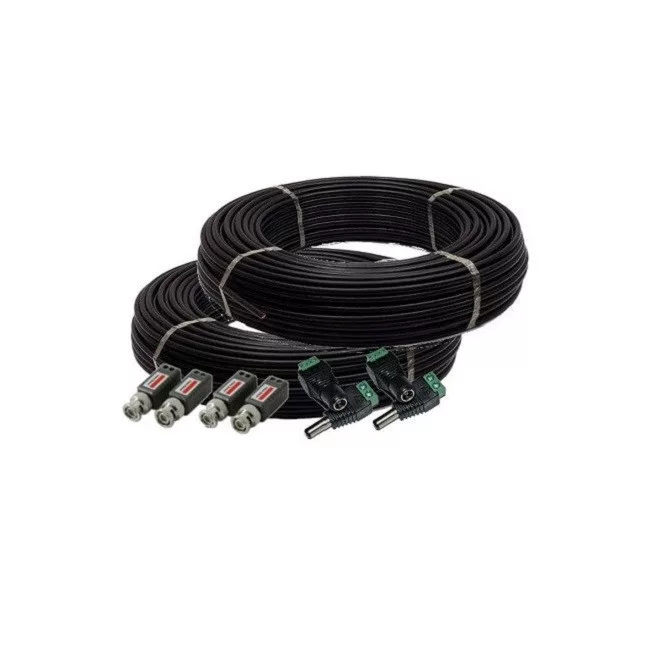

Camera system installation kit with all essential components

Only a single cable per camera needs to be routed to the central unit, carrying both power and video signal. With some basic technical skills, the camera system can be assembled as a DIY project. No crimping tool is required, just side cutters, a screwdriver and a utility knife. You only need to fit the video balun and the 2.1 mm and 5.5 mm power connectors to the cable – for guidance, we have prepared a step-by-step installation manual, available at the following link: Installation and setup guide

Internet access via the Provision Cam2 mobile app

The Provision Cam2 app gives users full control over their security devices. The application offers live view, playback and device configuration. AI-based video analytics help reduce false alerts, while users can customise notifications and manage devices remotely. The app also allows you to share camera access with family members or other authorised users.

Data

Kameradesign:

Dome

Reviews

Be the first to write a review!

Write a review

Használati útmutató

Általános használati szerelési utasítás

• Szerelési Telepítési Útmutató
• Provision DVR OSSIA menüvel rendelkező

• Provision DVR/NVR jelszó visszaállítás

---

Letöltések

Provision IP tool	Letöltés
Provision kimentett felvétel lejátszó [OSSIA menüs rögzítőkhöz]	Letöltés
Provision CMS program [Apple MAC OS verzió]	Letöltés
