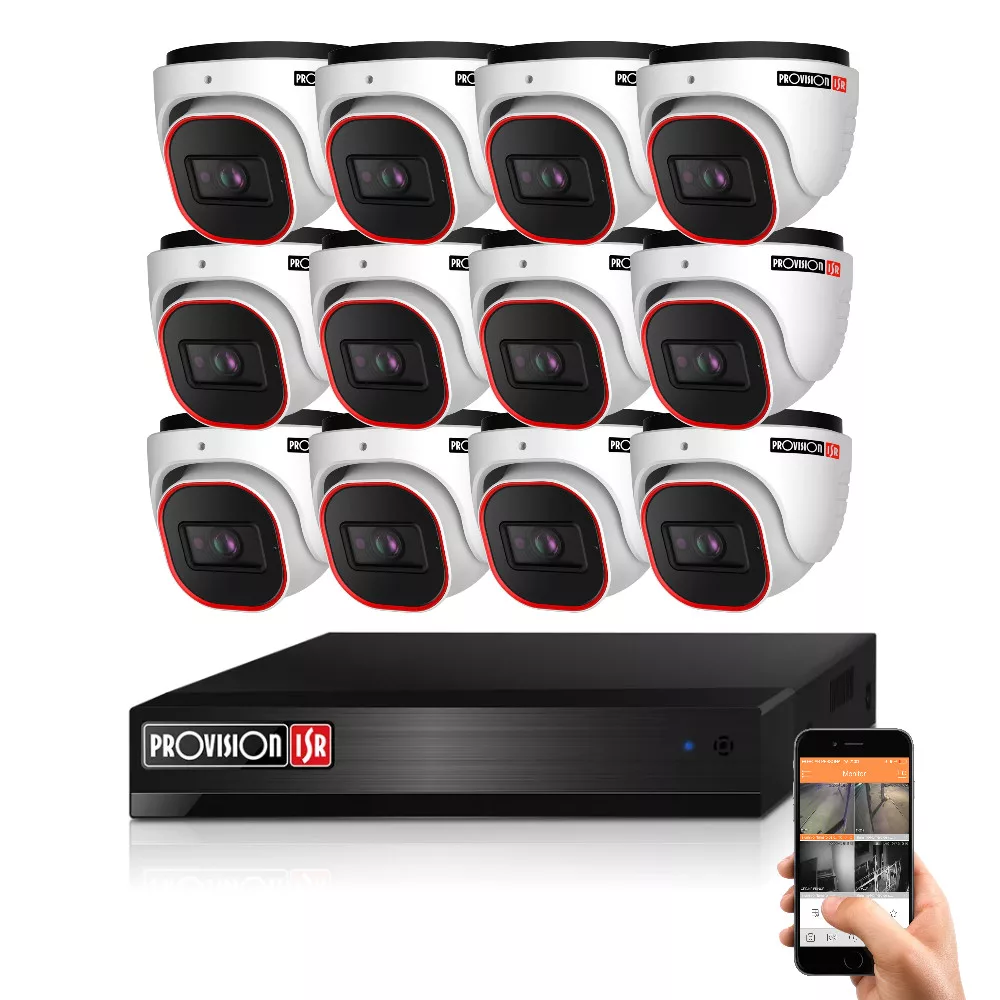

Discover the Provision AHD-23 dome surveillance camera system, ideal for boosting home and office security. The kit includes twelve 2 megapixel Full HD dome security cameras that deliver excellent image quality in low-light conditions with night mode. It also comes with a 16-channel XVR digital recorder, enabling remote access for flexible monitoring. Thanks to the included installation kit (camera power supply, video baluns, UTP cable, power connectors), the system is easy to install and operate, making it a practical choice for anyone looking for a reliable security solution.
Provision AHD dome camera
Connect up to 16 cameras to the DVR
Maximum viewing distance in complete darkness
Resistant to weather conditions

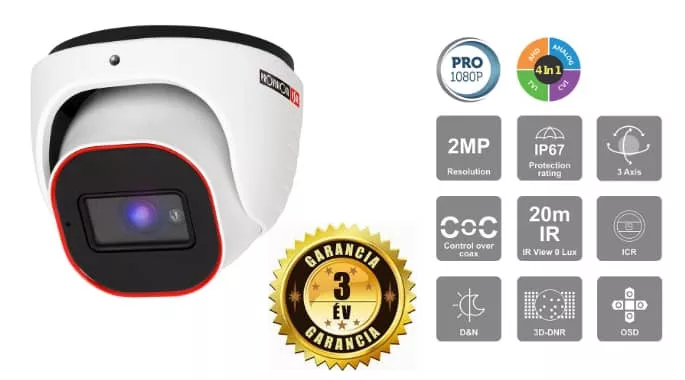

The Provision DI-320A-28 is an advanced security dome camera, offering an excellent solution for both indoor and outdoor use. This model features a 2 megapixel FULL HD 1080p sensor that delivers sharp, clear images even in low-light conditions. The built-in 2.8 mm fixed lens provides a wide 90° field of view, with night vision up to 20 meters. Its IP67-rated water- and dust-resistant housing withstands harsh weather conditions, ensuring reliability and durability in a wide range of environments.

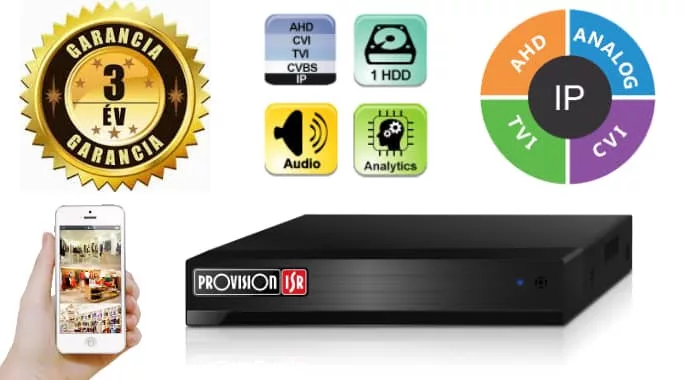

The Provision SH-16200A5N-2L(MM) XVR recorder provides versatile hybrid digital video recording. As a hybrid unit, it supports both analog and advanced IP cameras, delivering high image quality and flexible operation. It offers 16 AHD/CVI/TVI/analog channels and 2 IP channels. Monitors can be connected via VGA and HDMI outputs. Recording is possible on 16 AHD/CVI/TVI/analog channels and 2 IP channels at up to 2MP Full HD, 400 FPS in total. It supports simultaneous playback of four channels with intelligent video analytics. Connectivity includes 1 x SATA port (max. 6TB HDD, not included), 2 x USB 2.0 ports, and a 100 Mbps RJ-45 network interface.

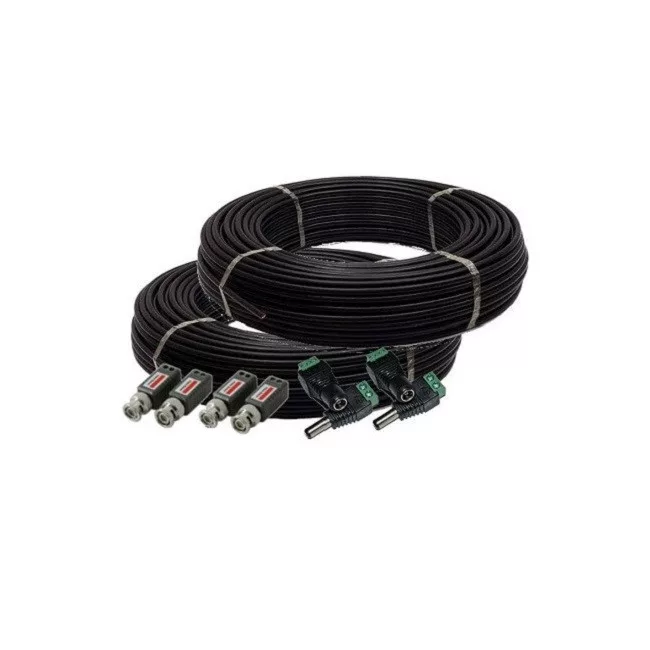

Only a single cable per camera needs to be run to the central unit, carrying both power and video signal. With some basic technical skills, the camera system can be assembled in-house. No crimping tool is required—only side cutters, a screwdriver, and a utility knife. You simply need to attach the video balun and the 2.1 / 5.5 mm power connectors to the cable. For guidance, we have prepared an installation manual, available at the following link: Installation and setup guide
The Provision Cam2 app allows users to manage their security devices remotely. The application provides live view, playback, and device configuration options. AI-based video analytics help reduce false alarms, while users can customize notifications and control devices from anywhere. The app also lets you securely share camera access with family members or other trusted users.
