Provision AHD-23 9-camera surveillance system 2MP

We also recommend the following product as an accessory

• Details
• Data
• Reviews
• Használati útmutató

Details

9-camera Provision security camera system, 2MP Full HD resolution, 20 m viewing distance for outdoor and indoor use

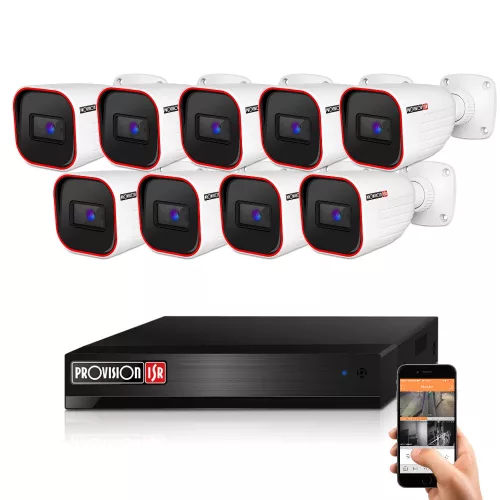

Discover the Provision AHD-23 surveillance camera system, ideal for enhancing home and office security. The kit includes nine 2 megapixel Full HD security cameras that deliver excellent image quality in low-light conditions with night mode. It also comes with a 16-channel XVR digital recorder, which expands monitoring options with remote access. Thanks to the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is easy to install and operate, making it a great choice for anyone looking for a reliable security solution.

2

MEGAPIXEL

Provision AHD camera

16

CHANNELS

Up to 16 cameras can be connected to the DVR

20 m

RANGE

Maximum viewing distance in complete darkness

IP67

RATING

Withstands outdoor weather conditions

9 Provision Full HD 2MP security cameras for clear images indoors and outdoors

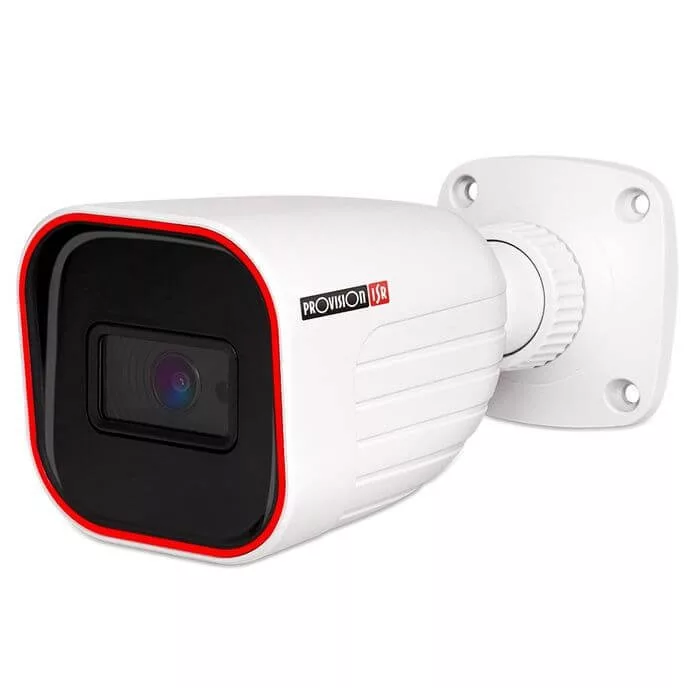

The Provision I2-320A-28 is an advanced security camera that provides an excellent solution for both indoor and outdoor use. This model is a 2 megapixel FULL HD 1080p camera that delivers sharp, clear images even in low-light conditions. The built-in 2.8 mm fixed lens offers a wide 90-degree field of view. Its night vision range is 20 meters. The IP67-rated water- and dust-resistant housing withstands harsh weather conditions, ensuring reliability and durability in a wide range of environments.

1 Provision 16-channel 2MP hybrid XVR recorder with smart features

The Provision SH-16200A5N-2L(MM) XVR recorder delivers high-quality hybrid digital video recording. As a hybrid recorder, it supports both analog and advanced IP cameras with excellent image quality and features. It offers 16 AHD/CVI/TVI/Analog and 2 IP input channels. A monitor can be connected via VGA and HDMI outputs. Recording is possible on 16 AHD/CVI/TVI/Analog channels and 2 IP channels, up to 2MP Full HD, 400 FPS in total. It supports simultaneous playback on four channels with intelligent video analytics. It includes 1 x SATA port (max. 6TB HDD, not included), 2 x USB 2.0 ports and a 100 Mbps RJ-45 network interface.

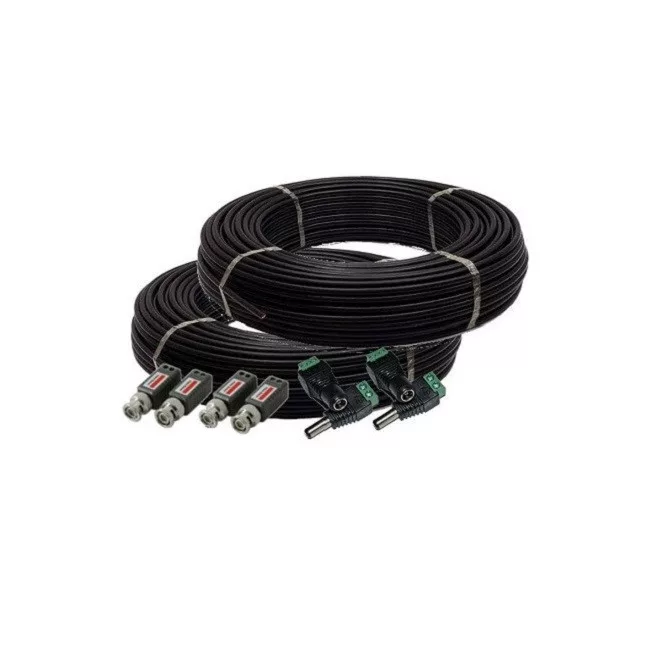

Complete camera system installation kit with all essential components

For our camera systems, customers can choose between two packages: DIY cable kit and pre-assembled cable kit.

DIY cable kit: From each camera to the central unit you only need to run a single cable that carries both power and video signal. The required connectors (video balun + power connector) are fitted by the customer at the cable ends – to help with this, we have created an installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The package includes 10 meters of UTP cable per camera. If you need more cable, you can let us know in the order comments (+100 Ft/meter).

Pre-assembled cable kit: In this case, the connectors are factory-fitted to the camera cable ends and cannot be removed, but installation is very simple – just connect the recorder, camera power supply and camera, with no wiring work. The basic package includes 10 metres of COX10 cable per camera. If you need more cable, you can indicate this in the order comments (20 m COX20 and 30 m COX30 versions are also available).

Internet access via Provision Cam2 mobile application

The Provision Cam2 app allows users to fully manage their security devices. The application offers live view, playback and device configuration. Its AI-based video analytics functions help reduce false alarms, while users can customize notifications and manage devices remotely. The app also lets you share camera views with family members or other trusted contacts.

Data

Biztonsági kamerák száma:

9

Kameradesign:

Cső

Area of ​​use:

Kültér és beltér

Functions:

, ,

Reviews

Be the first to write a review!

Write a review

Használati útmutató

Általános használati szerelési utasítás

• Szerelési Telepítési Útmutató
• Provision DVR OSSIA menüvel rendelkező

• Provision DVR/NVR jelszó visszaállítás

---

Letöltések

Provision IP tool	Letöltés
Provision kimentett felvétel lejátszó [OSSIA menüs rögzítőkhöz]	Letöltés
Provision CMS program [Apple MAC OS verzió]	Letöltés
