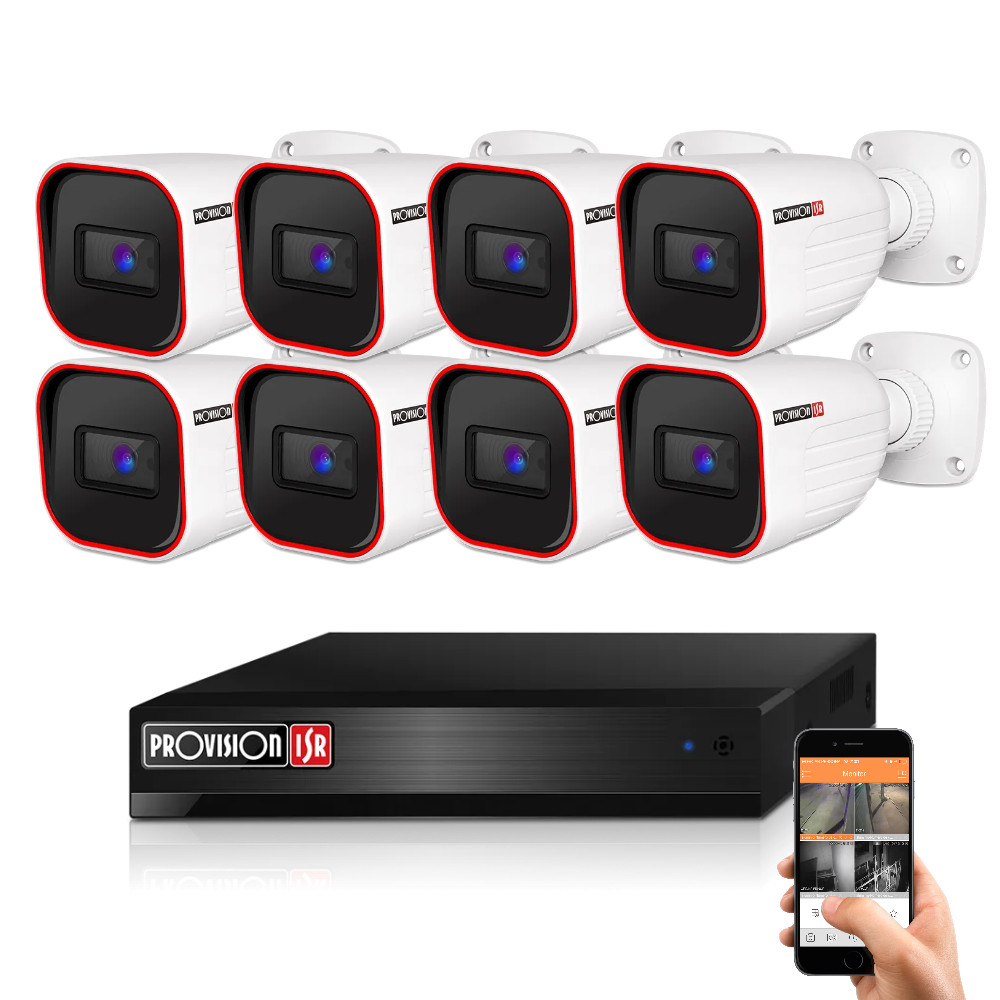

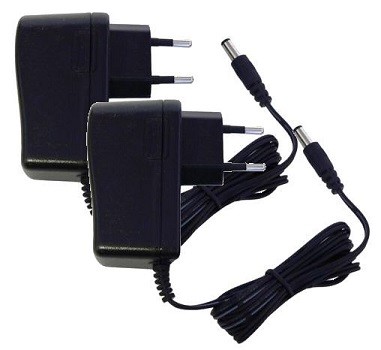

Discover the Provision AHD-23 surveillance camera system, ideal for enhancing home and office security. The kit includes eight 2 megapixel Full HD security cameras that deliver excellent image quality even in low-light conditions with night mode. It also comes with an 8-channel XVR digital recorder that enables remote access for easier monitoring. Thanks to the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is easy to install and operate, making it a practical choice for those seeking a reliable security solution.
Provision AHD camera
Connect up to 8 cameras to the DVR
Maximum viewing distance in complete darkness
Weather-resistant housing

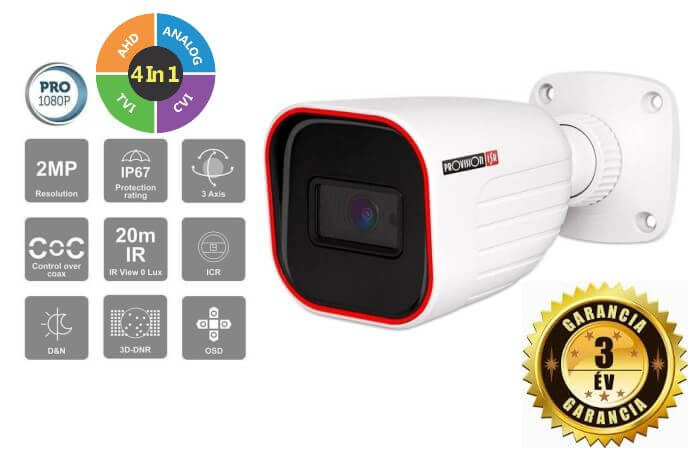

The Provision I2-320A-28 is an advanced security camera, ideal for both indoor and outdoor use. This 2 megapixel, Full HD 1080p camera delivers sharp, clear images even in low-light conditions. The built-in 2.8 mm fixed lens offers a wide, 90-degree field of view. Its night vision range is up to 20 metres. The IP67-rated water- and dust-resistant housing withstands harsh weather conditions, ensuring reliable, long-term operation in a wide range of environments.

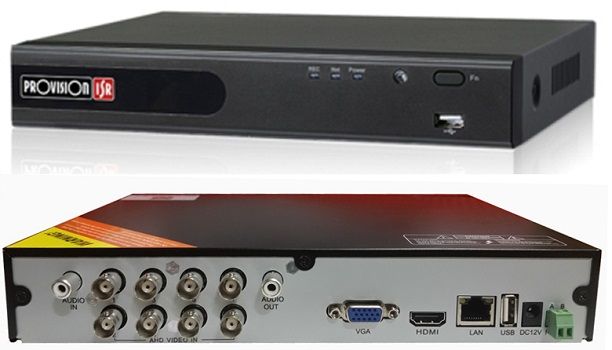

The Provision SH-8100A5N-2L(MM) XVR recorder delivers flexible hybrid digital video recording. As a hybrid recorder, it supports both analogue and advanced IP cameras with high image quality and versatile features. It offers 8 AHD/CVI/TVI/Analogue channels and 2 IP channels. A monitor can be connected via its VGA and HDMI outputs. Recording is possible on 8 AHD/CVI/TVI/Analogue channels and 2 IP channels at up to 2MP Full HD, 100 FPS. Up to four channels can be played back simultaneously, with intelligent video analytics. Connectivity includes 1 x SATA port (max. 6 TB HDD, not included), 2 x USB 2.0 and a 100 Mbps RJ-45 network port.
For our camera systems, customers can choose between two package types: DIY cable kit and pre-assembled cable kit.

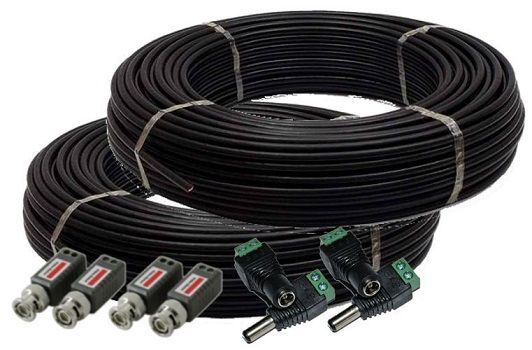

DIY cable kit: From each camera to the central unit you only need to run a single cable, carrying both power and video signal. The required connectors (video balun + power connector) are fitted by the customer to the ends of the cable – to make this easier, we have prepared an installation guide available at the following link: Installation and setup guide. With some basic technical skills the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The kit includes 10 metres of UTP cable per camera. If you need more cable, simply let us know in the order comments (+100 Ft/metre).
Pre-assembled cable kit: In this case, the connectors are factory-fitted to the ends of the camera cables and cannot be removed. This allows you to simply connect the recorder, camera power supply and cameras without any wiring work. The basic kit includes 10 metres of COX10 cable per camera. If you need longer cables, you can indicate this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).
The Provision Cam2 app allows users to fully manage their security devices. The application provides live view, playback and device configuration. Its AI-based video analytics features help reduce false alarms, while users can customise notifications and manage their devices remotely. The app also lets you share camera access with family members and other authorised users.
