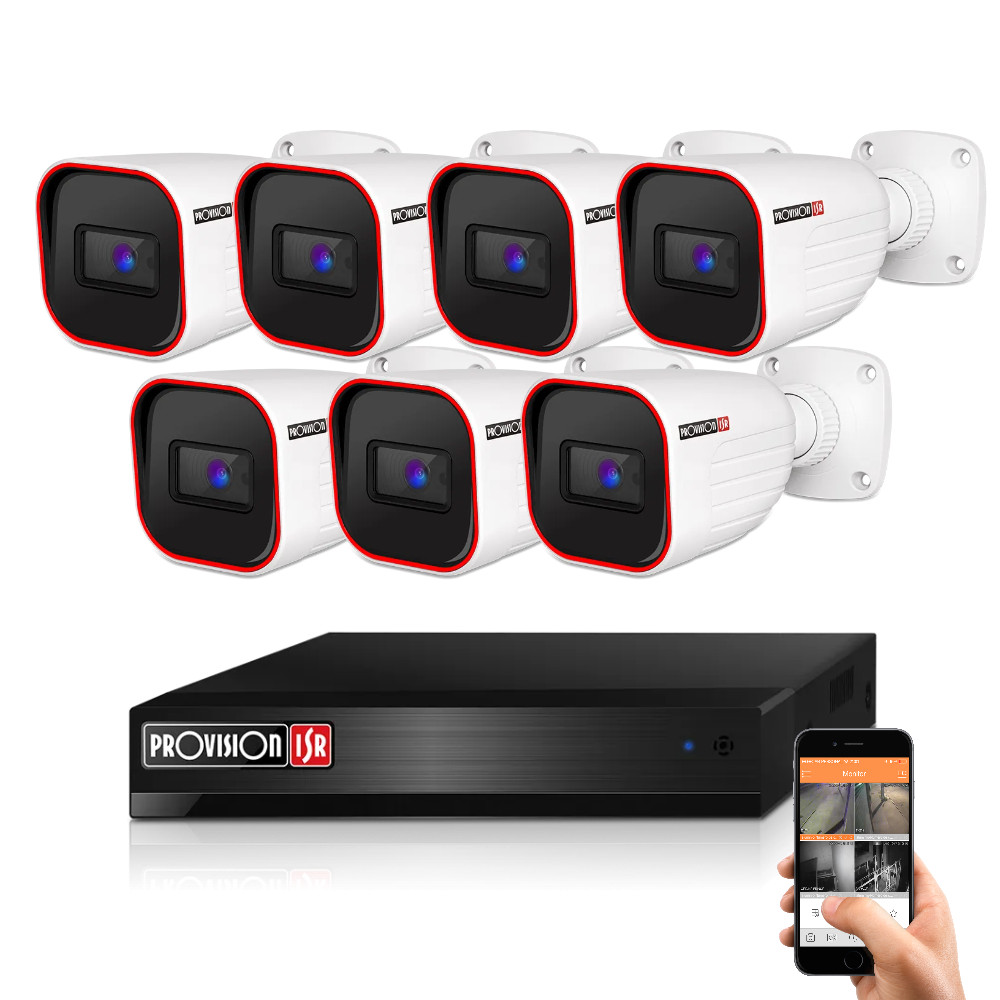

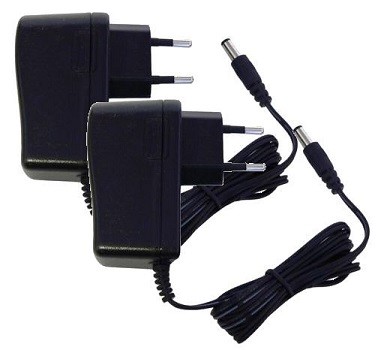

Discover the Provision AHD-23 surveillance camera system, ideal for enhancing security at home or in the office. The kit includes seven 2 megapixel Full HD security cameras that deliver excellent image quality even in low-light conditions thanks to night mode. It also comes with an 8-channel XVR digital recorder that enables remote access for convenient monitoring. With the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is easy to install and operate, making it a solid choice for anyone looking for a reliable security solution.
Provision AHD camera
Connect up to 8 cameras to the DVR
Maximum viewing distance in complete darkness
Weather-resistant housing

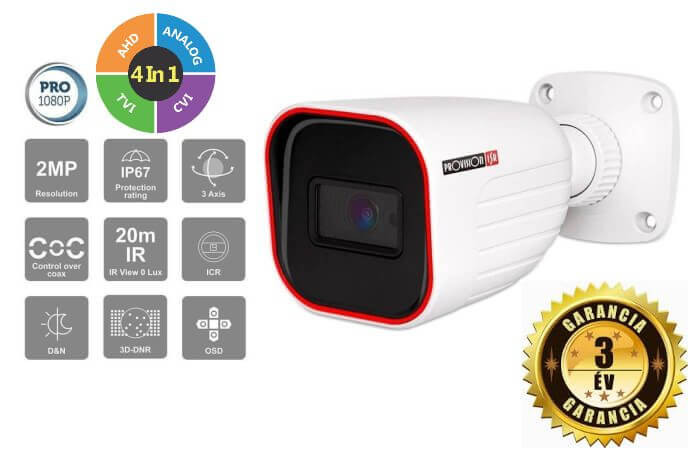

The Provision I2-320A-28 is an advanced security camera that provides an excellent solution for both indoor and outdoor use. This model is a 2 megapixel, FULL HD 1080p camera that delivers sharp, clear images even in low-light conditions. The built-in 2.8 mm fixed lens offers a wide 90° field of view. Night vision range is up to 20 meters. Its IP67-rated water- and dust-resistant housing withstands harsh weather conditions, ensuring reliability and durability in a wide range of environments.

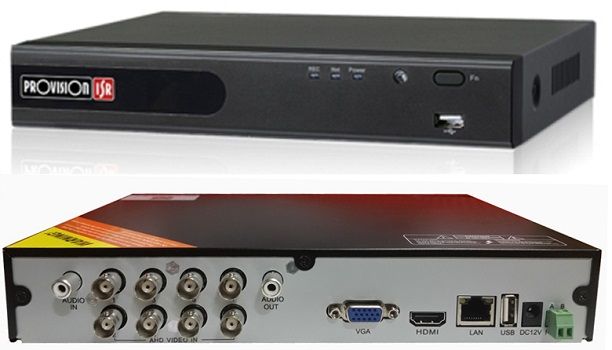

The Provision SH-8100A5N-2L(MM) XVR recorder delivers versatile hybrid digital video recording. As a hybrid recorder, it supports both analogue and advanced IP cameras with high image quality and rich functionality. It offers 8 AHD/CVI/TVI/Analogue channels and 2 IP channels. A monitor can be connected via VGA and HDMI outputs. Recording is supported on 8 AHD/CVI/TVI/Analogue channels and 2 IP channels, up to 2MP Full HD, 100 FPS. Up to four channels can be played back simultaneously, with intelligent video analytics. Connectivity includes 1 x SATA port (max. 6TB HDD, not included), 2 x USB 2.0 ports and a 100 Mbps RJ-45 network interface.
For our camera systems, customers can choose between two cabling options: DIY kit or pre-assembled cable kit.

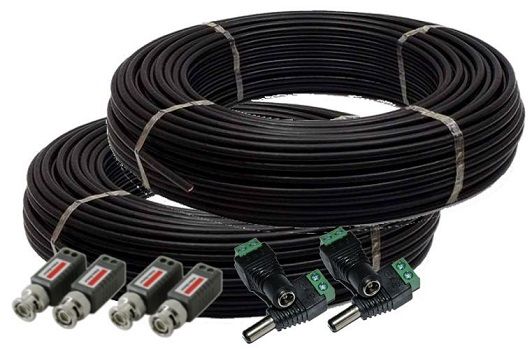

DIY kit: From each camera to the recorder you only need to run a single cable, which carries both power and video signal. The required connectors (video balun + power connector) are fitted by the customer to the end of the cable. To help with this, we have prepared an installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The kit includes 10 meters of UTP cable per camera. If you need more cable, simply let us know in the order comments (+100 Ft/meter).
Pre-assembled cable kit: In this case, the connectors are factory-fitted to the ends of the camera cables and cannot be removed. Installation is therefore reduced to simply connecting the recorder, camera power supply and cameras, with no wiring work. The standard kit includes 10 m COX10 cable per camera. If you need more cable, you can indicate this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).
The Provision Cam2 app allows users to manage their security devices remotely. The application provides live view, playback and device configuration options. AI-based video analytics help reduce false alarms, while users can customise notifications and manage devices from anywhere. The app also lets you share camera views with family members or other trusted contacts.
