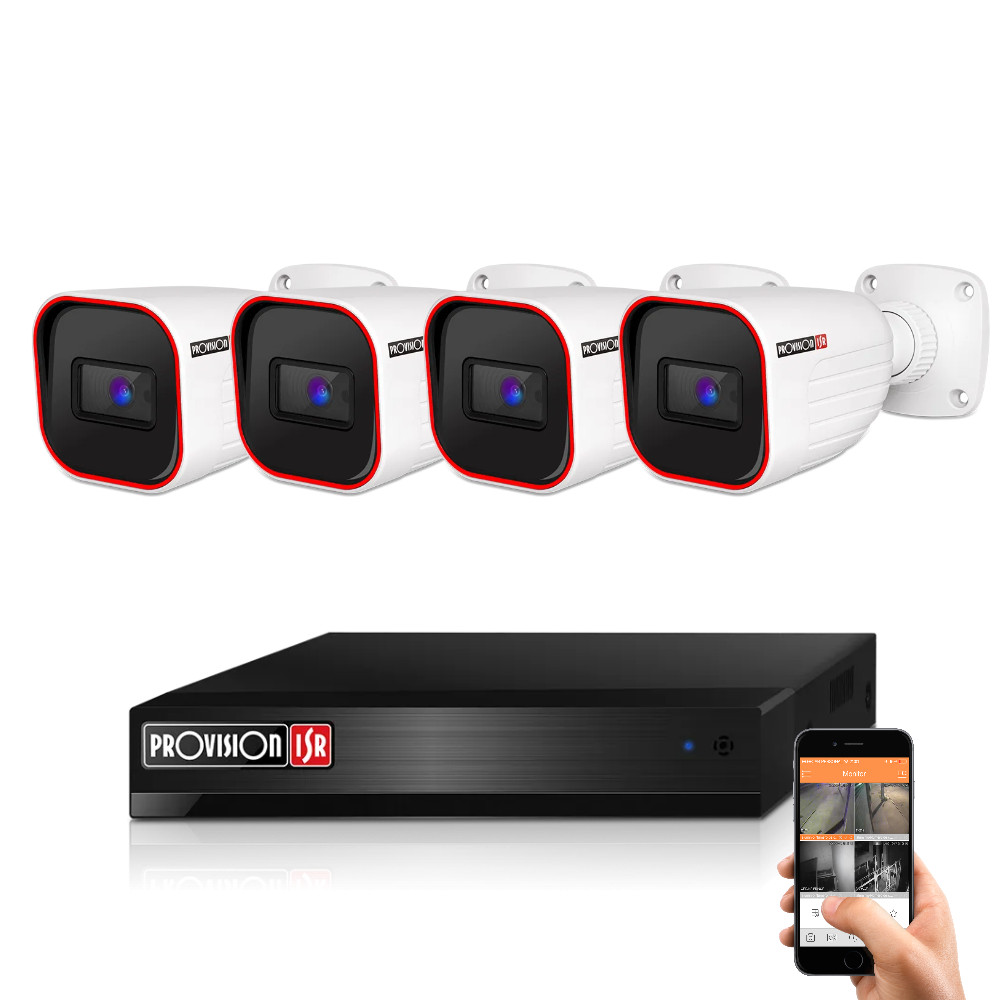

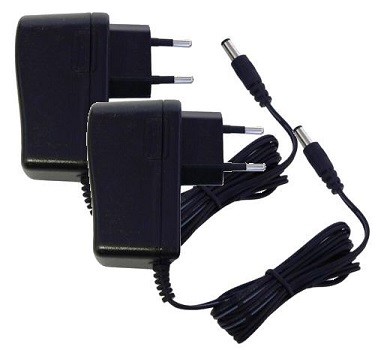

Discover the Provision AHD-23 surveillance camera system, ideal for enhancing security at home or in the office. The kit includes four 2 megapixel Full HD security cameras that deliver excellent image quality in low-light conditions with night mode. It also comes with a 4-channel XVR digital recorder, which offers remote access for flexible monitoring. Thanks to the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is easy to install and operate, making it a practical choice for anyone looking for a reliable security solution.
Provision AHD camera
Connect up to 4 cameras to the DVR
Maximum viewing distance in complete darkness
Weather-resistant housing

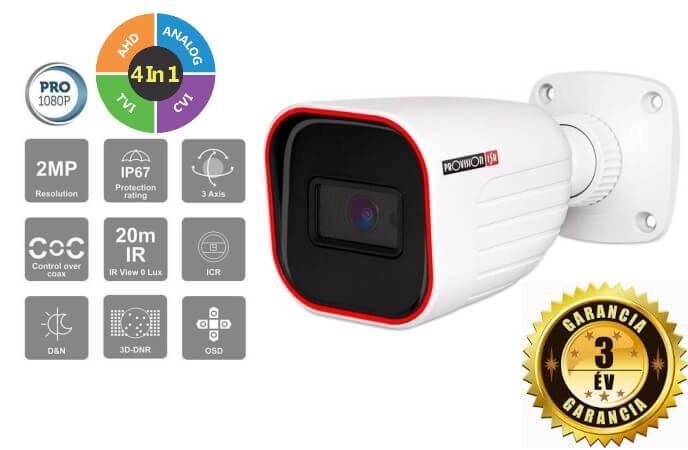

The Provision I2-320A-28 is an advanced security camera, ideal for both indoor and outdoor use. This 2 megapixel, Full HD 1080p camera delivers sharp, detailed images even in low-light conditions. The built-in 2.8 mm fixed lens offers a wide 90° field of view. Its night vision range is up to 20 meters. The IP67-rated water- and dust-resistant housing withstands harsh weather conditions, ensuring reliability and durability in a wide range of environments.

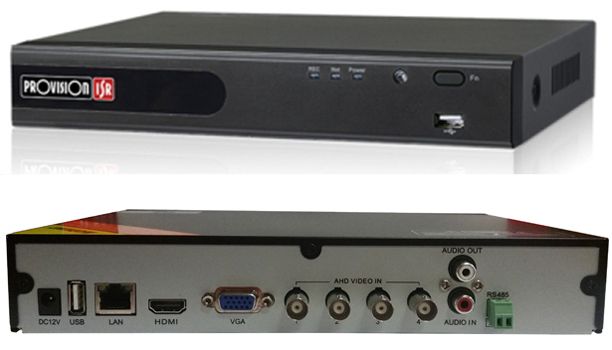

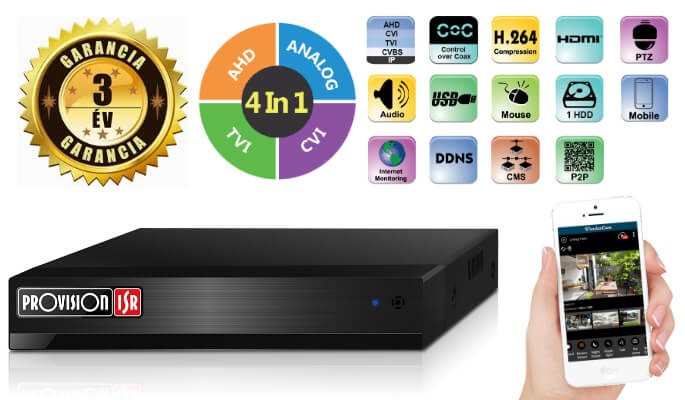

The Provision SH-4100A5N-2L(MM) XVR recorder provides versatile hybrid digital video recording. As a hybrid recorder, it supports both analogue and advanced IP cameras with strong image quality and feature set. It offers 4 AHD/CVI/TVI/Analogue channels and 2 IP channels. A monitor can be connected via VGA or HDMI outputs. Recording is possible on 4 AHD/CVI/TVI/Analogue channels and 2 IP channels, up to 2MP Full HD, 100 FPS in total. It supports simultaneous playback of four channels with intelligent video analytics. Connectivity includes 1 x SATA port (max. 6TB HDD, not included), 2 x USB 2.0 and a 100 Mbps RJ-45 network port.
For our camera systems, customers can choose between two installation kits: a DIY kit and a pre-assembled cable kit.

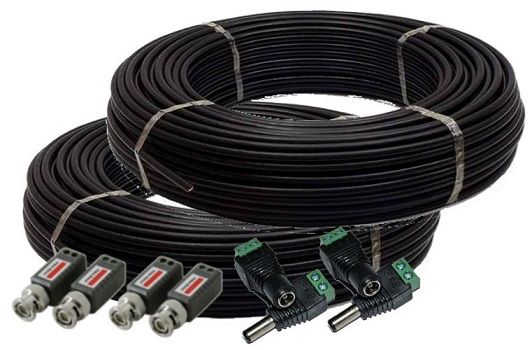

DIY kit: From each camera to the central unit you only need to run a single cable, which carries both power and video. The required connectors (video balun + power connector) are fitted by the customer to the end of the cable – to help with this, we have prepared an installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The kit includes 10 meters of UTP cable per camera. If you need longer cables, you can indicate this in the order comments (+100 Ft/meter).
Pre-assembled cable kit: In this case, the connectors are already factory-fitted to the camera cable and cannot be removed. You only need to connect the recorder, camera power supply and cameras – no wiring work required. The basic kit includes 10 meters of COX10 cable per camera. If you need longer cables, you can indicate this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).
The Provision Cam2 app lets users fully manage their security devices. The application offers live view, playback and device configuration. AI-based video analytics help reduce false alarms, while users can customise notifications and manage devices remotely. The app also allows you to share camera access with family members or other trusted contacts.
