Provision AHD-23 3-camera surveillance system 2MP

We also recommend the following product as an accessory

• Details
• Data
• Reviews
• használati útmutató

Details

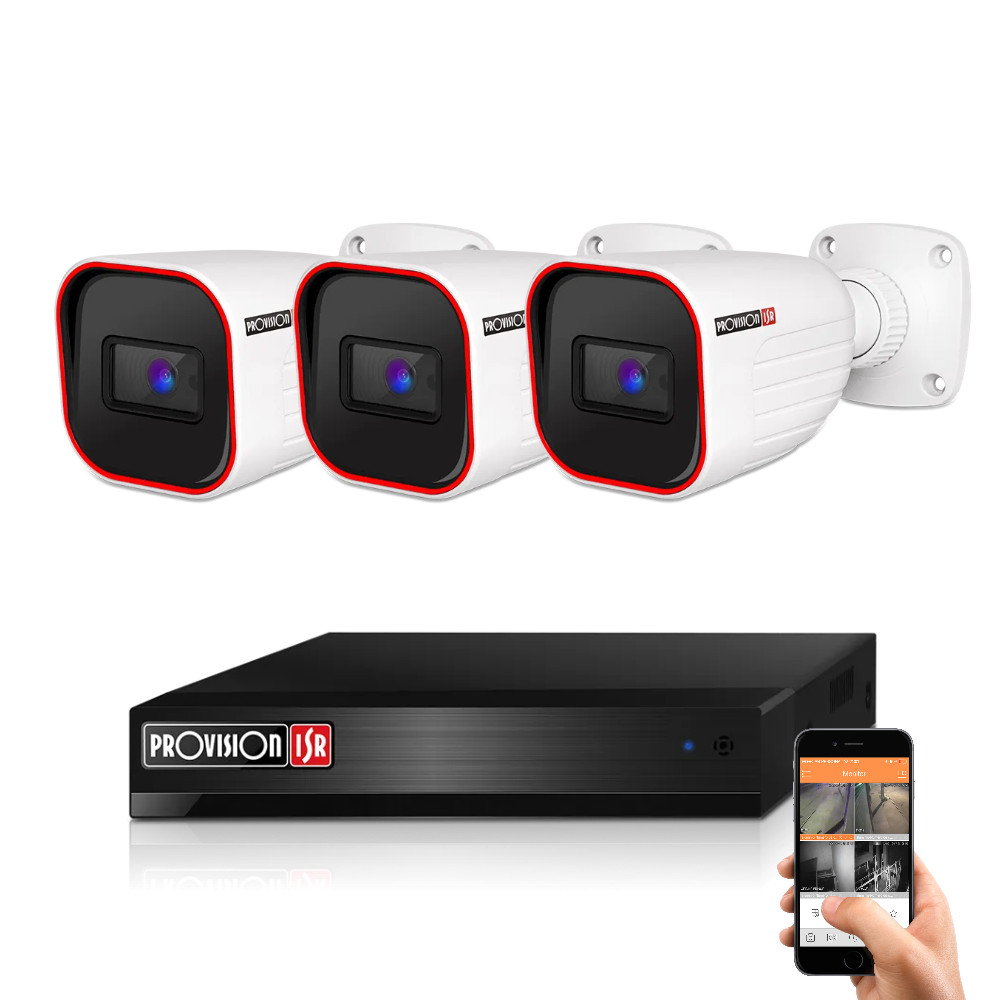

3-camera Provision security system with 2MP Full HD resolution, 20 m night vision for indoor and outdoor use

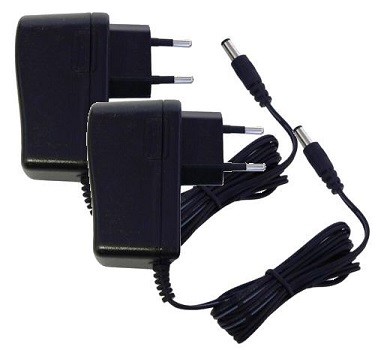

Discover the Provision AHD-23 surveillance camera system, ideal for enhancing security at home or in the office. The kit includes three 2 megapixel Full HD security cameras that deliver excellent image quality even in low-light conditions thanks to night mode. It also comes with a 4-channel XVR digital recorder, providing remote access for convenient monitoring. The included installation kit (camera power supply, video balun, UTP cable, power connector) makes the system easy to install and operate, making it a practical choice for anyone looking for a reliable security solution.

2

MEGAPIXEL

Provision AHD camera

4

CHANNELS

Connect up to 4 cameras to the DVR

20 m

RANGE

Maximum viewing distance in complete darkness

IP67

RATING

Resistant to weather conditions

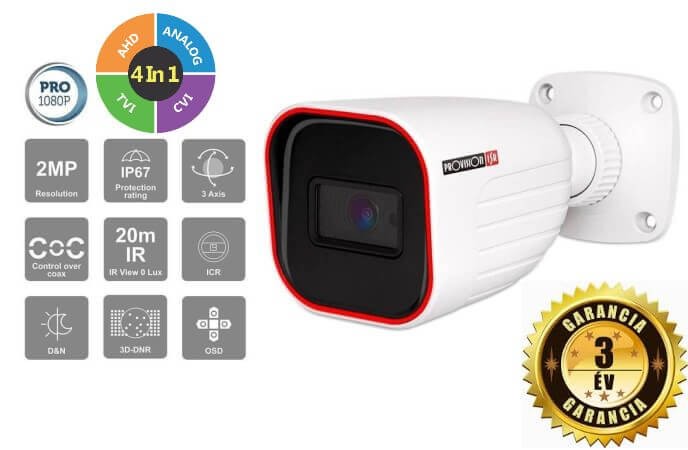

3 pcs Provision Full HD 2MP security cameras for clear images indoors and outdoors

The Provision I2-320A-28 is an advanced security camera, ideal for both indoor and outdoor use. This model is a 2 megapixel FULL HD 1080p camera that delivers sharp, clear images even in low-light conditions. The built-in 2.8 mm fixed lens offers a wide 90-degree viewing angle, with a night vision range of up to 20 meters. Its IP67-rated, water- and dust-resistant housing withstands harsh weather conditions, ensuring reliability and durability in almost any environment.

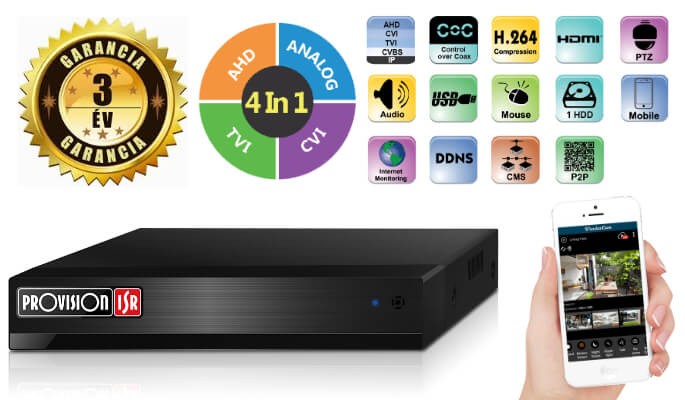

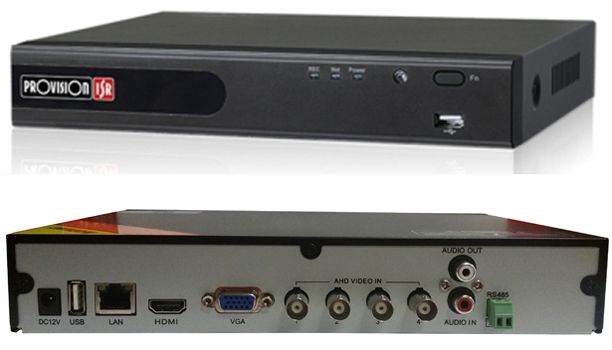

1 pc Provision 4-channel 2MP hybrid XVR recorder with smart features

The Provision SH-4100A5N-2L(MM) XVR recorder provides versatile hybrid digital video recording. As a hybrid recorder, it supports both analog and modern IP cameras with strong image quality and feature set. It offers 4 AHD/CVI/TVI/Analog channels and 2 IP channels. A monitor can be connected via VGA or HDMI outputs. Recording is possible on 4 AHD/CVI/TVI/Analog channels and 2 IP channels, up to 2MP Full HD, 100 FPS. It supports simultaneous playback of four channels with intelligent video analytics. The device includes 1 x SATA port (max. 6TB HDD, not included), 2 x USB 2.0 ports and a 100 Mbps RJ-45 network interface.

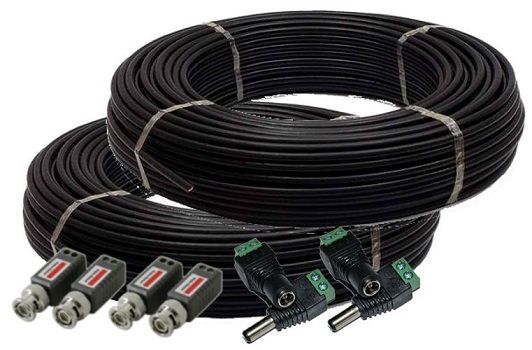

Camera system installation kit with all essential components

For our camera systems, customers can choose between two cabling options: a DIY kit or a pre-assembled cable kit.

DIY kit: From each camera to the central unit you only need to run a single cable that carries both power and video signal. The required connectors (video balun + power connector) are fitted by the customer to the cable ends – to help with this, we have prepared an installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The kit includes 10 meters of UTP cable per camera. If you need more cable, you can let us know in the order comments (+100 Ft/meter).

Pre-assembled cable kit: In this case, the connectors are factory-fitted to the ends of the camera cable and cannot be removed. Installation is therefore reduced to simply connecting the recorder, camera power supply and cameras, with no additional wiring work. The standard kit includes 10 meters of COX10 cable per camera. If you need more cable, you can indicate this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).

Internet access via Provision Cam2 mobile application

The Provision Cam2 app allows users to manage their security devices remotely. The application provides live view, playback and device configuration options. AI-based video analytics help reduce false alarms, while users can customize notifications and manage devices from anywhere. The app also lets you share camera access with family members or other trusted contacts.

Data

Biztonsági kamerák száma:

3

Kameradesign:

Cső

Area of ​​use:

Kültér és beltér

Functions:

, ,

Reviews

Be the first to write a review!

Write a review

használati útmutató

Általános használati szerelési utasítás

• Szerelési Telepítési Útmutató
• Provision DVR OSSIA menüvel rendelkező

• Provision DVR/NVR jelszó visszaállítás

---

Letöltések

Provision IP tool	Letöltés
Provision kimentett felvétel lejátszó [OSSIA menüs rögzítőkhöz]	Letöltés
Provision CMS program [Apple MAC OS verzió]	Letöltés
