Provision AHD-23 2-camera surveillance system 2MP

We also recommend the following product as an accessory

• Details
• Data
• Reviews
• Telepítési, használati útmutató

Details

2-camera Provision security system with 2MP Full HD resolution, 20 m night vision for outdoor and indoor use

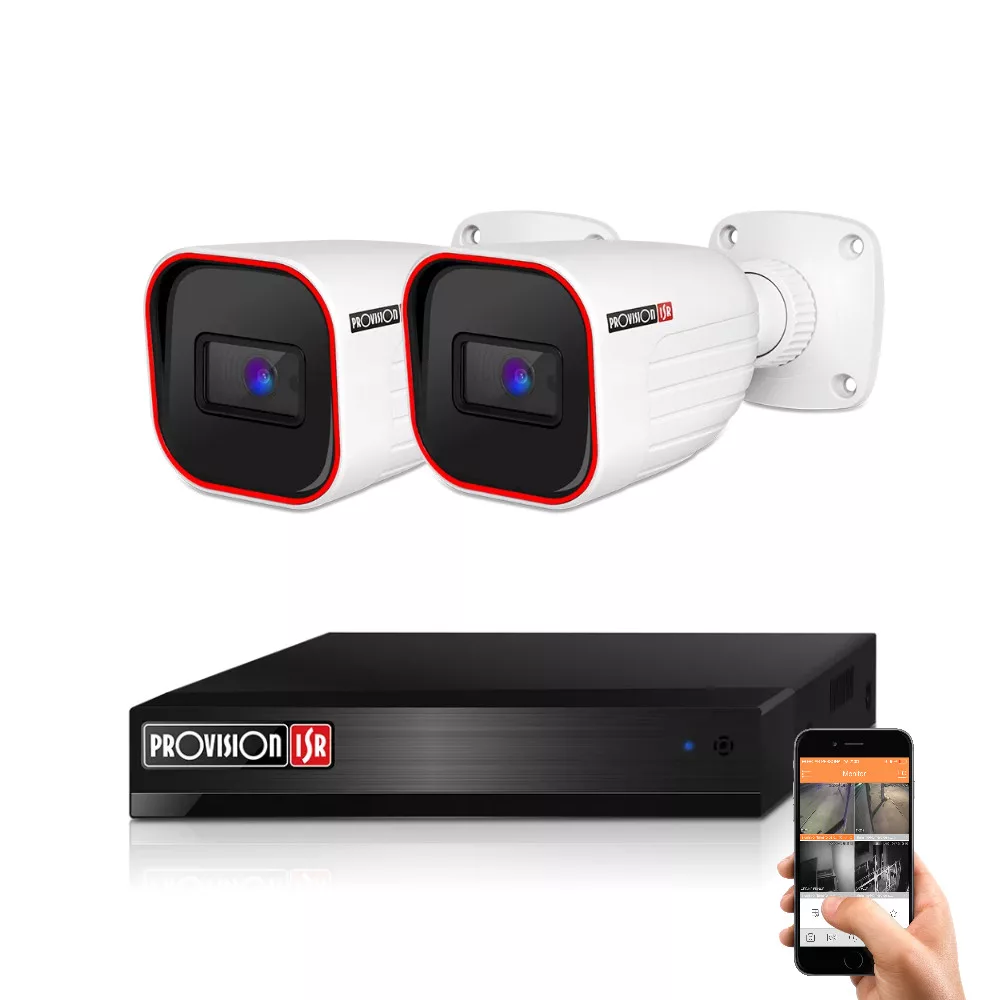

Discover the Provision AHD-23 surveillance camera system, ideal for enhancing security at home or in the office. The kit includes two 2-megapixel Full HD security cameras that deliver excellent image quality even in low-light conditions with night mode. It also comes with a 4-channel XVR digital recorder, which offers remote access for easy monitoring from anywhere. Thanks to the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is easy to install and operate, making it a practical choice for anyone looking for a reliable security solution.

2

MEGAPIXEL

Provision AHD camera

4

CHANNELS

Connect up to 4 cameras to the DVR

20 m

NIGHT VISION RANGE

Maximum viewing distance in complete darkness

IP67

RATING

Resistant to outdoor weather conditions

2 Provision Full HD 2MP security cameras for clear images indoors and outdoors

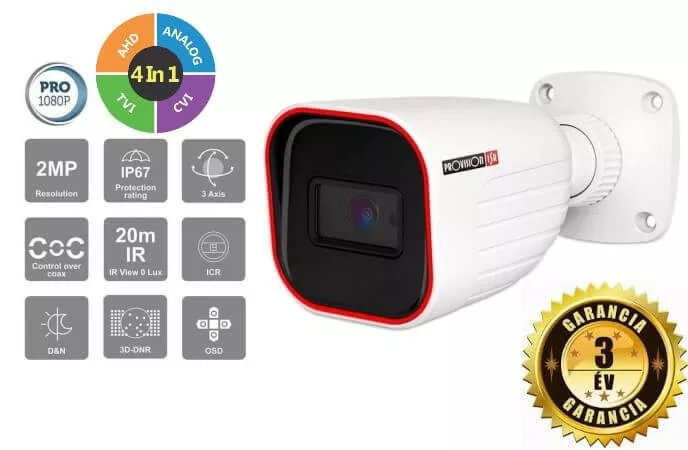

The Provision I2-320A-28 is an advanced security camera that provides an excellent solution for both indoor and outdoor use. This model is a 2-megapixel FULL HD 1080p camera that delivers sharp and clear images even in low-light conditions. The built-in 2.8 mm fixed lens offers a wide 90° field of view. Its night vision range is up to 20 metres. The IP67-rated water- and dust-resistant housing withstands harsh weather conditions, helping ensure reliability and durability in a wide range of environments.

1 Provision 4-channel 2MP hybrid XVR recorder with smart features

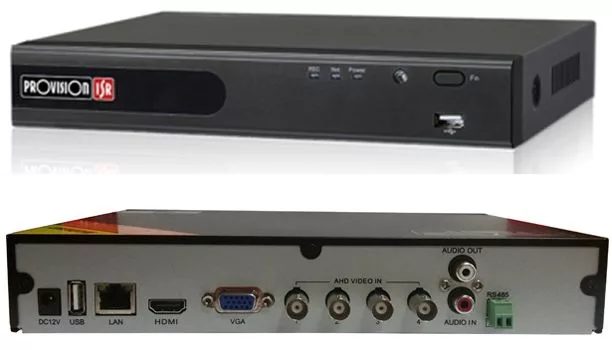

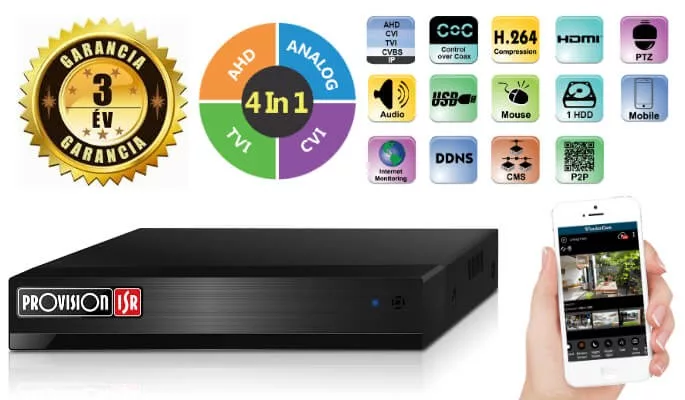

The Provision SH-4100A5N-2L(MM) XVR recorder delivers flexible hybrid digital video recording. As a hybrid recorder, it supports both analogue and advanced IP cameras with strong image quality and features. It offers 4 AHD/CVI/TVI/Analogue channels and 2 IP channels. A monitor can be connected via VGA and HDMI outputs. Recording is available on 4 AHD/CVI/TVI/Analogue channels and 2 IP channels, up to 2MP Full HD, 100 FPS in total. It supports simultaneous playback of four channels with intelligent video analytics. Connections include 1 x SATA port (up to 6 TB HDD, not included), 2 x USB 2.0 and a 100 Mbps RJ-45 network port.

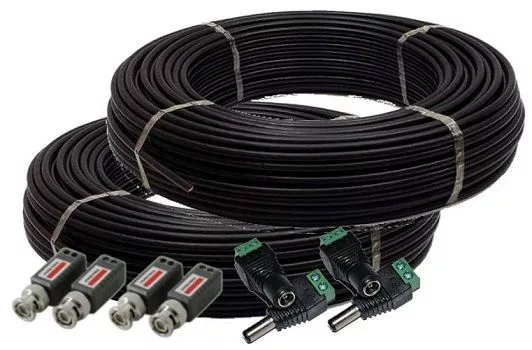

Complete installer kit for your camera system with all essential components

For our camera systems, customers can choose between two package options: a DIY installation kit or a pre-terminated cable kit.

DIY installation kit: From each camera to the central unit you only need to run a single cable, which carries both power and video signal. The required connectors (video balun + power connector) are fitted to the cable ends by the user – to assist with this, we have prepared an installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The kit includes 10 metres of UTP cable per camera. If you need more cable, you can let us know in the order comments (+100 Ft/metre).

Pre-terminated cable kit: In this case, the connectors are factory-installed on the camera cable ends and cannot be removed. Installation is therefore reduced to simply connecting the recorder, camera power supply and cameras, with no wiring work. The basic kit includes 10 metres of COX10 cable per camera. If you need more cable, you can indicate this in the order comments (also available in 20 m COX20 and 30 m COX30 versions).

Internet access via the Provision Cam2 mobile app

The Provision Cam2 app allows users to conveniently manage their security devices. The application offers live view, playback and device configuration. AI-based video analytics features help reduce false alerts, while users can customise notifications and manage devices remotely. The app also makes it possible to share camera access with family members or other trusted contacts.

Data

Biztonsági kamerák száma:

2

Kameradesign:

Cső

Area of ​​use:

Kültér és beltér

Functions:

, ,

Reviews

Be the first to write a review!

Write a review

Telepítési, használati útmutató

Általános használati szerelési utasítás

• Szerelési Telepítési Útmutató
• Provision DVR OSSIA menüvel rendelkező

• Provision DVR/NVR jelszó visszaállítás

---

Letöltések

Provision IP tool	Letöltés
Provision kimentett felvétel lejátszó [OSSIA menüs rögzítőkhöz]	Letöltés
Provision CMS program [Apple MAC OS verzió]	Letöltés
