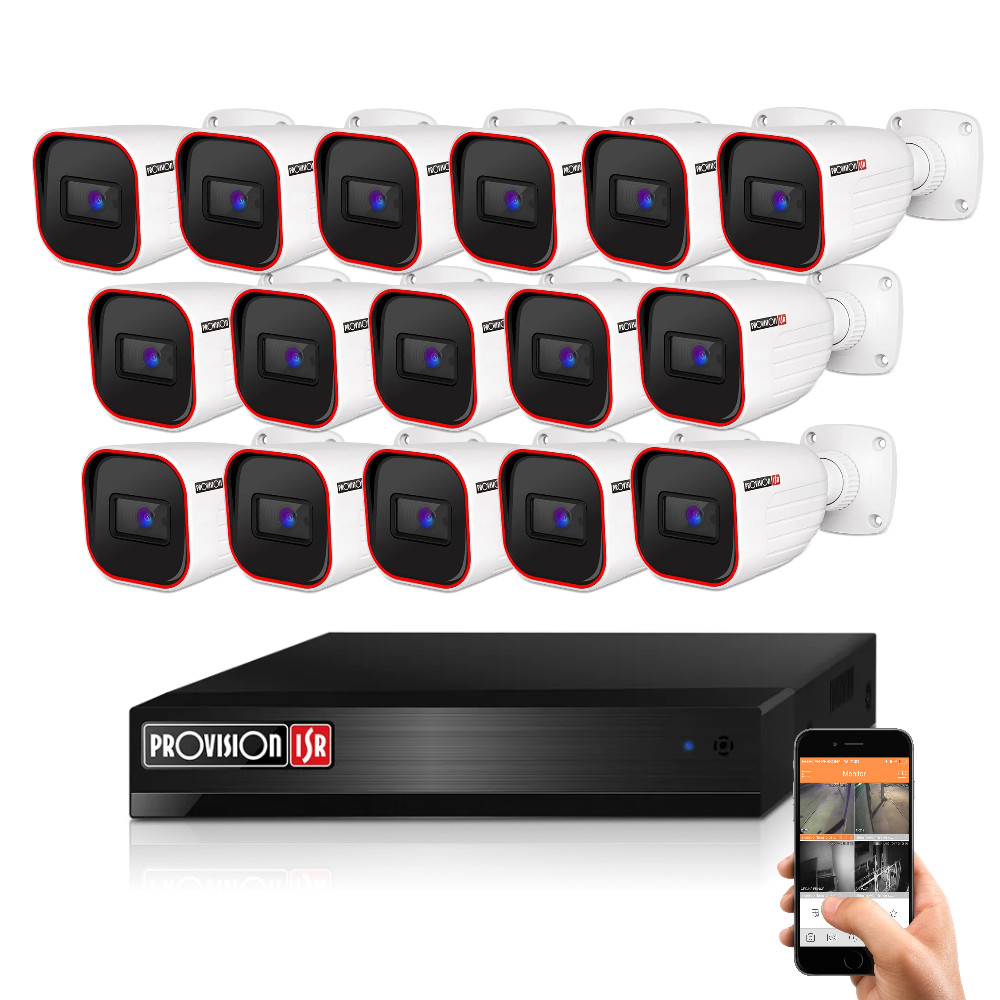

Discover the Provision AHD-23 surveillance camera system, ideal for boosting security at home or in the office. The kit includes sixteen 2 megapixel Full HD security cameras that deliver clear image quality even in low light with night mode. It also comes with a 16-channel XVR digital recorder, which offers remote access for flexible monitoring. Thanks to the included installation kit (camera power supply, video balun, UTP cable, power connector), the system is easy to install and operate, making it a practical choice for anyone looking for a reliable security solution.
Provision AHD camera
Up to 16 cameras can be connected to the DVR
Maximum viewing distance in complete darkness
Weather-resistant housing

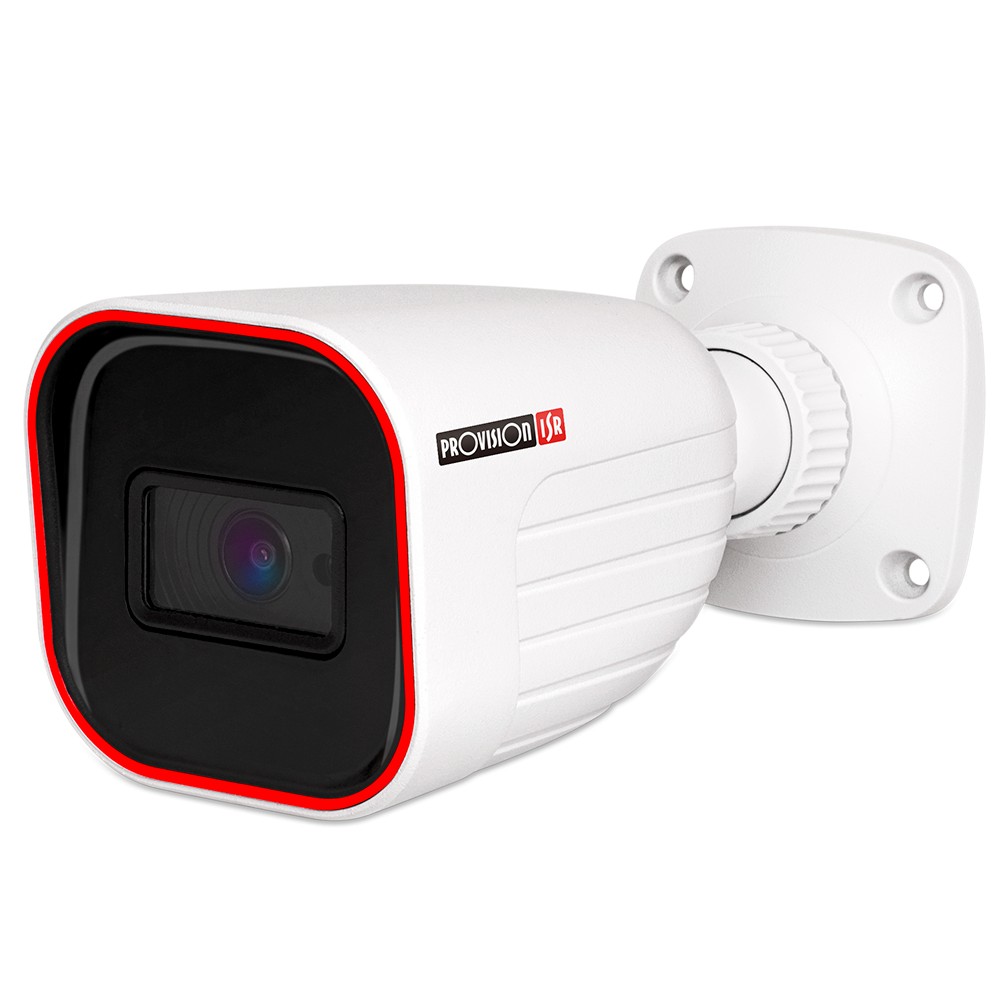

The Provision I2-320A-28 is an advanced security camera designed for both indoor and outdoor use. This 2 megapixel, Full HD 1080p camera delivers sharp, clear images even in low-light conditions. The built-in 2.8 mm fixed lens offers a wide 90° field of view, while its night vision range is up to 20 meters. The IP67-rated water- and dust-resistant housing withstands harsh weather conditions, helping ensure reliable, long-term operation in a wide range of environments.

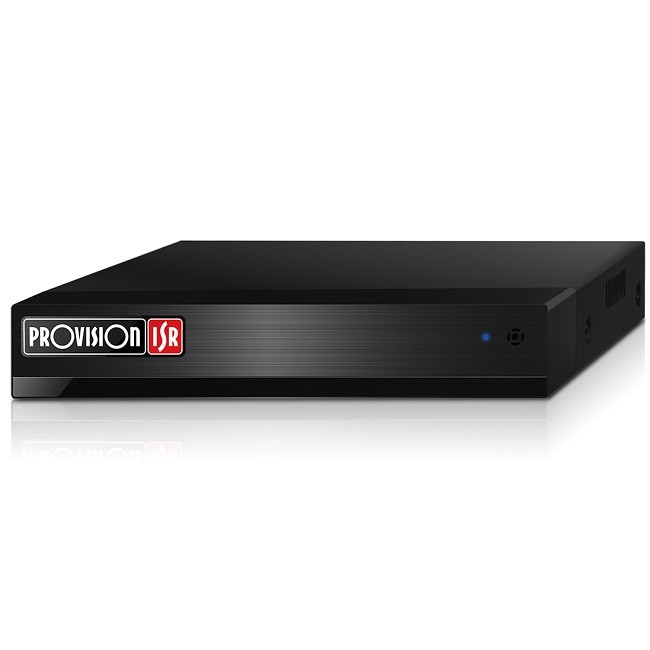

The Provision SH-16200A5N-2L(MM) XVR recorder provides flexible hybrid digital video recording. As a hybrid recorder, it supports both analogue and IP cameras with strong image quality and feature set. It offers 16 AHD/CVI/TVI/Analogue channels and 2 IP channels. A monitor can be connected via VGA or HDMI outputs. Recording is available on 16 AHD/CVI/TVI/Analogue channels and 2 IP channels, up to 2MP Full HD, 400 FPS in total. Up to four channels can be played back simultaneously with intelligent video analytics. Connectivity includes 1 x SATA port (max. 6 TB HDD, not included), 2 x USB 2.0 and a 100 Mbps RJ-45 network interface.

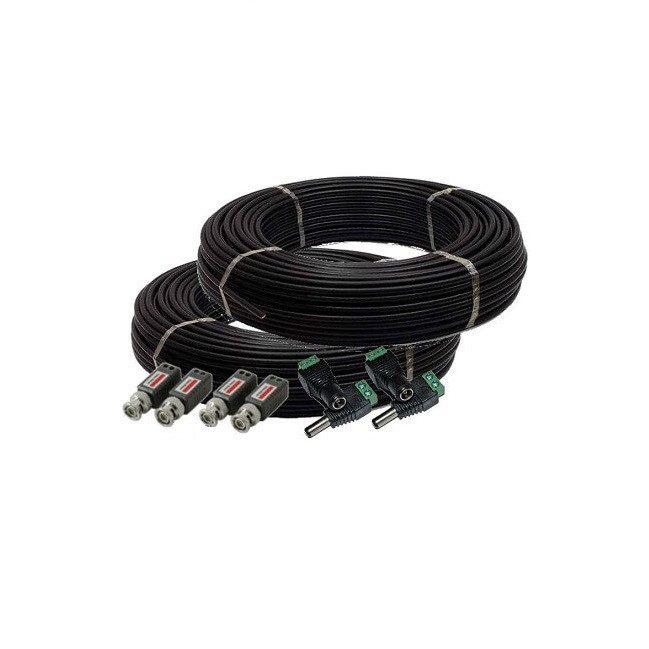

For our camera systems, you can choose between two cable packages: a DIY kit and a pre-terminated cable kit.
DIY kit: From each camera to the central unit you only need to run a single cable, which carries both power and video. The required connectors (video balun + power connector) are fitted by the customer to the end of the cable. To help with this, we have created an installation guide available at the following link: Installation and setup guide. With some basic technical skills, the camera system can be assembled at home. No crimping tool is required, only side cutters, a screwdriver and a utility knife. The kit includes 10 meters of UTP cable per camera. If you need more cable, you can specify this in the order notes (+100 Ft/meter).
Pre-terminated cable kit: In this option, the connectors are already factory-fitted to the camera cables and cannot be removed. Installation is simplified to plugging together the recorder, camera power supply and camera, without any wiring work. The base package includes 10 meters of COX10 cable per camera. If you need more cable, you can indicate this in the order notes (also available in 20 m COX20 and 30 m COX30 lengths).
The Provision Cam2 app allows users to manage their security devices remotely. The application offers live view, playback and device configuration options. Its AI-based video analytics features can help reduce unwanted alerts, while users can customise notifications and manage devices from anywhere. The app also makes it possible to share camera views with family members or other trusted contacts.
